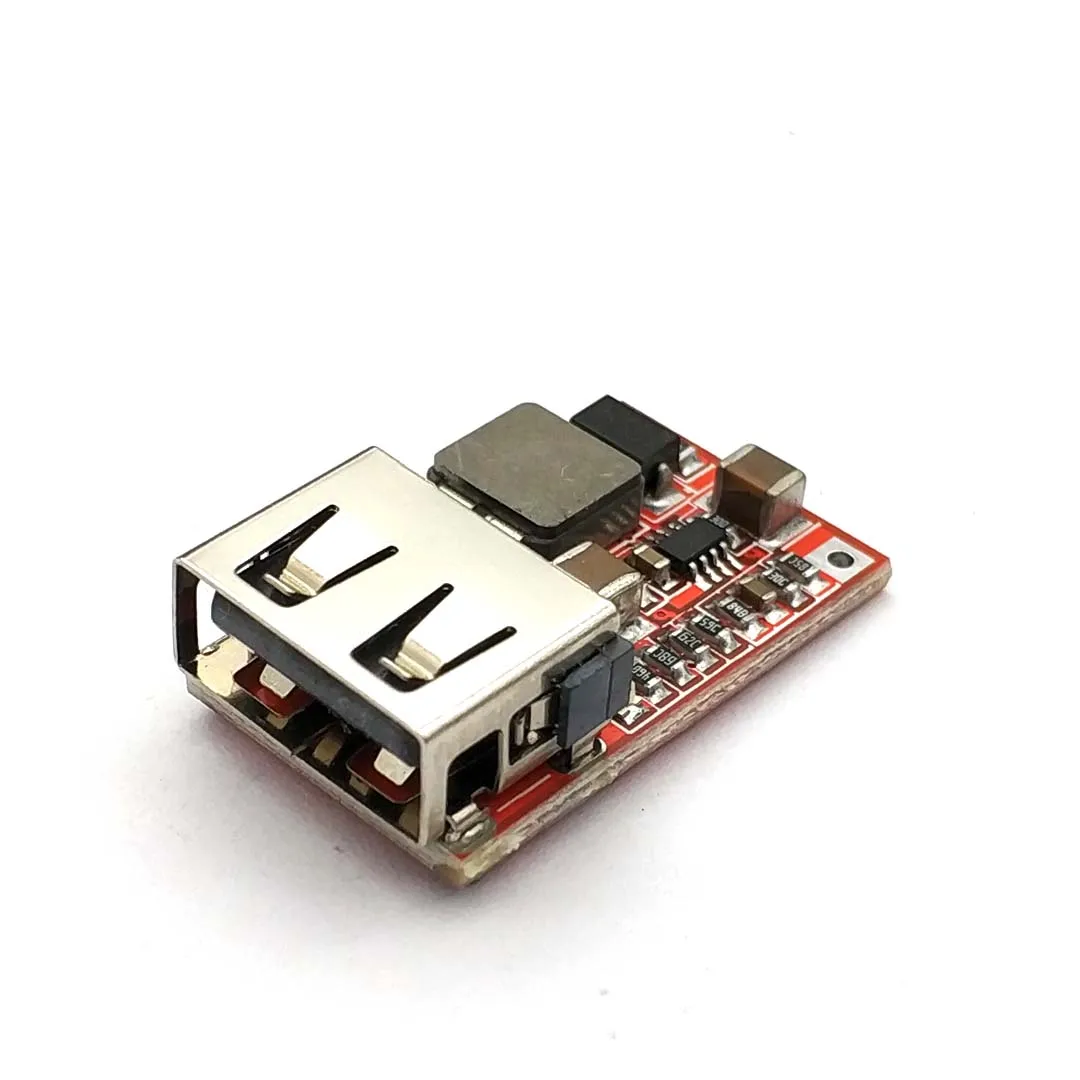

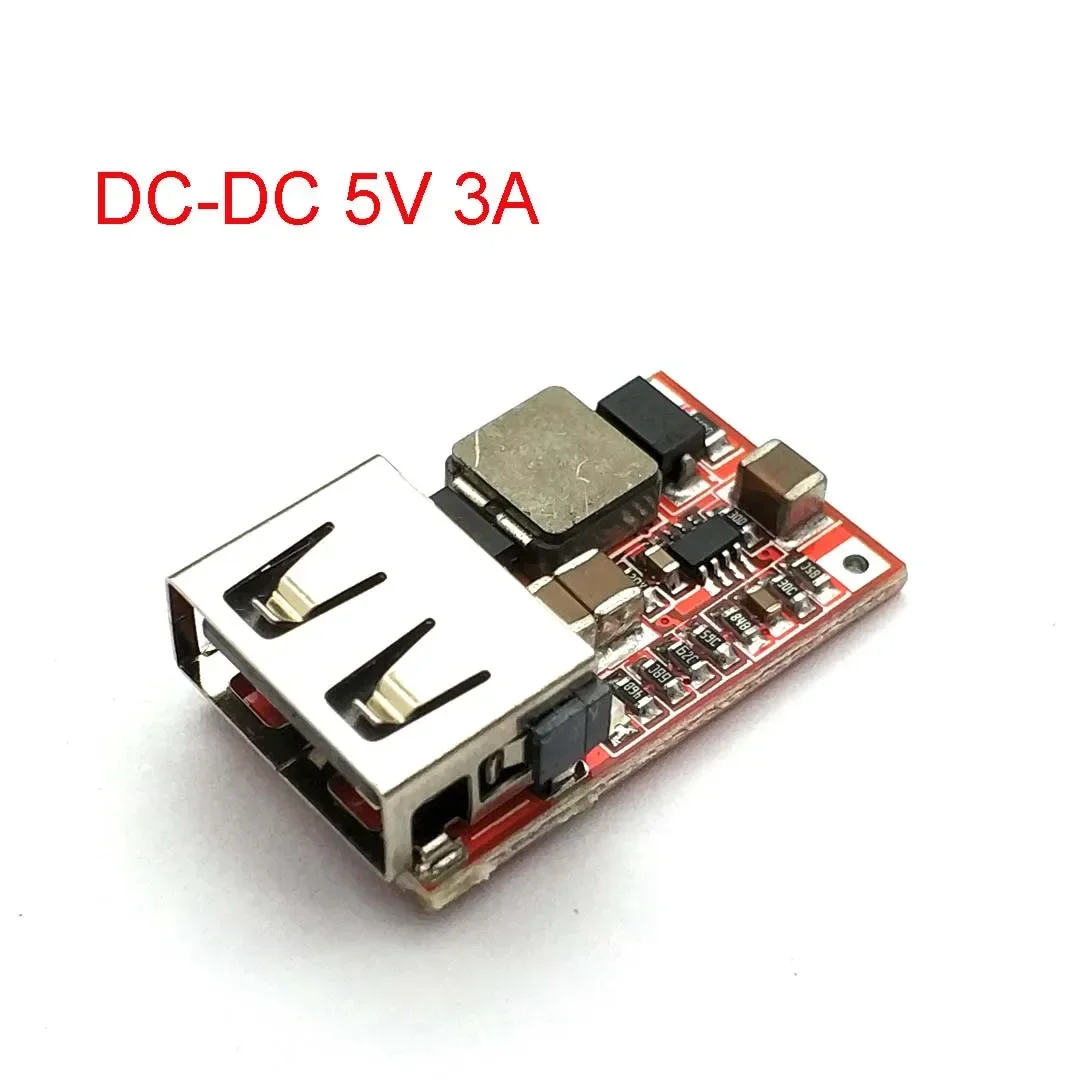

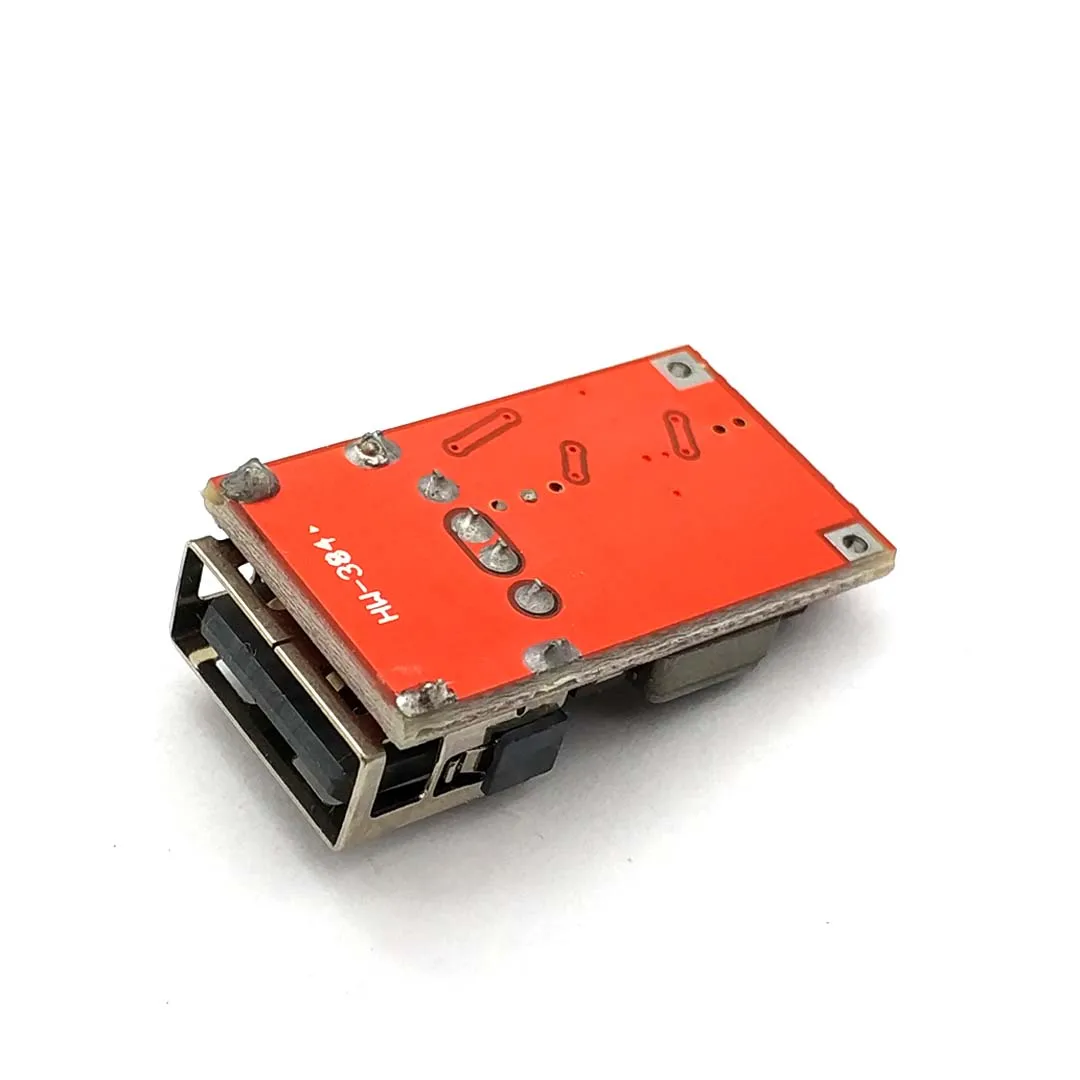

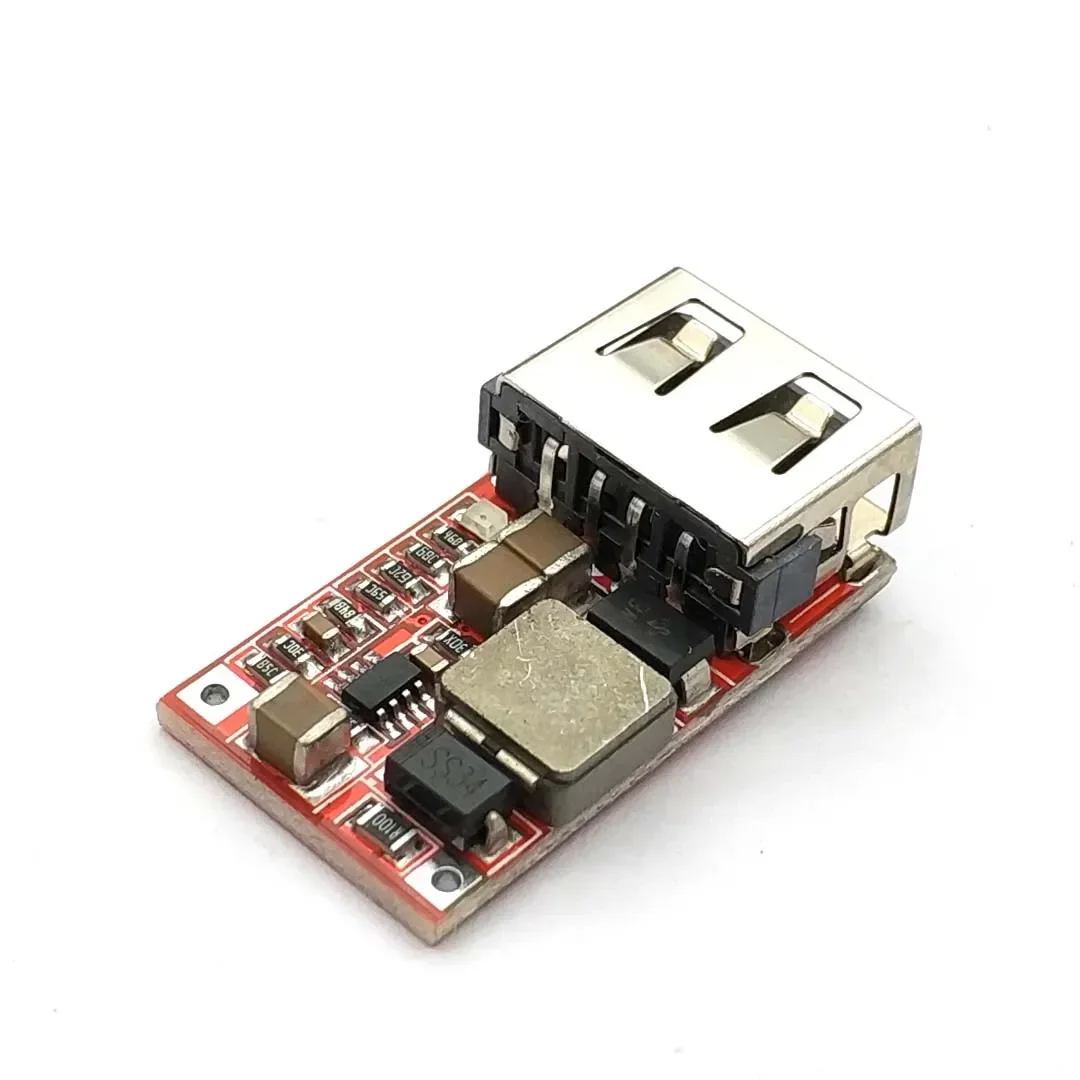

DC 6-24V 12V/24V To 5V 3A CAR USB Charger Module DC Buck Step Down Converter 12v 5v Power Supply Module

6-24V 12V/24V To 5V 3A CAR USB Charger Module DC Buck Step Down Converter 12v 5v Power Supply Module

Description

Module nature: non-isolated buck module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: maximum 3A (full load, please pay attention to heat), the actual test input 12V output 2A no special treatment within the cooling.
Conversion efficiency: up to 97.5% (6.5 to 5V0.7A) (short-circuit reverse polarity protection fuse after the test value)
Switching frequency: 500KHz
Output ripple: about 10mV (12V to 5V3A)
Output indication: The output voltage indicator is red
Operating temperature: industrial (-40° to + 85°) (the higher the ambient temperature, the smaller the output power)
Output overvoltage protection: yes, input 1.5A fuse, output 5V 300W TVS tube clamp protection.
Full load temperature rise: 30°
Quiescent Current: 0.85 mA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short-circuit protection: Yes, do not short-circuit for a long time
Input reverse polarity protection: Yes, input reverse polarity protection diode
Wiring: welding
Input method: welding
Output: short headless USB

Package Included

1 Pcs  5V 3A CAR USB Charger Module
