EC2 EC3 EC5 EC8 Connector Kit Male and Female Bullet Gold Plated Banana Plug Be Used for RC Model Airplane Connector Parts Description: Model :EC2 2mm banana male and female connector Material: Copper + Plastic Capable continuous Amps: 15A Temperature Resistance: -20°C – 120°C Rated Current: 15A (EC2) Contact resistance: 0.4 mΩ (EC2) Recommend cable :18awg Use for :RC battery connector Model :EC3 3.5mm banana male and female connector Material: Copper + Plastic Capable continuous Amps: 50A

Category:
EC2 EC3 EC5 EC8 Connector Kit Male and Female Bullet Gold Plated Banana Plug Be Used for RC Model Airplane Connector Parts

Description:

Model :EC2 2mm banana male and female connector
Material: Copper + Plastic
Capable continuous Amps: 15A
Temperature Resistance: -20°C – 120°C
Rated Current: 15A (EC2)
Contact resistance: 0.4 mΩ (EC2)
Recommend cable :18awg
Use for :RC battery connector

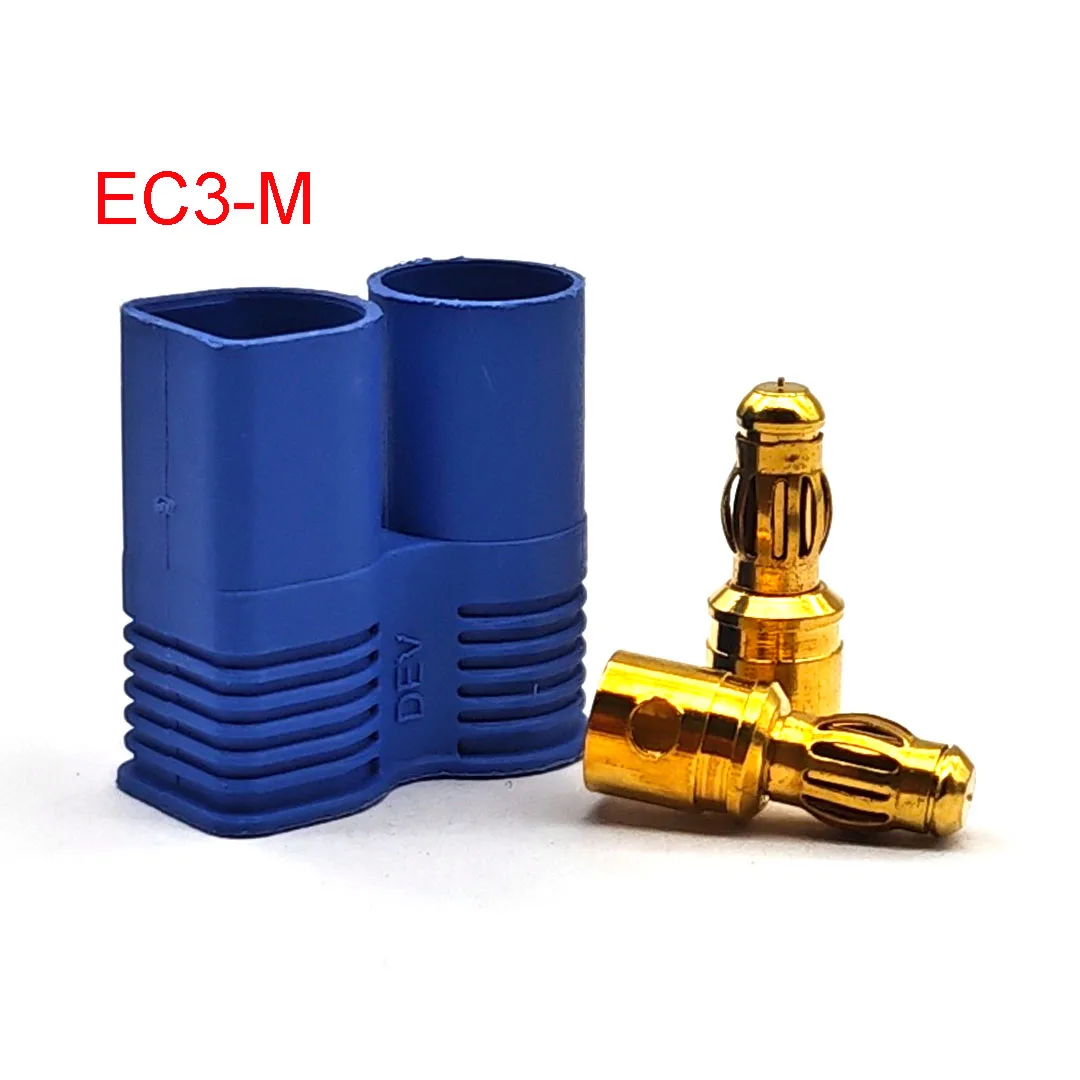

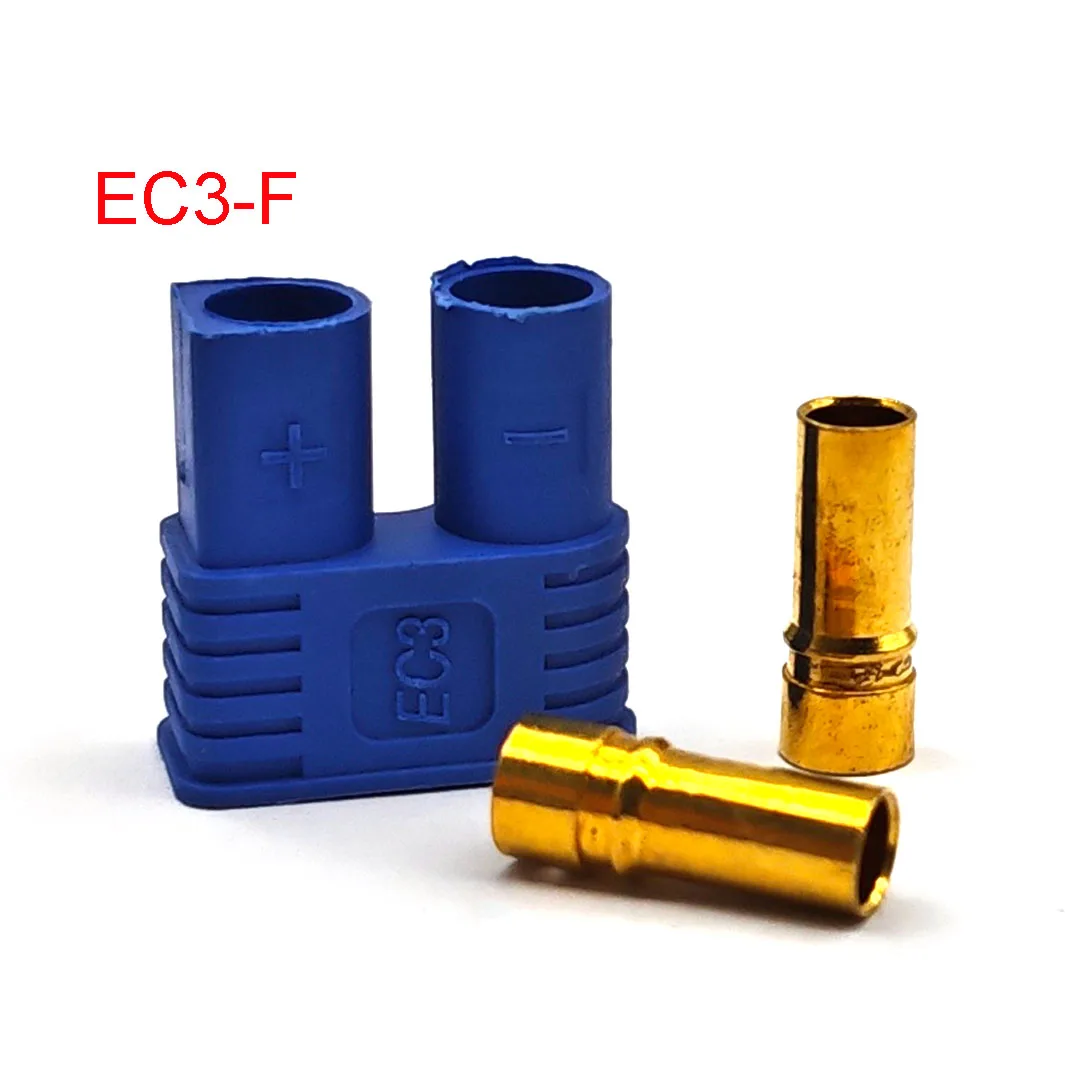

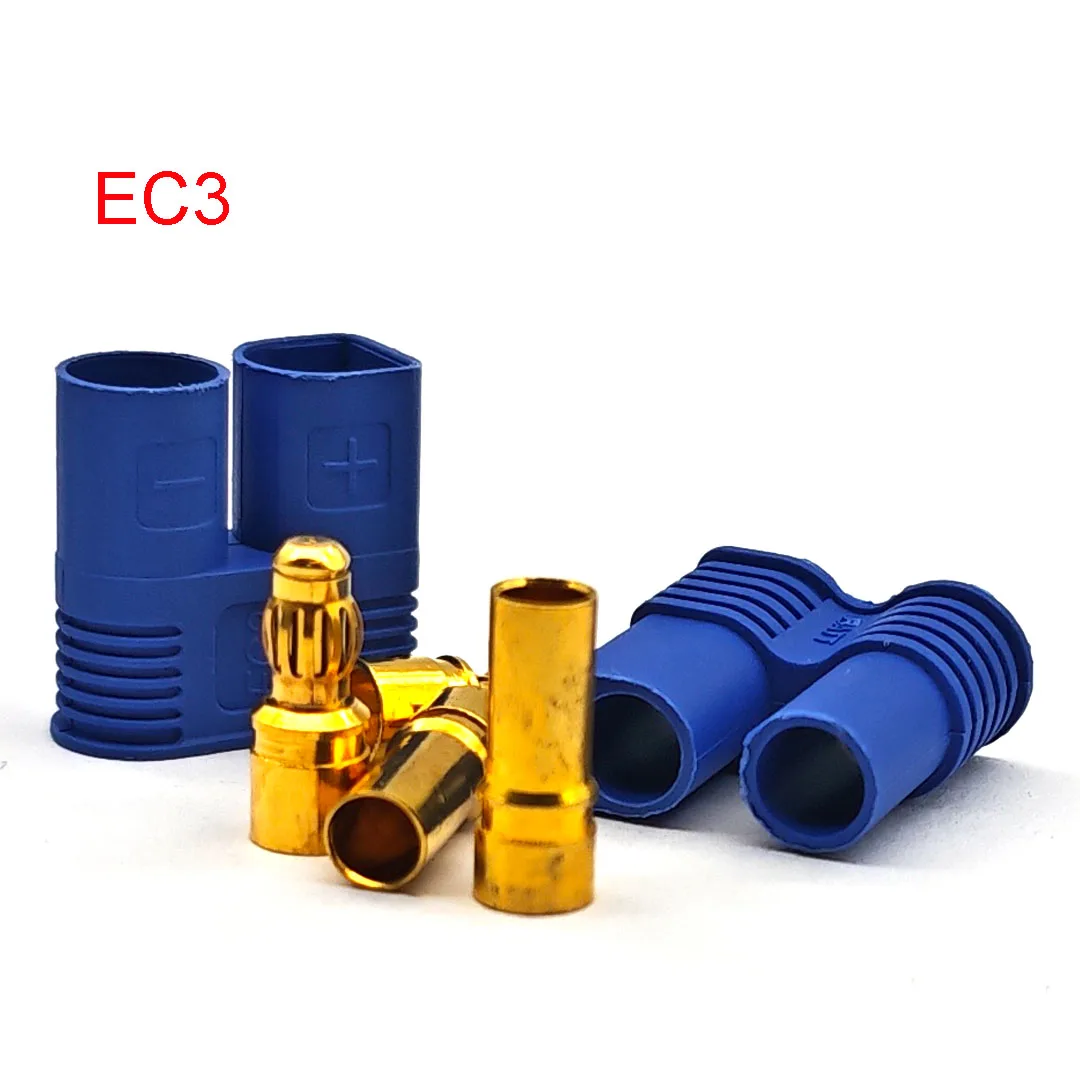

Model :EC3 3.5mm banana male and female connector
Material: Copper + Plastic
Capable continuous Amps: 50A
Temperature Resistance: -20°C – 120°C
Rated Current: 25A (EC3)
Contact resistance: 0.4 mΩ (EC3)
Recommend cable :14awg
Use for :RC battery connector

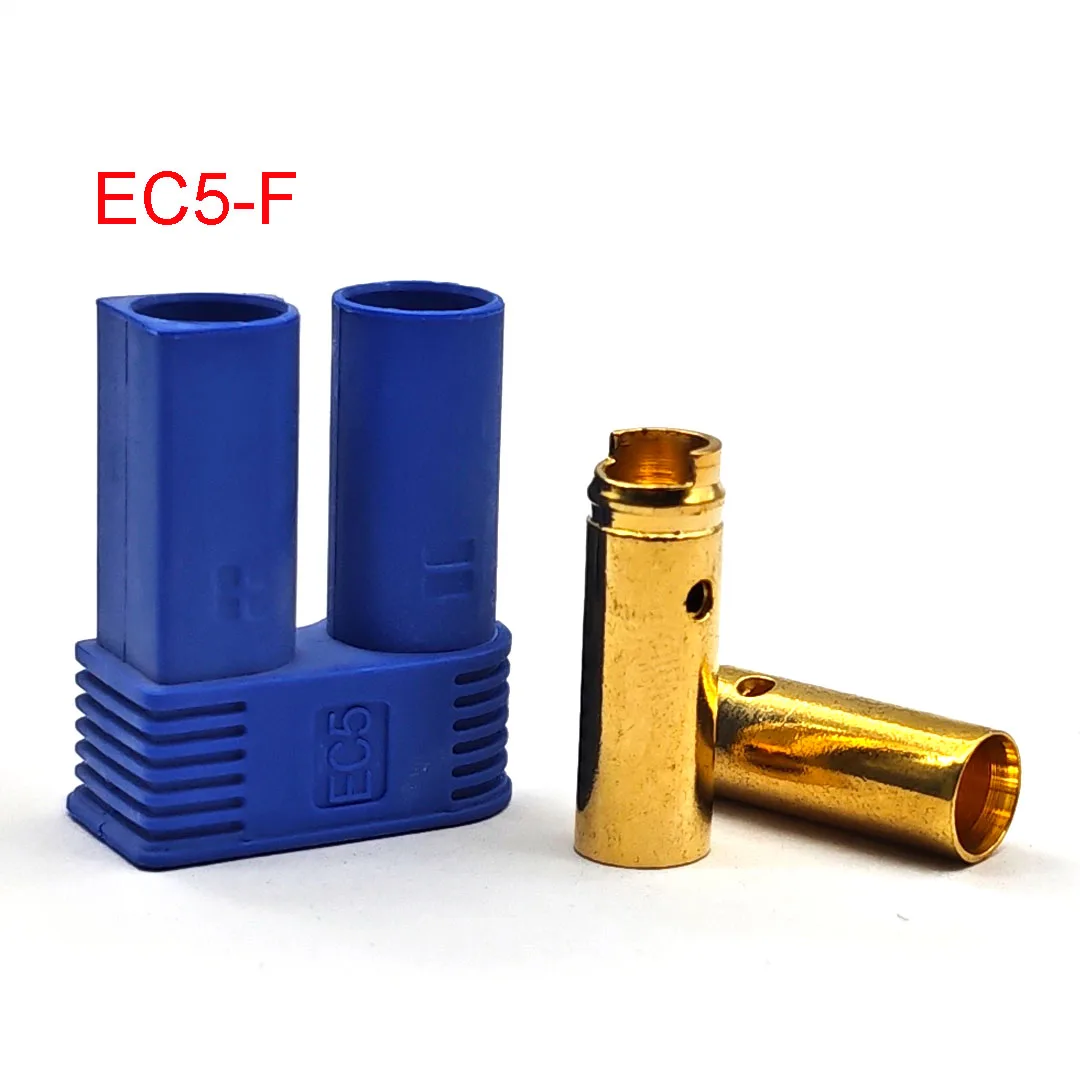

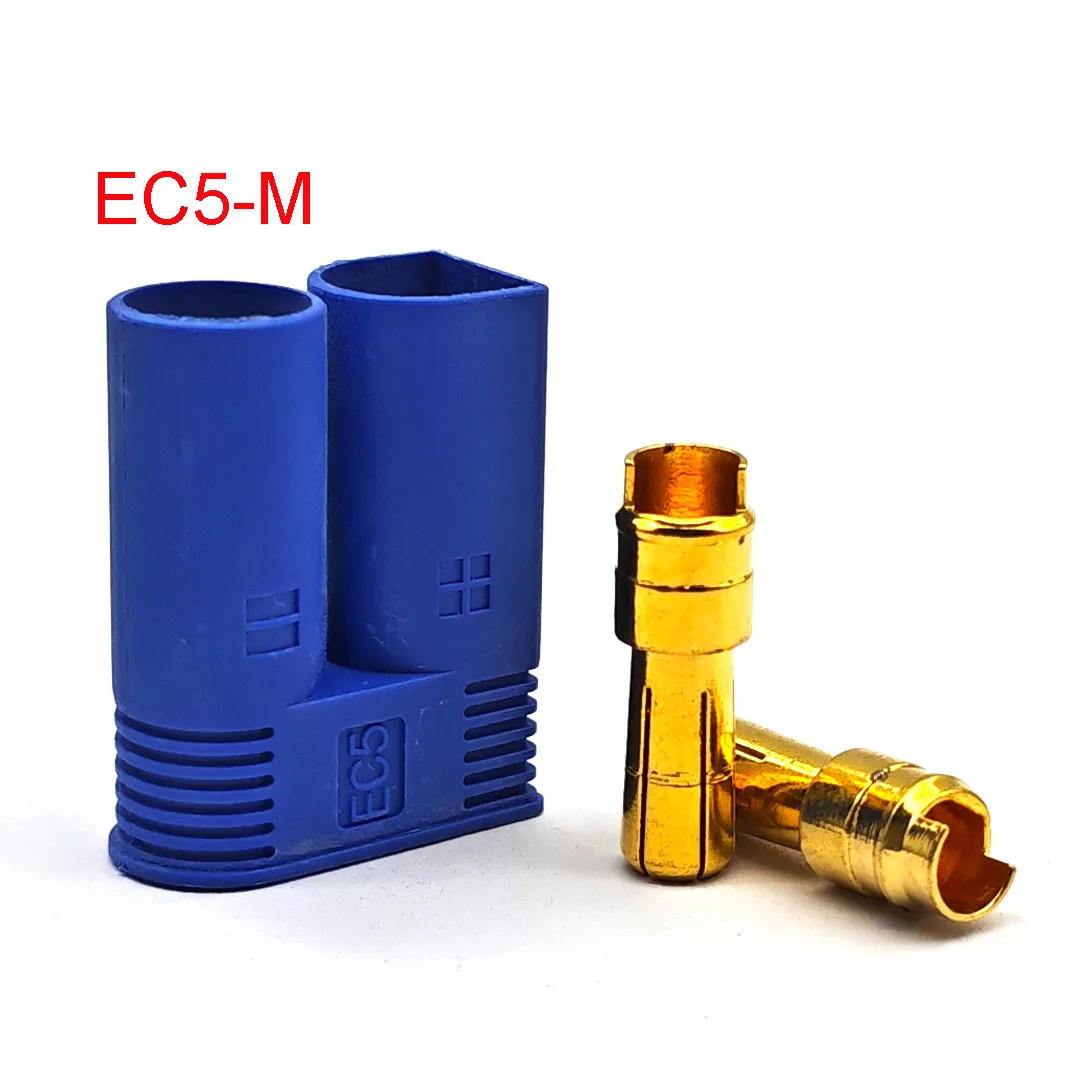

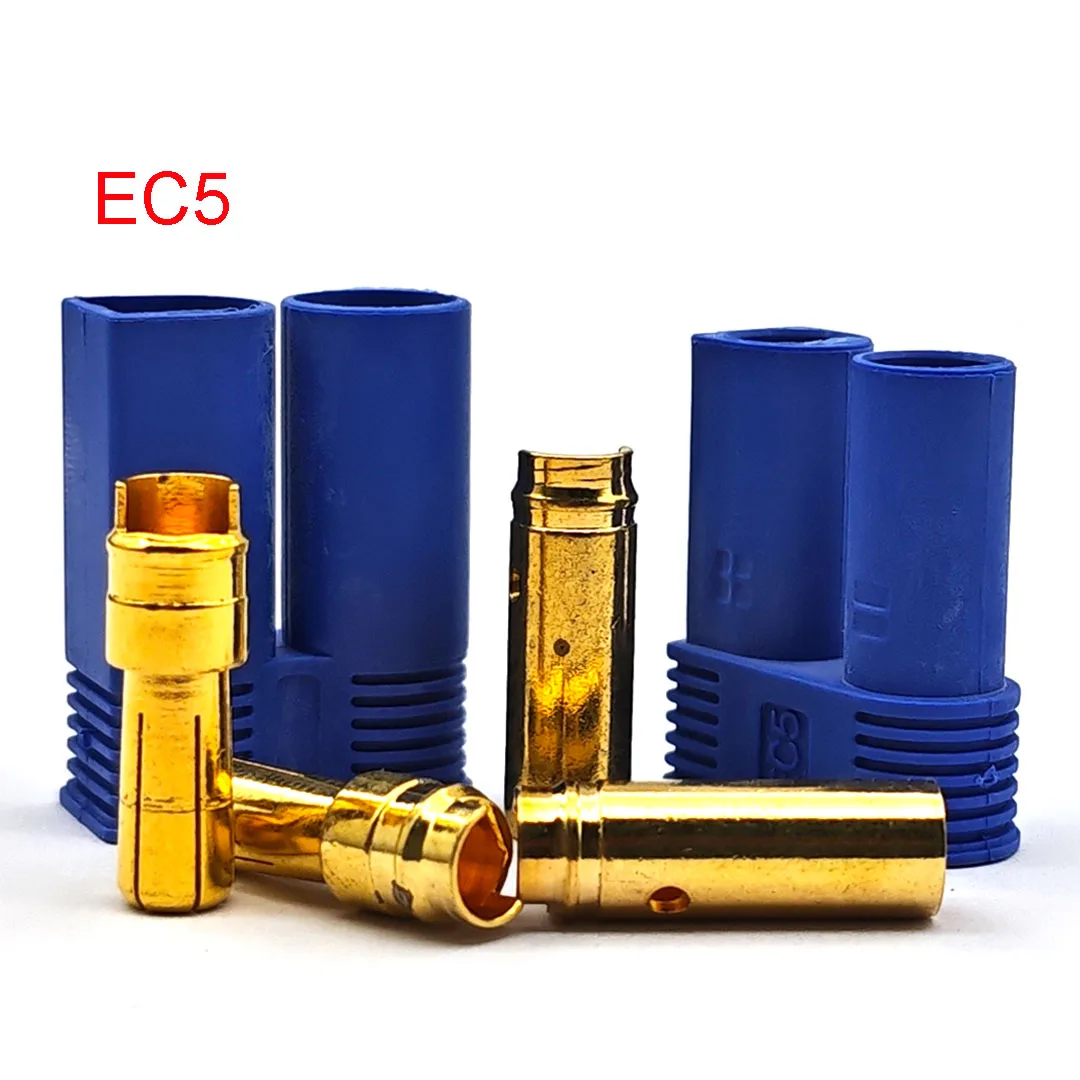

Model :EC5 5mm banana male and female connector
Material: Copper + Plastic
Capable continuous Amps: 100A
Temperature Resistance: -20°C – 120°C
Rated Current: 40A (EC5)
Contact resistance: 0.4 mΩ (EC5)
Recommend cable :10awg
Use for :RC battery connector

Model :EC6 6mm banana male and female connector
Material: Copper + Plastic
Capable continuous Amps: 120A
Temperature Resistance: -20°C – 120°C
Rated Current: 60A (EC6)
Contact resistance: 0.4 mΩ (EC6)
Recommend cable :8awg
Use for :RC battery connector

Model :EC8 8mm banana male and female connector
Material: Copper + Plastic
Capable continuous Amps: 200A
Temperature Resistance: -20°C – 120°C
Rated Current: 100A (EC8)
Contact resistance: 0.4 mΩ (EC8)
Recommend cable :7awg
Use for :RC battery connector

Package Included:

1 Pcs EC Connector

Weight 0.01 kg
Dimensions 13 × 8 × 5 cm
Model

EC6-M, EC3-M, EC3-F, EC3-M-F, EC5-M, EC5-F, EC5-M-F, EC2-M, EC2-F, EC2-M-F, EC8-M, EC6-F, EC6-M-F, EC8-M-F, EC8-F
