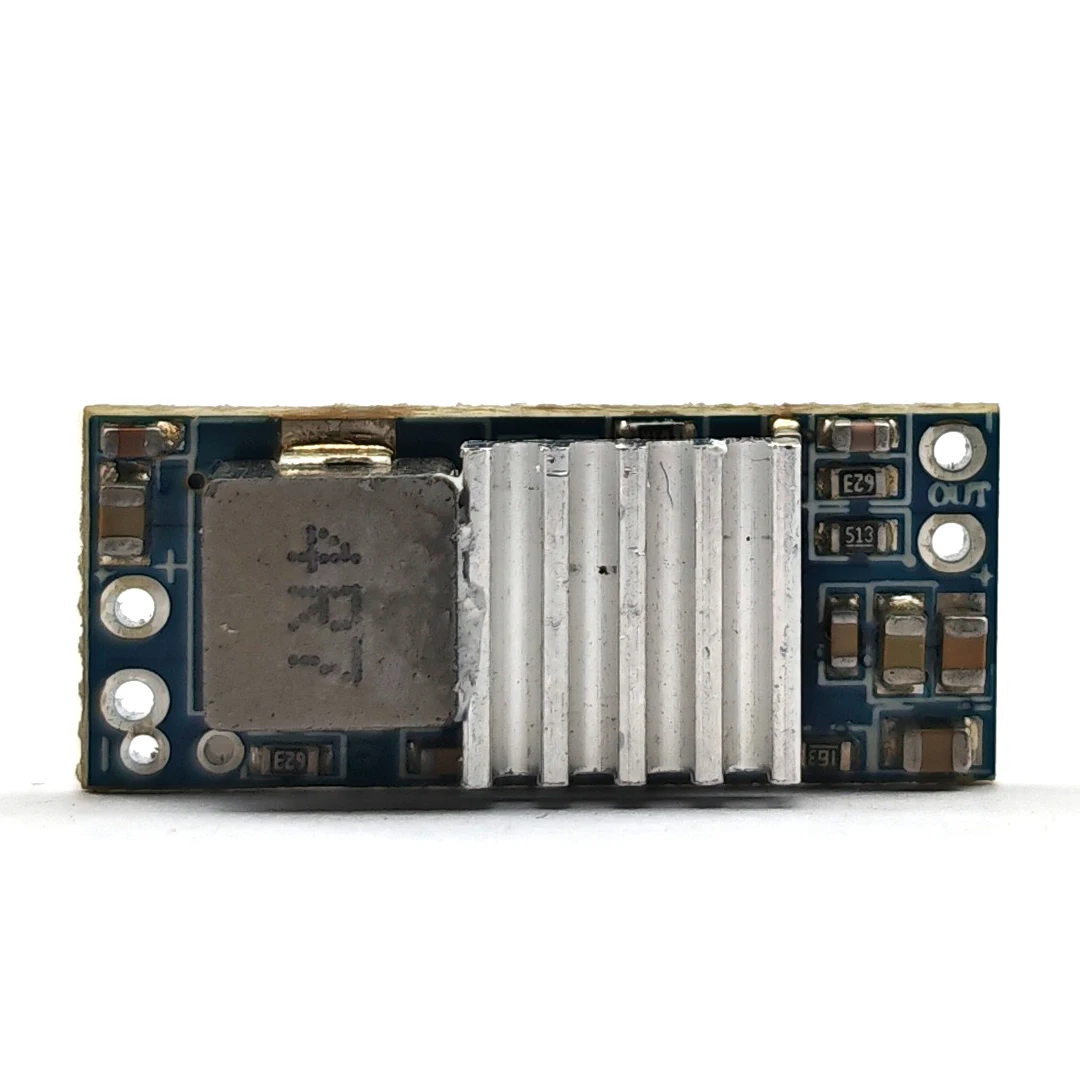

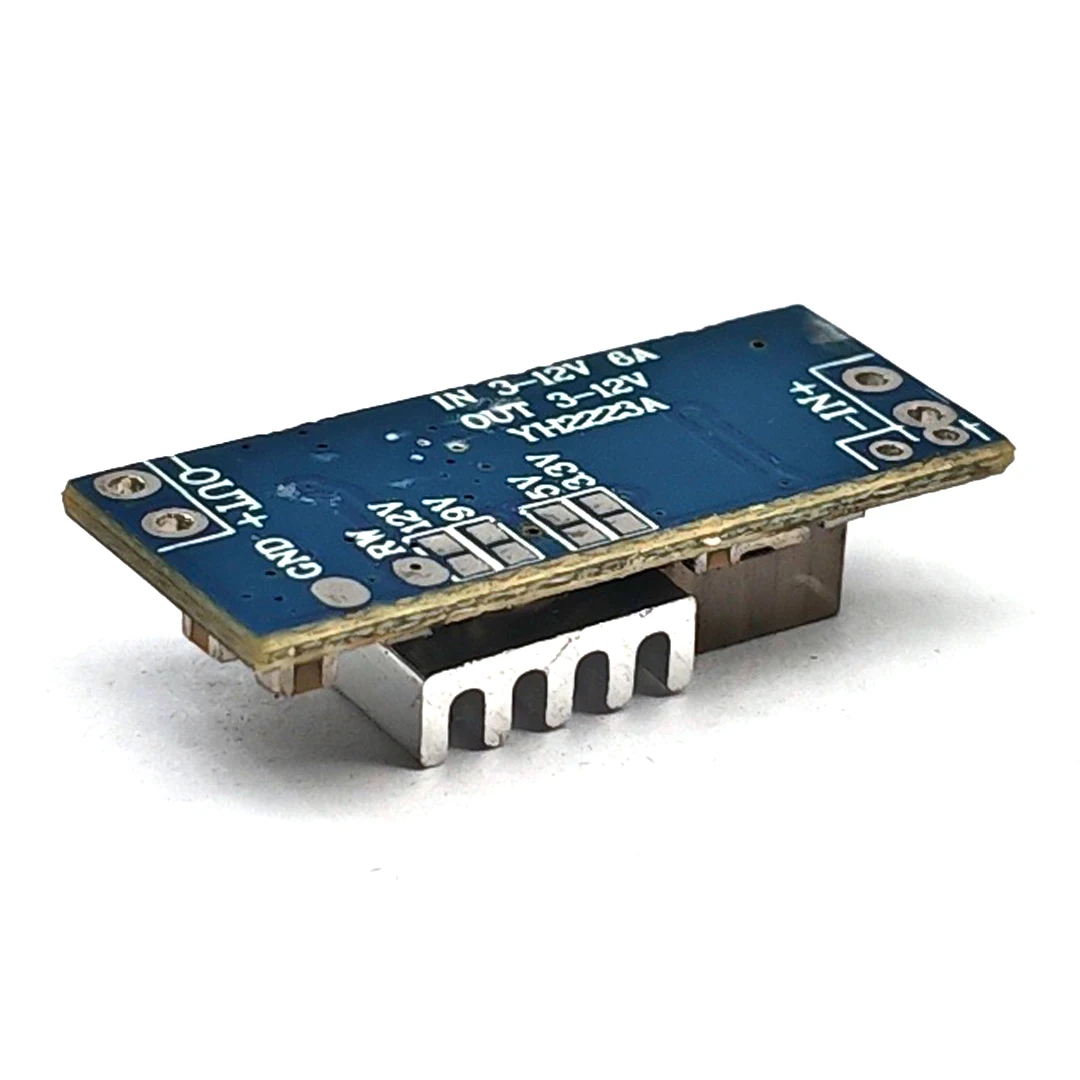

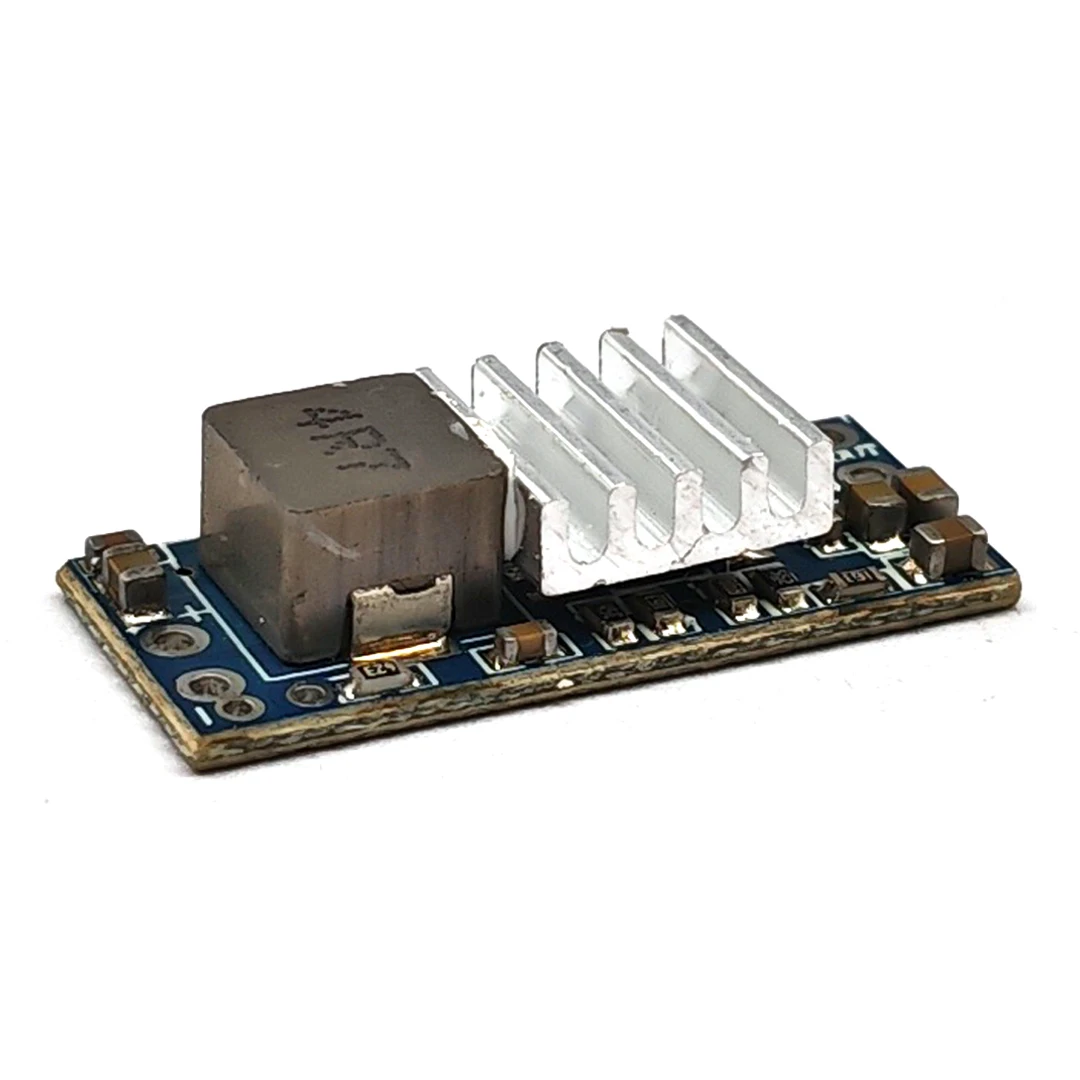

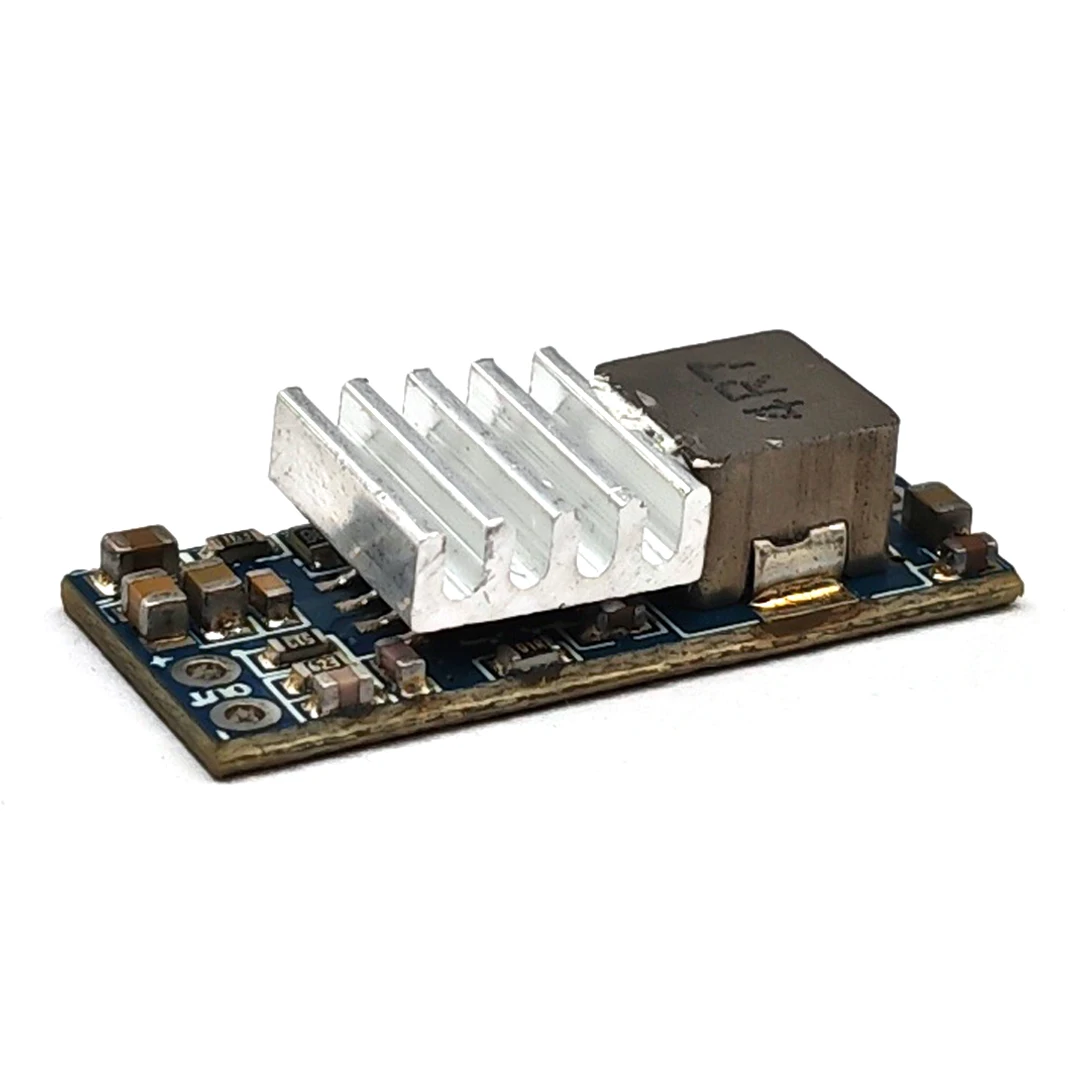

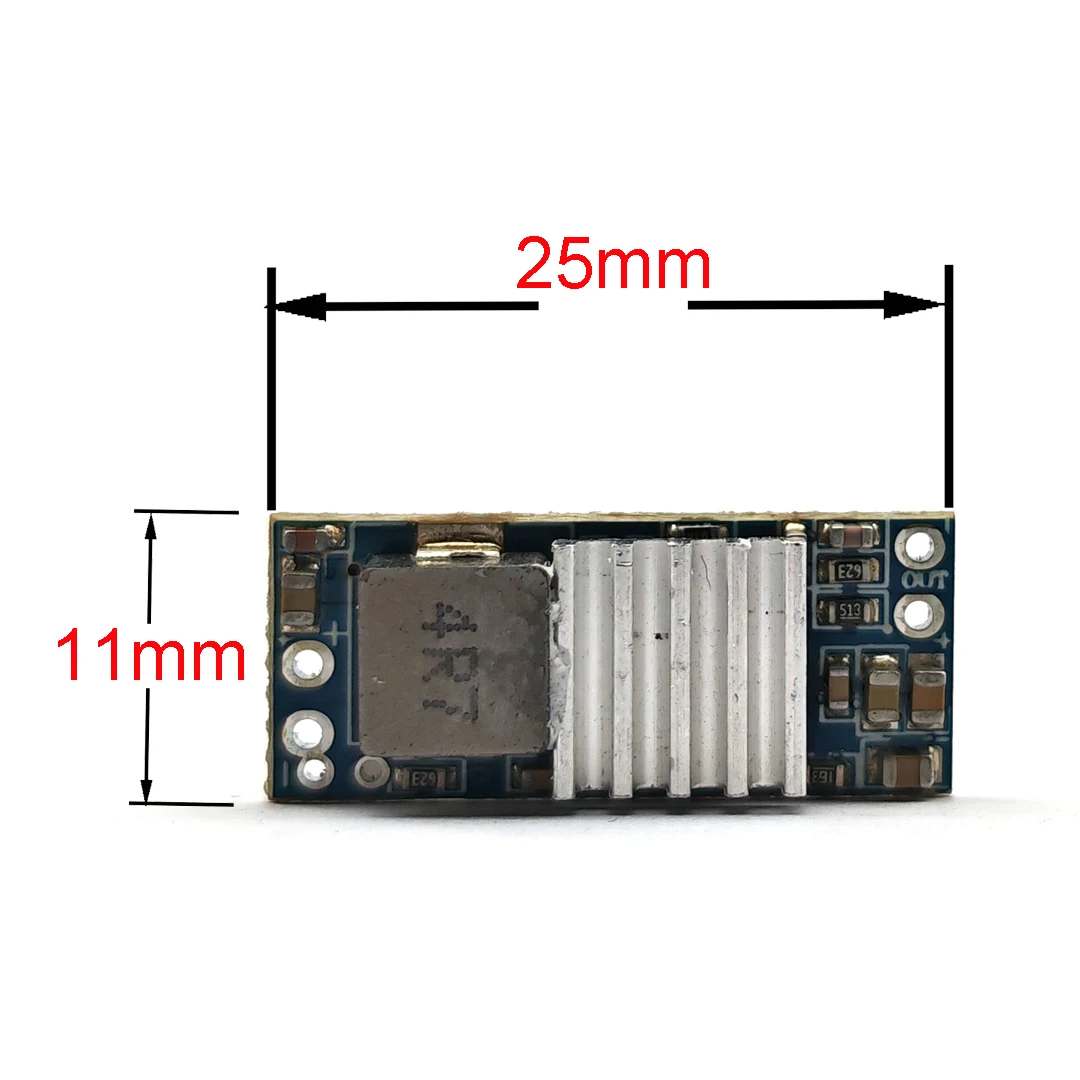

DC-DC Lift Voltage Module 6A Mini Power Module 3.3V5V9V12V Fixed Output Drone Aeromodel BEC

Description:

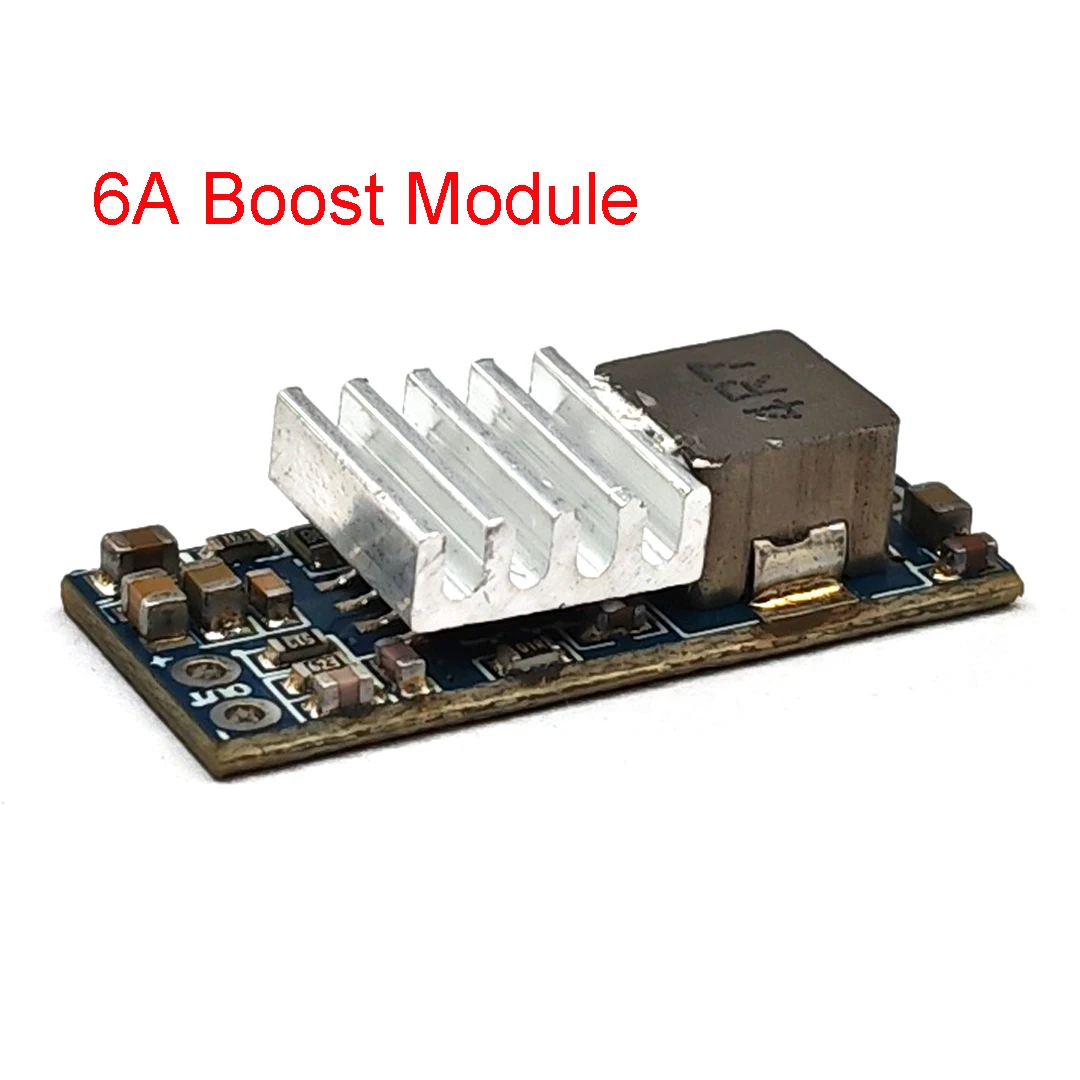

6A Boost Module:
Input Voltage: DC 2.7-13V
Output Voltage: DC3.3V/5V/9V/12V fixed output can be set, 3-14V adjustable voltage output can be changed; factory default fixed 5V output

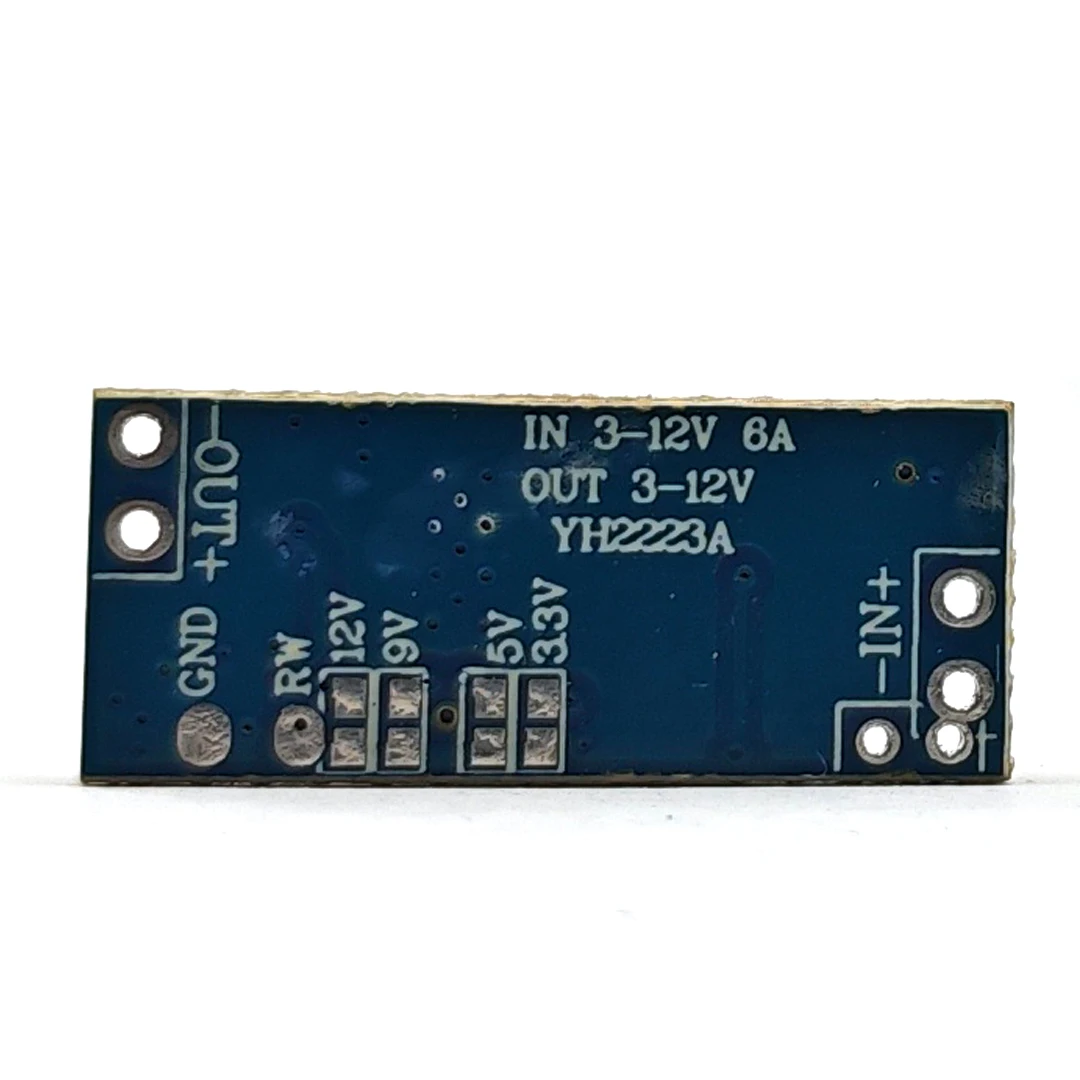

Voltage Jumper Combination Output Voltage: 3.3V&5V shorted output 7.2V; 3.3V&9V shorted output 11.2V; 3.3V&12V shorted output 14.2V; 3.3V&12V shorted output 14.2V; 3.3V&12V shorted output 14.2V. Shorted output 14.2V; 5V&9V shorted output 13V
Input current: 6A (10A MAX) (long time work suggests 4A, high temperature, please strengthen the heat dissipation)
Output current: Maximum output current=input voltage*6A/output voltage, you need to leave a margin to use
Minimum pressure difference between input and output: no pressure difference
Output over-voltage protection: 14V or so
Overcurrent protection: 10A or so
Over-temperature protection: Yes, after over-temperature automatically reduce the output current input voltage. Over-temperature protection: Yes, automatically reduce the output current after over-temperature
Input reverse connection protection: No, please pay attention to the positive and negative poles when wiring
Switching enable interface: Yes, low level stops boosting, and the output is equal to the input
Conversion efficiency: 92%
Operating temperature: -20~+85°C

Package Included:

1 Pcs 6A Boost Module

Weight 0.02 kg
Dimensions 13 × 8 × 5 cm
