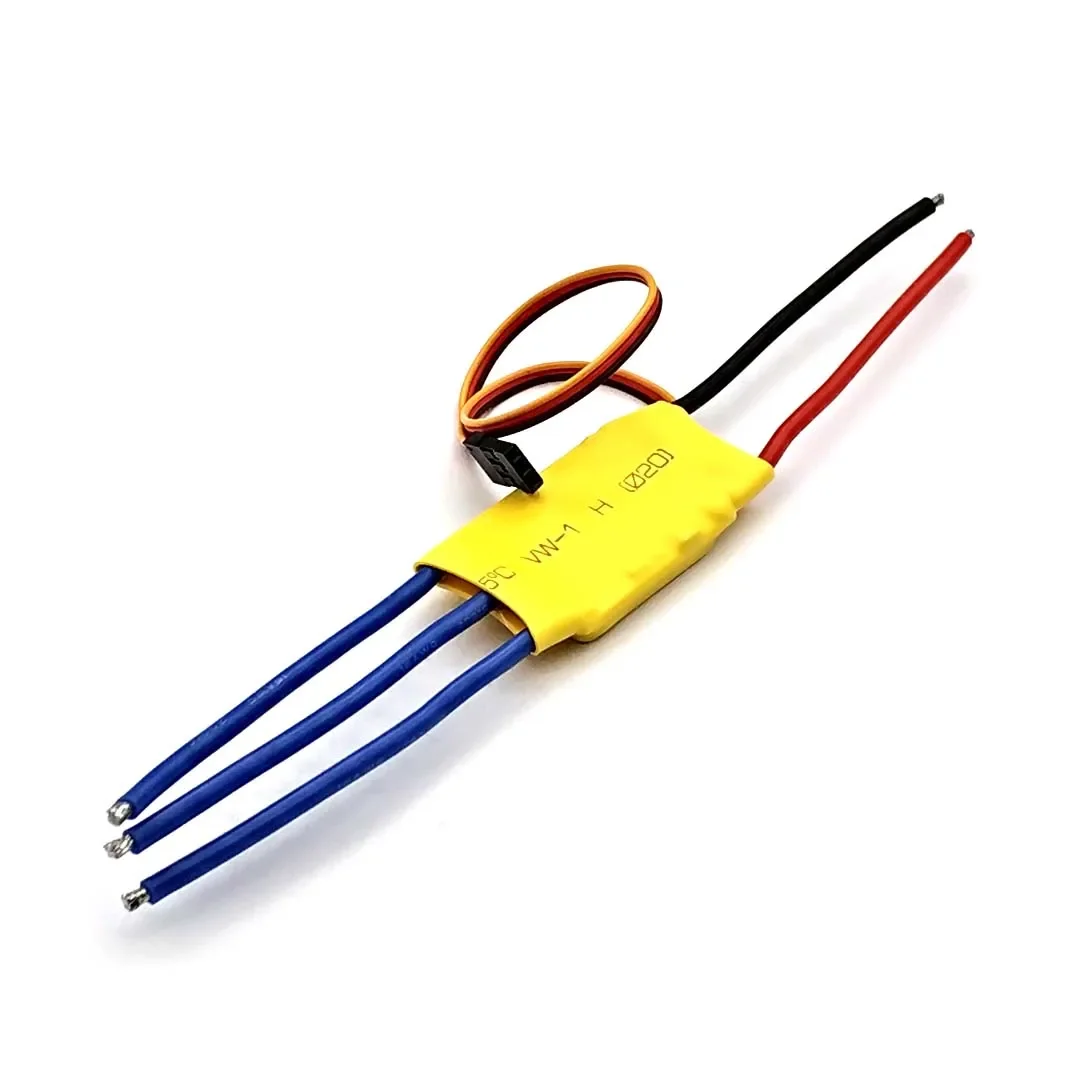

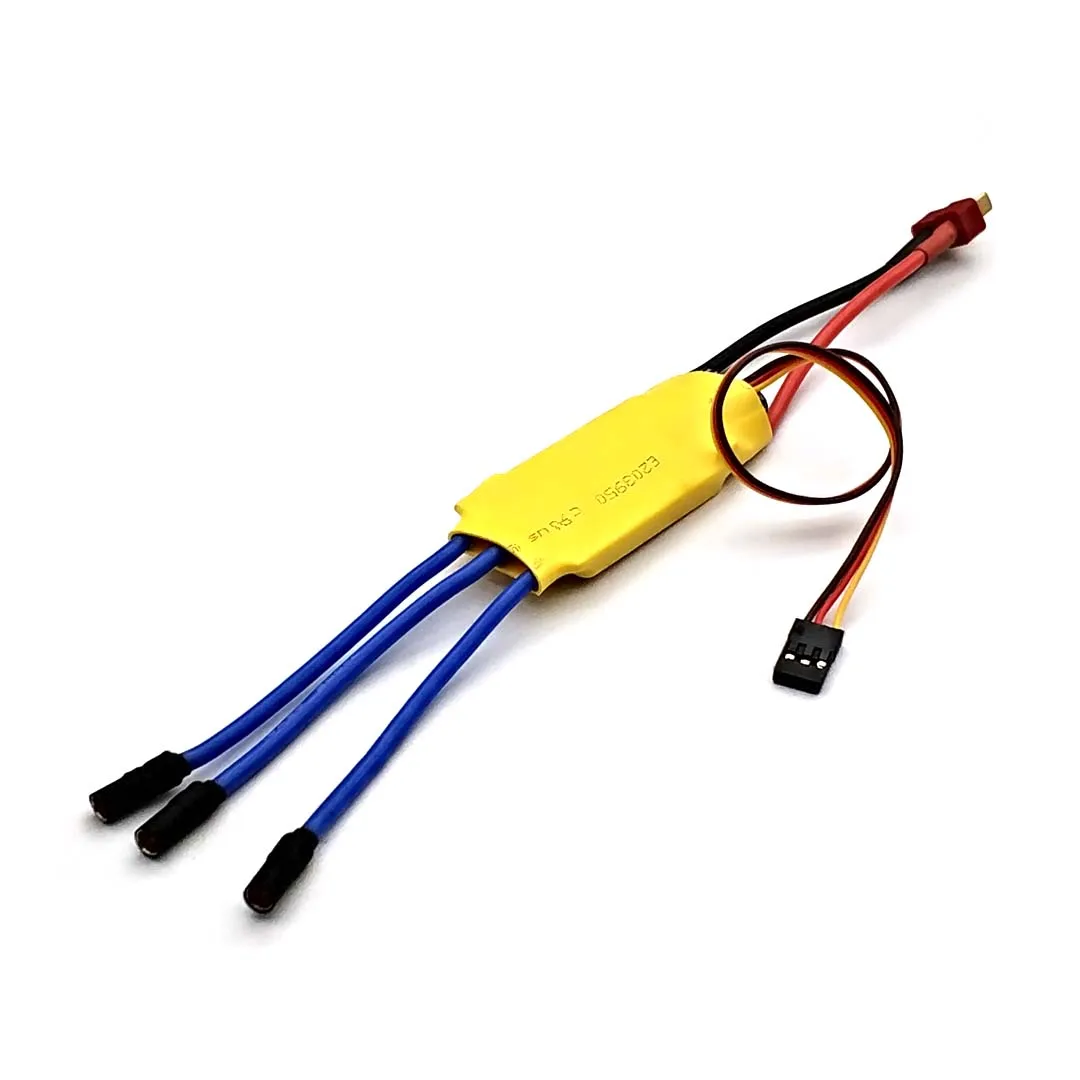

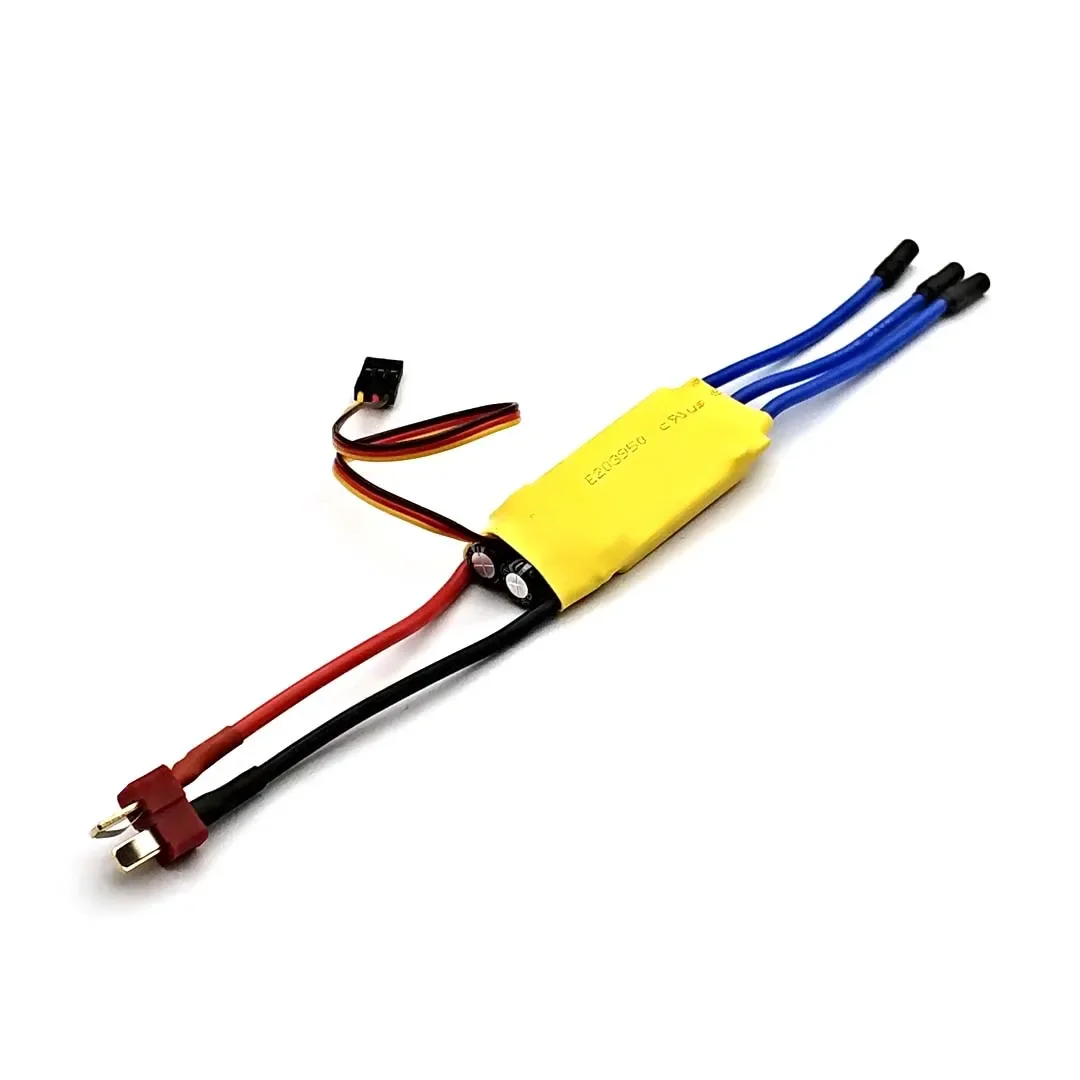

XXD Brushless ESC Electronic Governor 30A 40A 50A 80A Aircraft Model Fixed Wing Multi-axis ESC Model Class ESC Rc

XXD HW30A 30A HW40A 40A Brushless FPV mini ESC electronic speed controller for Quadcopter Multicopter RC Drone F450 XXD 30A 40A ESC

Description

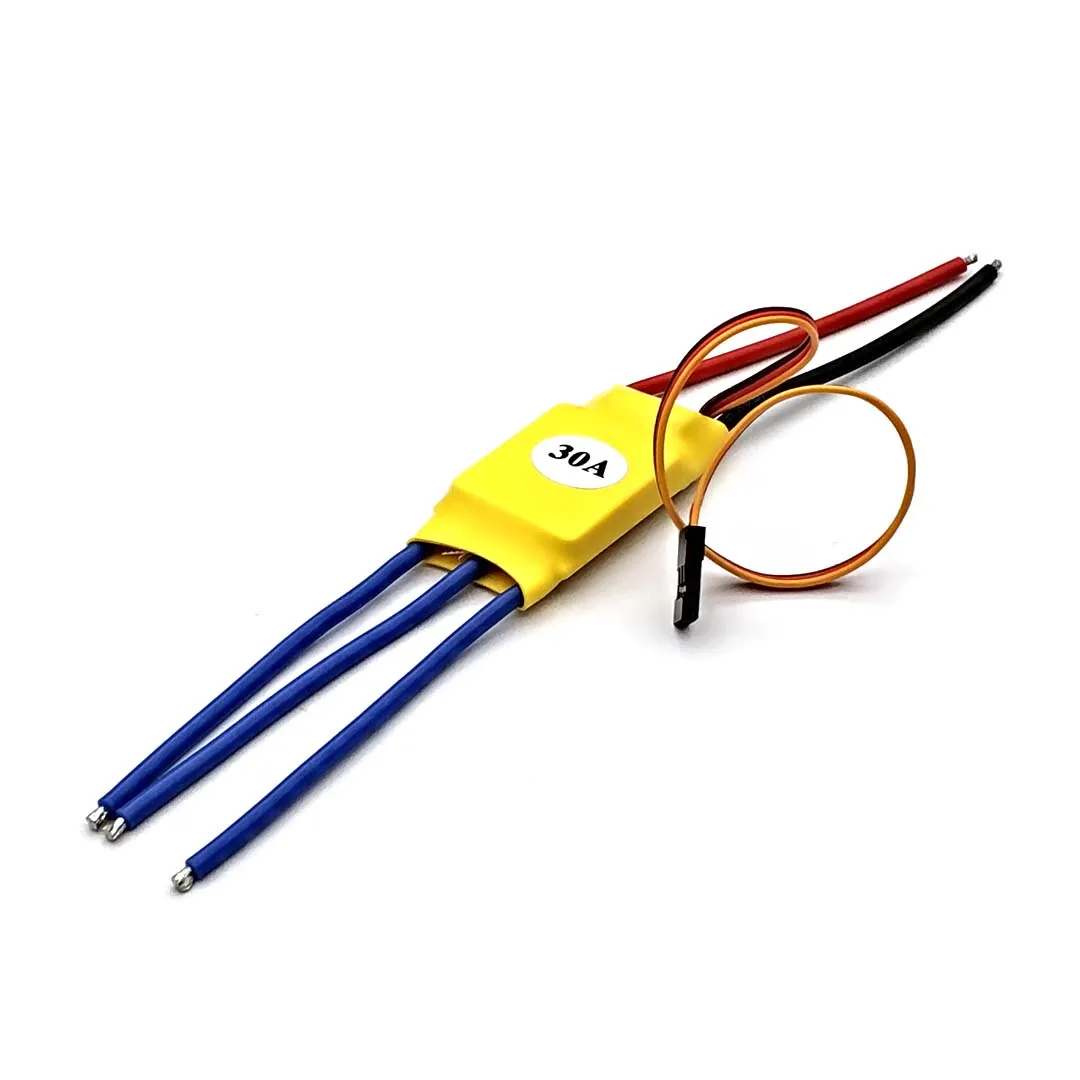

30A ESC controller:

Output: Continuous 30A, Burst 40A up to 10 Secs.

Input Voltage: 2-3 cells lithium battery or 5-9 cells NiCd/NIMh battery.

BEC: 2A / 5V (Linear mode).

Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BrushLess Motor

Size: 45mm (L) * 24mm (W) * 11mm (H).

Weight: 25g.

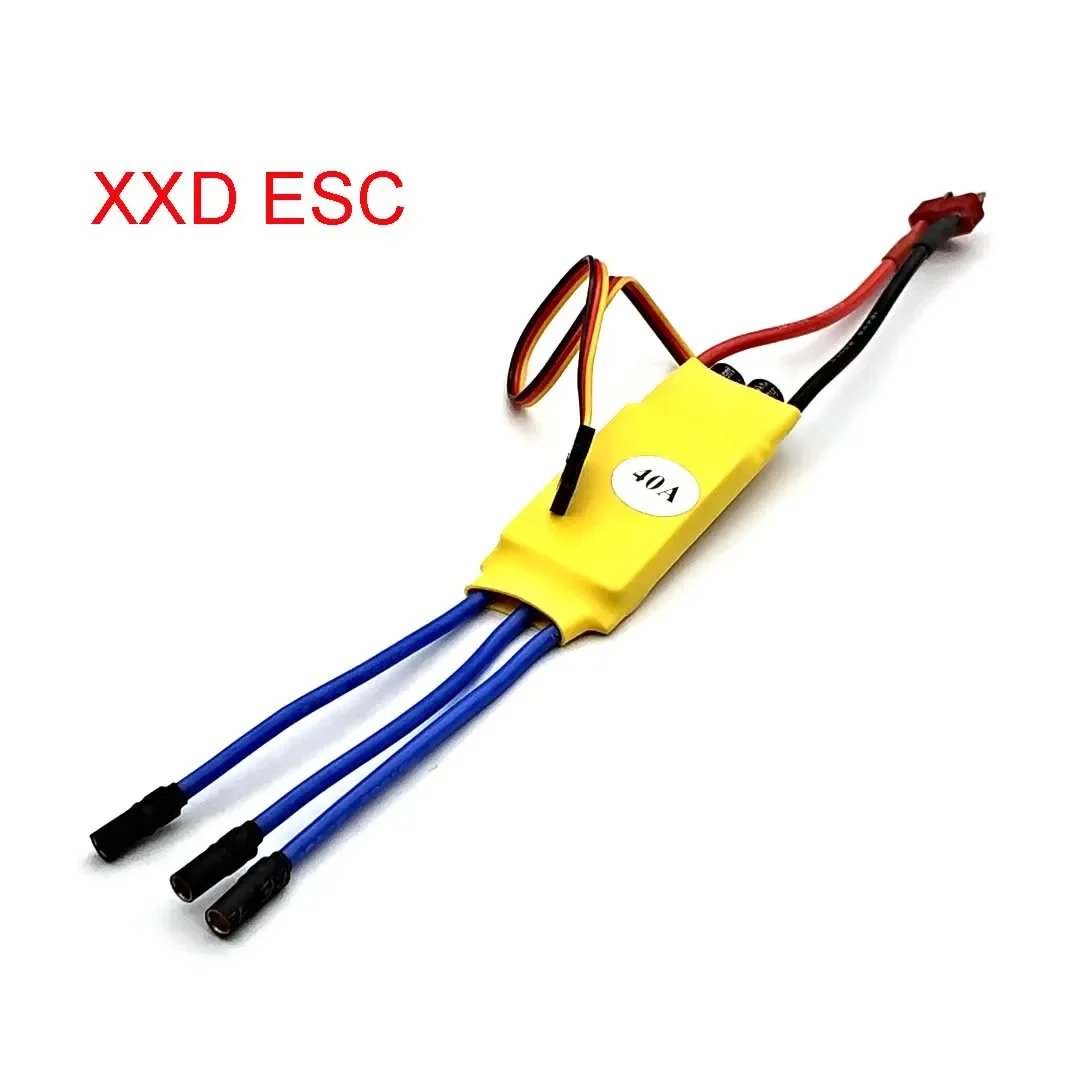

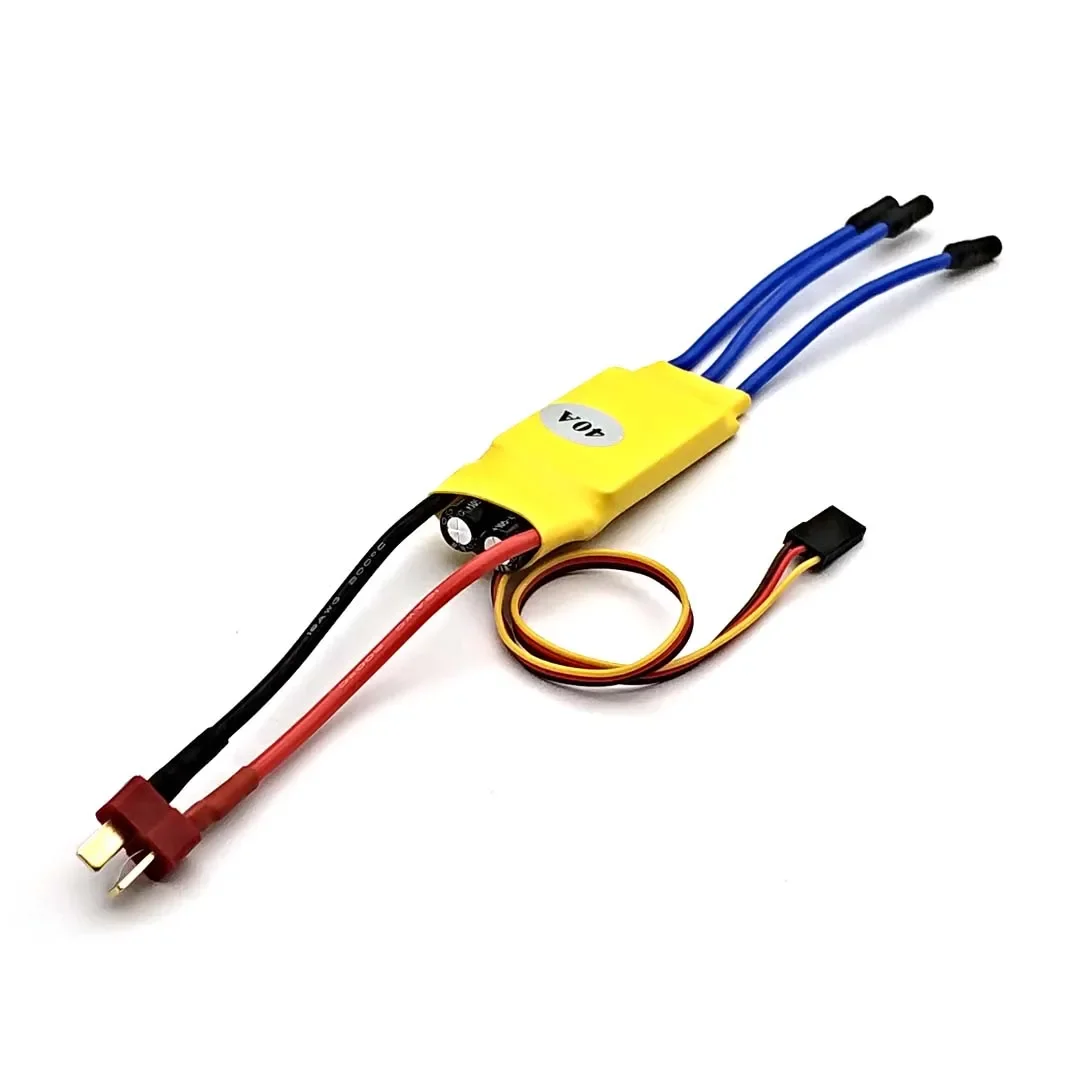

40A ESC controller:

Max Current: 50A

DC:3.7V-14.8V

BEC:3A / 5V (Switch)

Size: 45mm x 26mm x 10mm

Net Weight:28g

High rate PWM : 8K

Li-Poly: 2-3

Ni-Mh/Ni-cd:4-10Ni- MH

Original box: NO

Color: Yellow

Net weight: 31g

Package weight: 37g

Package Included

1 Pcs XXD ESC Controller
