Description

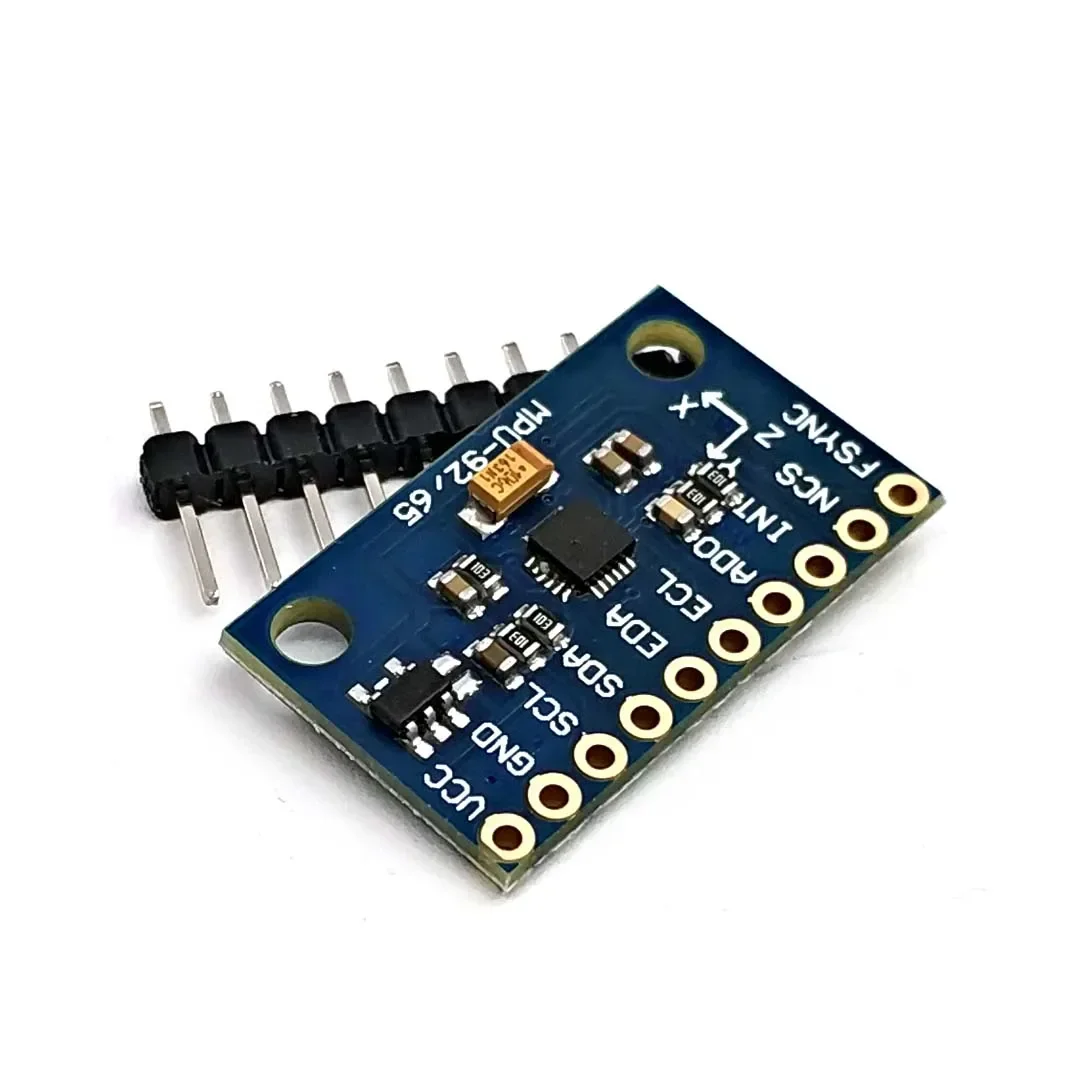

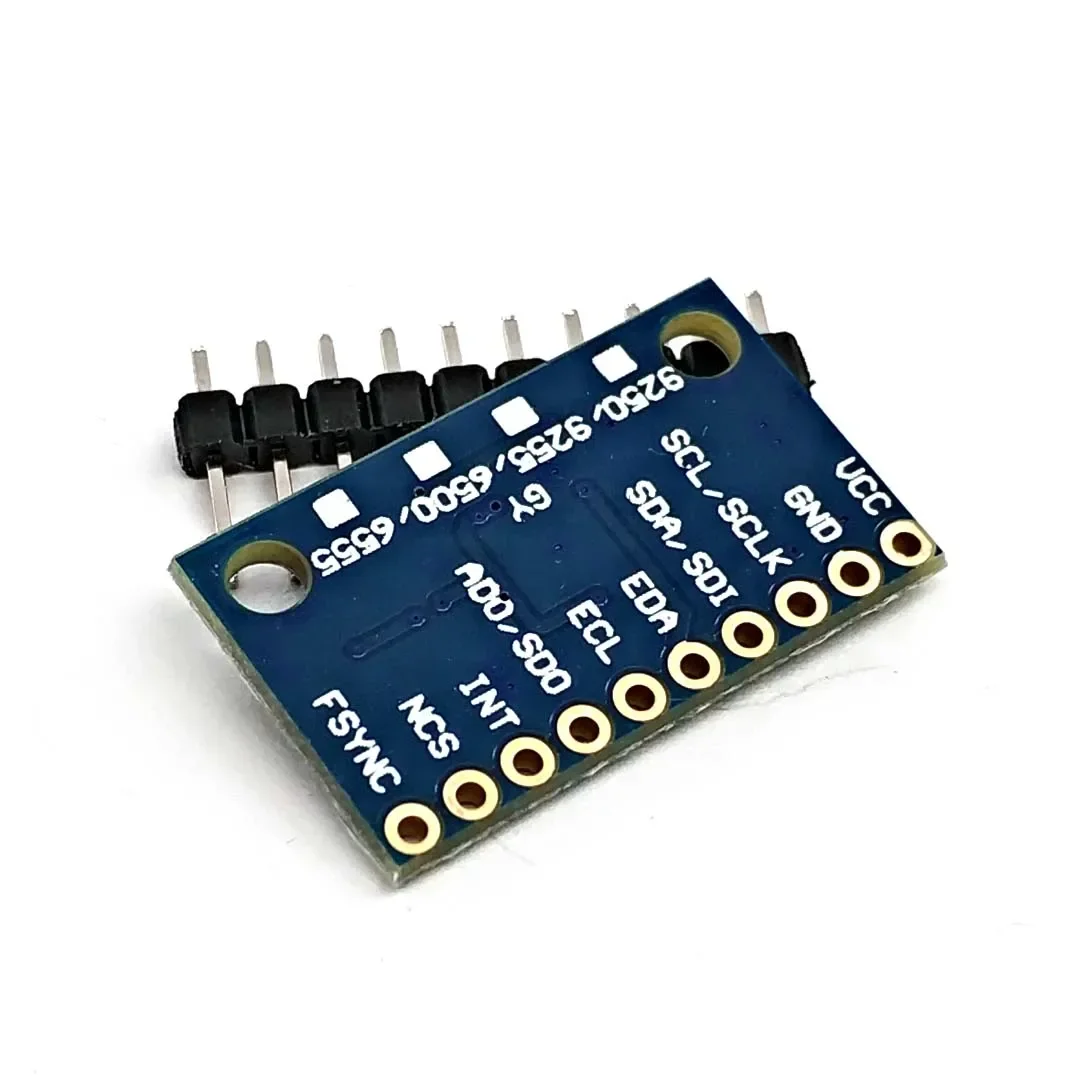

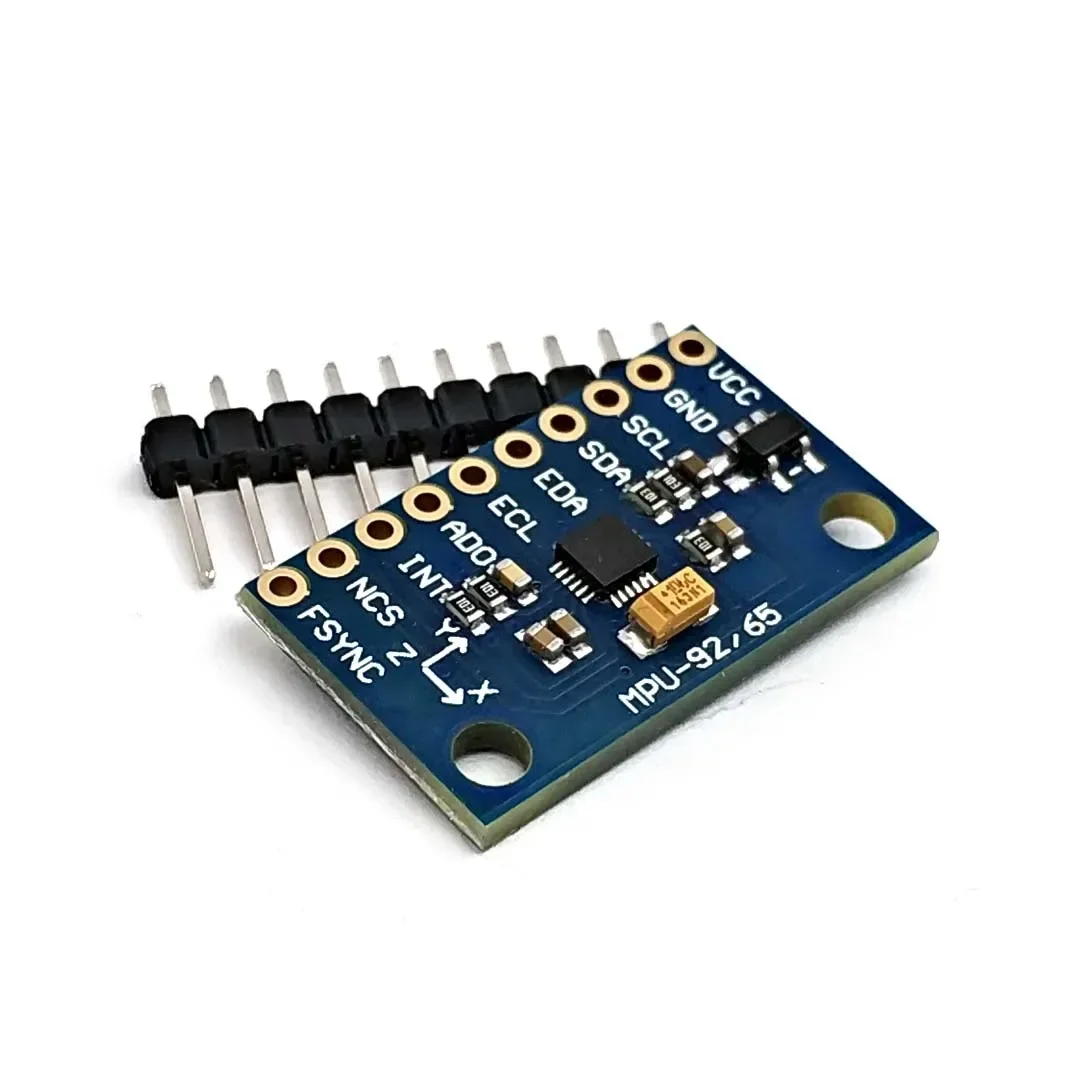

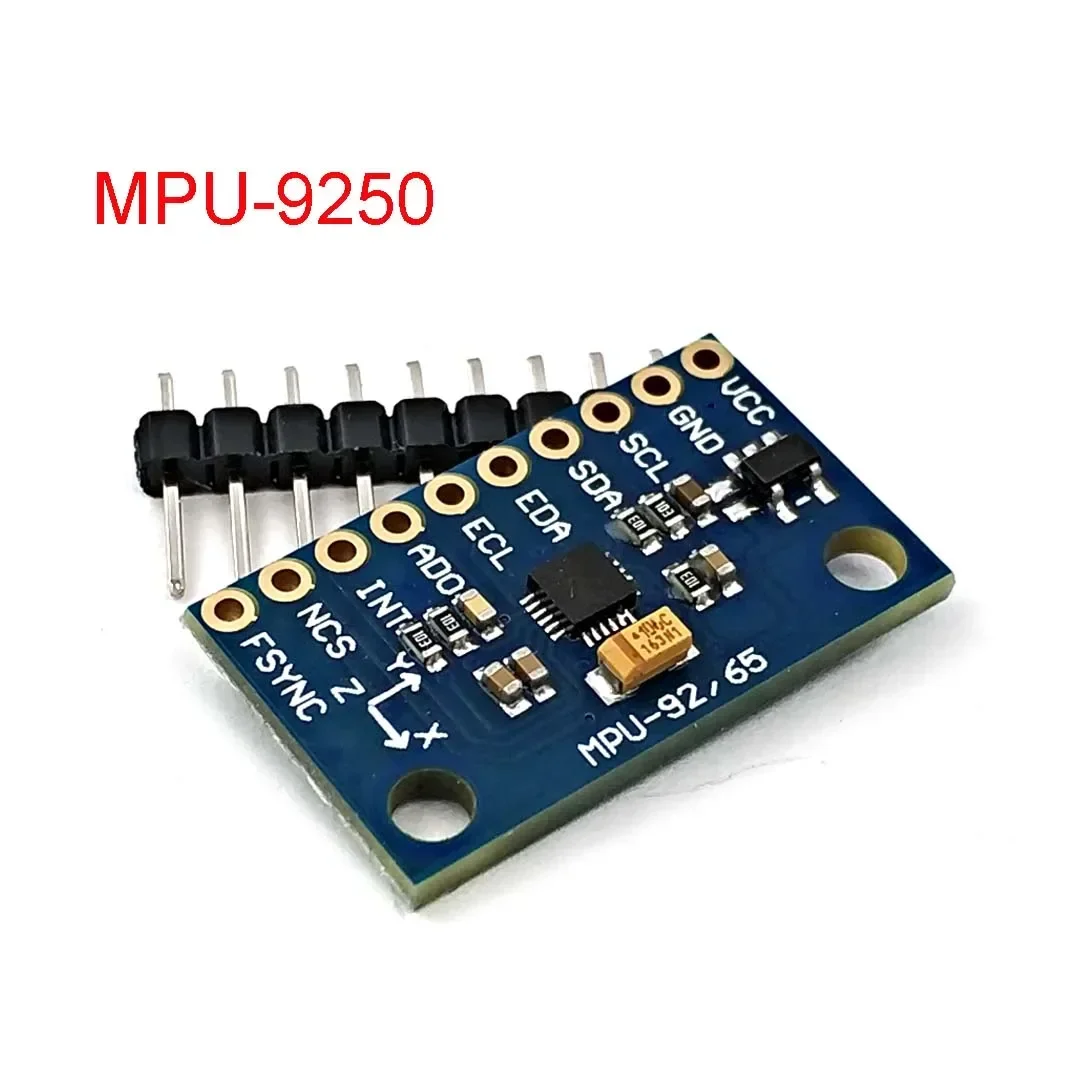

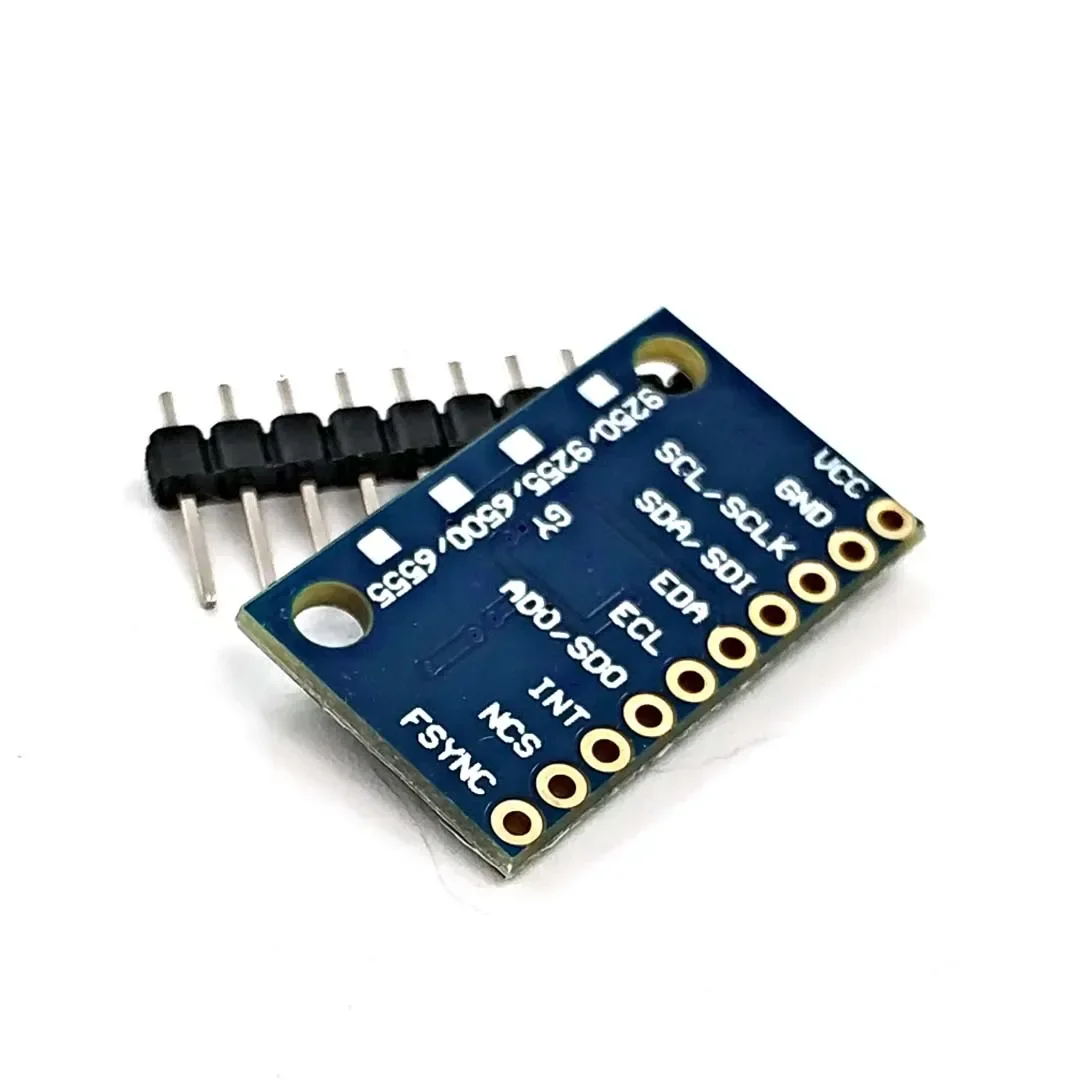

MPU-9250:
MPU-9250 module(three axis gyro + three + three axis acceleration axial magnetic field)
Module typeGY-9250
Using chip: MPU-9250
Power supply: 3-5v (internal low dropout voltage regulator)
Communication mode: Standard IIC communication protocol
Chip built in AD 16bit converter,16 bit data output
Gyro scope: + 25050010002000 ~ /s
Acceleration range:.Two+ 4+ 8+ 16g
Magnetic field:+ 4800uT
Use heavy gold PCB,Machine welding process to ensure quality
Pin spacing 2.54mm
Module size 15Mm*25mm
Provide schematic, related data manuals and reference documents
Ying Meisheng (invensense) of the second generation of shaft 9 combined sensor will be 6 axis inertial measurement unit (gyroscope and accelerometer) and three axis magnetic gauge integrated in 3 mm x 3 mm QFN package, compared to the previous generation product, area is reduced by 45%.
Package size is reduced due to the 3-axis gyroscope chip design, a generation should Legg Mason gyroscope three sensing axis adopts three different structure design, and now the gyroscope using single structure design. This new design makes the gyroscope area reduced by 40%. In addition, Nasiri (Nasiri) process has been changed: in order to ensure that the MEMS structure movement, usually in the ASIC chip etching cavity, but now there is no need for this step, resulting in lower cost.
MPU-9250 integrated AK8963 magnetometer AKM, compared to the previous generation of products, the area reduced by 40%, the sensitivity increased to 0.15 mu T/LSB.

MPU-6500:
MPU-6500 module (three-axis gyroscope + three-axis acceleration)
Module model: GY-6500
Using the chip: MPU-6500
Power supply: 3-5v (internal low dropout voltage regulation)
Communication method: standard IIC/SPI communication protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyro range: ±250 500 1000 2000 °/s

Package Included

1 Pcs GY Sensor Module
