Description:

1.User-Friendly: This stepper motor driver controller module offers a simple and easy-to-use solution for controlling the speed, direction, and PWM signal generation of your stepper motor system.
2.Safe and Reliable: With a wide input voltage range of 8-24V and built-in safety features, this stepping motor controller module ensures safe and reliable operation for your stepper motor control needs.
3.Comprehensive Functionality: Featuring adjustable frequency signals (high: 5.4k-160kHz, medium: 540-16.6kHz, low: 80-2.4kHz) and the ability to generate both pulse and PWM signals, this PWM signal generating controller module provides comprehensive functionality to meet different control requirements.
4.Direction Control: This stepper motor pulse signal generating module allows for easy switching between clockwise and counterclockwise rotation, giving you full control over the direction of your stepper motor.
5.Compact Size: With dimensions of 58.00×51.00×13.00mm (2.28×2.01×0.51 inches), this stepper drive control module is compact and space-saving, making it suitable for various applications where size constraints may be a concern.

Specification:
Model Number: Stepper Motor Controller Board
Input Voltage: 8~24V
Frequency Paradigm: High 5.4k-160khz, Medium 540-16.6khz, Low 80-2.4khz
Signal Type: Pwm/Pulse
Direction: Clockwise/Counterclockwise
Size: 58.00×51.00×13.00mm/2.28×2.01×0.51inch
Product Description:

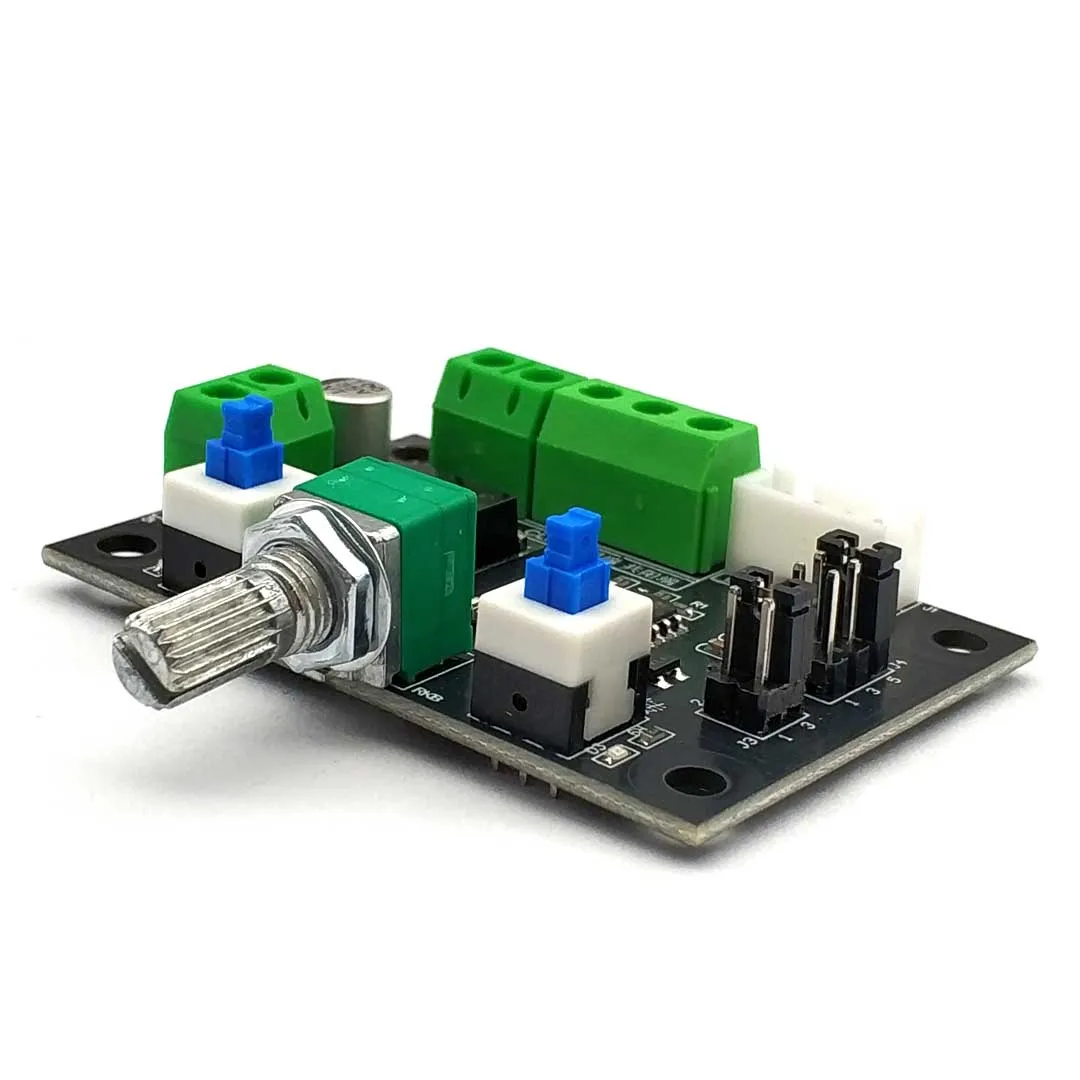

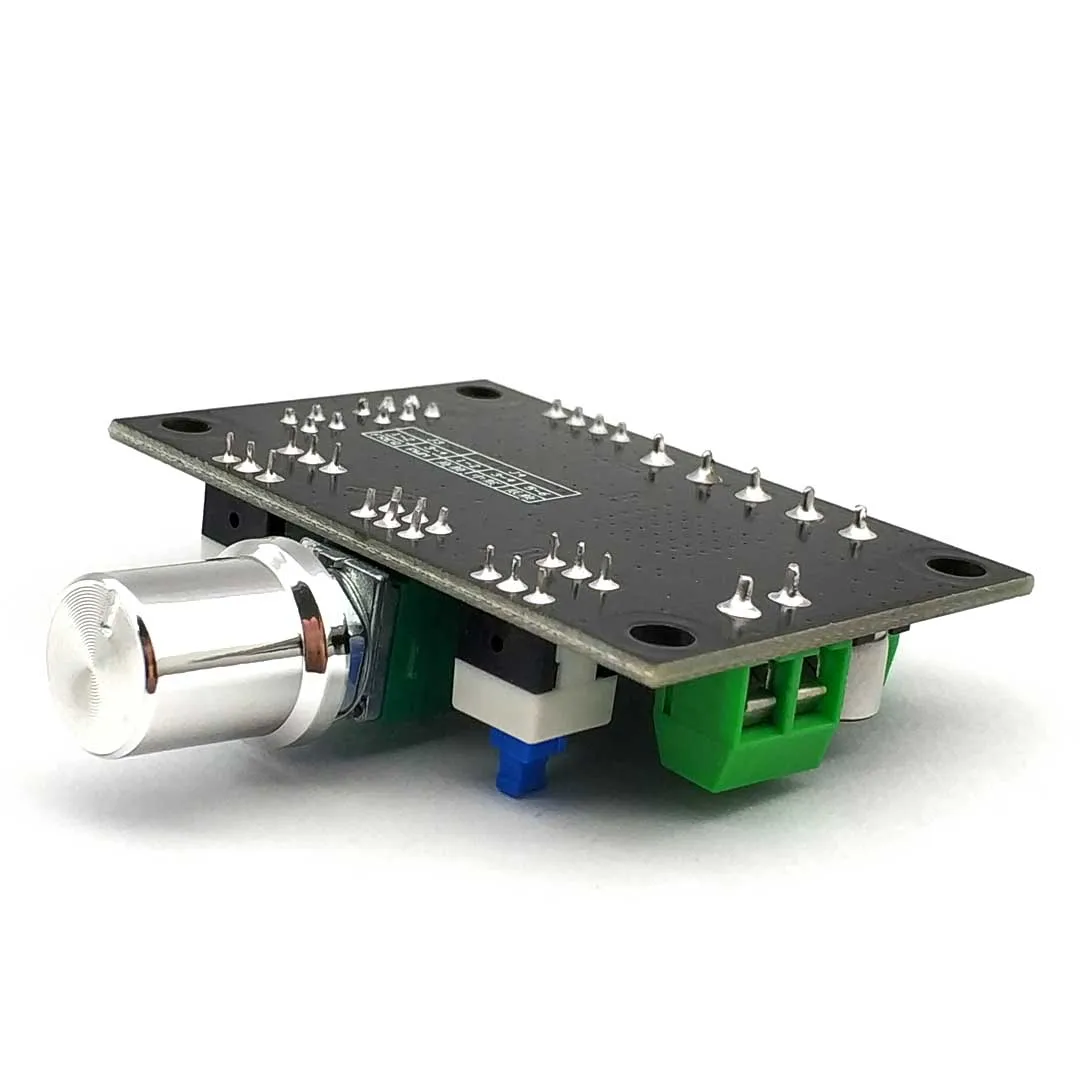

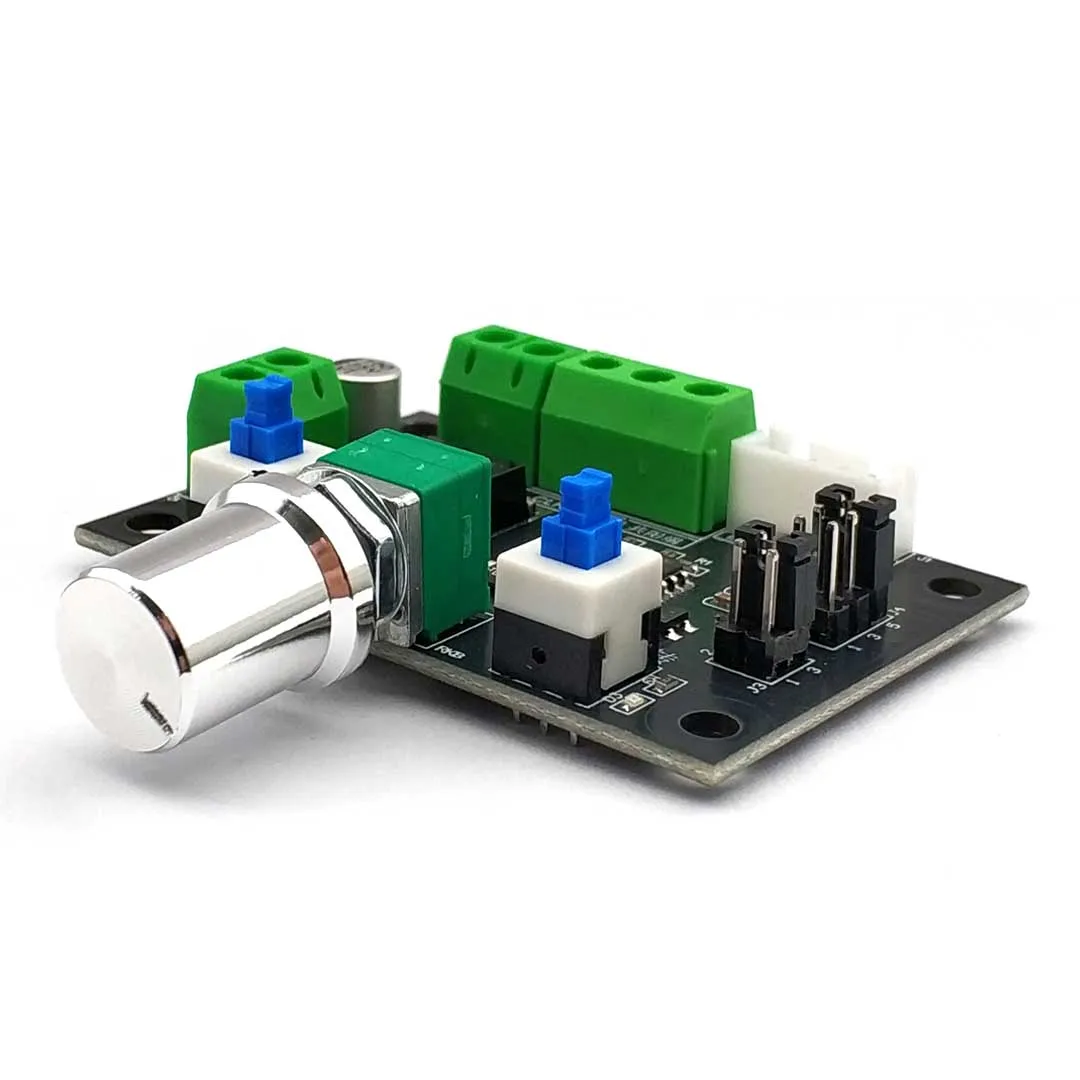

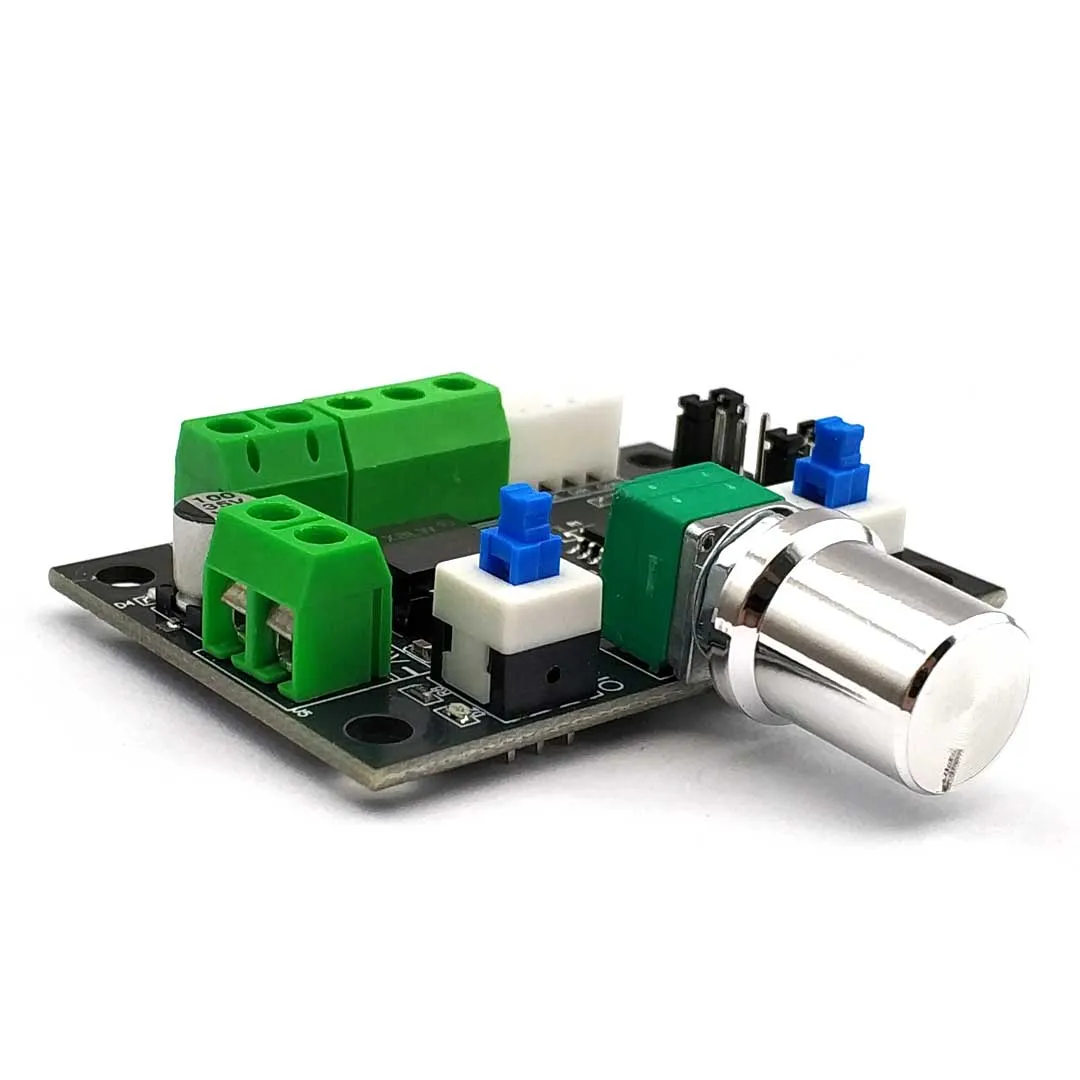

This module is a pulse generator module, supplying the stepper driver as a signal.
If you want to control the stepper motor, you must also be equipped with a driver to do so.
This simple controller + stepper driver + stepper motor + DC power supply can form a set of simple control platform.
Controller has a high 5.4k-160khz, 540-16.6khz, low 80-2.4khz a total of three kinds of frequency signals can be selected with a jumper.
It can generate pulse signals or PM signals, which can be selected by jumper wires.

Package Included:

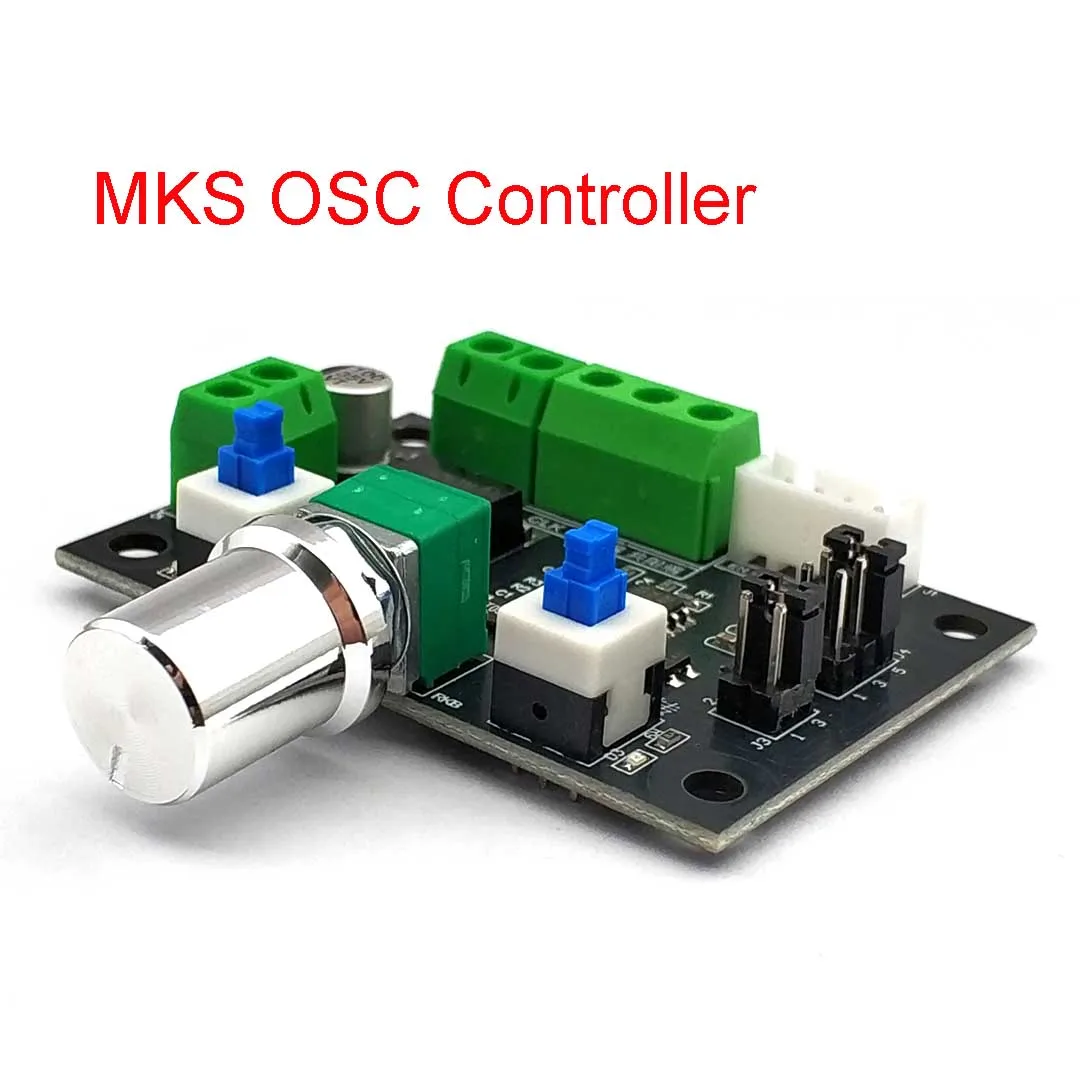

1 Pcs MKS OSC Stepper Motor Driver Controller
