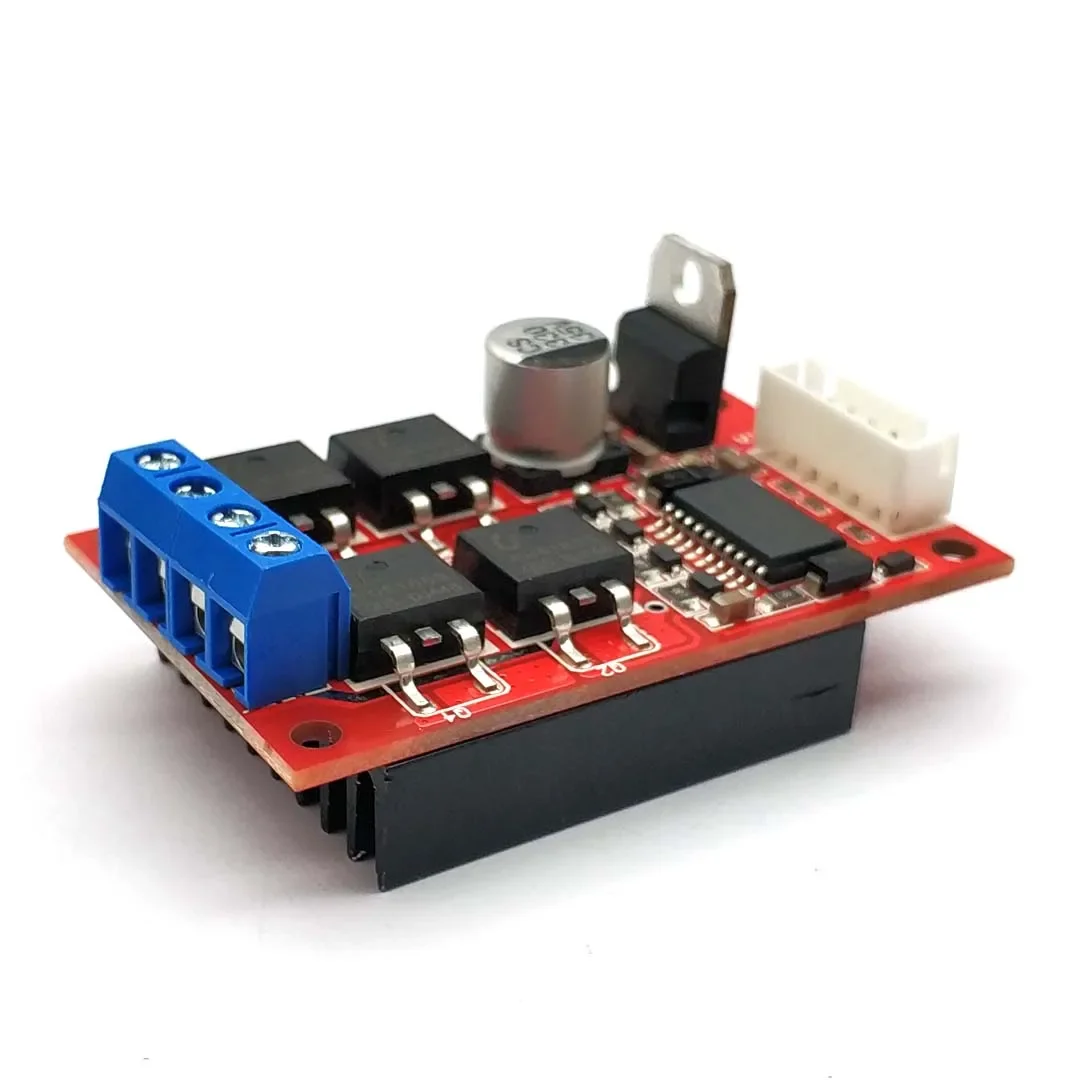

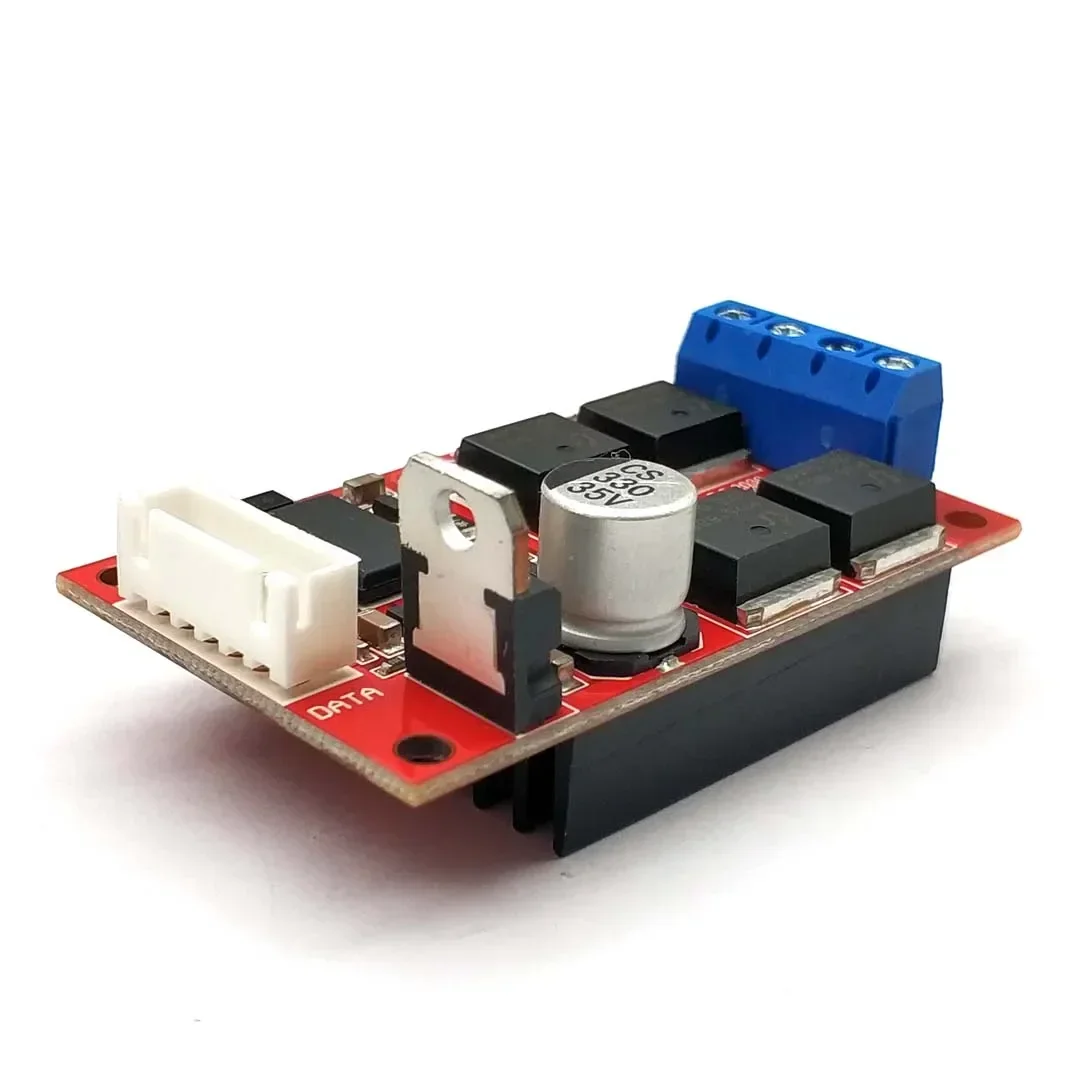

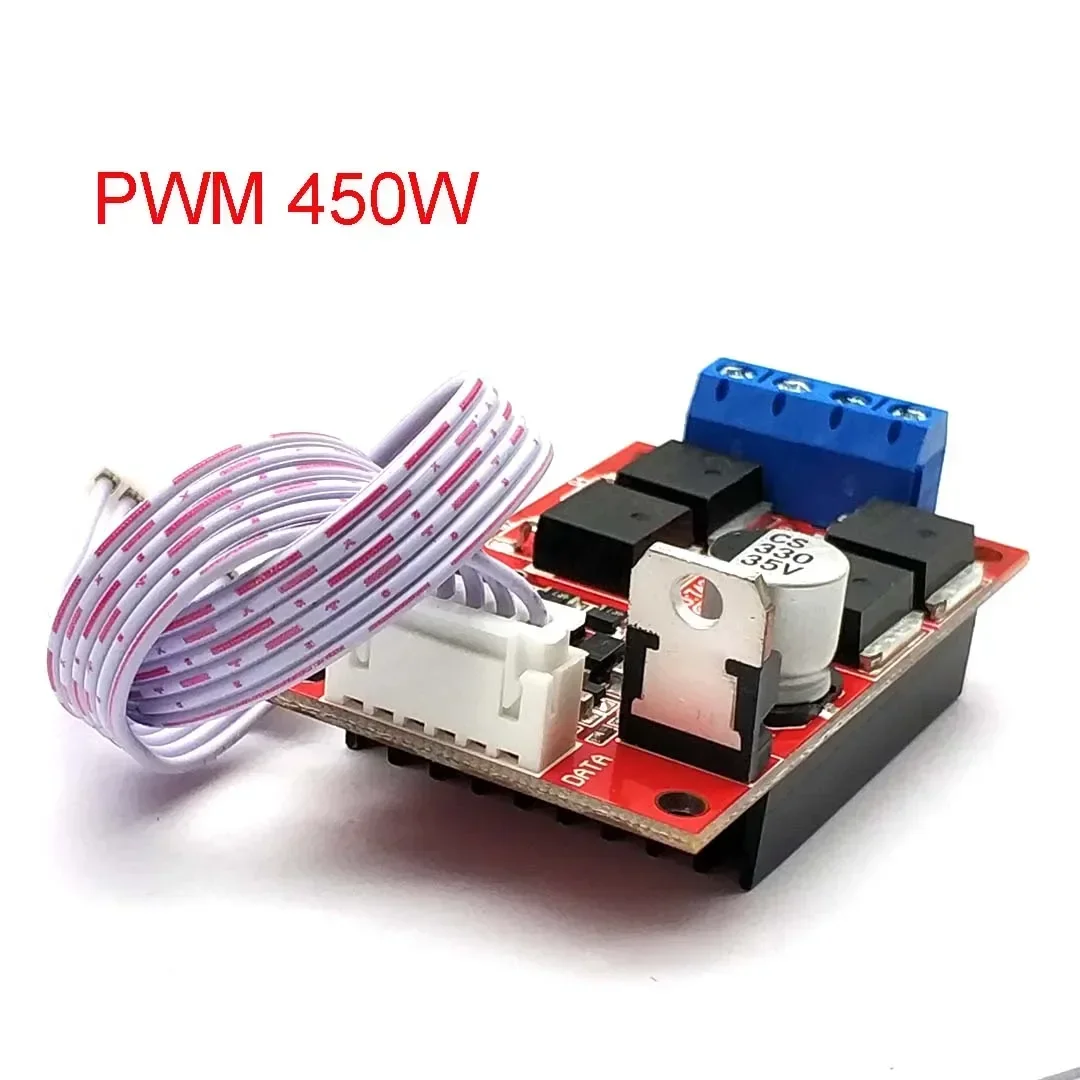

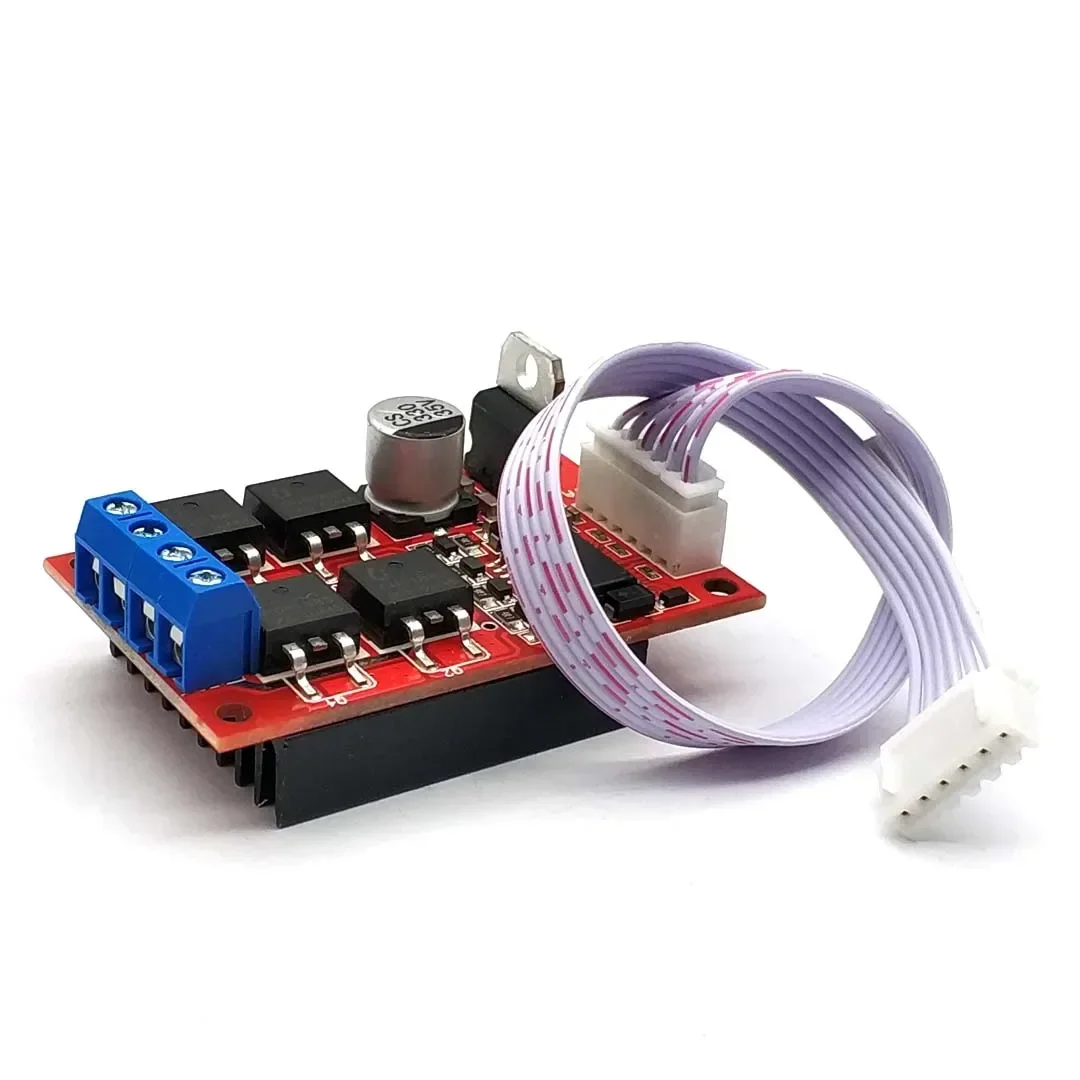

450W H-Bridge Brushed PWM Motor Driver Module DC 12V/24V/36V H-Bridge High-power DC Motor Driver Board
Modular nature:H-bridge DC motor driver moduleSuitable for 11-36V DC Motor
Scope:High-power DC motor drive
Driving voltage: DC 11-36V
Output Current: 15AMaximum continuous load current 20A
Output Power: max 450W (less than 360W do not need heat sink)
Working temperature: 40 to + 85
Full load temperature: 45
Dimensions: 6.6cm × 3.8cm x2.8cm
Driver module features:
(1) full-bridge driver chip + low-resistance 110A NMOS drive tube to achieve motor brake and reversing.
(2) chip operating frequency up to 1MHZ, solve VNH3SP30 MC33886 motor noise and heat problems Japan
(3) 2 way PWM inputs in 0-100% duty cycle,
(4) applies to lithium battery-powered directly drive
(5) built-in logic circuit isolation buffer.Support PLC, directly control of various types of 3V or 5V MCU IO ,By analog voltage input to control the motor brake and reversing.
(7) chip built-in hardware dead-time control,
(8) chip operating frequency up to 1MHZ, Suitable for Empty harbor motordriving

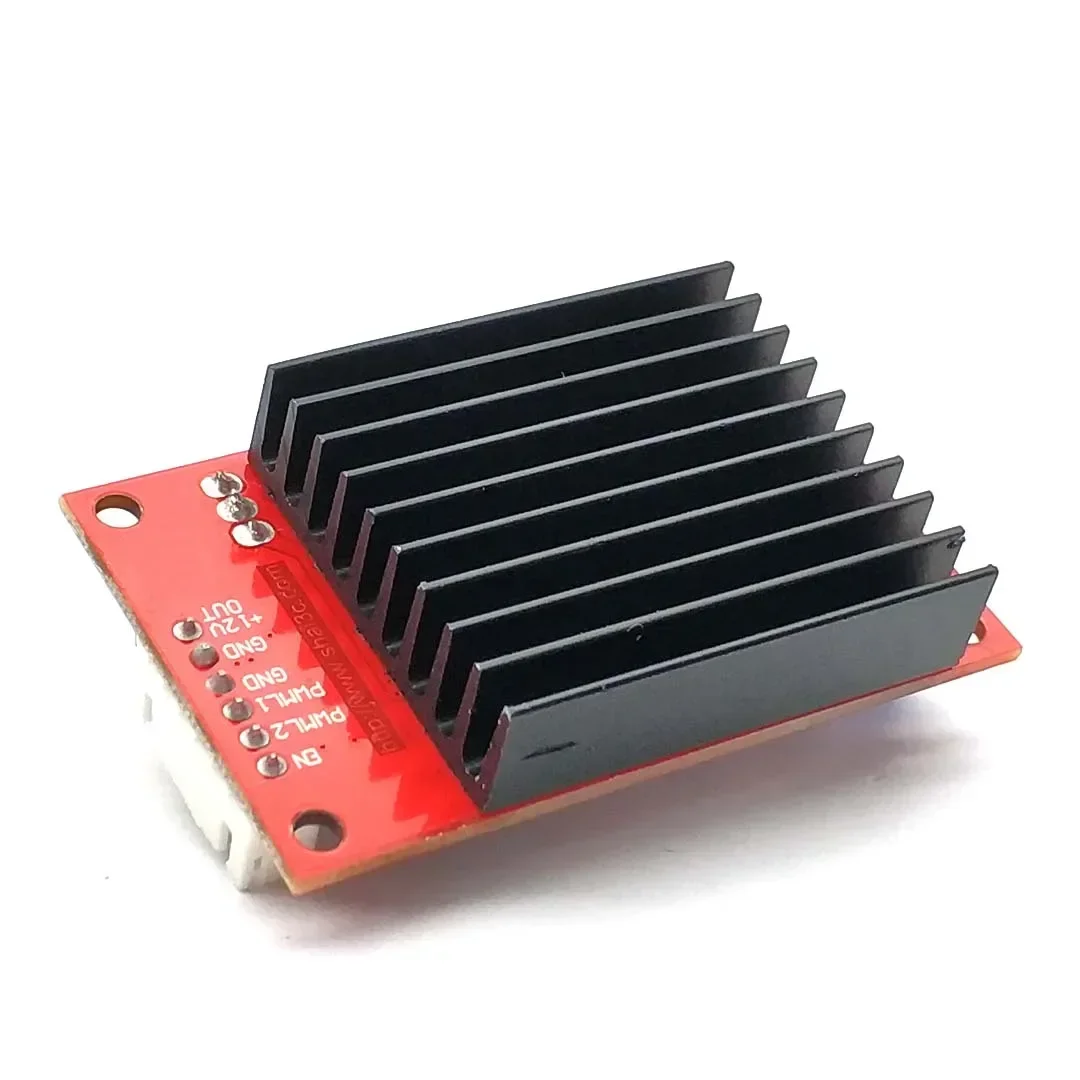

EN: enable terminal
PWML1: forward rotation Control
PWML2: inversion control
GND: power grounding cable
Outputs:
VIN +: driver board power supply input
Positive electrode
GND: driver board power supply input
Negative electrode
M +: connect motor wire
M-: connect motor wire
Control mode instructions:
Electricity Level Control:
EN = 0 PWML1 = 0 PWML2 = 1 motor forward running
EN = 0 PWML1 = 1 PWML2 = 0 motor reverse running
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
PWM control mode:
EN = 0 PWML1 = duty cycle Adjustable PWM signal PWML2 = 1 motor forward running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = duty cycle Adjustable PWM signa motor reverse running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
