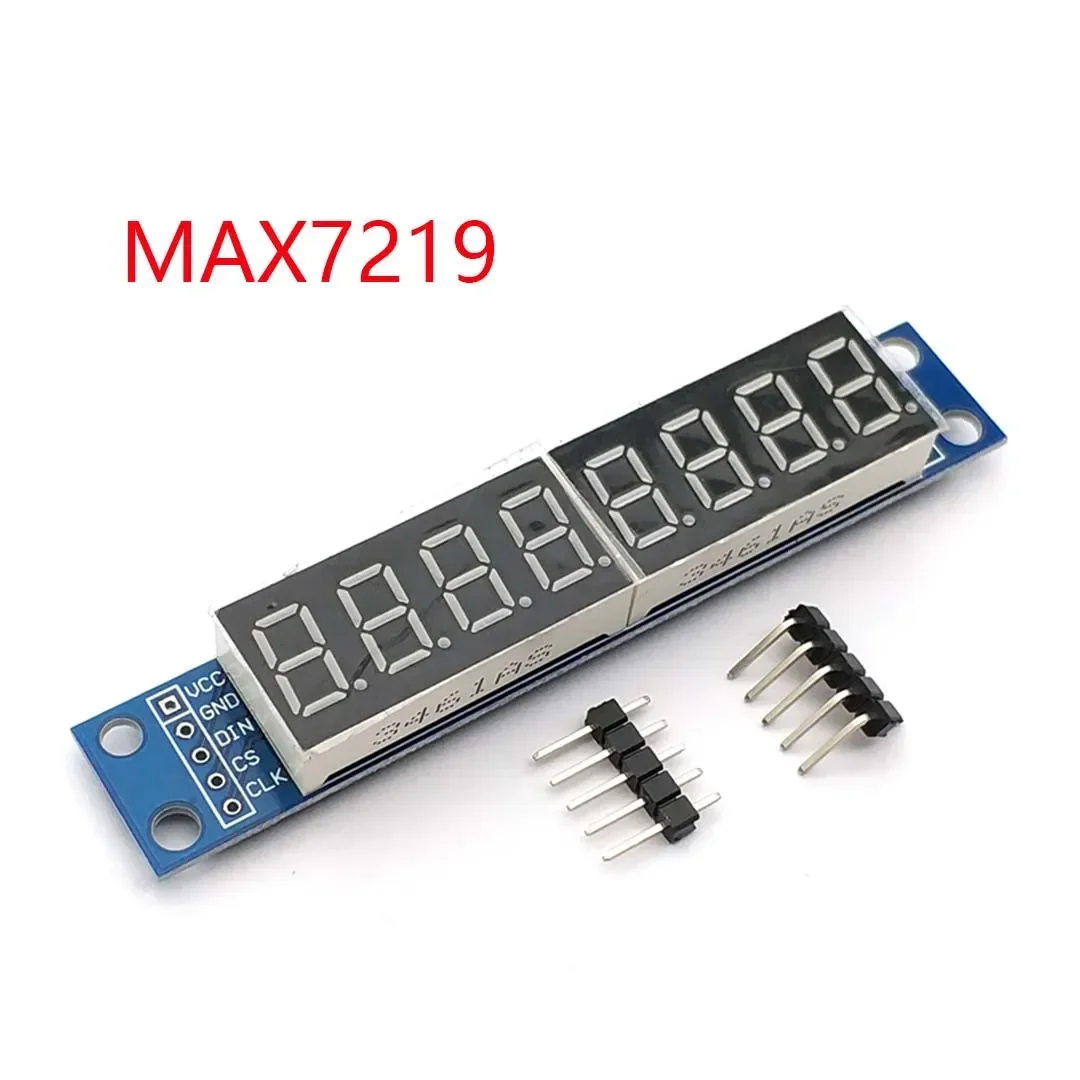

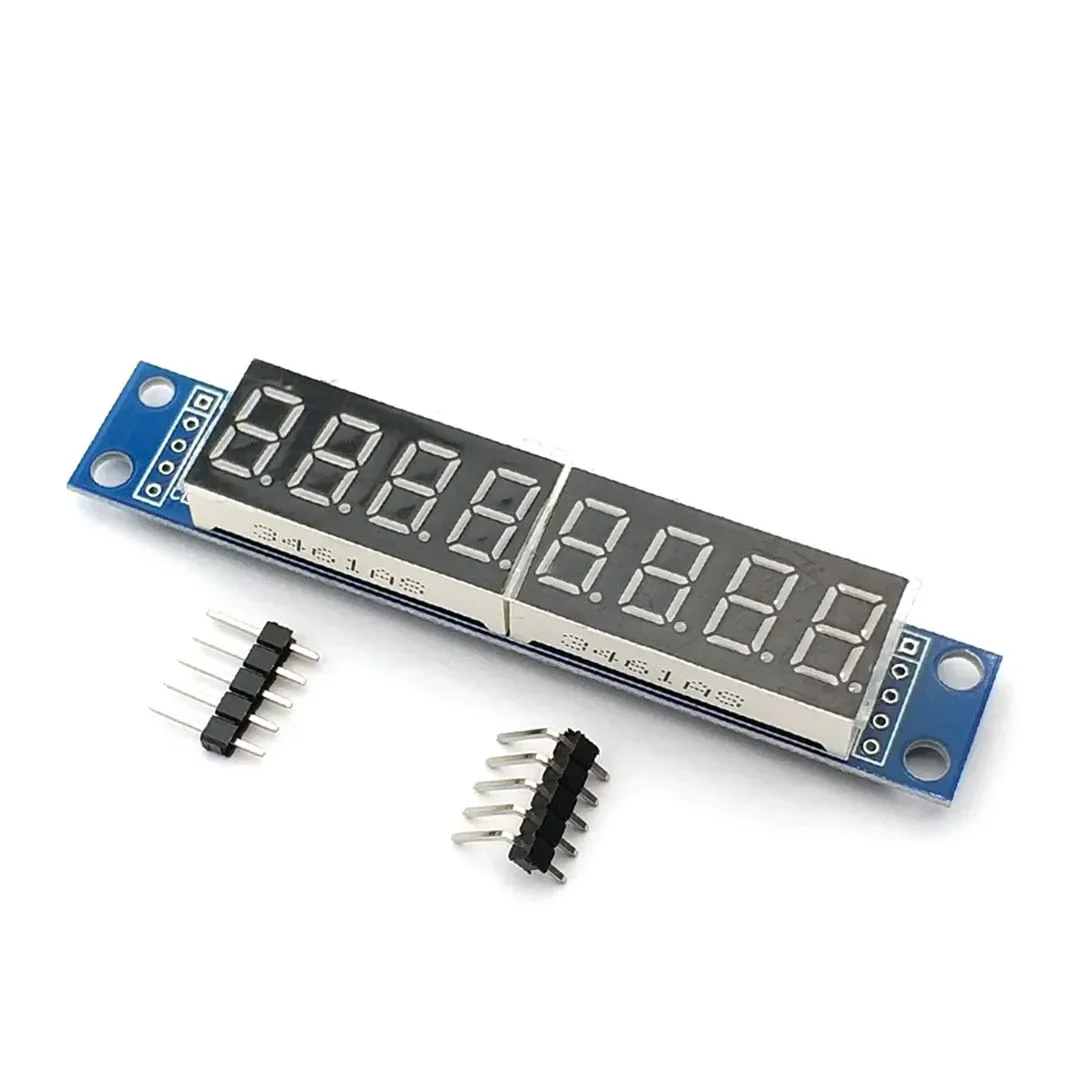

MAX7219 Led Module 8-Digit 7 Segment Digital LED Display Tube for Arduino MCU

MAX7219 Led Module 8-Digit 7 Segment Digital LED Display Tube for Arduino MCU

Description

100% Brand new and high quality
MAX7219 digital display control module
This module is compatible with 5V and 3.3V microcontrollers.
You you can use it for Arduino

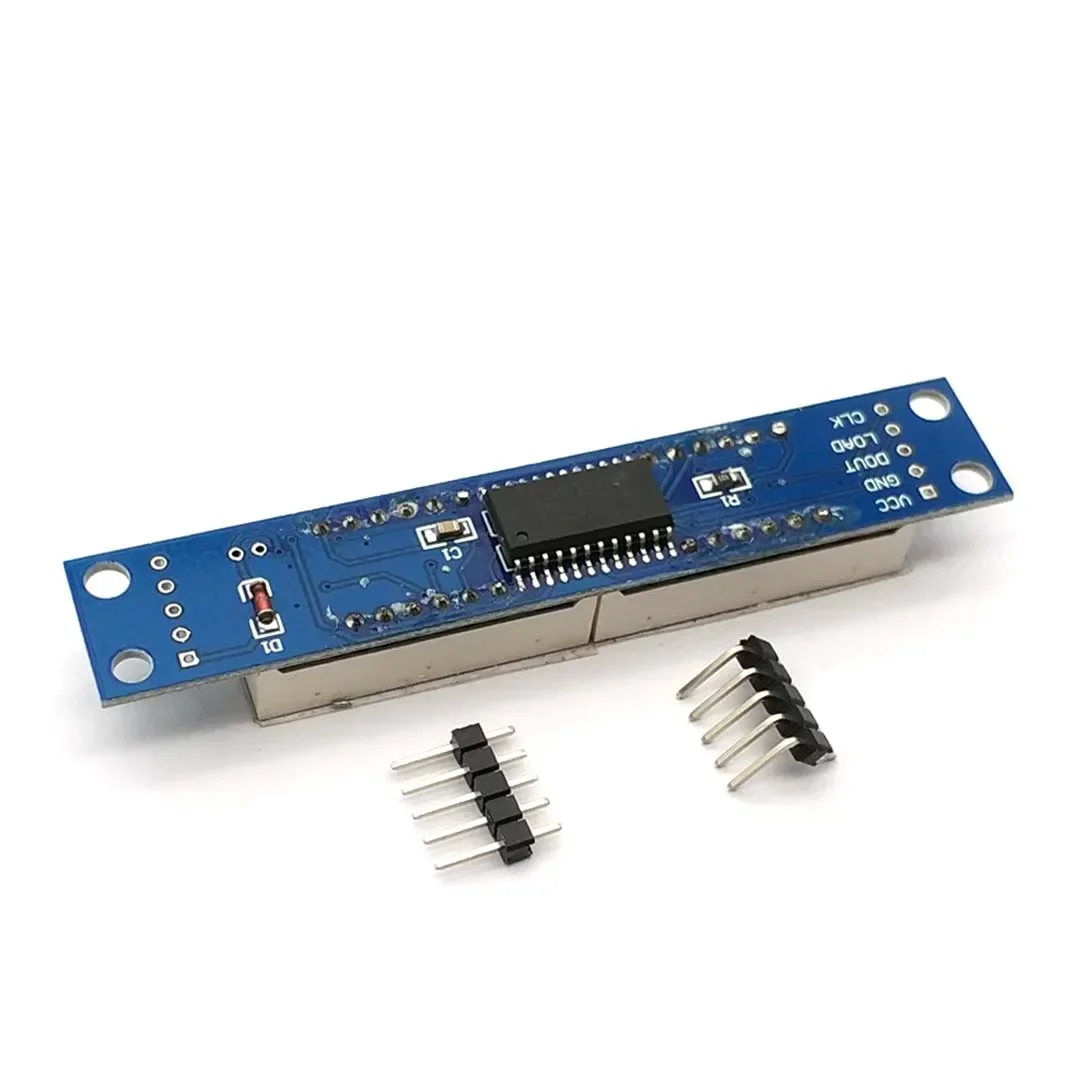

MAX7219 is an integrated serial input / output common-cathode display driver,
which connects your microprocessor to a 7-segment digital LED display with 8 digits.
Only three IO ports are used to drive the eight digit display.
MAX7219 supports flicker free displays as well as cascading displays.

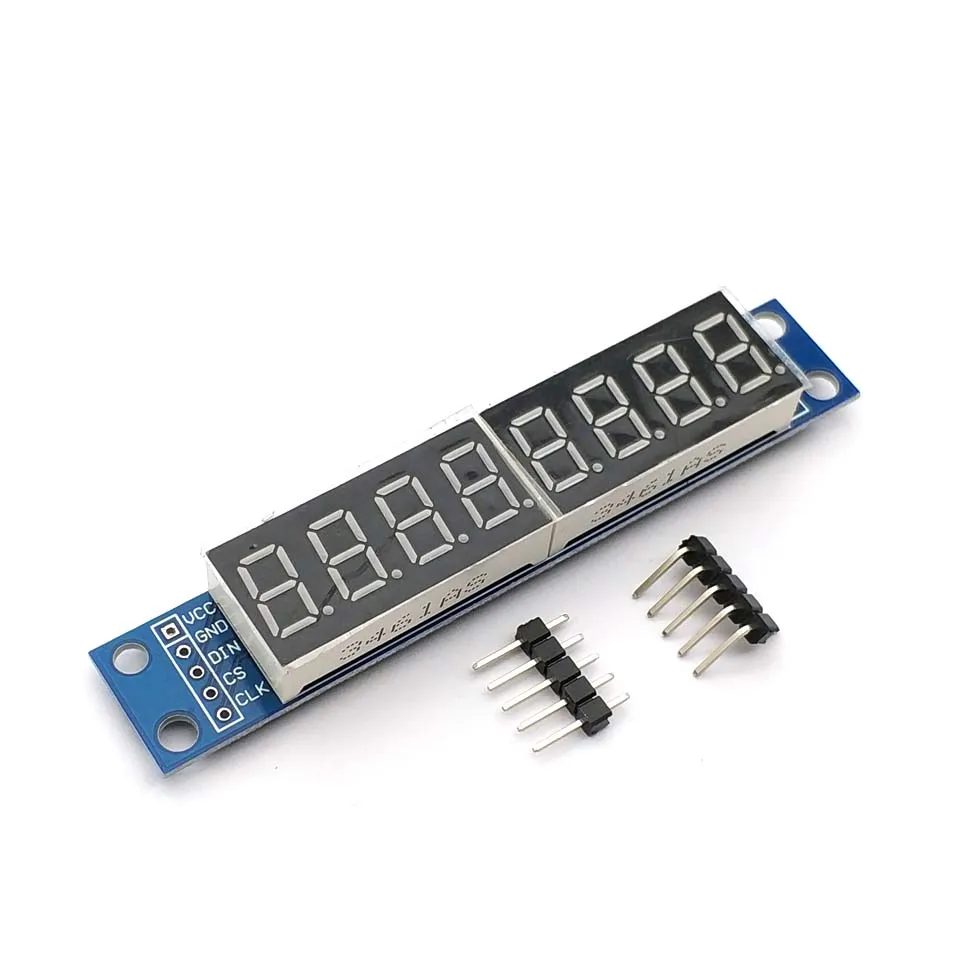

Wiring instructions(for example, it can connect any IO port,
modified the Port Definition in the program):
VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02

Note:
VCC and GND should not be connected reversed, so as not to burn the chip

Specifications:
Material: PCB + Electronic Components
Power: 5V
Size: 82*15*12mm(L*W*H)
Shell Color: Blue & black
Net Weight:13g

Package Included

1 Pcs MAX7219 CWG 8-Digit Digital Tube Display Control Module
