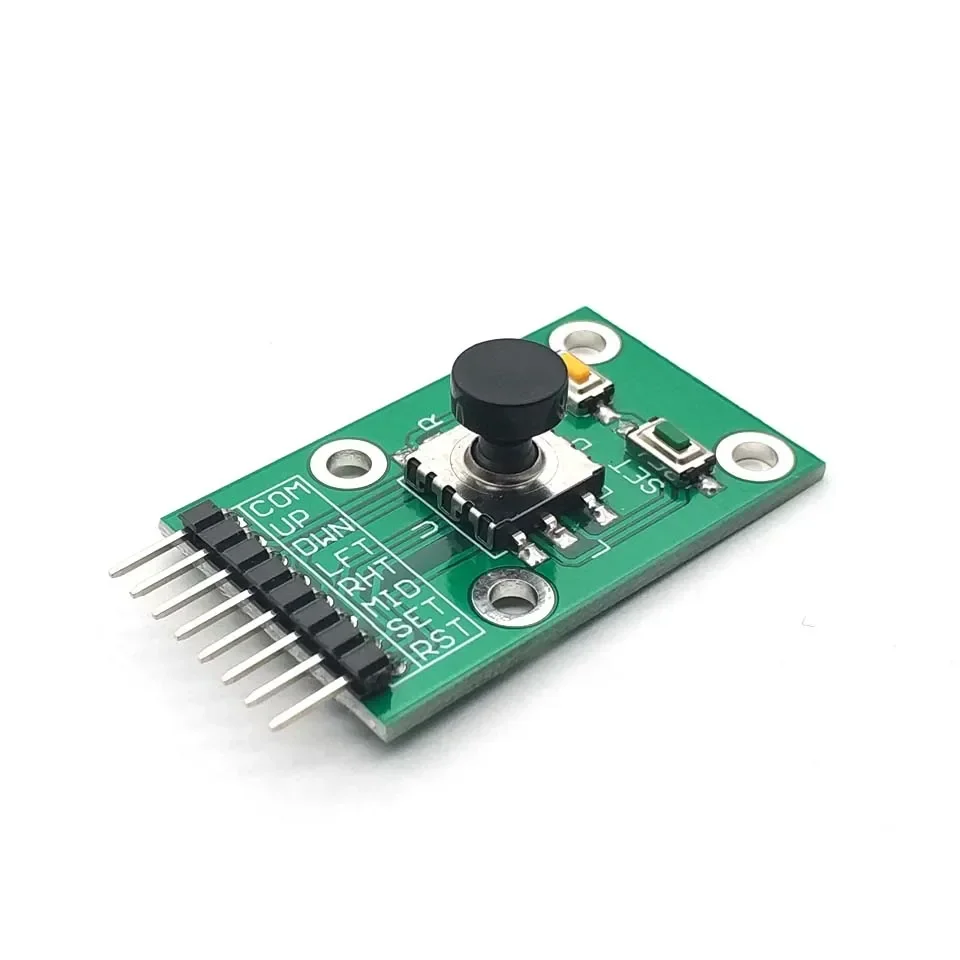

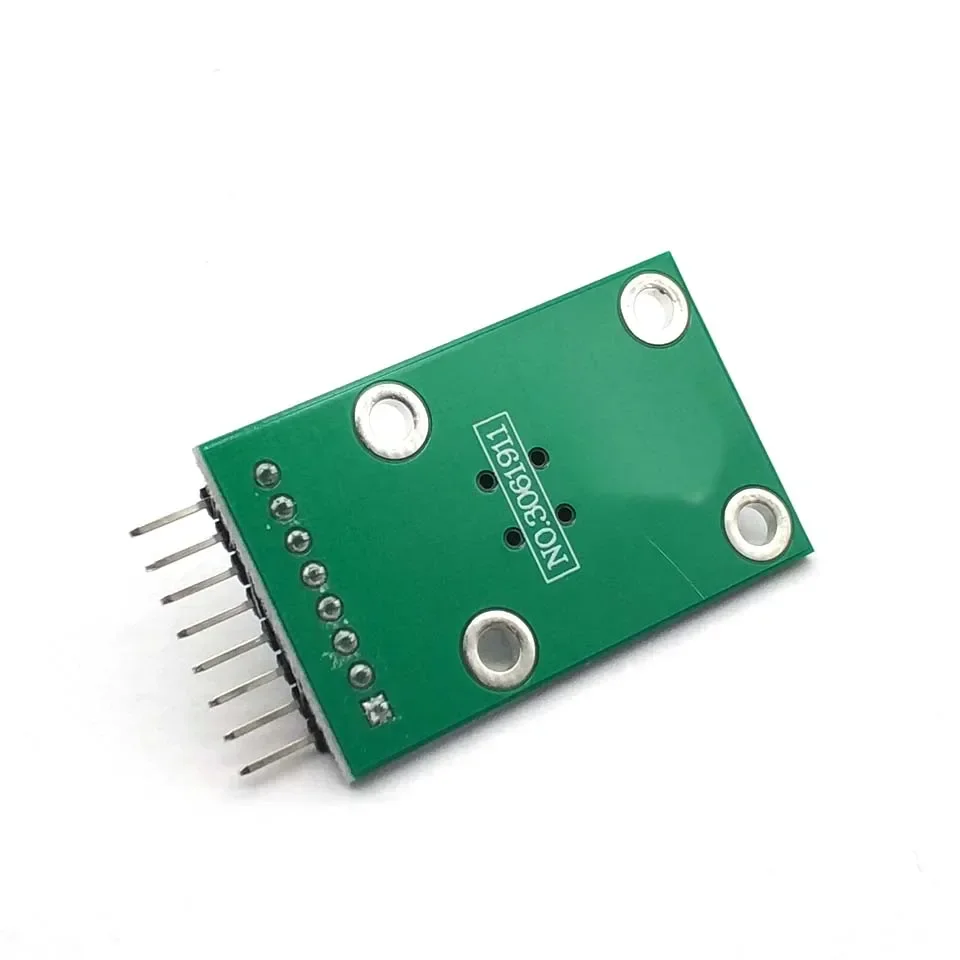

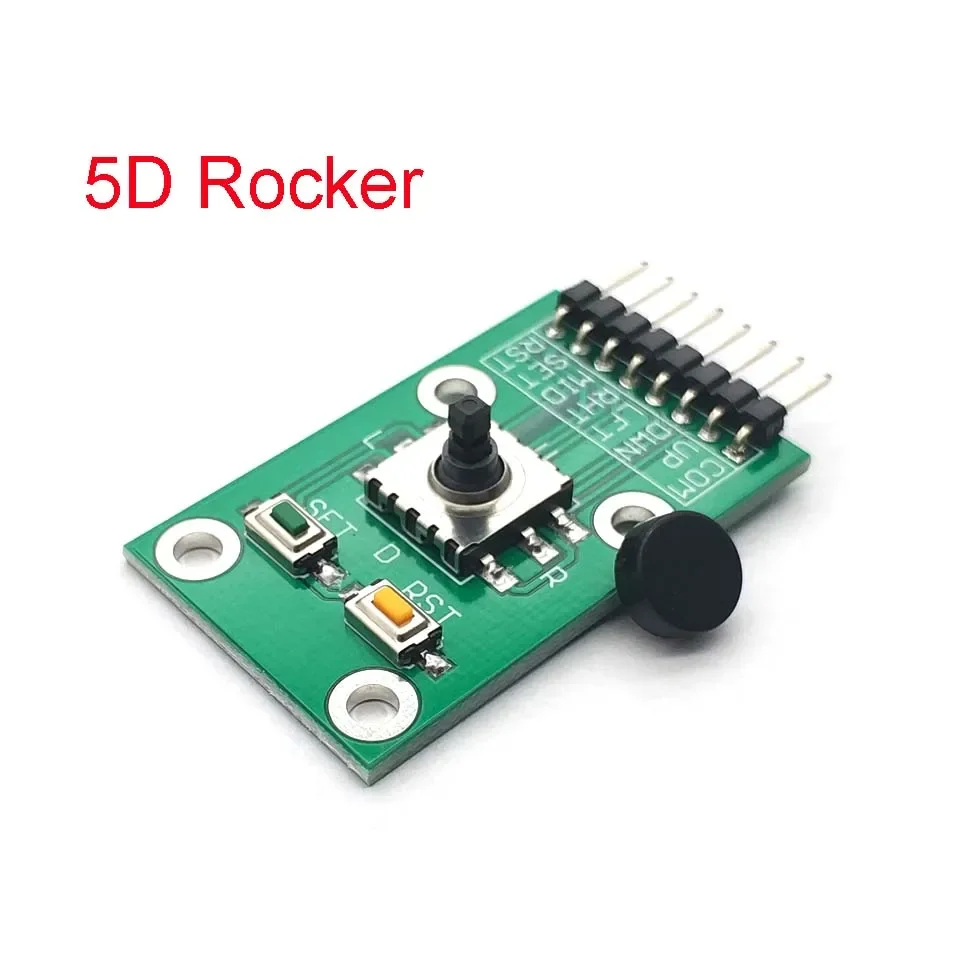

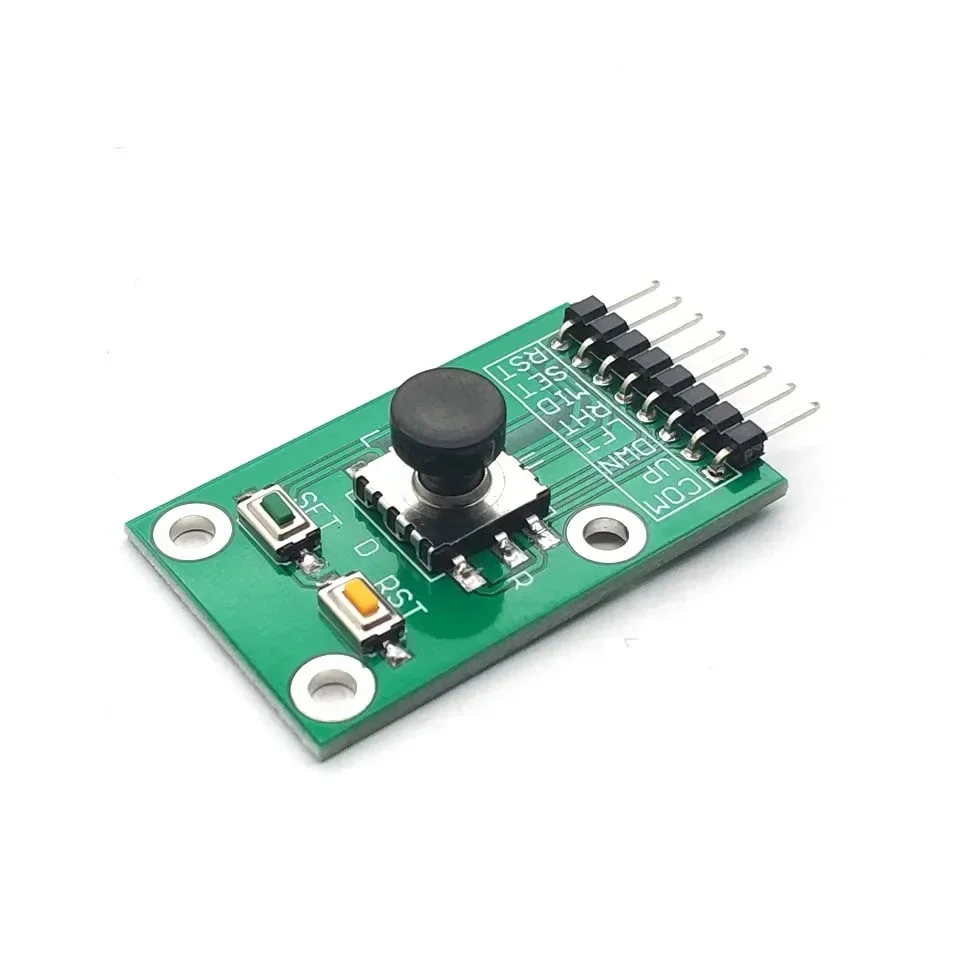

Five Direction Navigation Button Module MCU AVR Game 5D Rocker Joystick Independent Keyboard for Arduino Joystick Module

Five Direction Navigation Button Module MCU AVR Game 5D Rocker Joystick Independent Keyboard for Arduino Joystick Module

Description

1.Name:Five direction navigation button module
2.The number of IO:7
3.Operating voltage:2.0V-9.0V
4.Size:25mmx41mm
5.Operating temperature:-40 Celsius -85 Celsius

Pin description:
1.COM-Common end-VCC or GND connected to the MCU development board
2.UP-Up direction button-Connect to IO pin of the MCU
3.DWN-Down direction button-Connect to IO pin of the MCU
4.LFT-Left direction button-Connect to IO pin of the MCU
5.RHT-Right direction button-Connect to IO pin of the MCU
6.MID-Middle direction button-Connect to IO pin of the MCU
7.SET-Set button-Connect to IO pin of the MCU
8.RST-Reset button-Connect to IO pin of the MCU

Package Included

1 Pcs Five Direction Navigation Button Module
