ESP32 ESP32S for Wemos for Raspberry Pi 18650 Battery Charge Shield Board V3 Micro USB Port Type-A USB 0.5A

ESP32 ESP32S for Wemos for Raspberry Pi 18650 Battery Charge Shield Board V3 Micro USB Port Type-A USB 0.5A



Description

Battery protection(Over charge or Over discharge)

Micro USB port Input

Type-A USB Output

0.5A current charging

1 switch control USB output

5~8V Input Voltage

3V & 1A Output

5V & 2A Output

LED indicate(Green means full,Red means charging)

3V output port x3

5V output port x3

Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.

If you put wrong direction, charging chip will be destroyed.

This product does not include 18650 battery

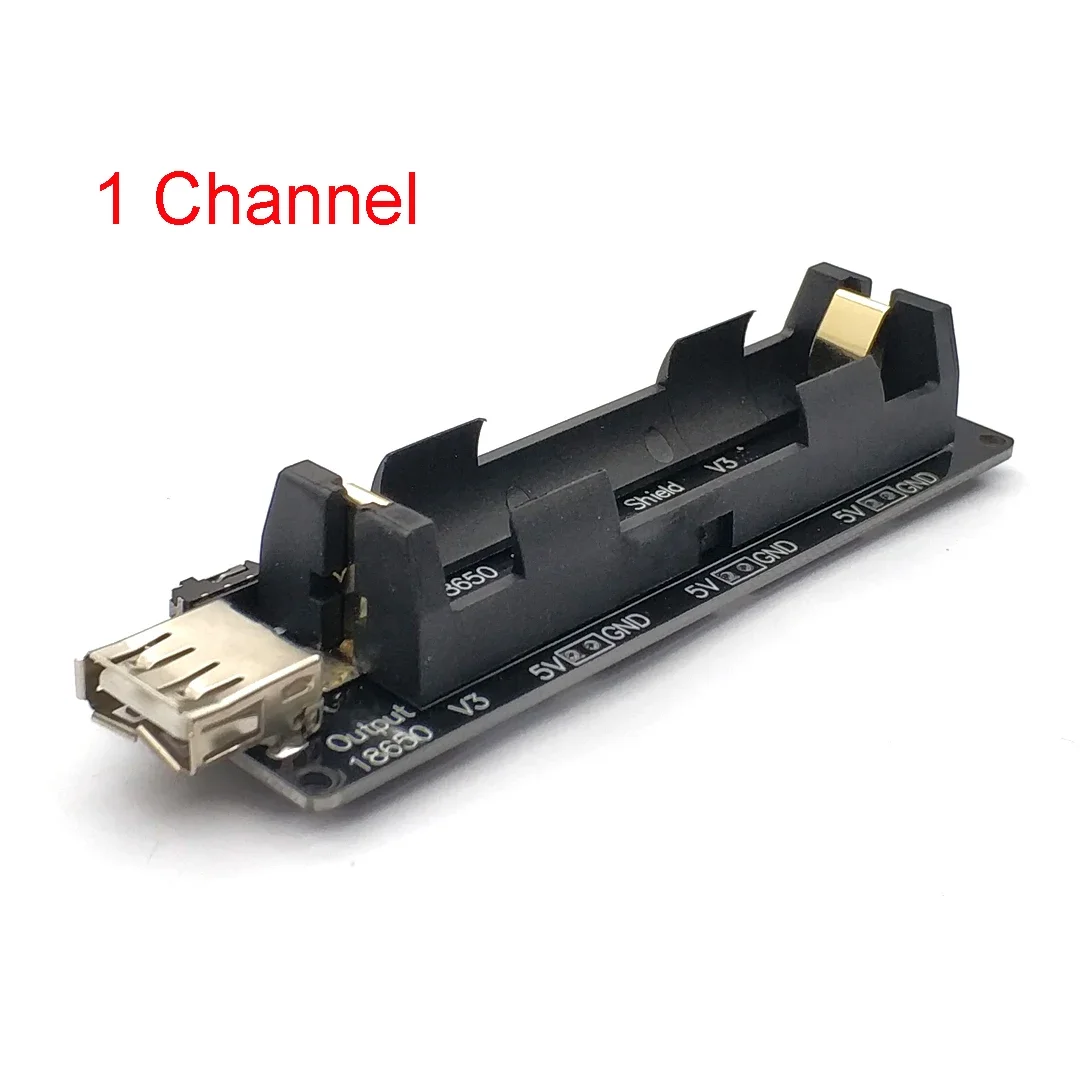

1 Channe Size: 99.3MM*29.3MM

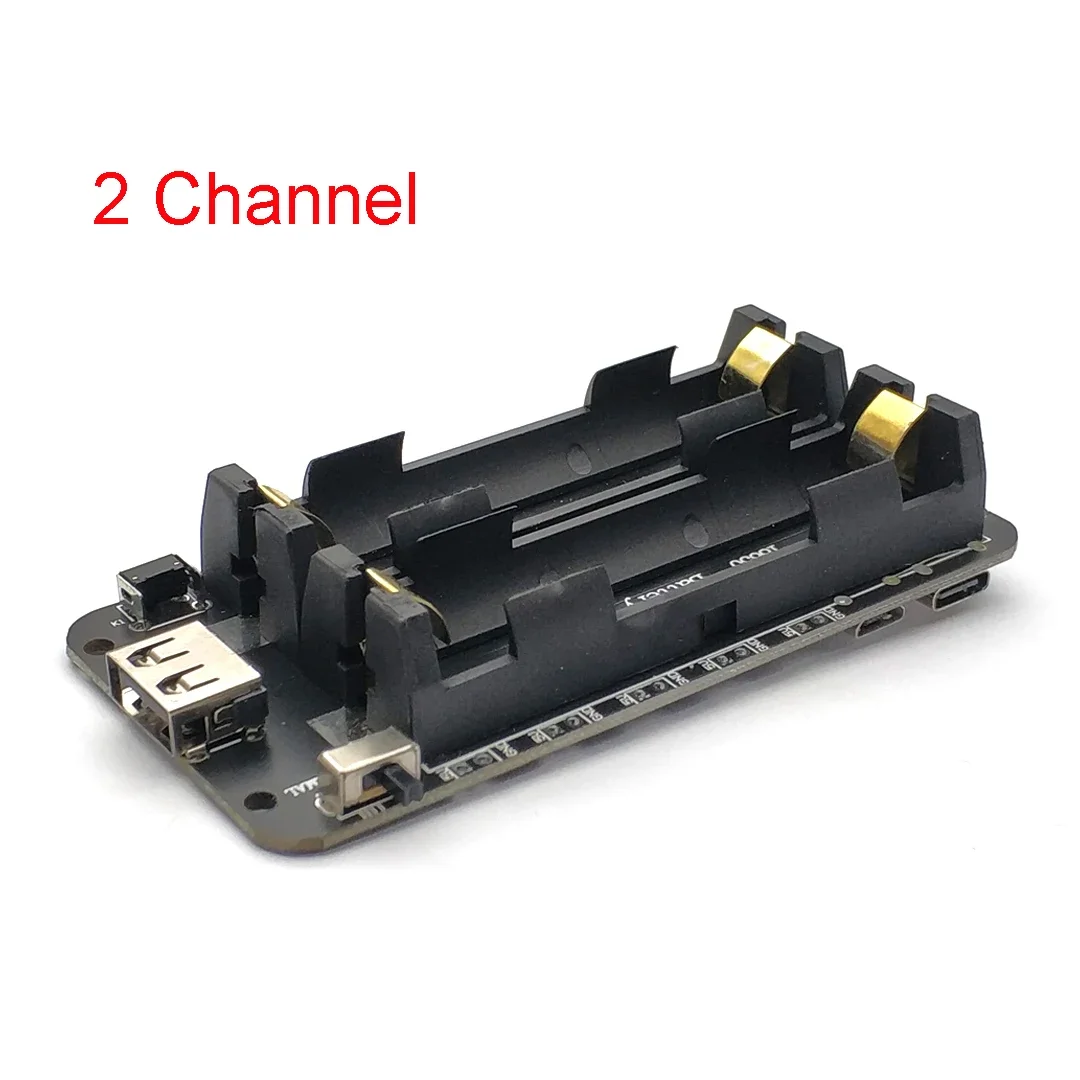

2 Channe Size: 100.3MM*48.3MM

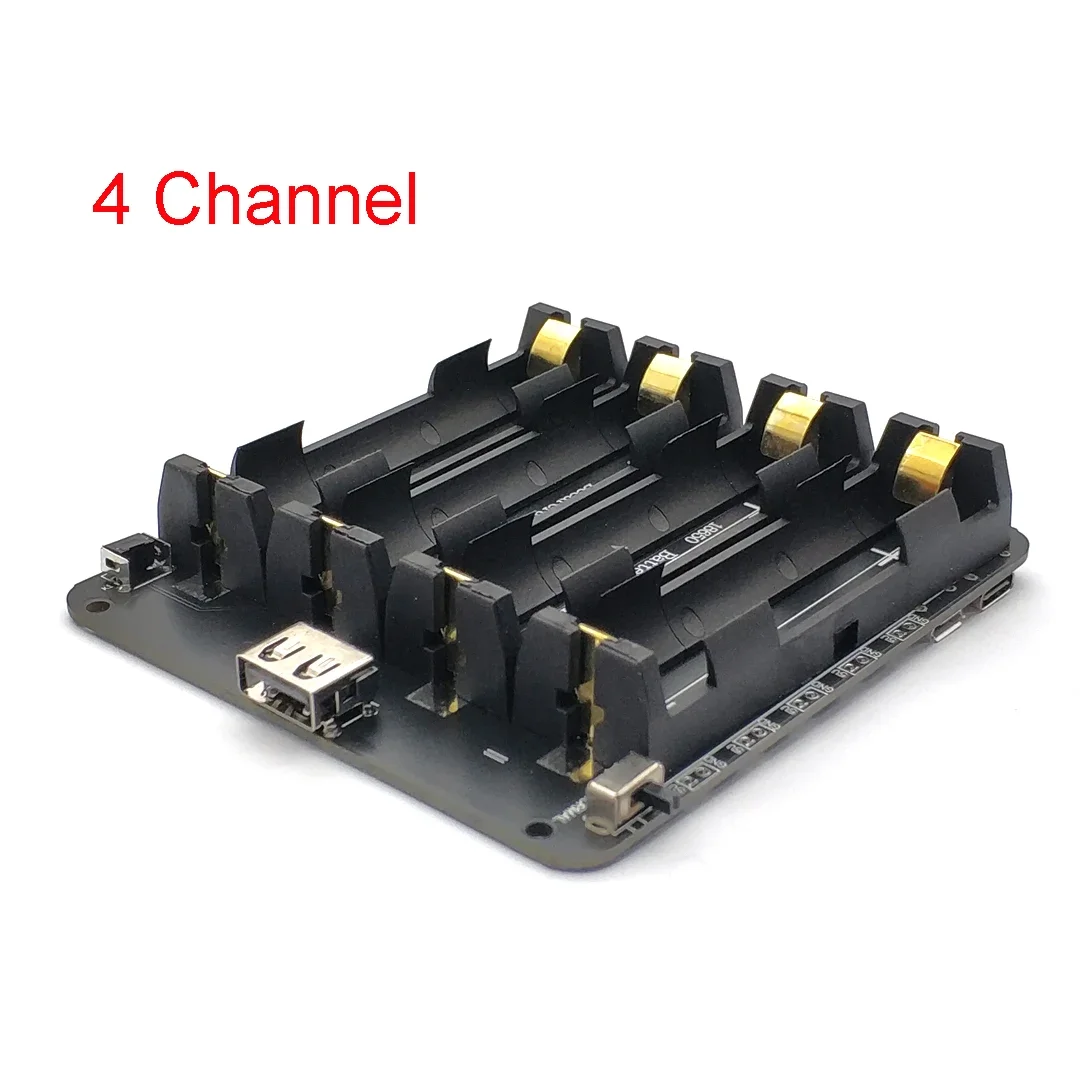

4 Channe Size: 100MM*91MM

Package Included

1 Pcs Battery Shield Module (does not include 18650 battery)
