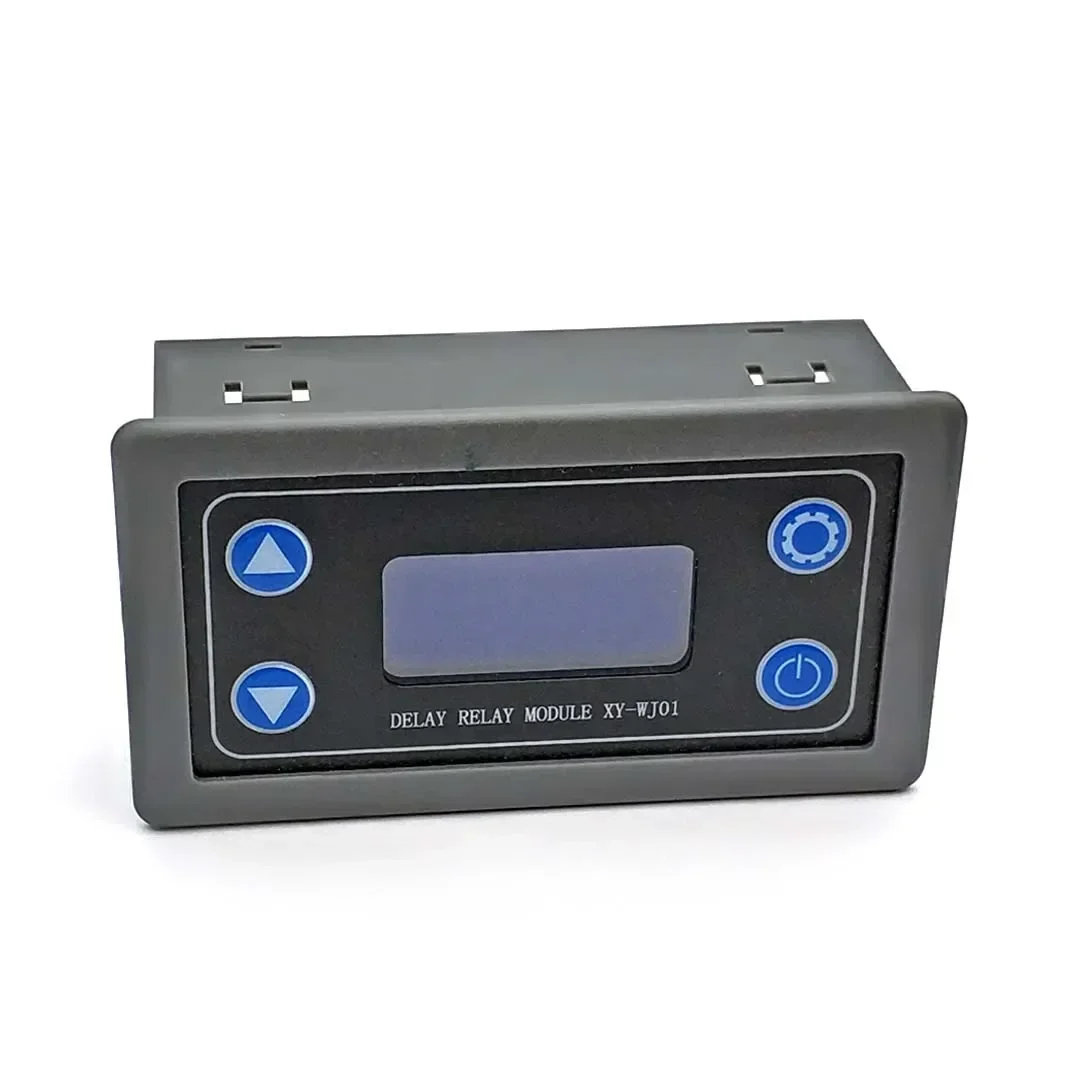

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor

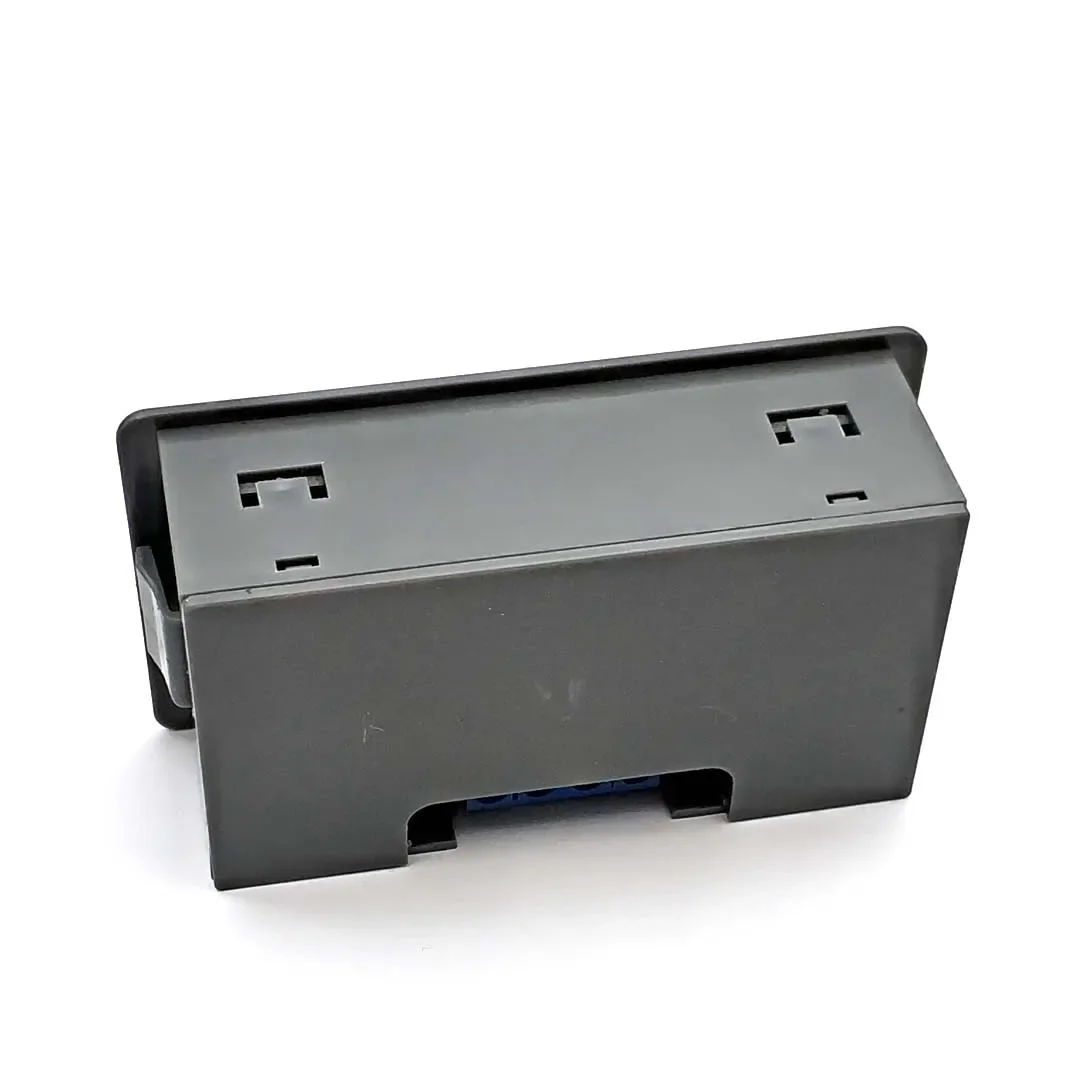

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor - Image 2

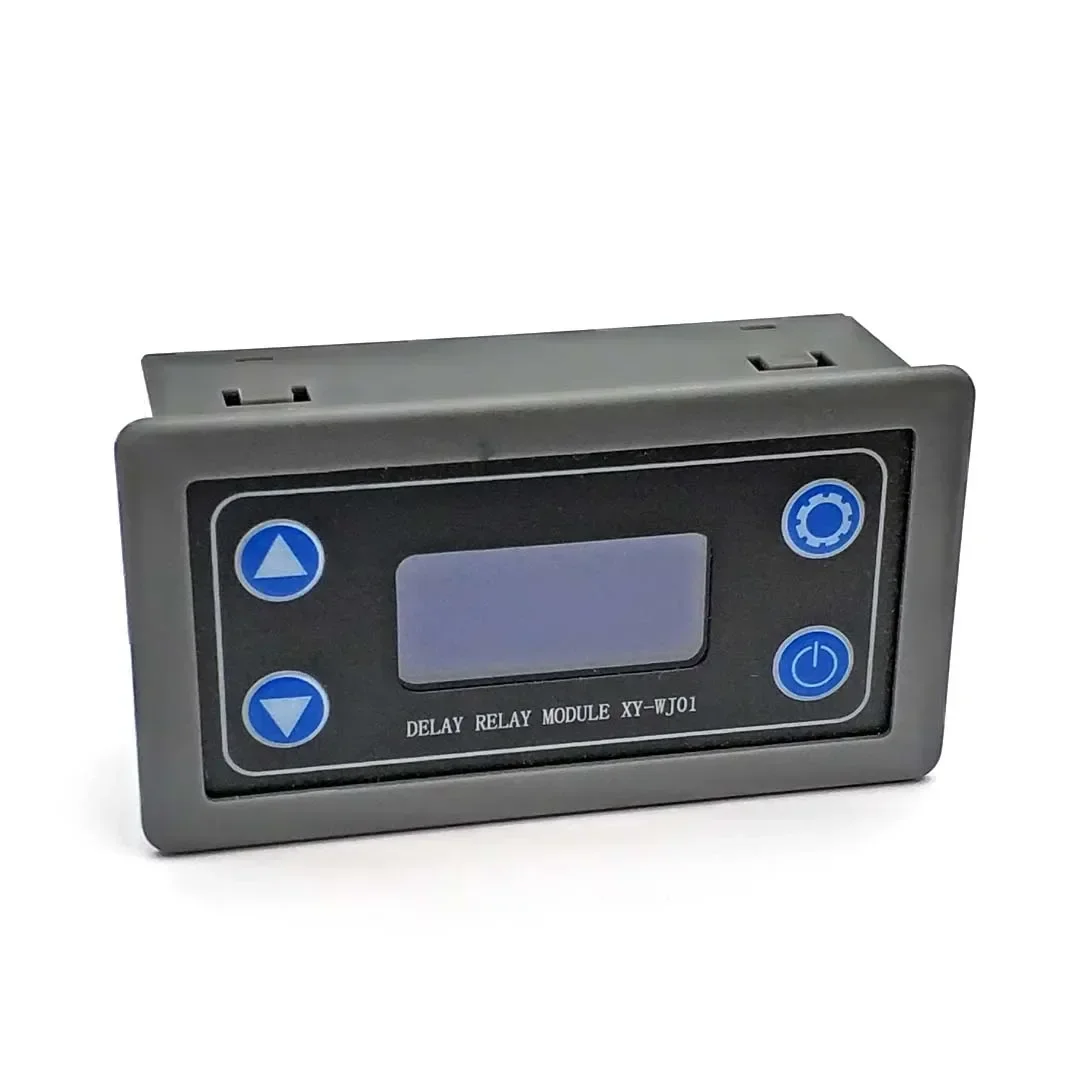

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor - Image 3

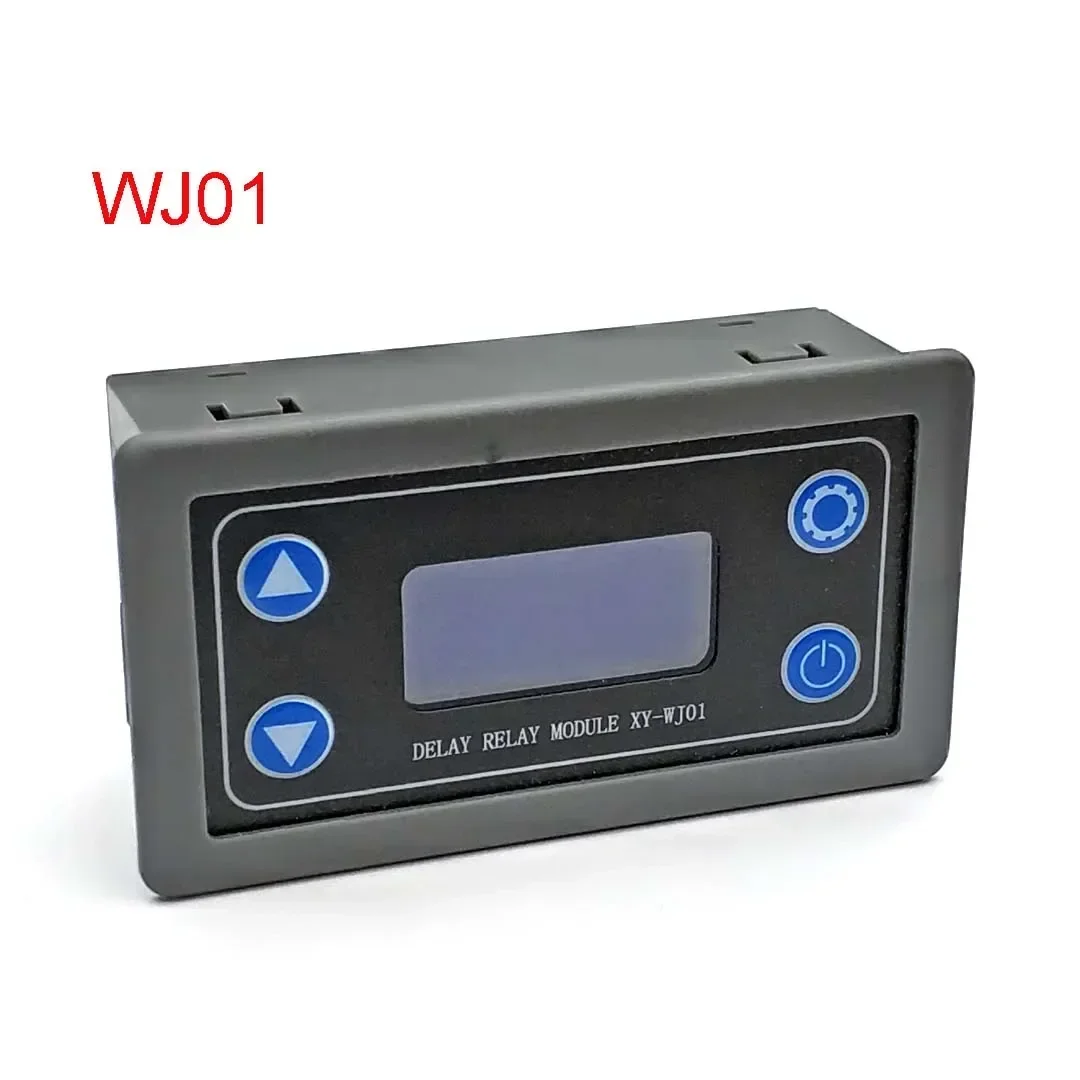

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor - Image 4

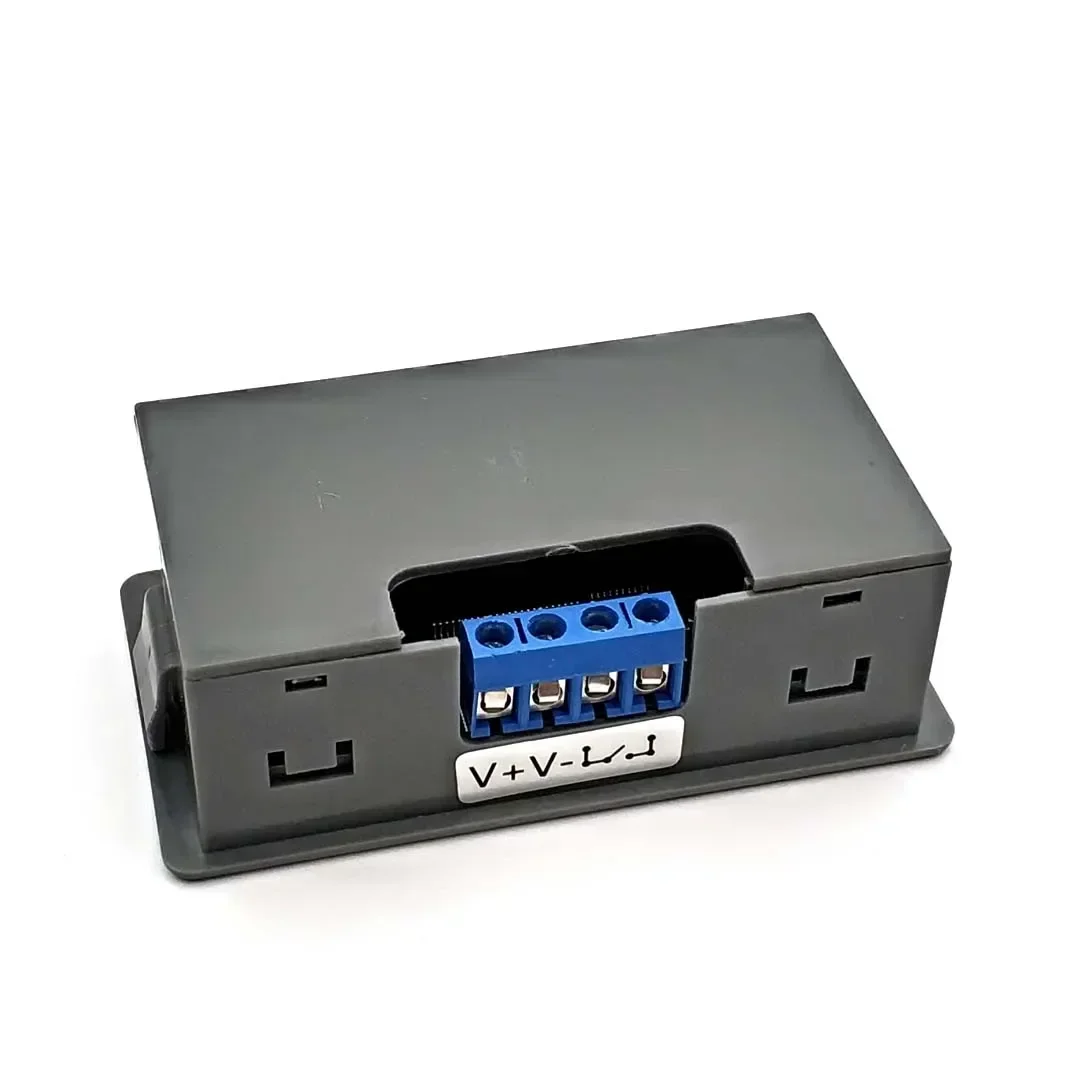

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor - Image 5

DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor

$33.51

WJ01 DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor   Description 1. Display with LCD two columns, Can display parameters directly; 2. Trigger mode: high and low level,switch quantity.meet most of the needs. 3. Power supply: 6~30V. 4. Parameters can be modified via UART. 5. Stop button to provide emergency stop function. 6. 5 minutes without any operation into a low-power state. Any action wake up. 7. OP/CL/LOP par

SKU: DZ001205-1 Category:

WJ01 DC12V LED Digital Time Delay Relay Module Programmable Timer Relay Control Switch Timing Trigger Cycle with Case for Indoor



Description

1. Display with LCD two columns, Can display parameters directly;
2. Trigger mode: high and low level,switch quantity.meet most of the needs.
3. Power supply: 6~30V.
4. Parameters can be modified via UART.
5. Stop button to provide emergency stop function.
6. 5 minutes without any operation into a low-power state. Any action wake up.
7. OP/CL/LOP params can be modified individually
8. All parameters are automatically saved by power off.

Product Parameters:
1. Trigger signal source: High level(3.0V~24.0V),Low level(0.0V ~0.2V),Switch signal.
2. Maxmum Output load: DC 30V 10A and AC 220V 5A.
3. Static Current: 15mA Operating current: 50mA.
4. Service life: more than 100,000 times; working temperature: -40-85°C;
5. Optocoupler isolation,Strong anti-interference ability, Industrial grade circuit board, after power set parameters memory forever



Package Included

1 Pcs WJ01 DC12V LED Digital Time Delay Relay Module
Weight 0.050 kg
Dimensions 13.0 × 8.0 × 5.0 cm
