DC 5V 9V 12V 24V 1 Channel Relay Module with Optocoupler Shield Board High Low Level Trigger Power Supply Module Arduino

5V 12V 24V One 1 Channel Relay Module Board Shield with Optocoupler Support High and Low Level Trigger



Description

100% brand new and high quality

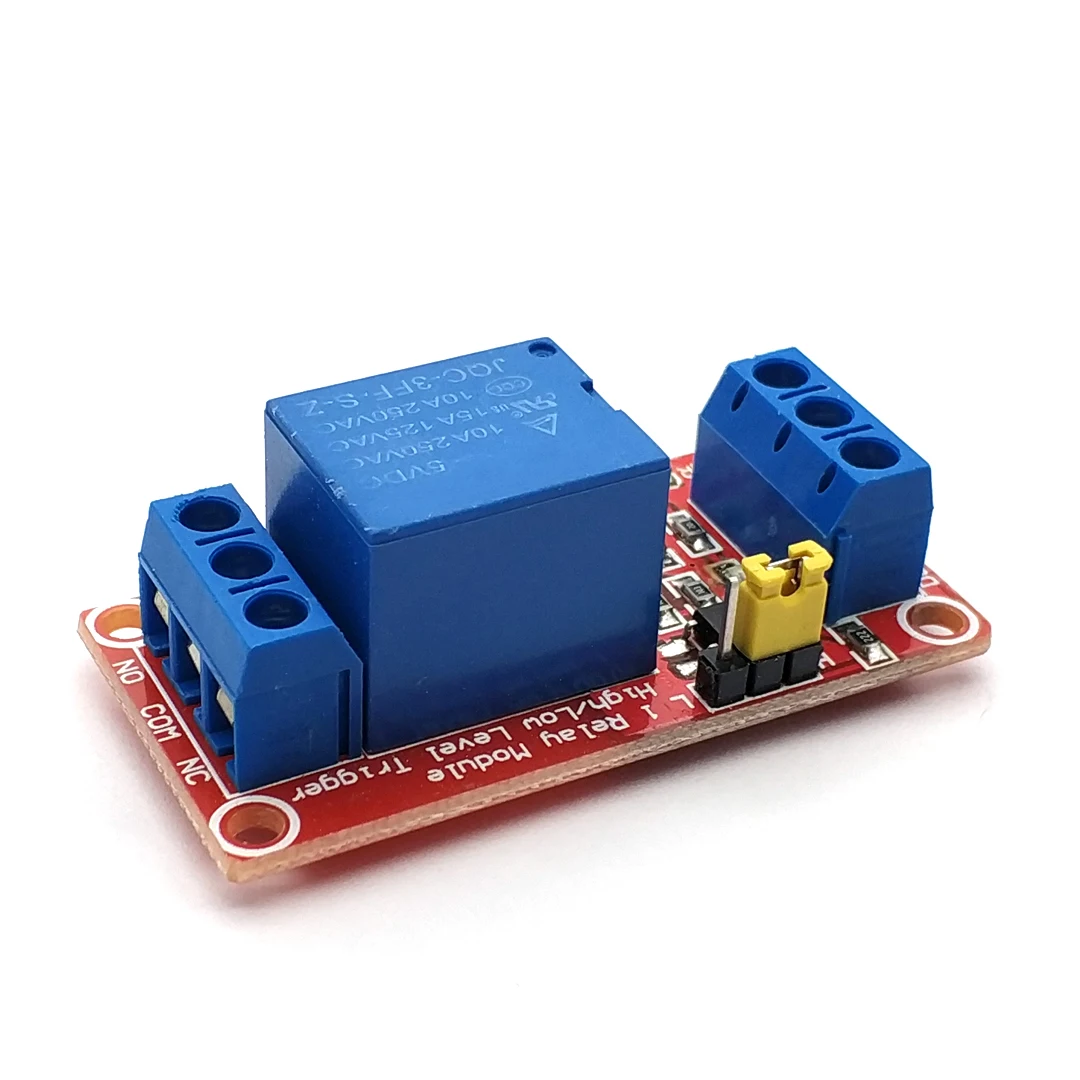

1-Channel relay module, with photoelectric isolation
The module can be high or low by a jumper setting trigger
With power and relay action indicator
The module Operating voltage 5V/12V/24V
The module uses genuine quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A
Module interface:
DC+: positive power supply (VCC)(5V/12V/24V)
DC-: negative power supply (GND)
IN: The control end, the driving current should be more than 4mA
COM: The control of loop of earth wire

Package Included

1 Pcs 1 Channel Relay Module
