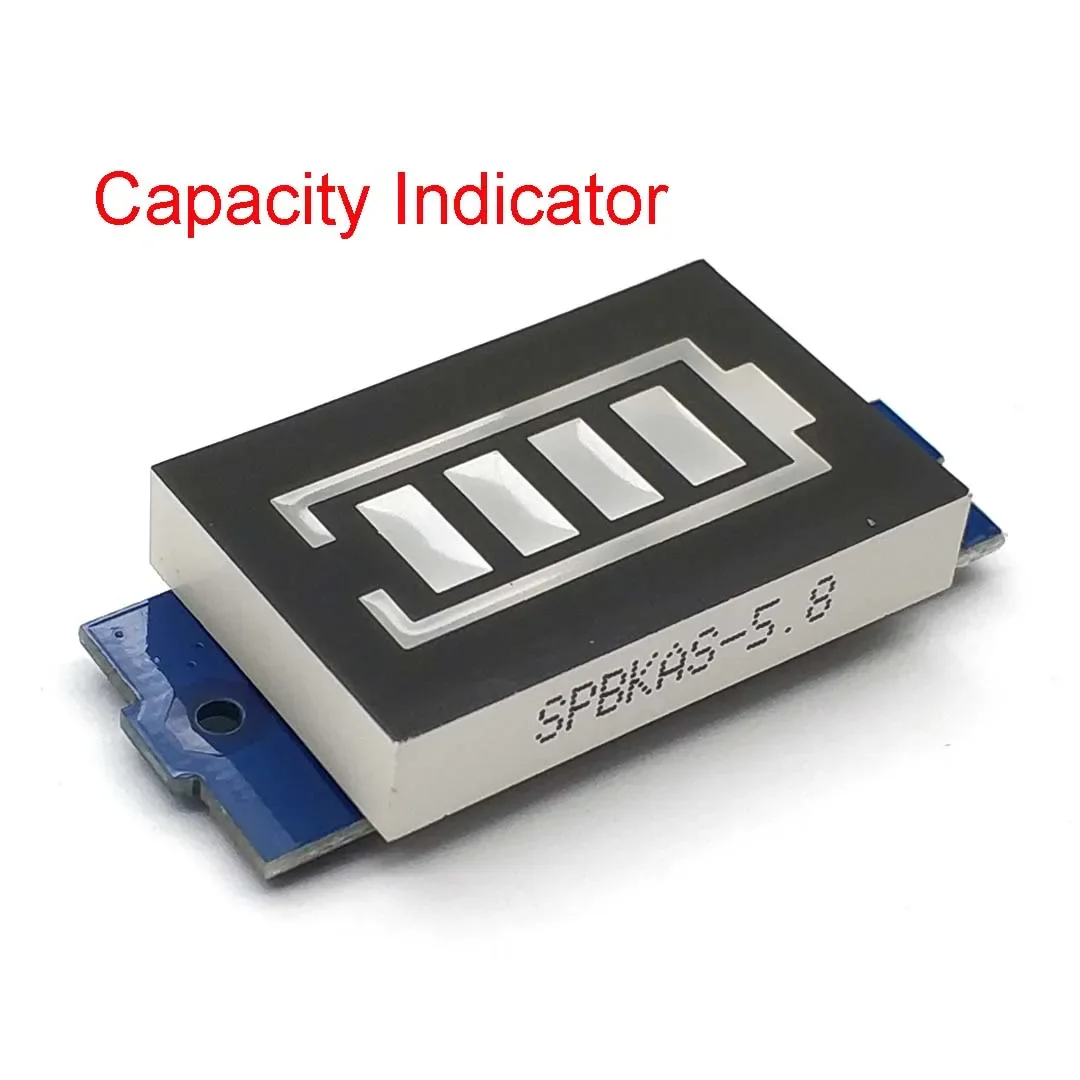

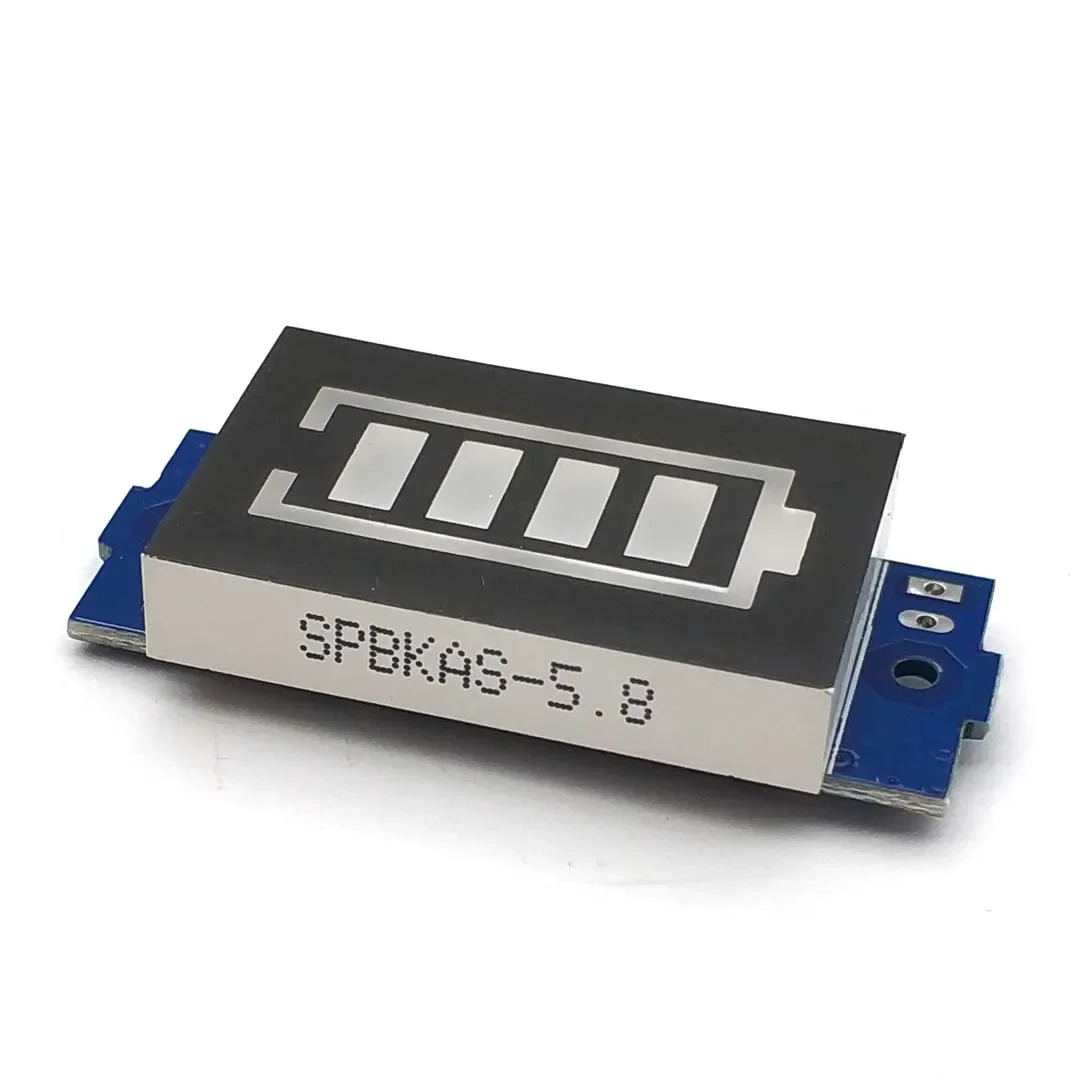

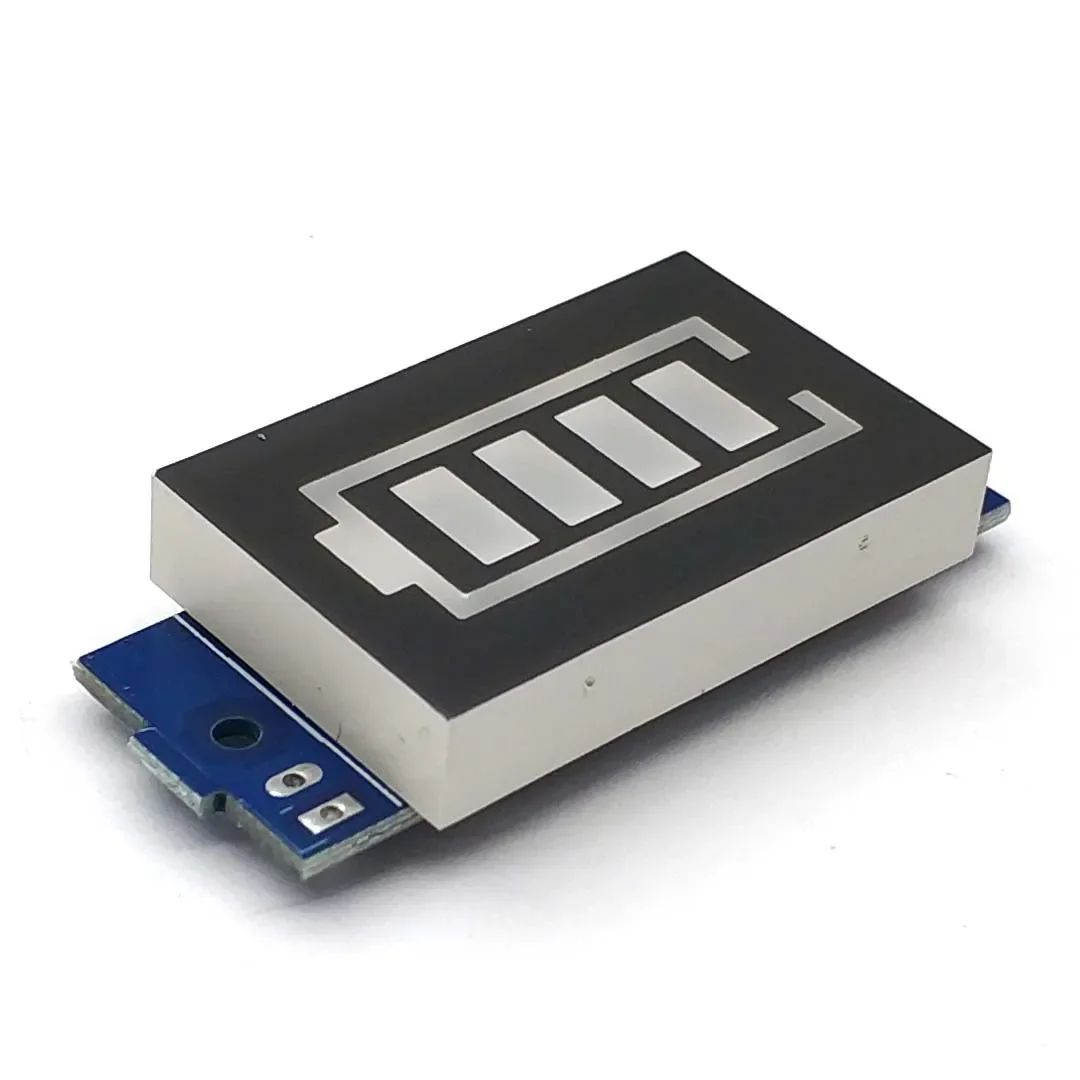

1S 2S 3S 4S 18650 Lithium Battery Capacity Indicator Module 16.8V Blue Display Electric Vehicle Battery Power Tester
If you want documents or have any other questions , contact us ~
Without case versions:
1S Single 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion
2S 2 Series Lithium Battery Capacity Indicator Module 8.4V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion
3S 12.6V Lithium Battery Capacity Indicator Module 3 Series Blue Display Electric Storage Battery Power Tester Meter Lipo Li-ion
4S 4 Series Lithium Battery Capacity Indicator Module 16.8V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion
6S 6 Series Lithium Battery Capacity Indicator Module 25.2V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion
7S 7 Series Lithium Battery Capacity Indicator Module 29.4V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion
Features:
1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity

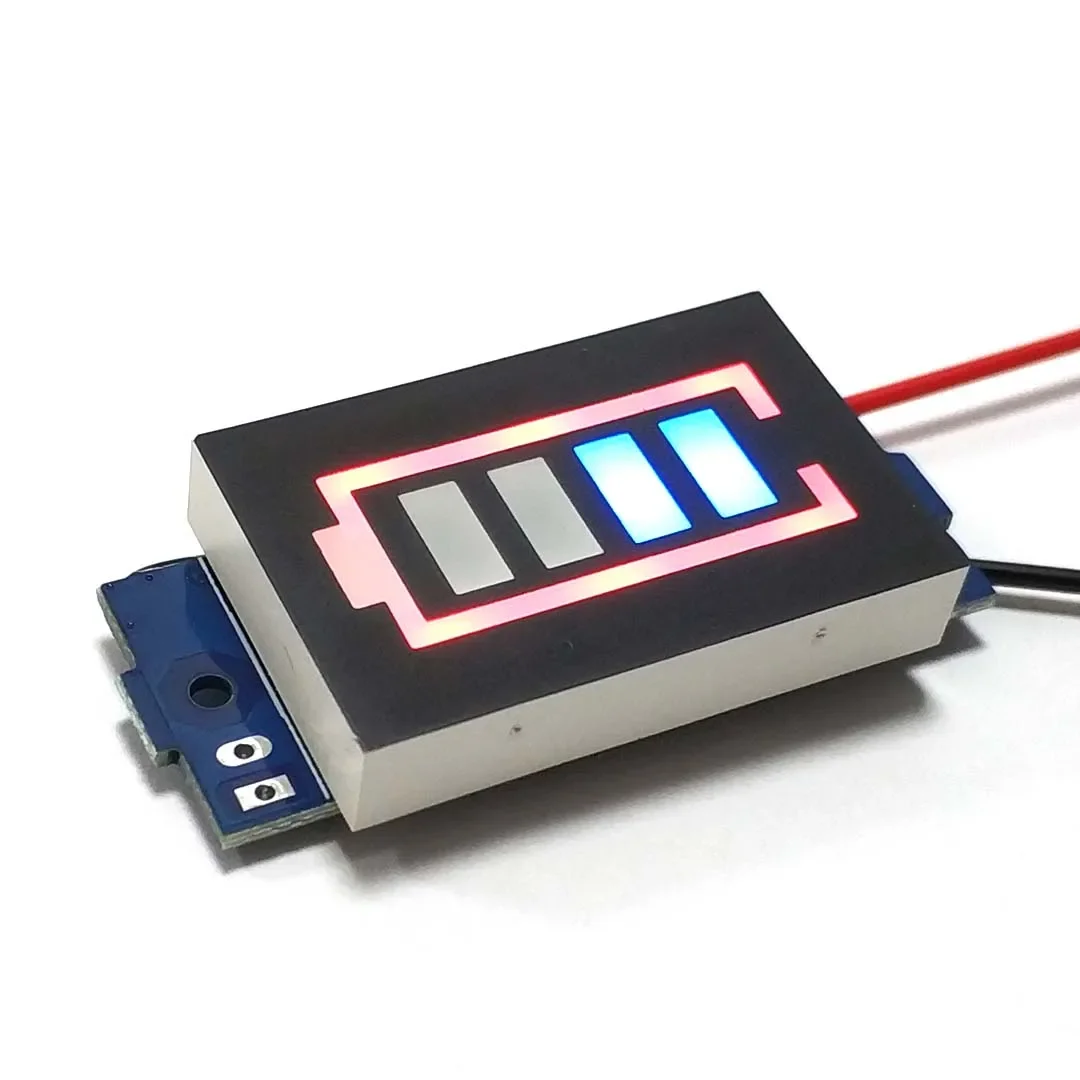

4.Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on)
Display Electricity Quantity Parameter:
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity)
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery.
