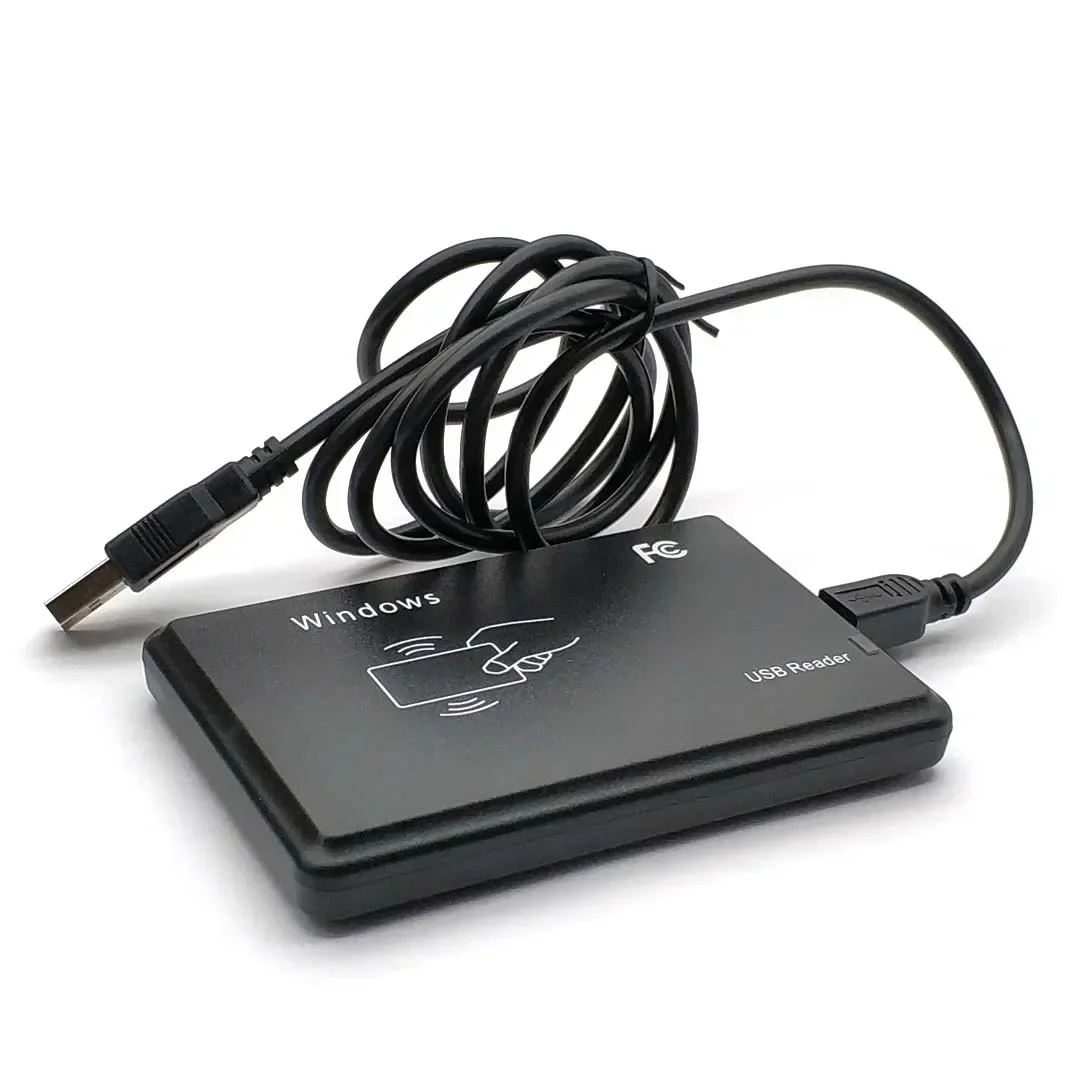

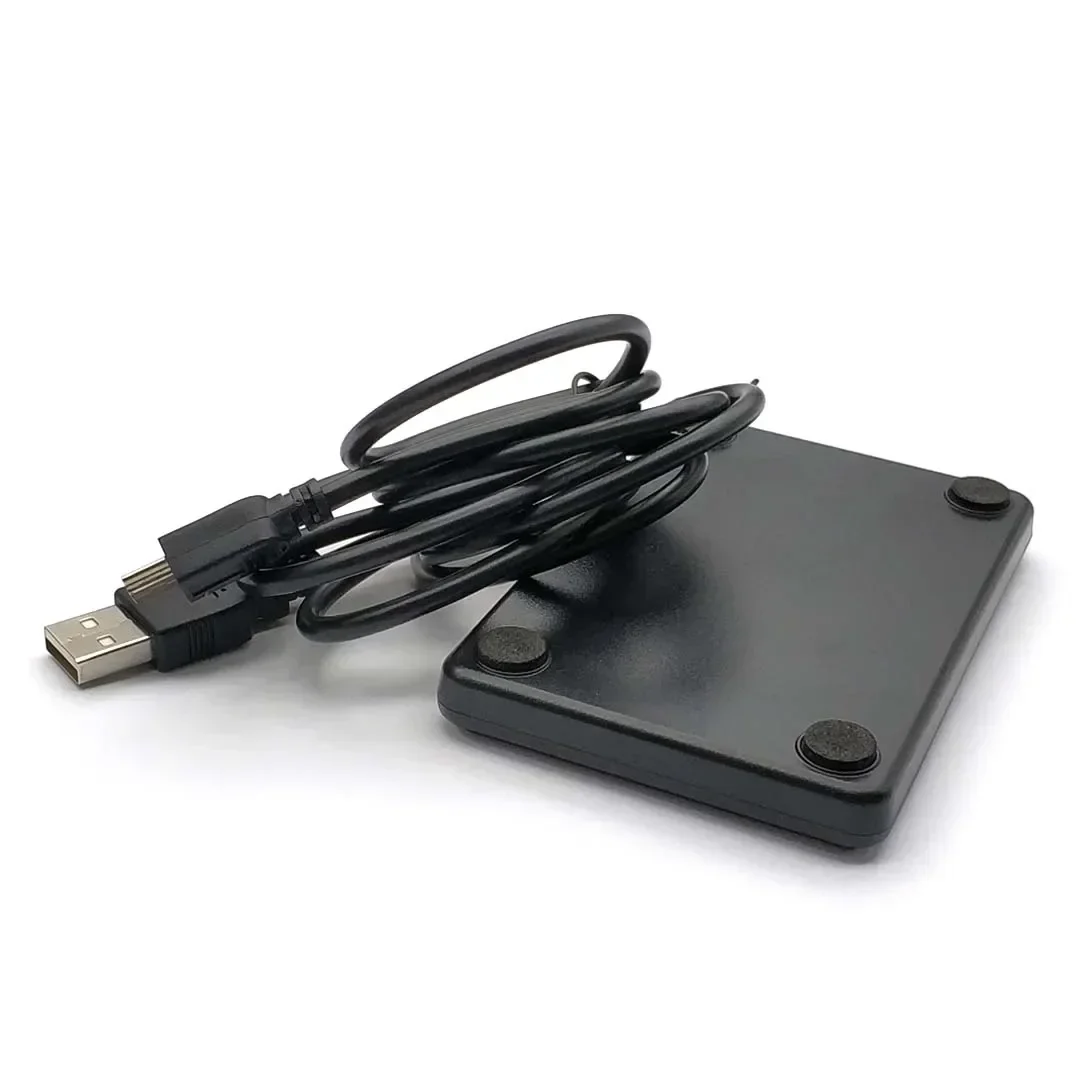

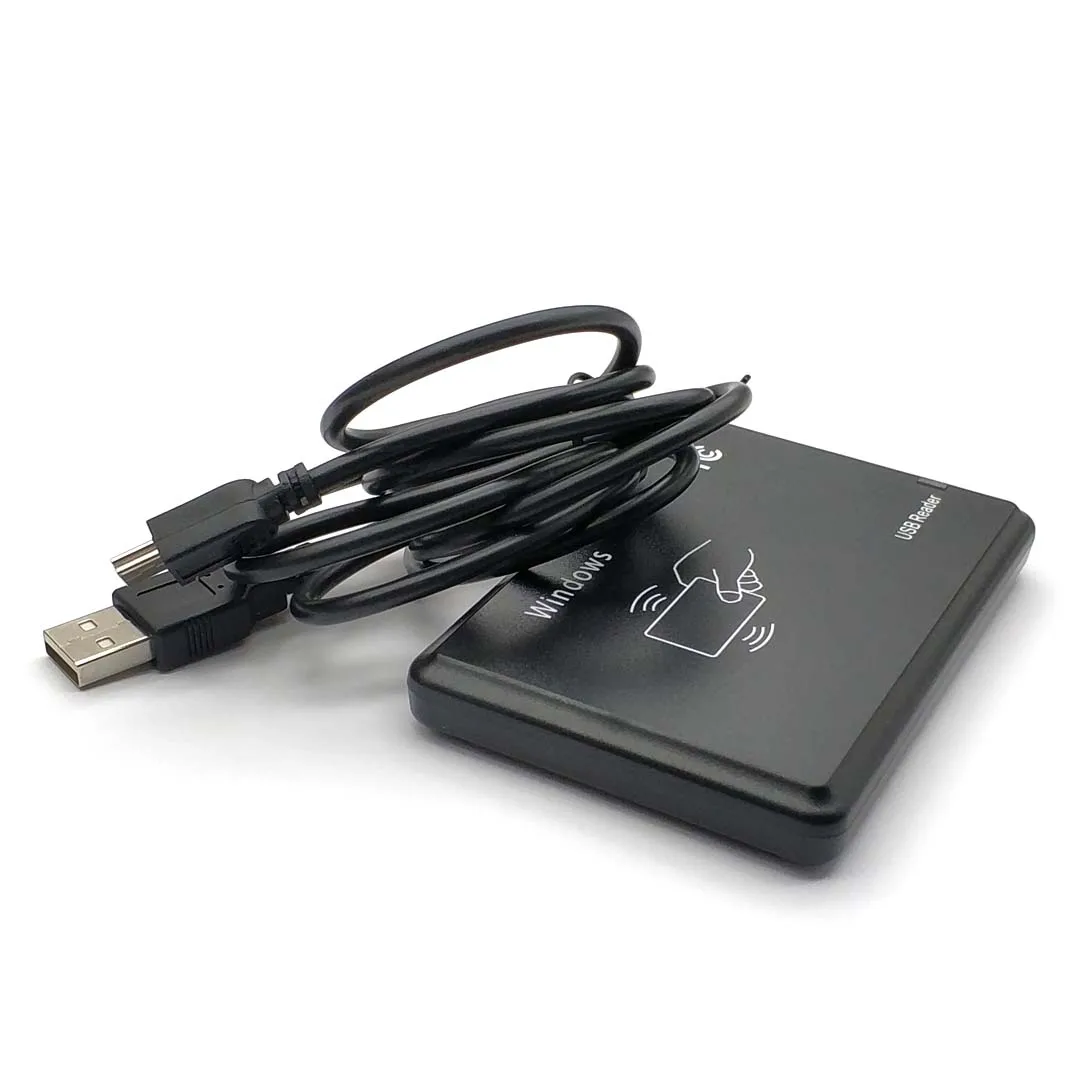

125Khz 13.56MHz RFID Reader EM4100 USB Proximity Sensor Smart Card Reader No Drive Issuing Device EM ID USB for Access Control
125khz ID RFID Reader:
The ID card reader is a 125kHz driverless which read ID card reader. When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .
Frequency: 125kHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For EM4100, TK4100 etc.
Protocol: 14443A
Supporting System: Windows1087XP982000CEMENTLIUNXVista

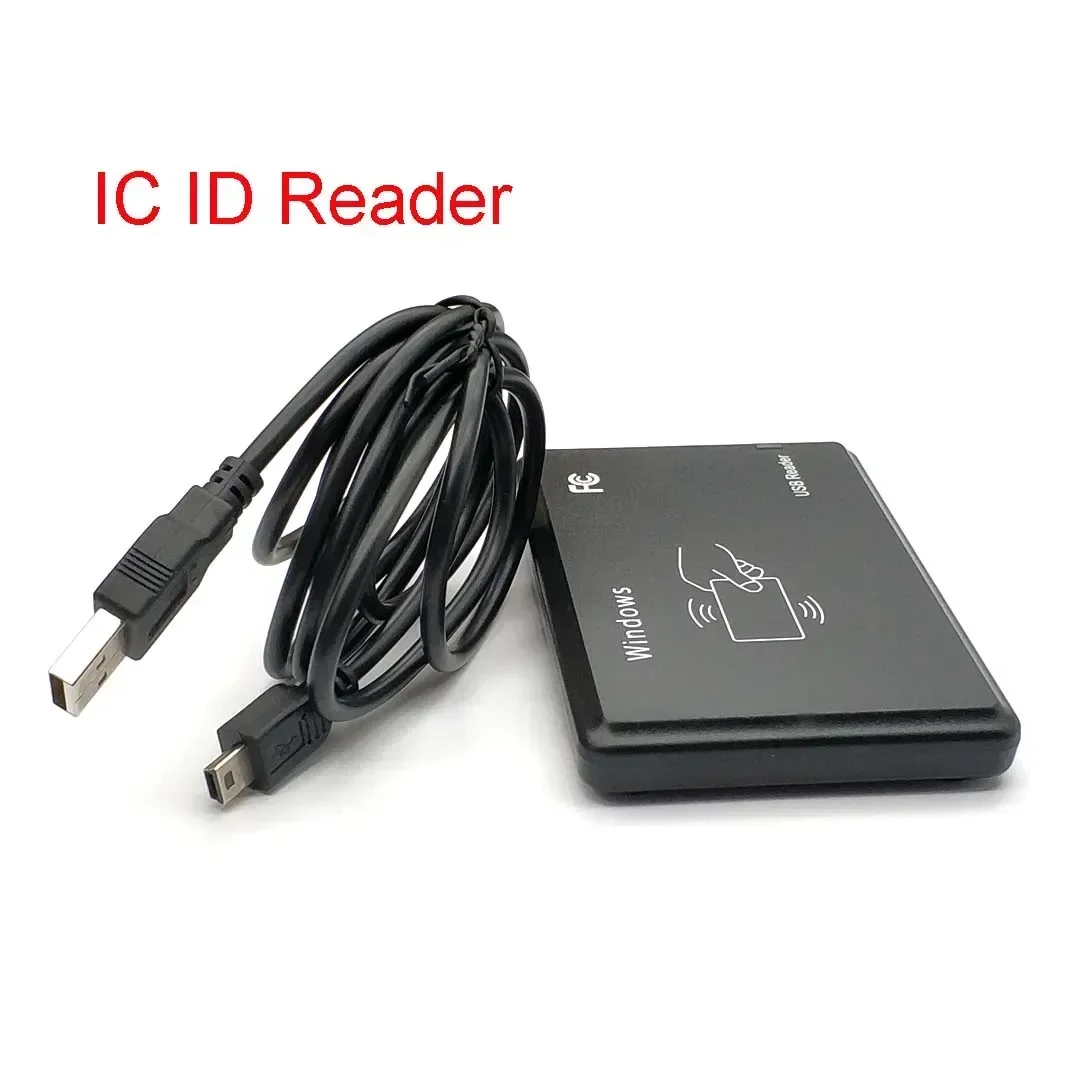

13.56Mhz IC RFID Reader:
This item is a RFID 13.56MHz IC reader, which is widely used for RFID radio frequency identification system and project.
The item is driverless, When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .
Frequency: 13.56MHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For Mifare S50, S70
Protocol: 14443A
Supporting System: Windows1087XP982000CEMENTLIUNXVista etc.
Features:
*USB Plug and Play.
*0-8cm Reading Distance.
*Win8/7/XP/Android Supported.
*EM4100/TK4100 Card Supported.
*OTG Phone Connection.
*Built-in buzzer and LED for identification.
About Use:
1. Connect with computer through the USB cable inside.
2. Open notepad or a word document.
3. Put card on the top of the reader.
4. The document will output card number automatically.
