XL4015 5A Adjustable Power CC/CV Step-down Charge Module LED Driver Voltmeter Ammeter Constant Current Constant Voltage

XL4015 5A Adjustable Power CC/CV Step-down Charge Module LED Driver Voltmeter Ammeter Constant Current Constant Voltage



Description

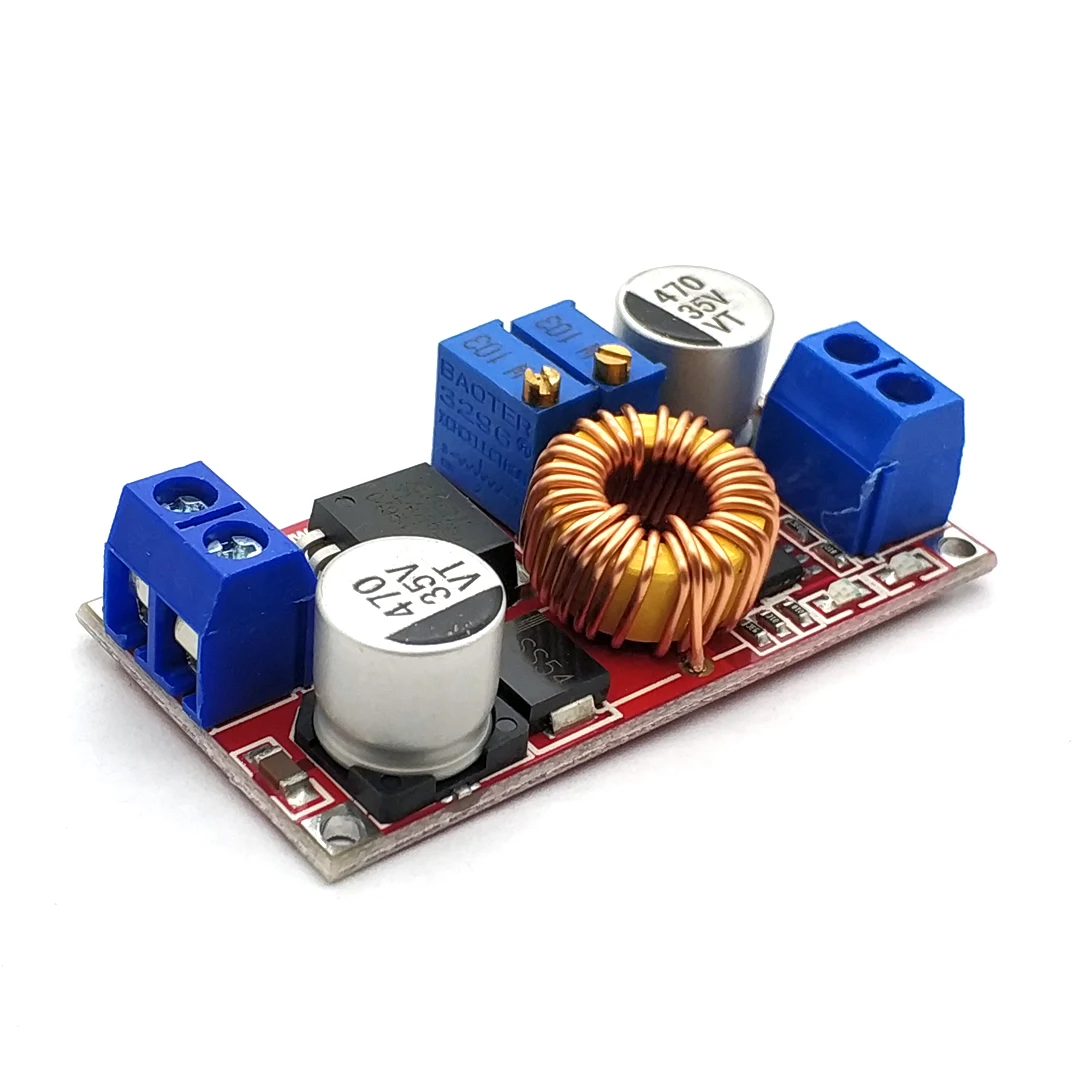

XL4015:
Size: 51 * 26.3 * 14 (L * W * H) (mm)
Operating Temperature: -40 ° to +85 °
Voltage Regulation: ± 2.5%
Load Regulation: ± 0.5%
Output ripple: 50mV (max) 20M bandwidth
Switching frequency: 300KHz
Conversion efficiency: 95% (the highest)
Output current: adjustable maximum 5A
Output voltage: 0.8V-30V
Input voltage: 5V-32V
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.

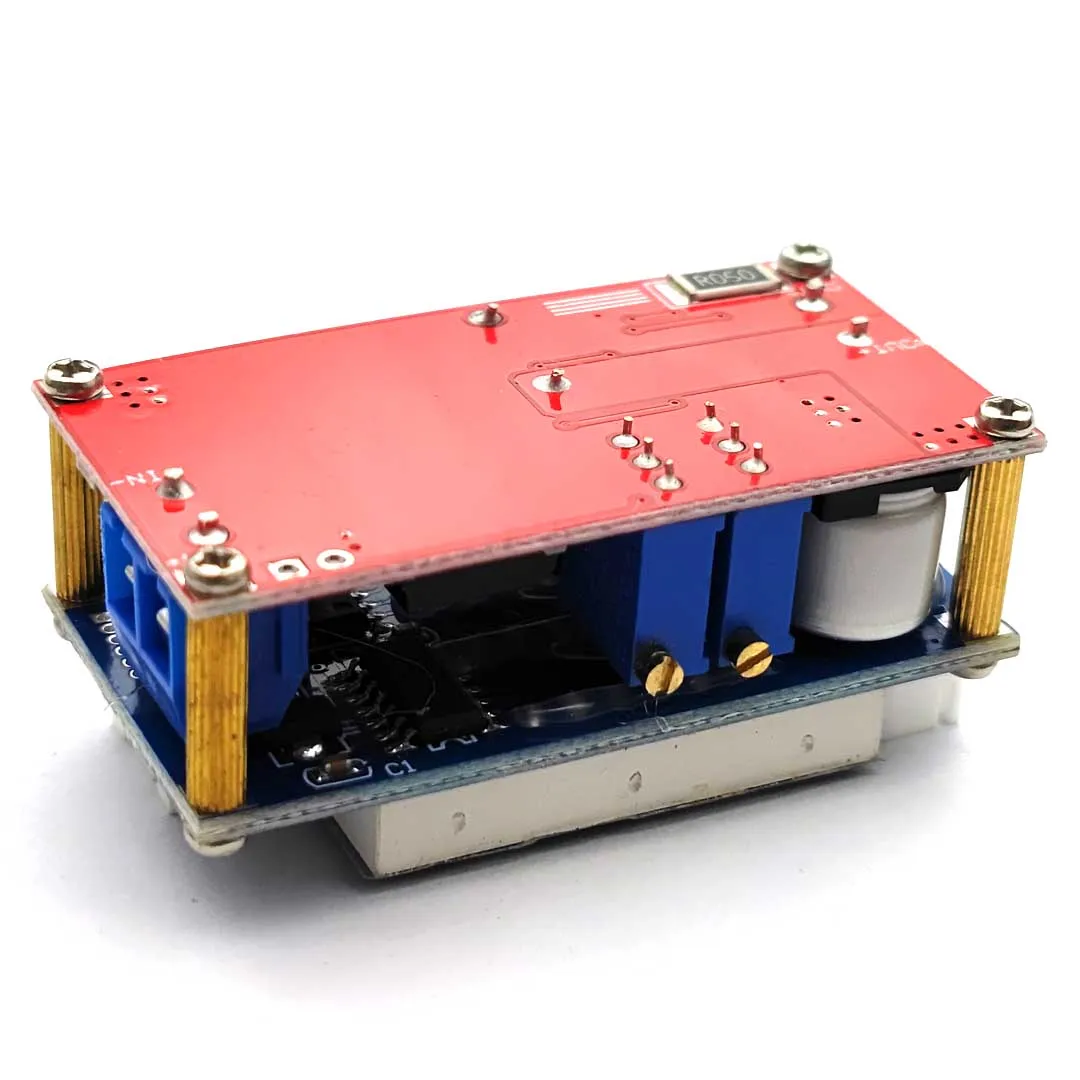

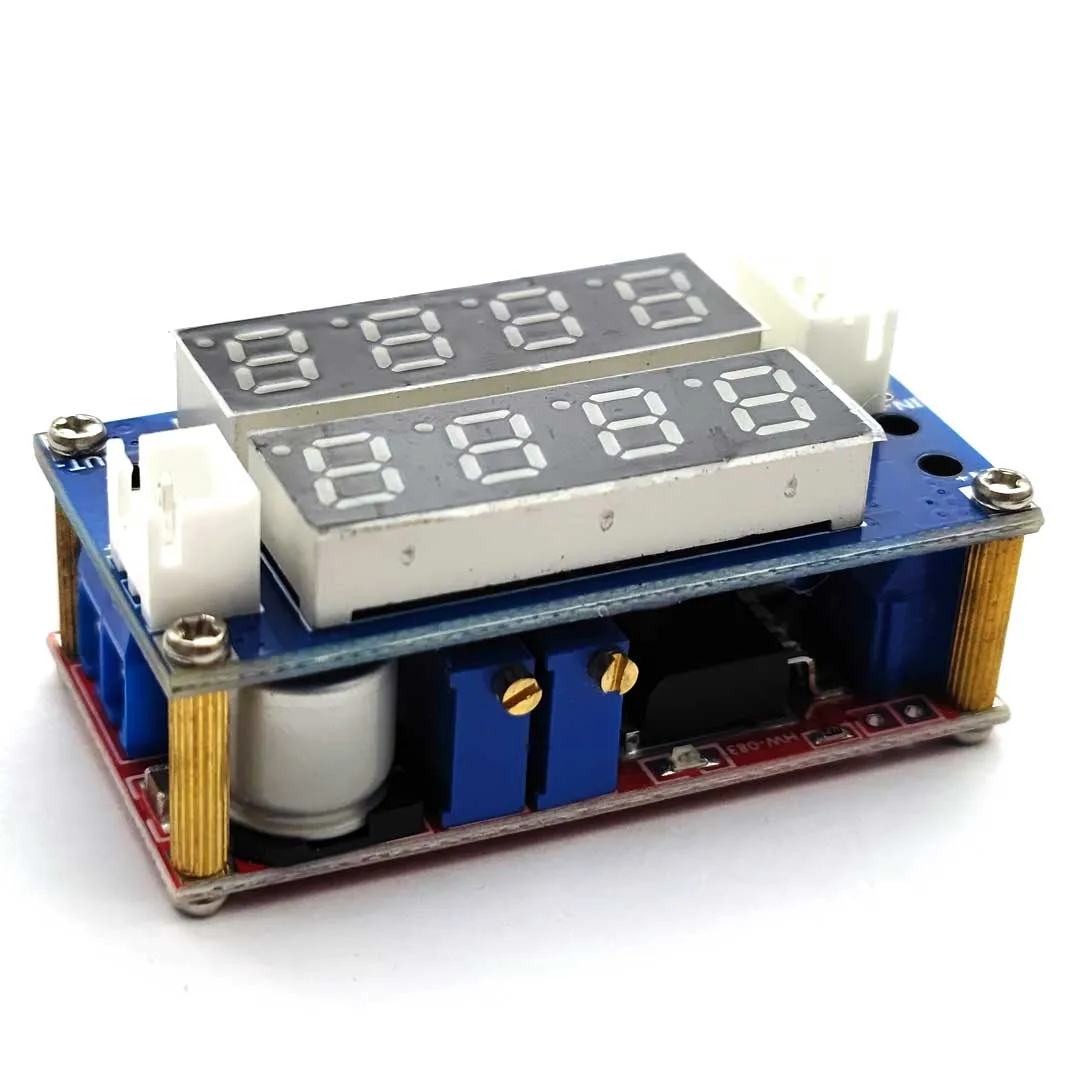

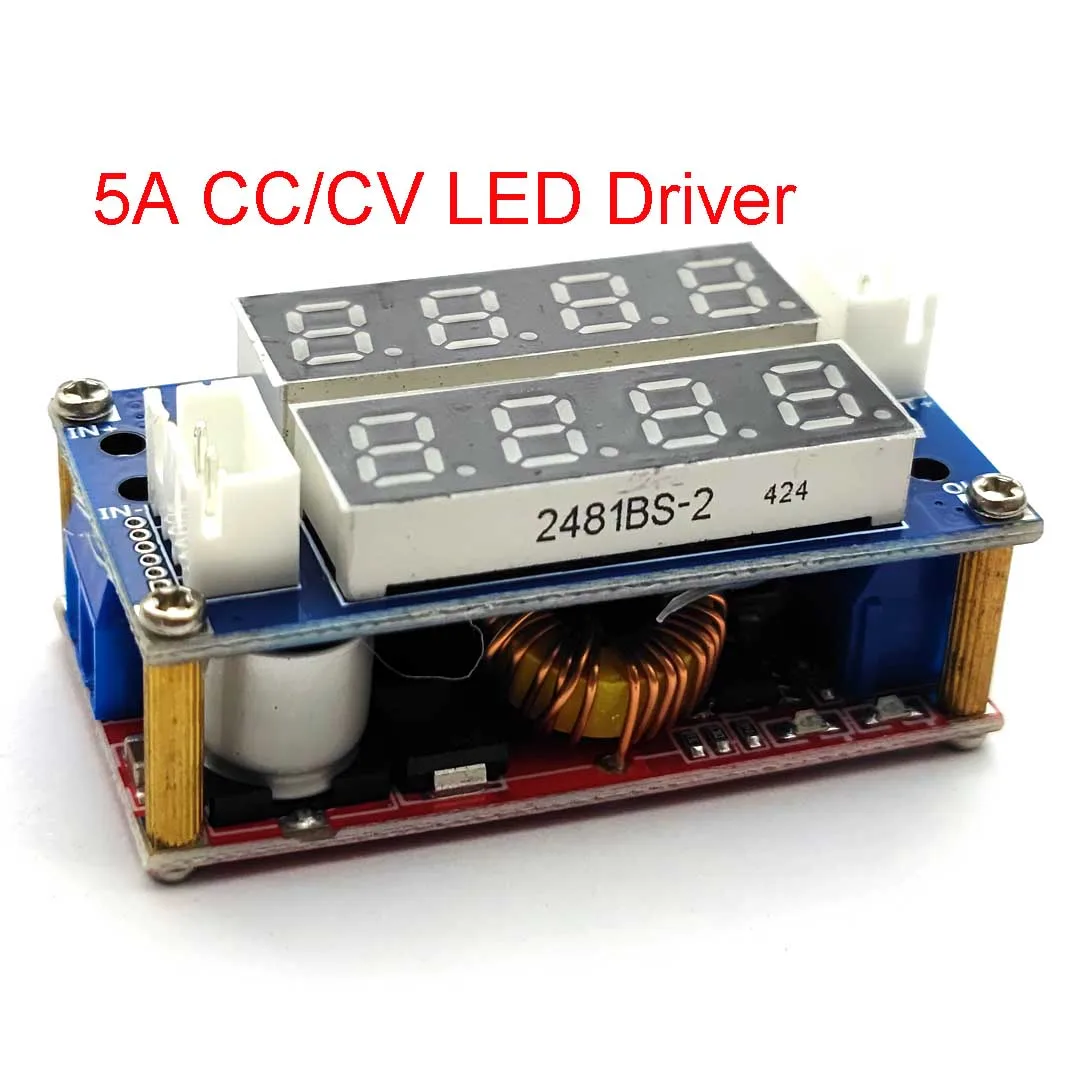

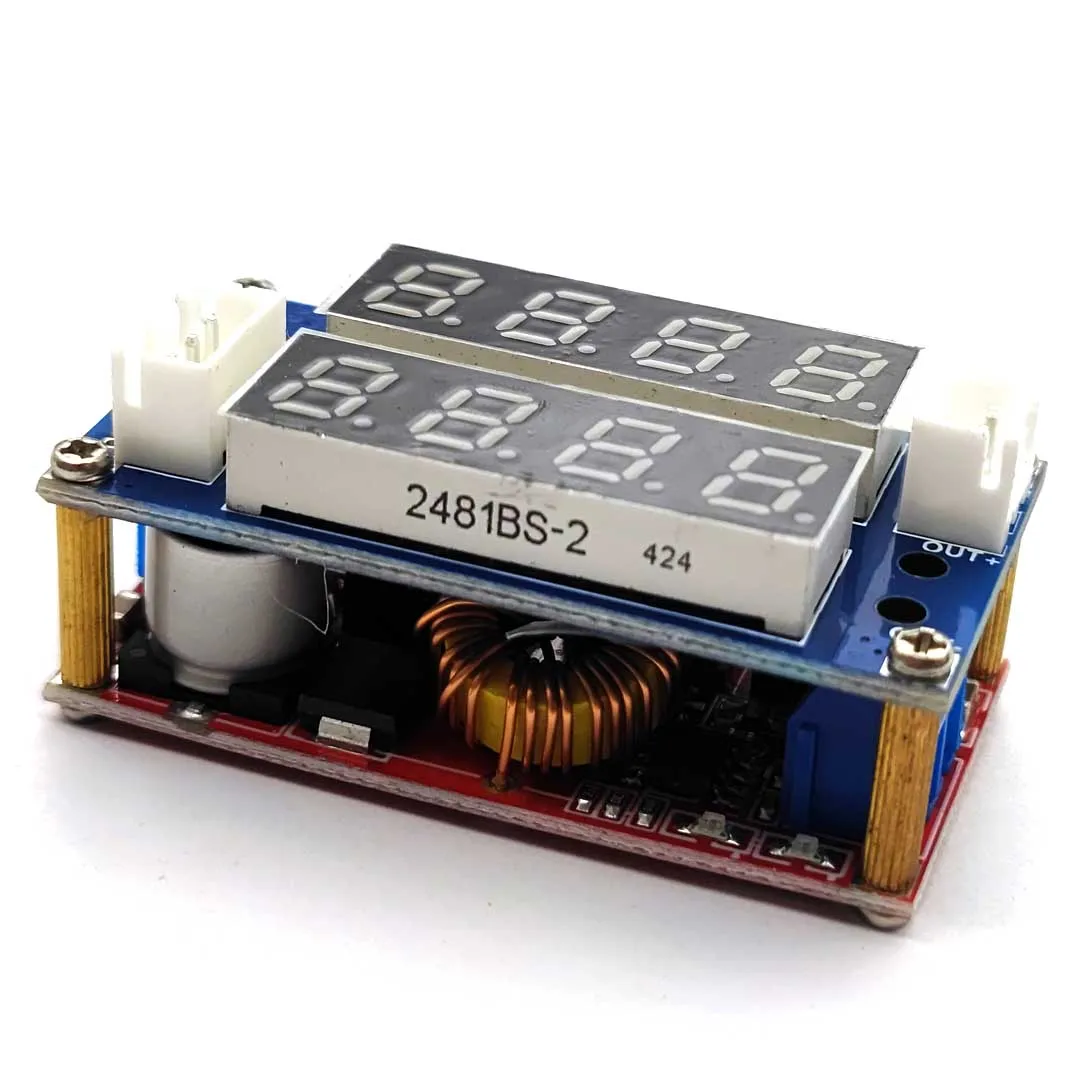

With Voltmeter:
Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 1.27V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: -40°to +85°
Size: 51 * 26.3 * 14 (L * W * H) (mm)

Voltmeter Ammeter
Measurement accuracy: 0.1%
Refresh rate: about 200ms / times
Display: 0.28″digital tube
Current Range 0A-5A
Voltage range 5V-30V

Package Included

1 Pcs XL4015 Module
