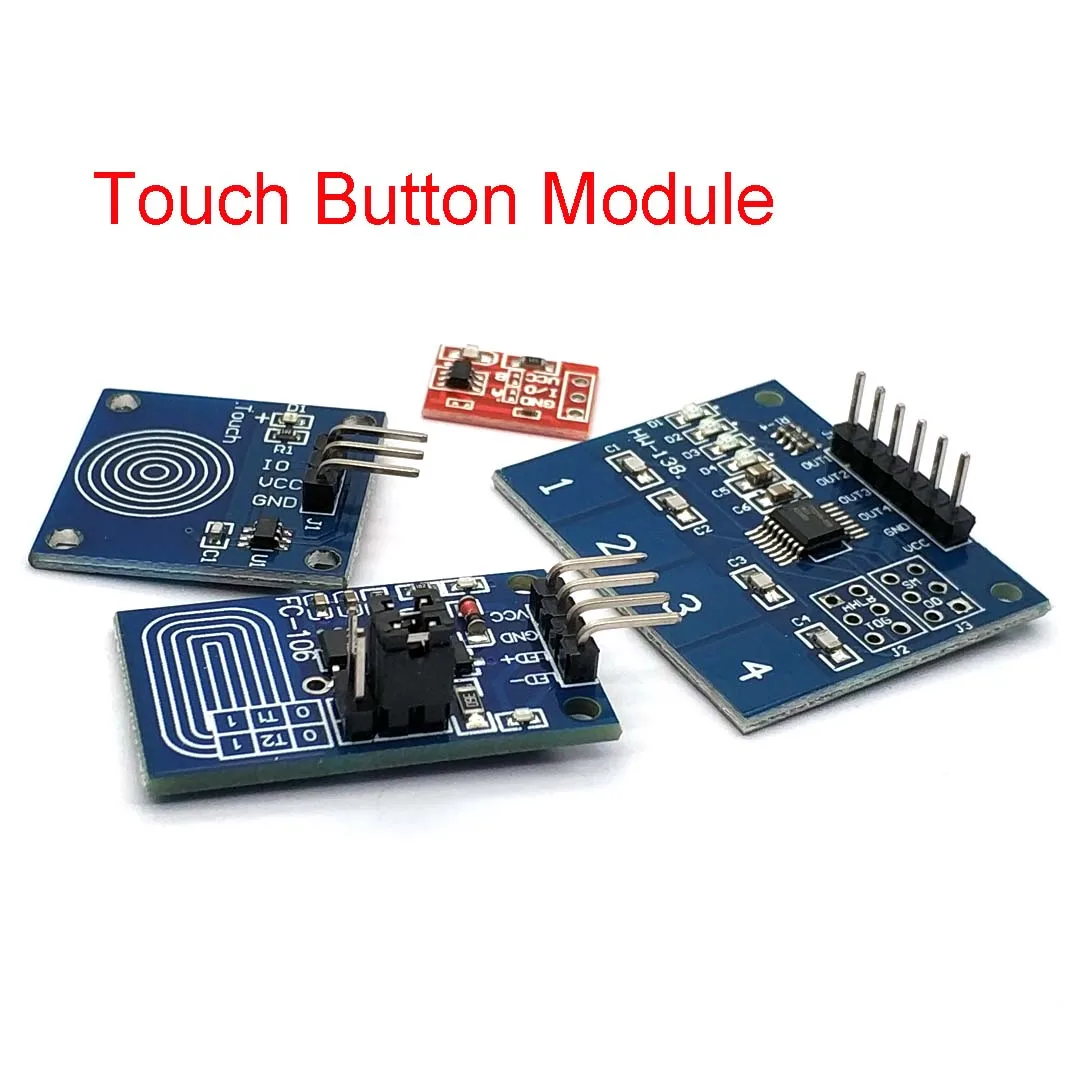

TTP223 TTP223B TTP224 TTP226 TTP229 Touch Button Module 1 4 8 16 Channel Self Locking Touch Switch Sensor Touch Switch Module

TTP223 TTP223B TTP224 TTP226 TTP229 Touch Button Module1 4 6 8 16 Channel Self Locking Touch Switch Sensor

Description

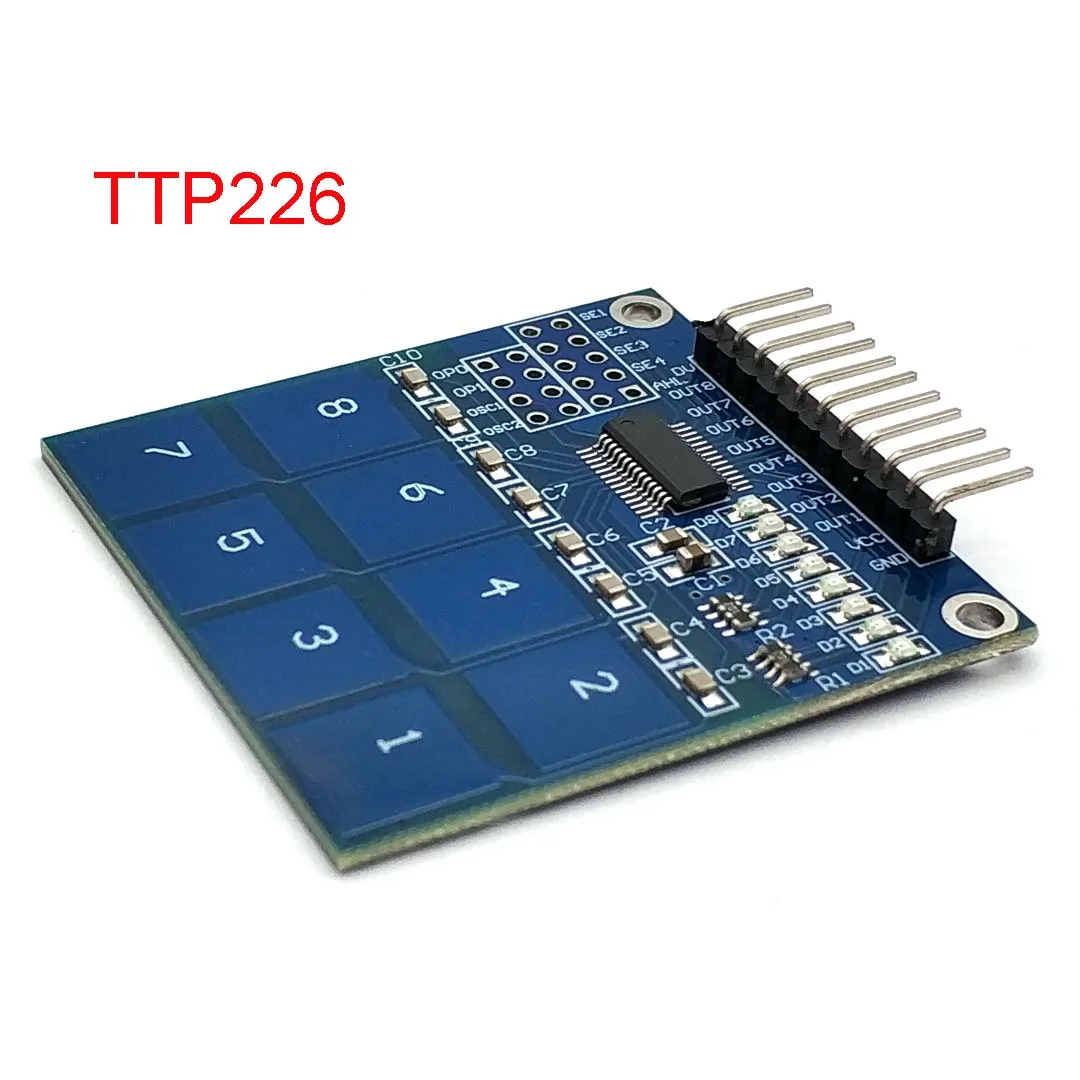

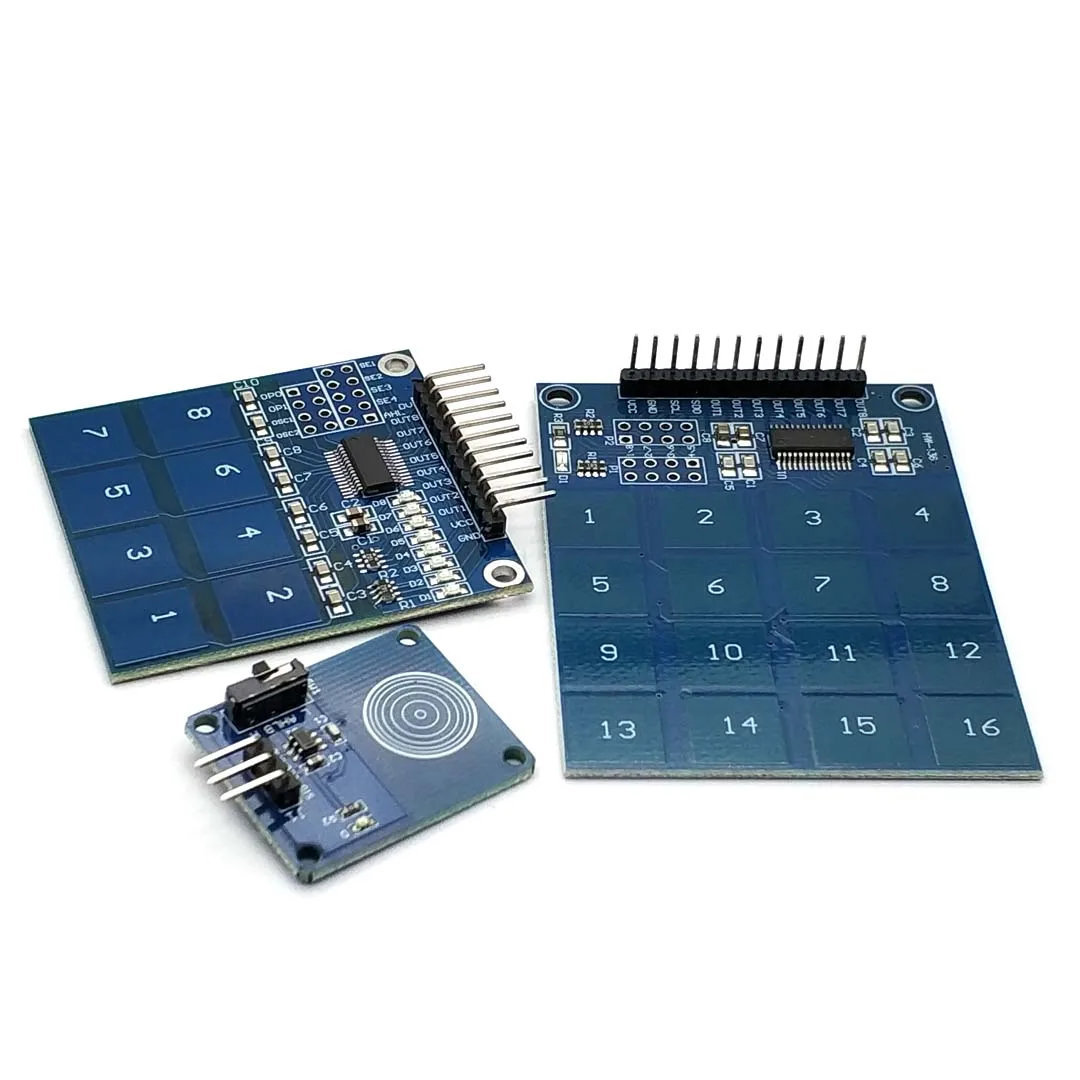

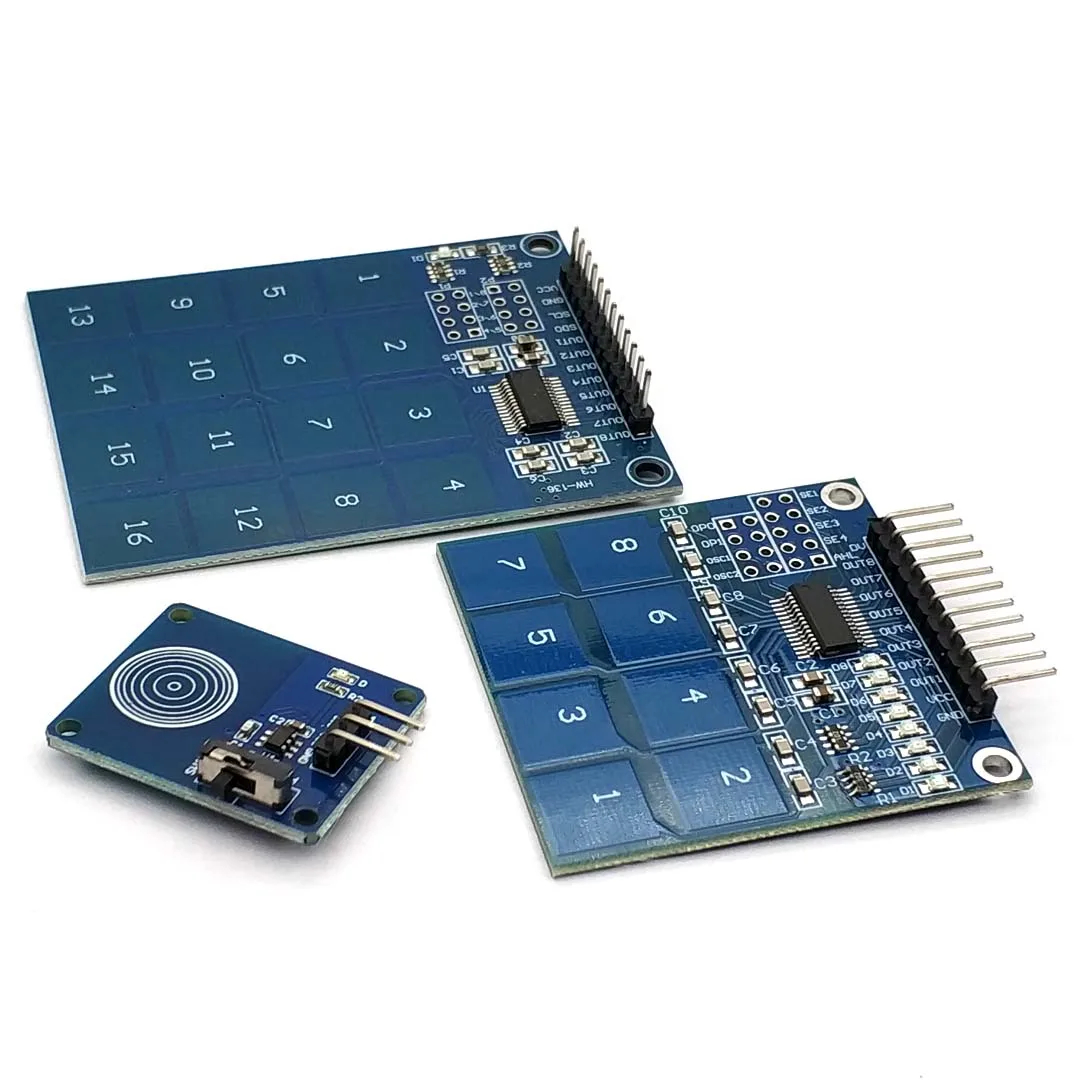

TTP226:
1. Onboard TTP226 capacitive 8-key touch sensor IC
2. Onboard 8-channel level status indicator
3. Working voltage: 2.4V-5.5V
4. The module can set output mode, key output mode, longest output time and fast/low power consumption selection
5. PCB board size: 47.5(mm)x46(mm)

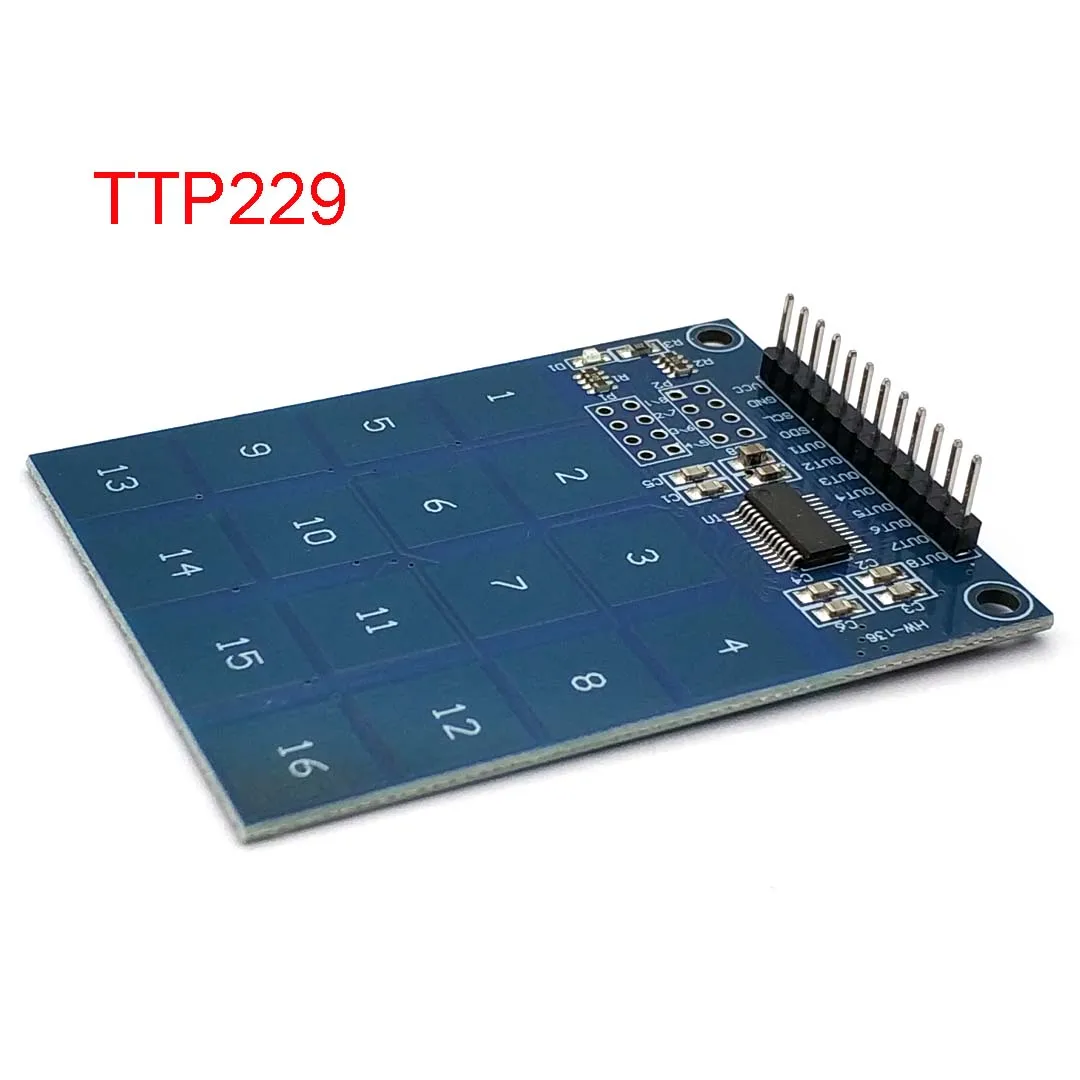

TTP229:
1,onboard TTP229 capacitive 16 key touch induction IC
2,onboard power light
3,working voltage: 2.4 V to 2.4 V
4, modules, you can set the output mode, key output mode, the longest time and fast/low power output
5, PCB board size:  67*51mm

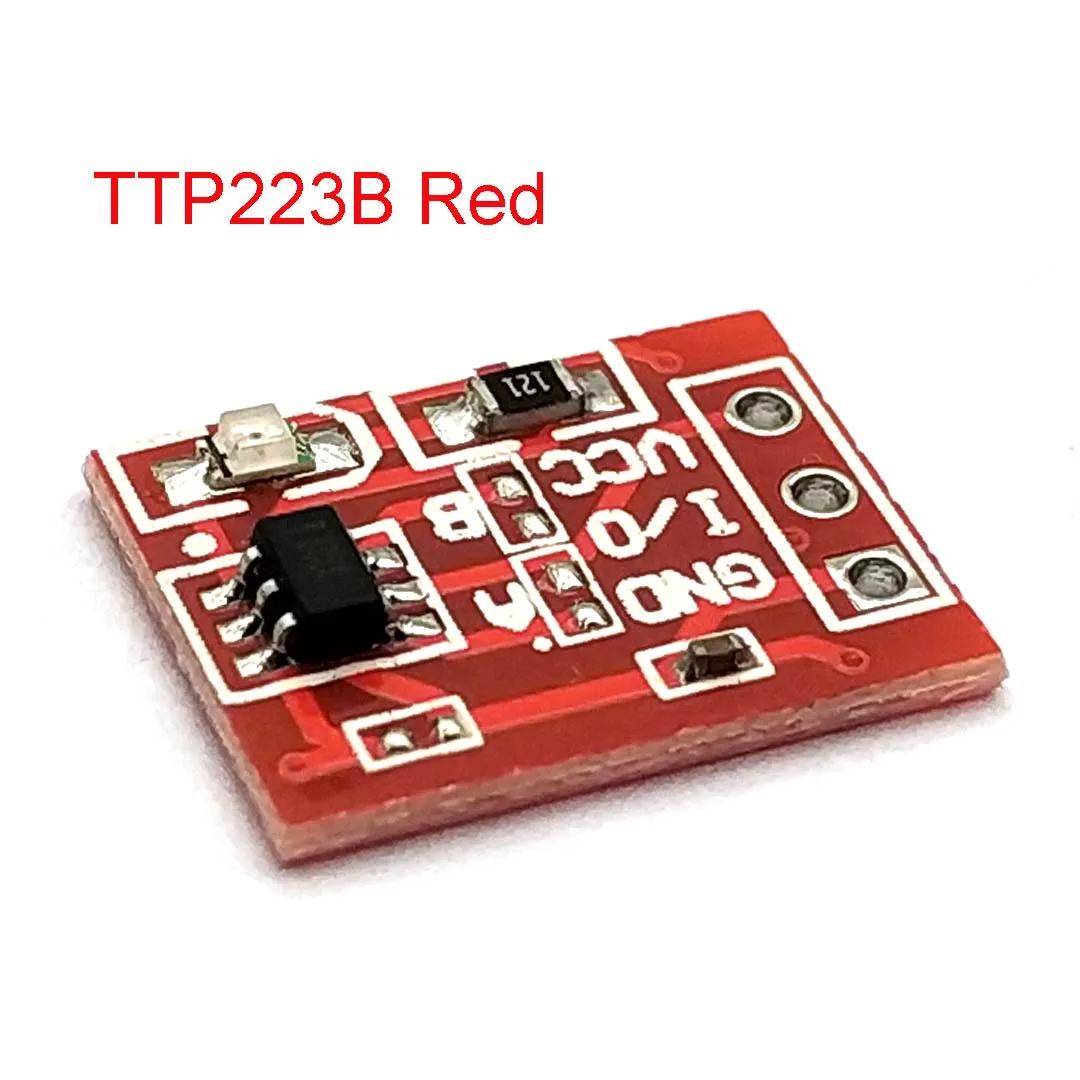

TTP223B Red:
1.Size:15*11mm
2.Power:2.5-5.5V
Trigger setting mode: (1- > Short ; 0- > No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput;

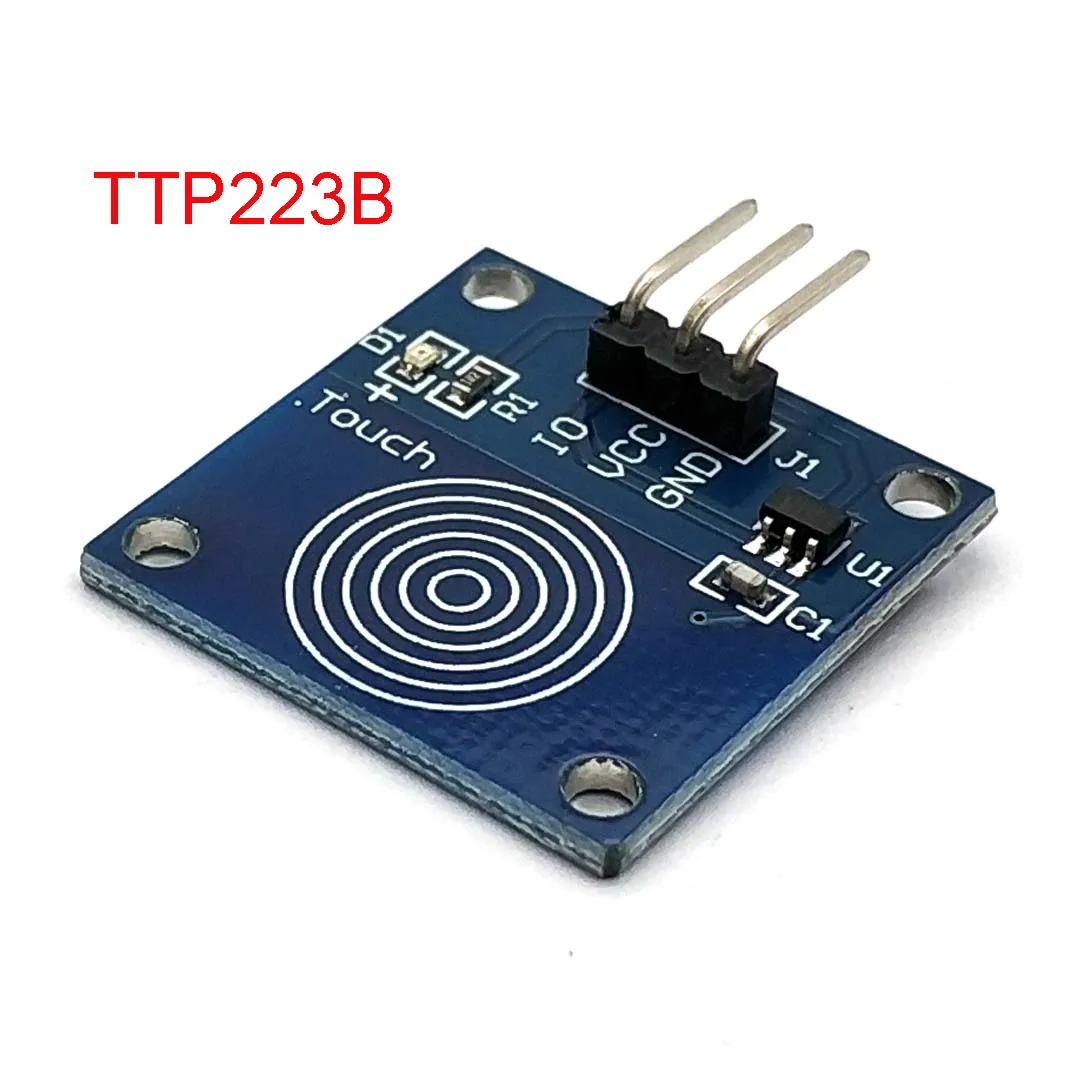

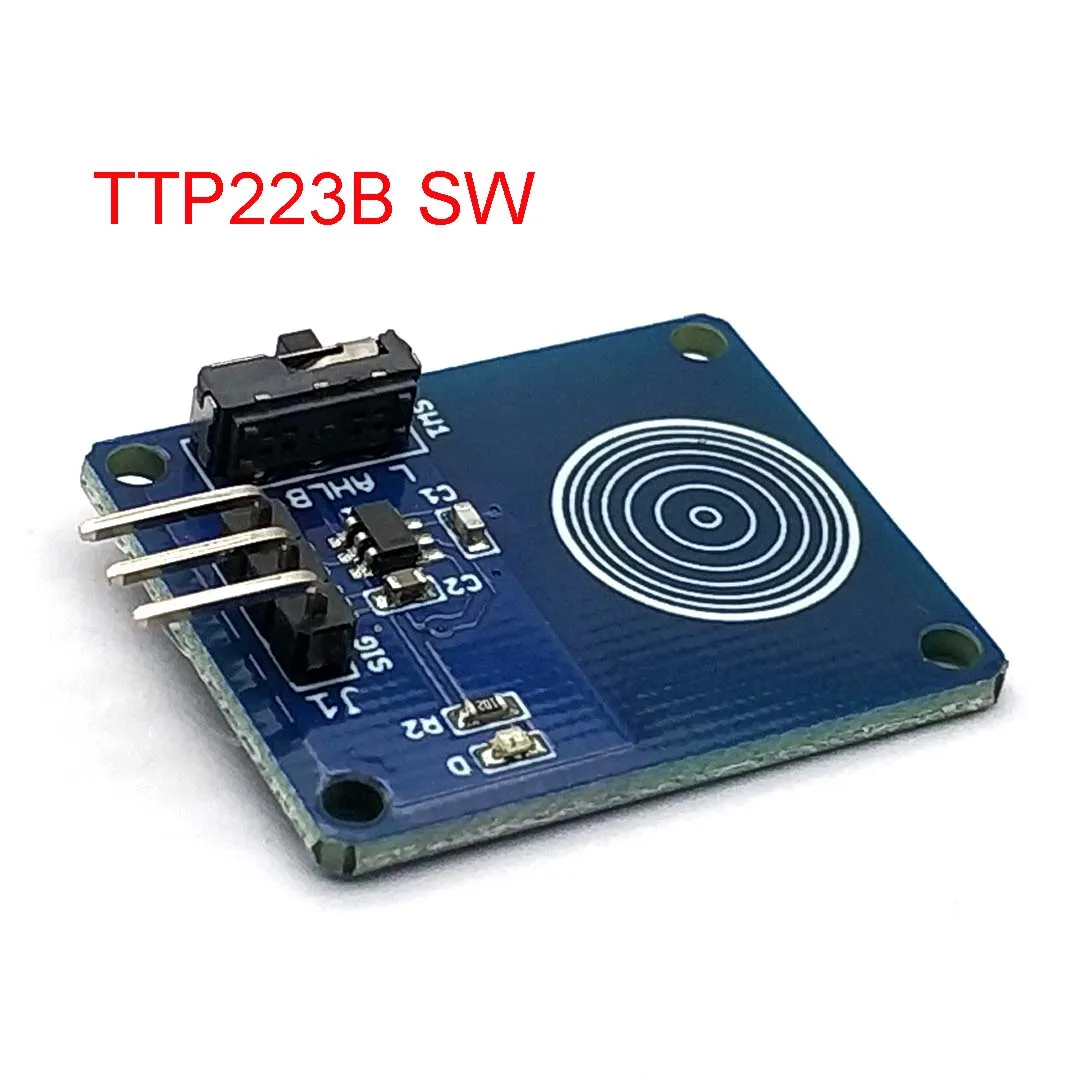

TTP223B:
Power supply voltage VCC:5.5V
Output high VOH:0.8VCC
Output low VOL:0.3VCC
Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V):8mA
Output pin pull-up current (@ VCC = 3V, VOH = 2.4V):4mA
Response time (low power mode):220mS
Response time (touch mode):60mS
Size:24*24*7.2mm

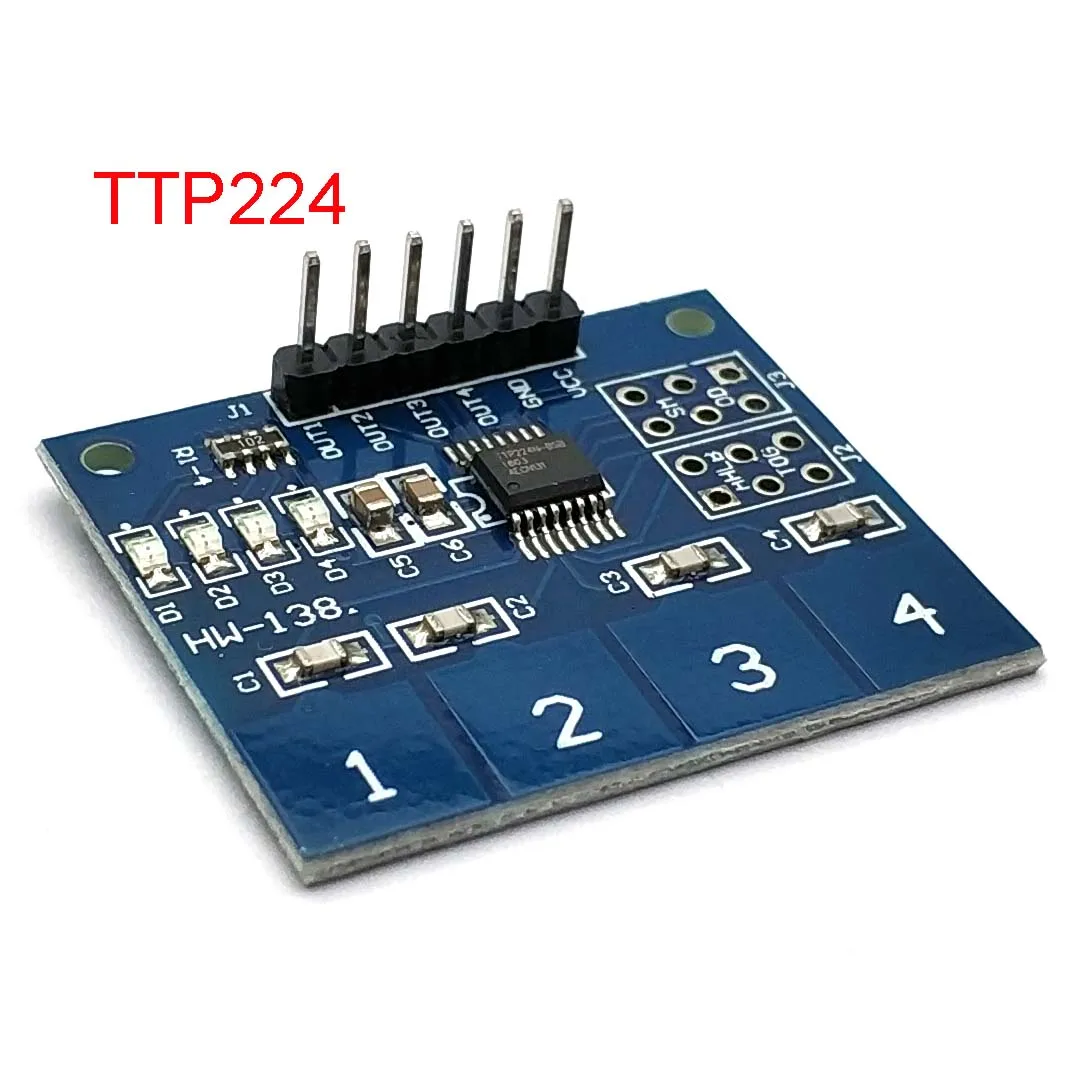

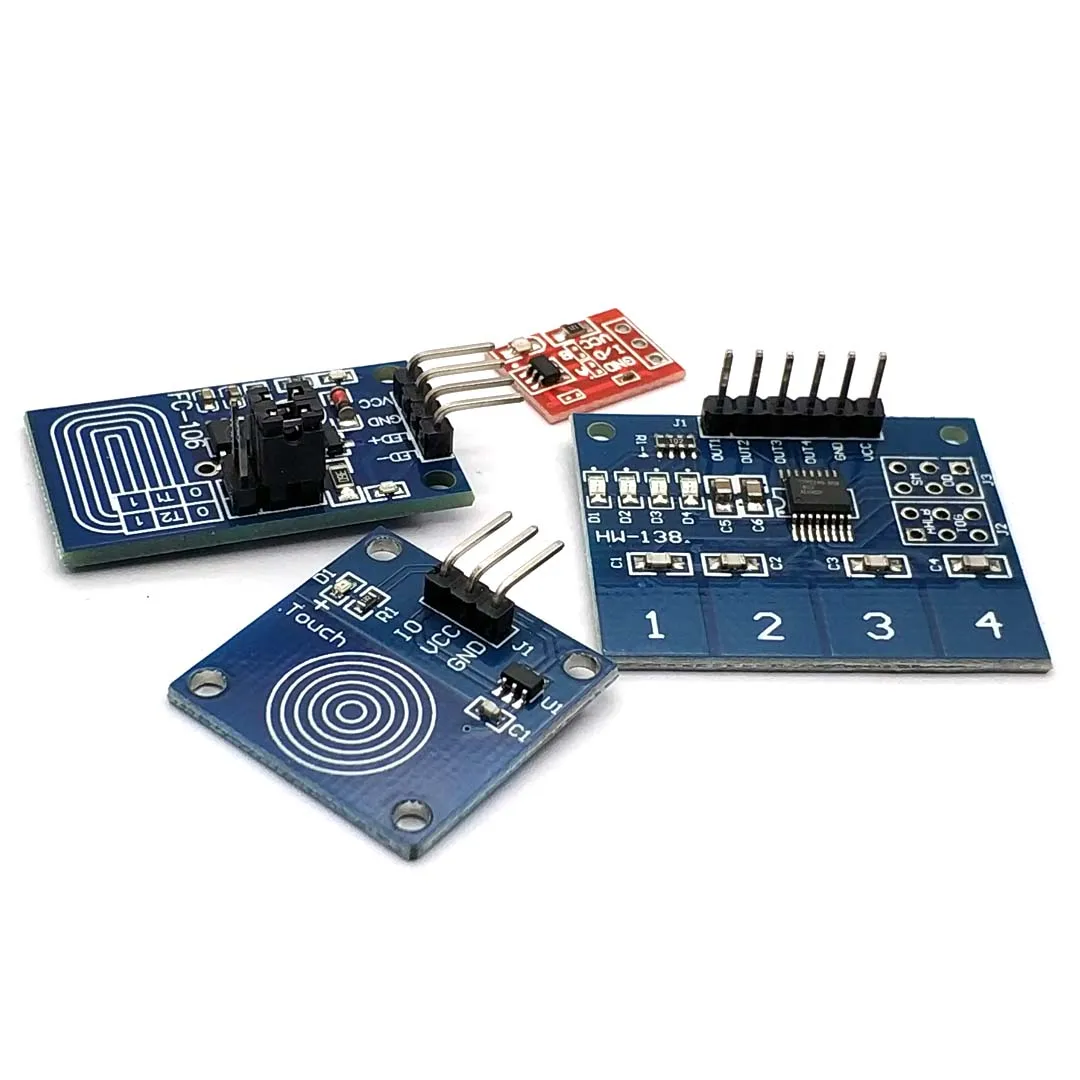

TTP224:
1. Onboard TTP224 campacitive 4 key touch induction IC.
2. Onboard the 4 way level indicator.
3. Operating voltage:2.4V-5.5V.
4. Module can set the output mode,output longest time,and fast/low power selection.
5. PCB board size:35(mm)×29(mm).

PWM Dimming:
PCB size: L23MM * W20MM
Pitch: 16MM
Aperture: 2.5MM
Voltage range: 2.4-5V
Maximum output current: 500MA

Package Included

1 Pcs Touch Switch Module
