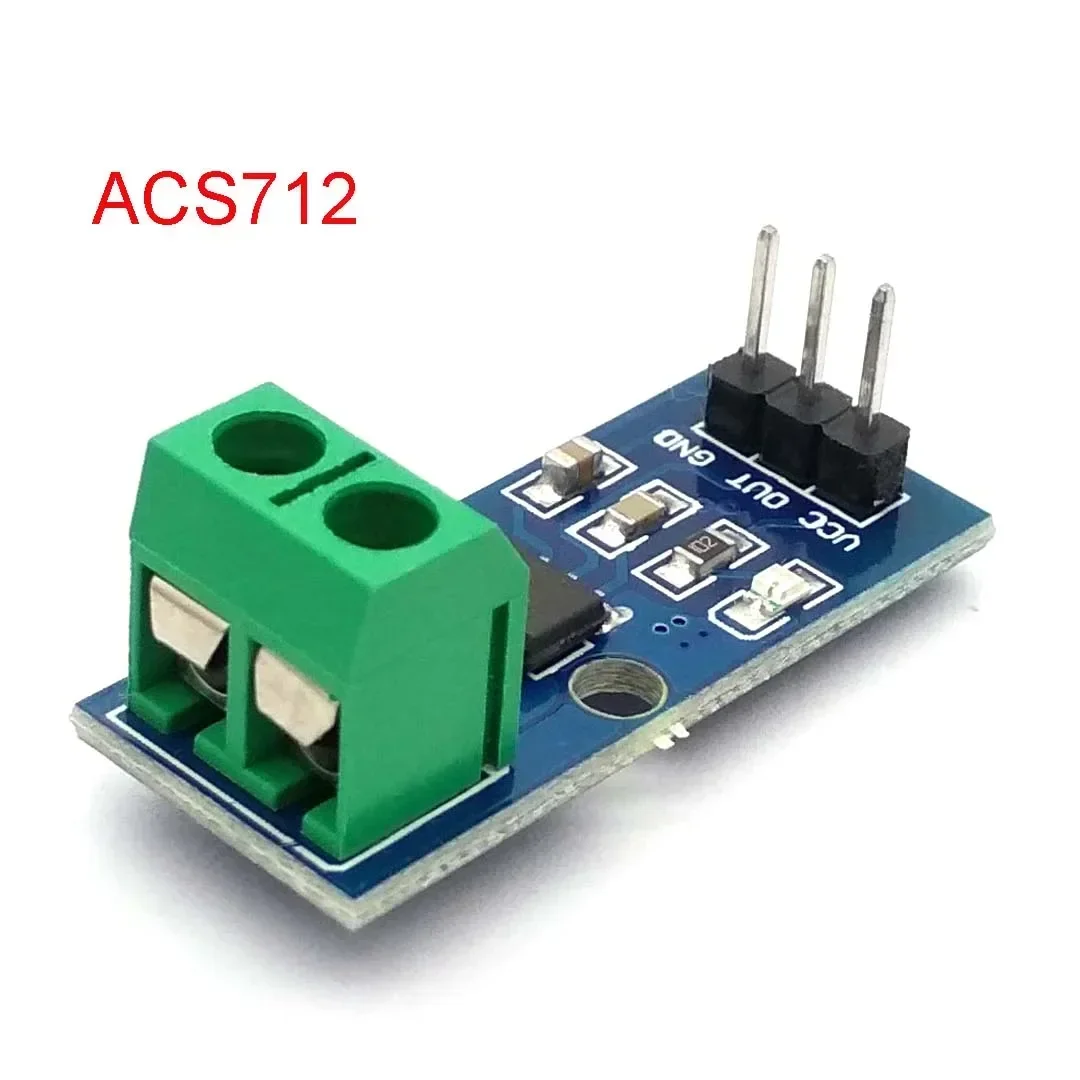

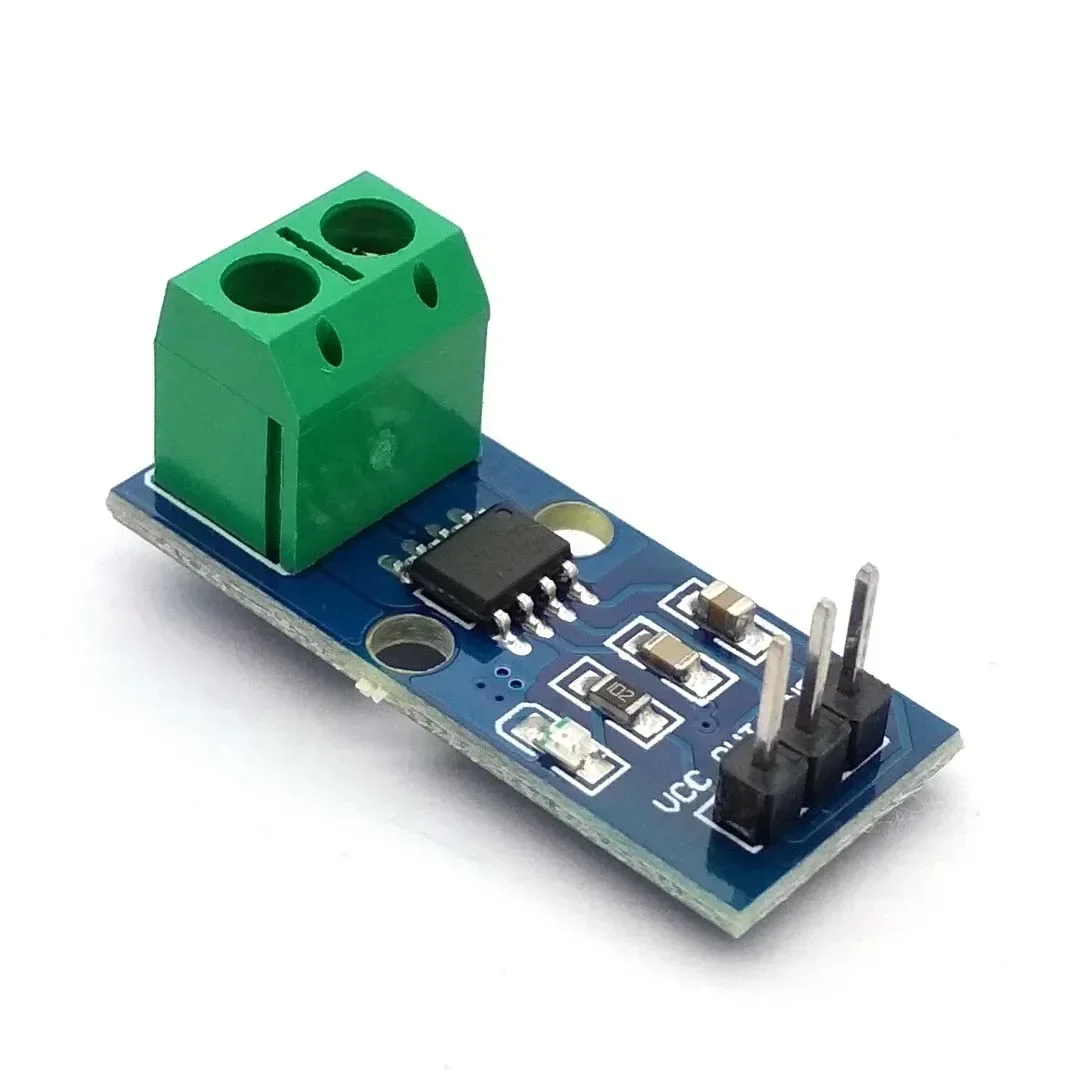

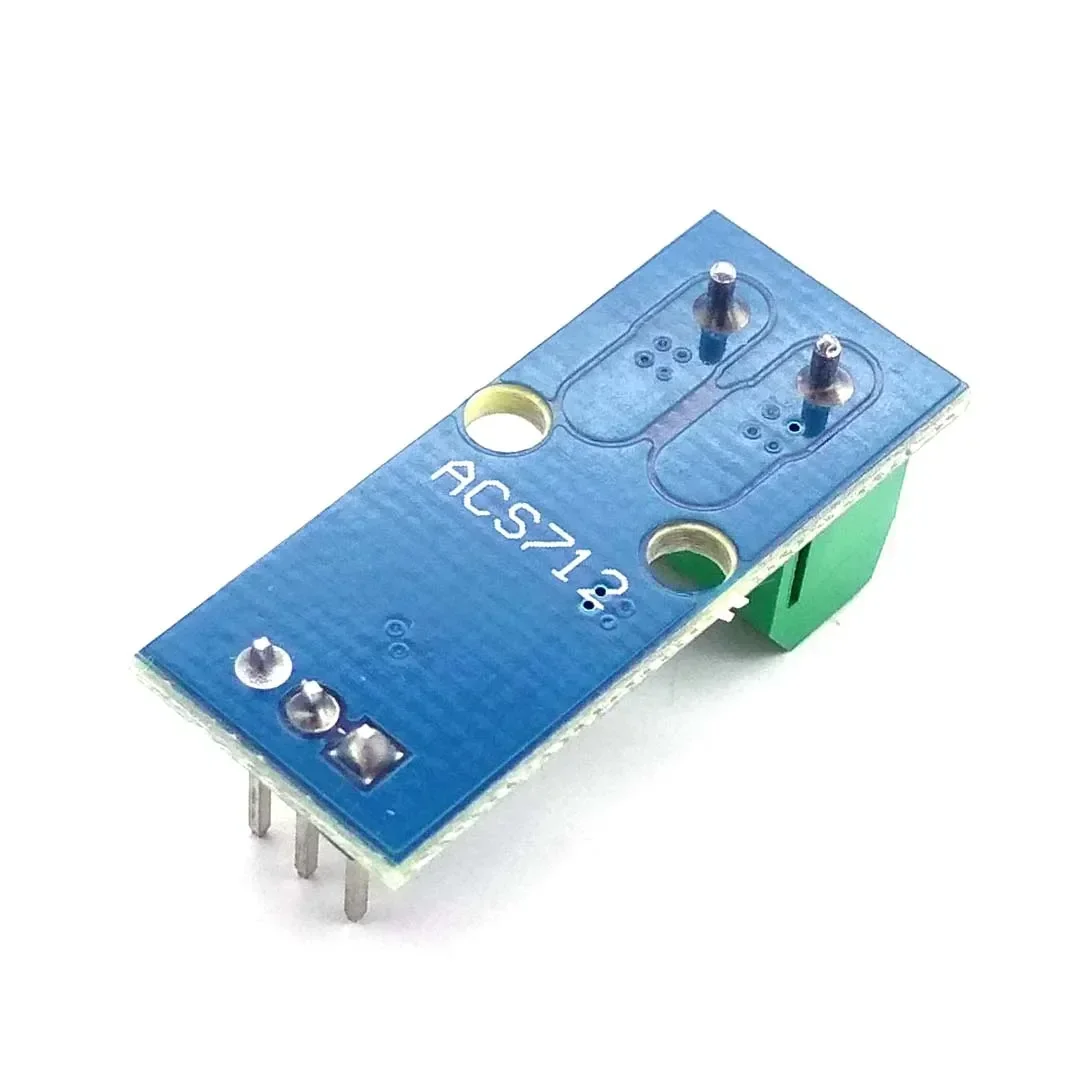

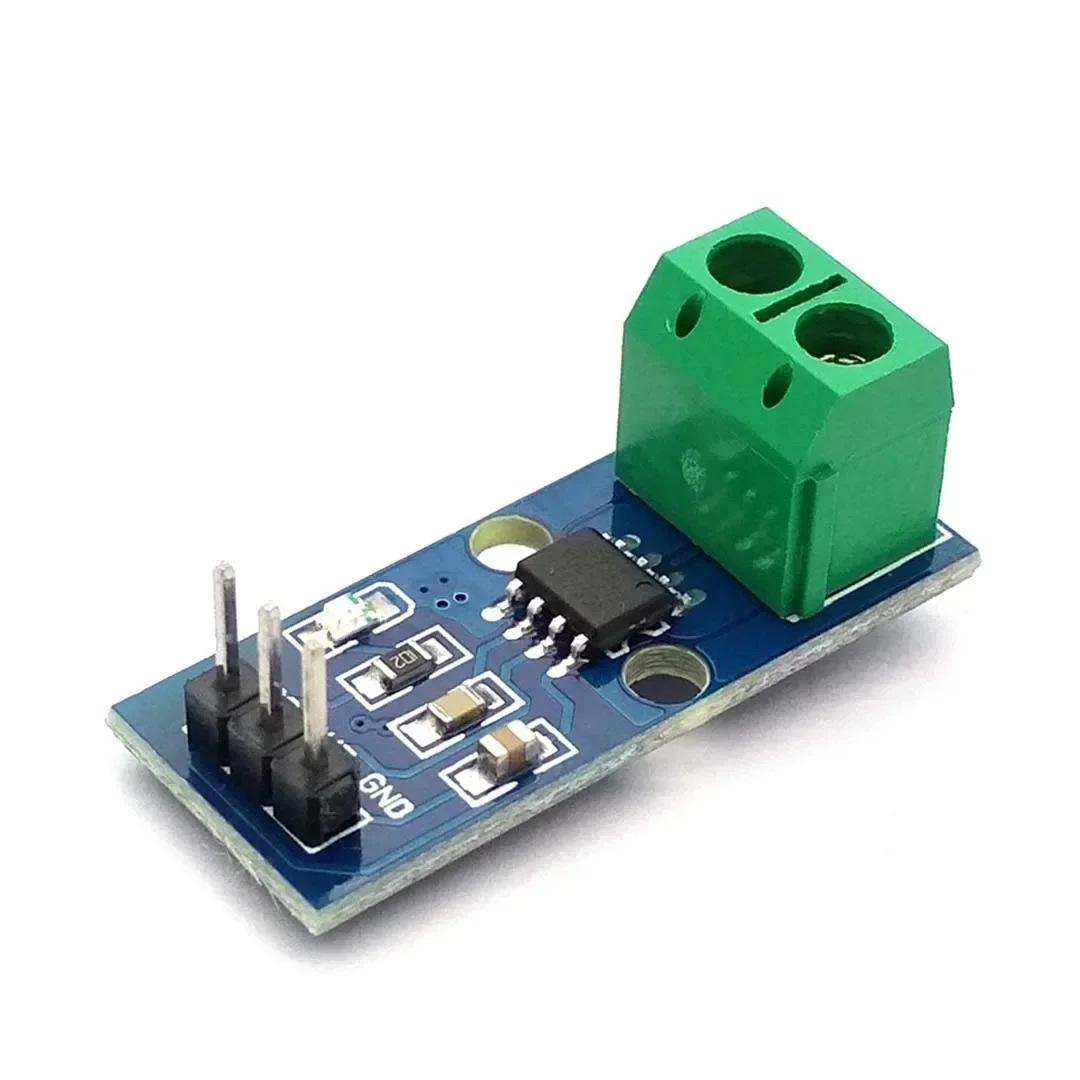

NEW ACS712 5A 20A 30A Hall Current Sensor Module ACS712 Model for Arduino

Hall Current Sensor Module ACS712 Module 5A 20A 30A Hall Current Sensor Module 5A/20A/30A ACS712

Description

ACS712 5A:
1, current sensor chips: ACS712ELC-05B;
2, pin 5V power supply, on-board power indicator;
3, the module can be measured plus or minus 5 amps, corresponding to the analog output of 185 mV / A;
4, there is no the detection current through, the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);
ACS712 20A:
1, current sensor chip: ACS712ELC-20A;
2, pin 5V power supply, on-board power indicator;
3, the module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A;
4, there is no the detection current through, the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);
ACS712 30A:
1.current sensor chips: ACS712ELC-30A;
2.Pin 5V power supply, on-board power indicator;
3.The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
4.No test current through the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);

Package Included

1 Pcs ACS712 Hall Current Sensor Module ACS712
