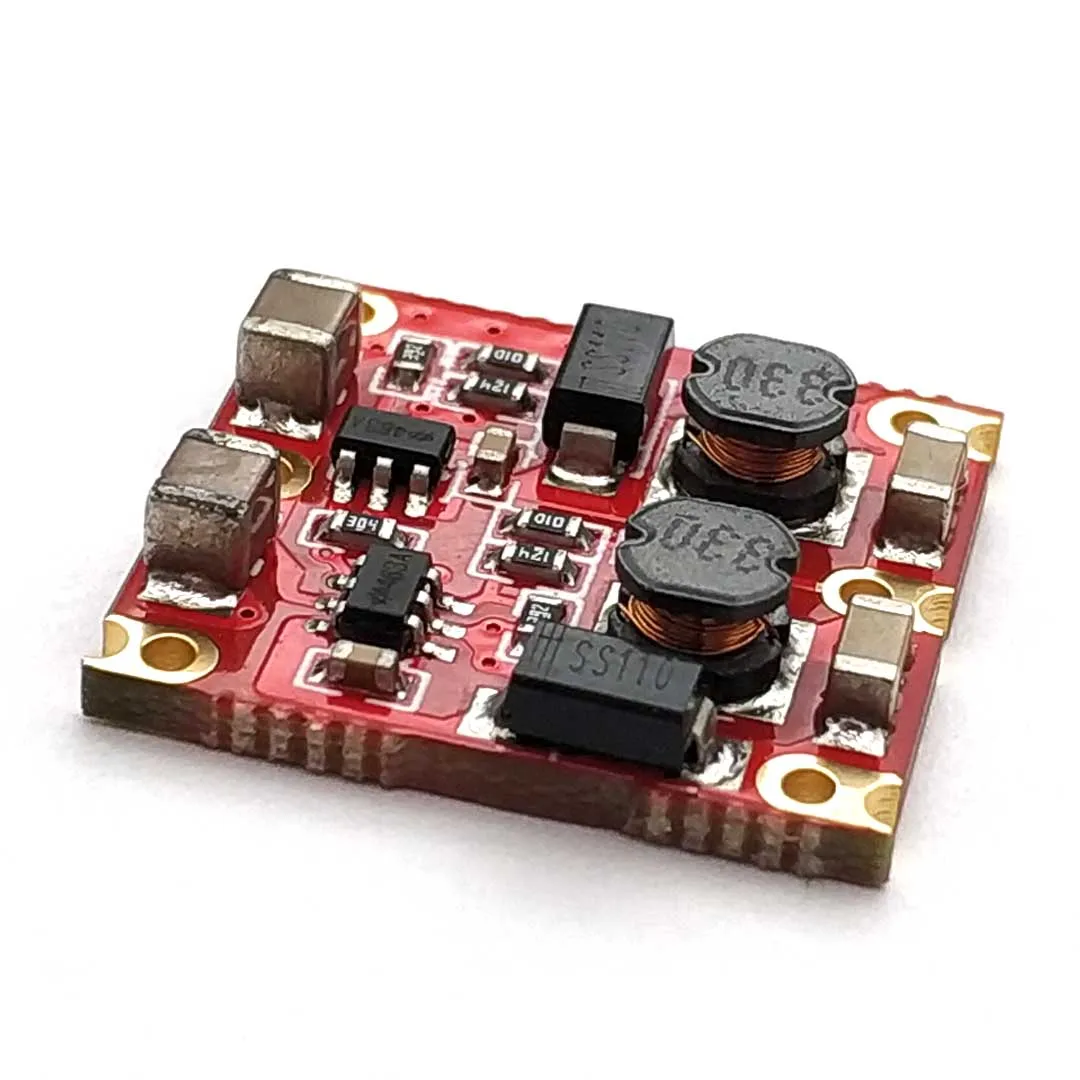

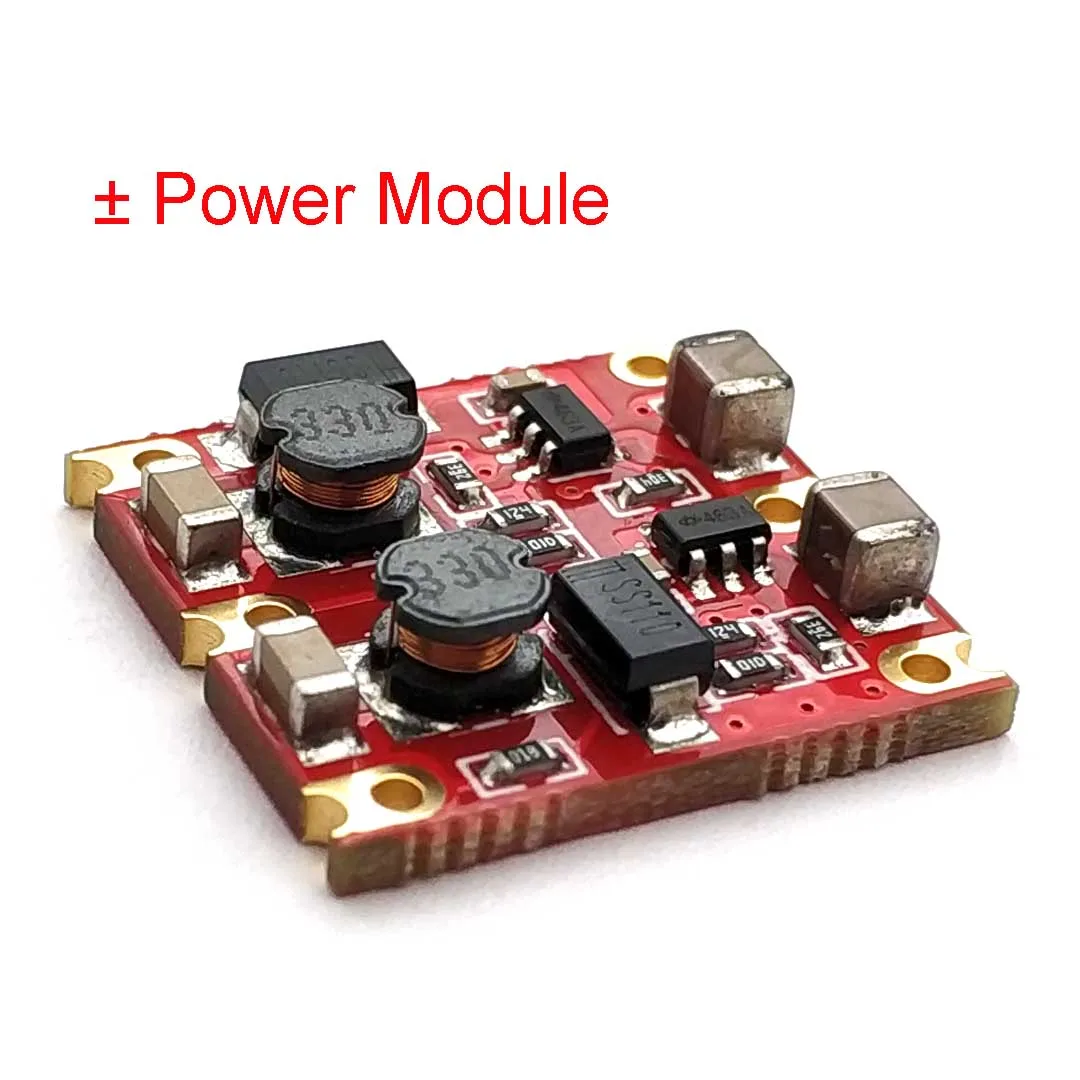

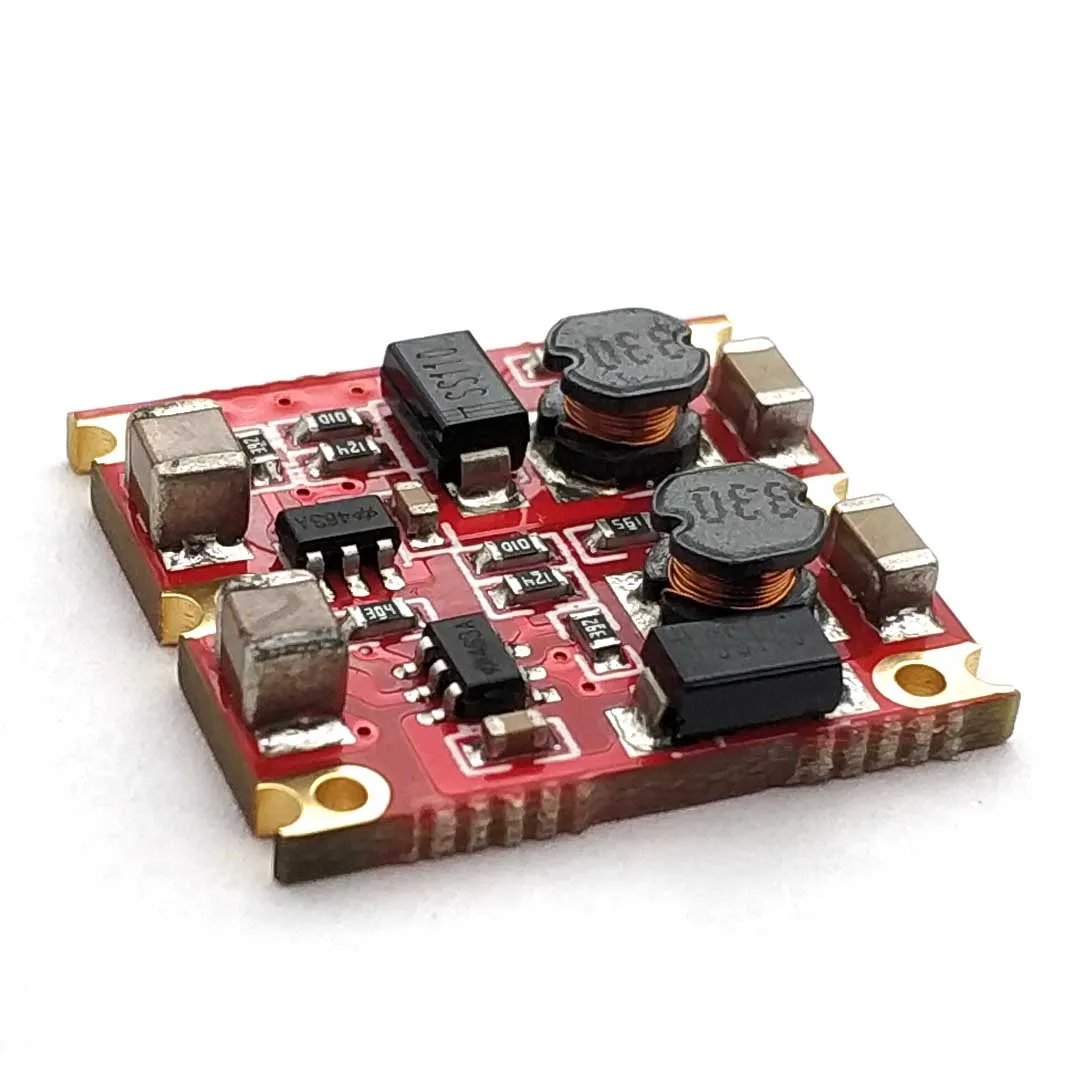

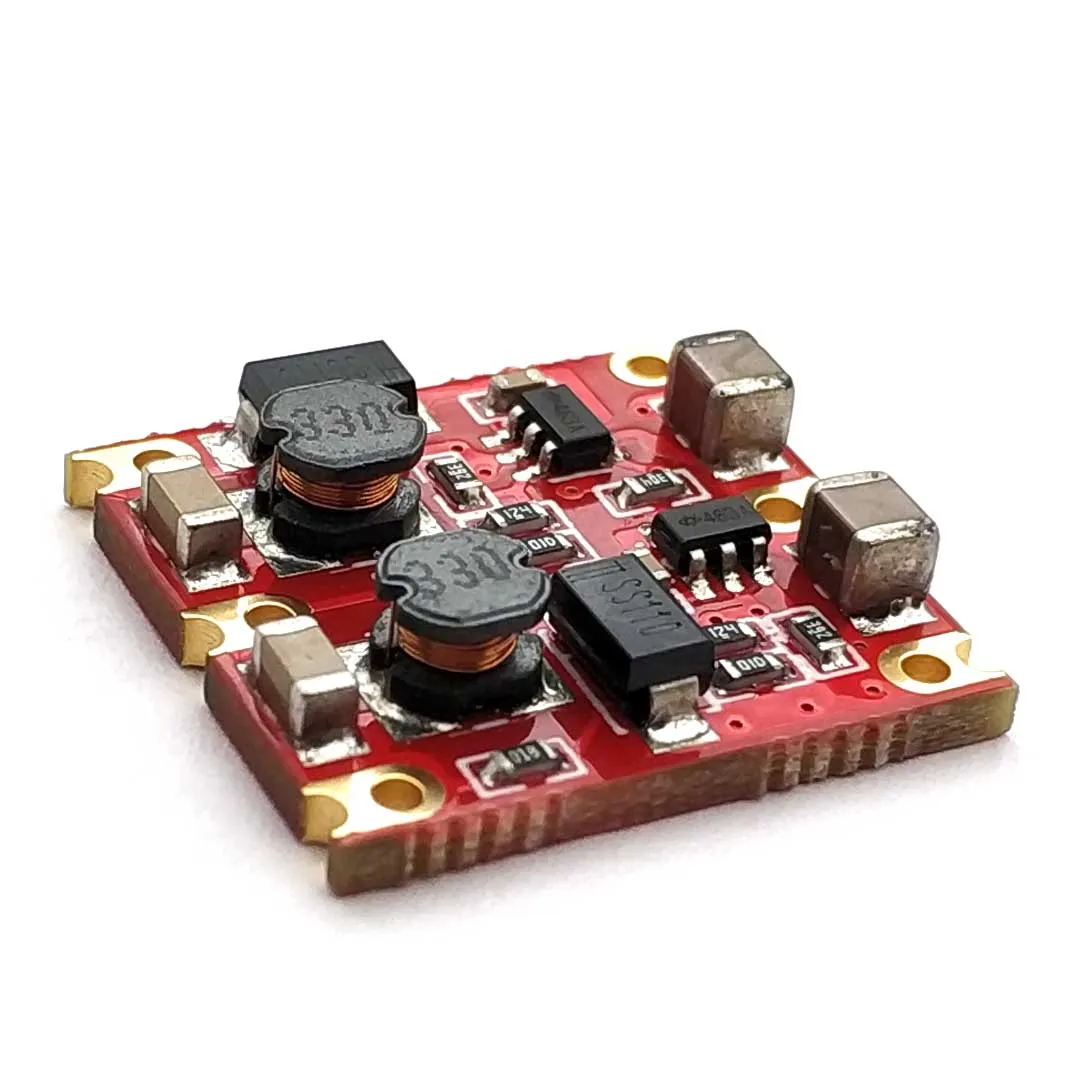

Description

A power module is a power supply device that can be directly mounted on a printed circuit board. It is characterized by providing power for ASIC, DSP, microprocessor memory, FPGA and other digital or analog loads.

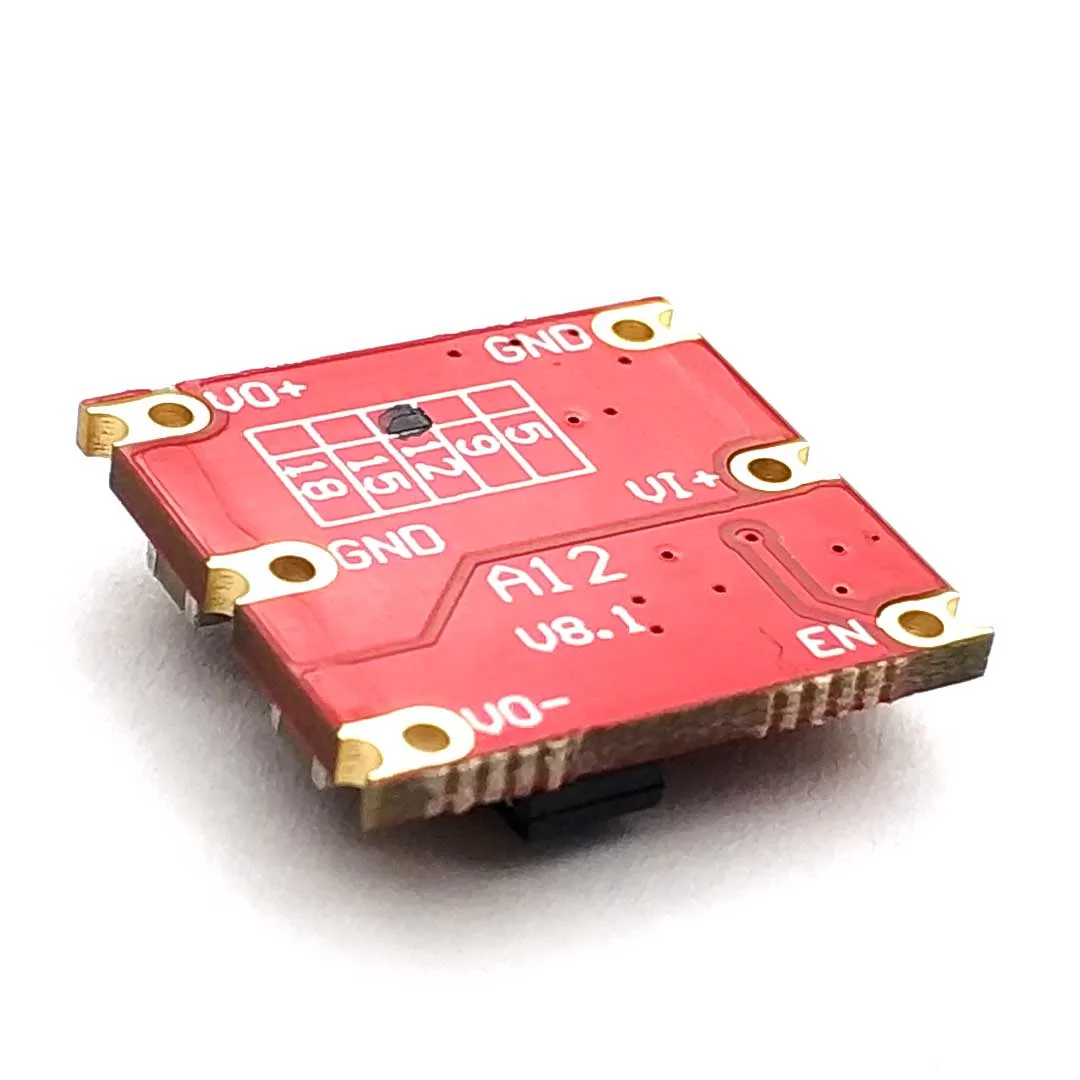

Pin Description
Input:
VI+: enter the positive pole
GND: Input negative terminal
EN: Not connected by default. The module is normally on. EN Pin to low level module off
Output:
VO+: output positive voltage
GND: The positive and negative voltages are in common ground
VO-: outputs negative voltage

Product Parameters
Input voltage: 7-50V (must be higher than output voltage)
Output voltage: ±5, ±9V, ±12V, ±15V, ±18V
Output current: 300mA
Conversion efficiency: 90% (average)
Output ripple: &It: 50mV
Output accuracy: ±0.1V
No-load current: &It; 0.2mA
Operating temperature: -20℃~85℃
Working humidity: 20%~90%
Size: 19mm*18mm*4mm (length*width*height)
Number of PCB layers: 2 layers
Shutdown function: with EN (enabled), mode 1: default module open (EN foot hanging not connected); die
Formula 2: Module off (EN pin low level)
Power consumption: about 1~2UA
Heat dissipation mode: natural heat dissipation
Installation: Wiring
Isolation or not: No isolation is required
Device source: imported chip
Production process: machine, reflow welding
Design aging standard: 720 hours trouble-free
Factory aging standard: 72 hours trouble-free
Service life: 30000 hours trouble-free (output current does not exceed the rated value)
Inspection standard: All tests (ex-factory test + in-storage test)
Output ±5V: Input approximately =7-50V, the maximum current is about 300mA per circuit, the deviation is about ±0.1V
Output ±9V: Input approximately =11-50V, the maximum current is about 300mA per circuit, the deviation is about ±0.1V
Output ±12V: The input is approximately 14-50V, the maximum current is about 300mA per circuit, and the deviation is about ±0.1V

Package Included

1 Pcs DC-DC Step-down Power Module
