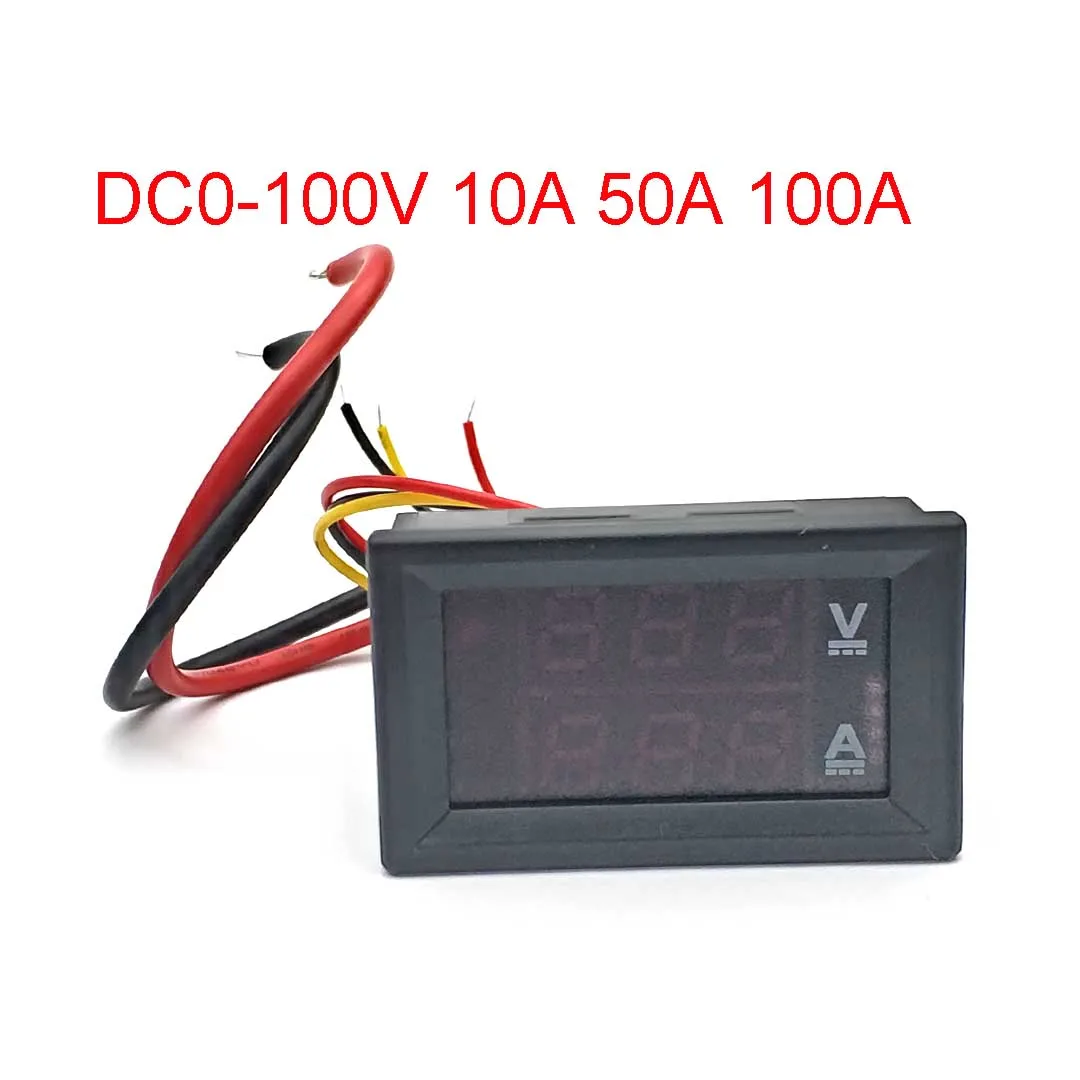

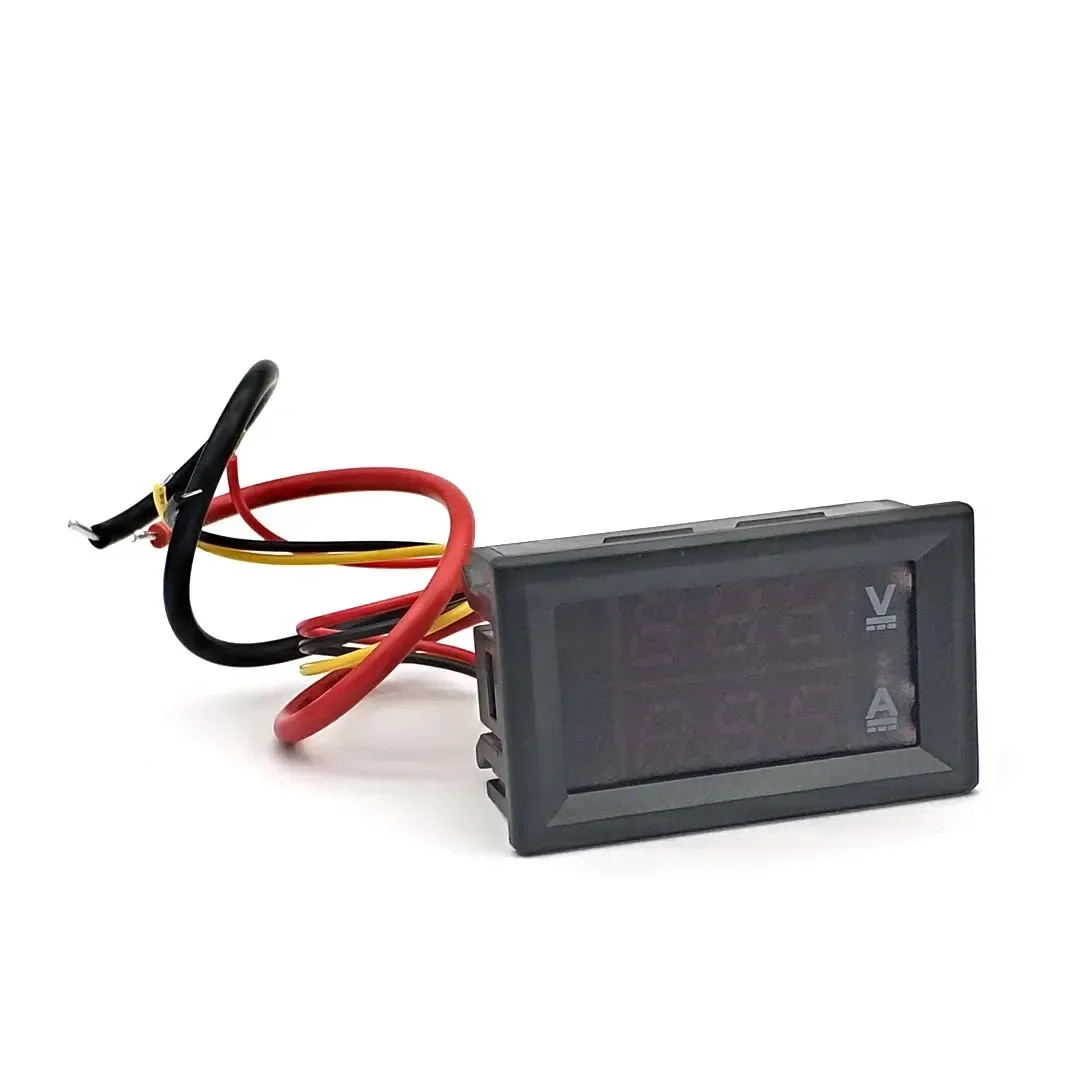

DC0-100V 10A 50A 100A Voltmeter Ammeter Red Blue LED Amp Dual Digital Volt Meter Gauge 0.28” LED Display 50A 100A Diverter

DC0-100V 10A 50A 100A Voltmeter Ammeter Red Blue LED Amp Dual Digital Volt Meter Gauge 0.28” LED Display 50A 100A Diverter

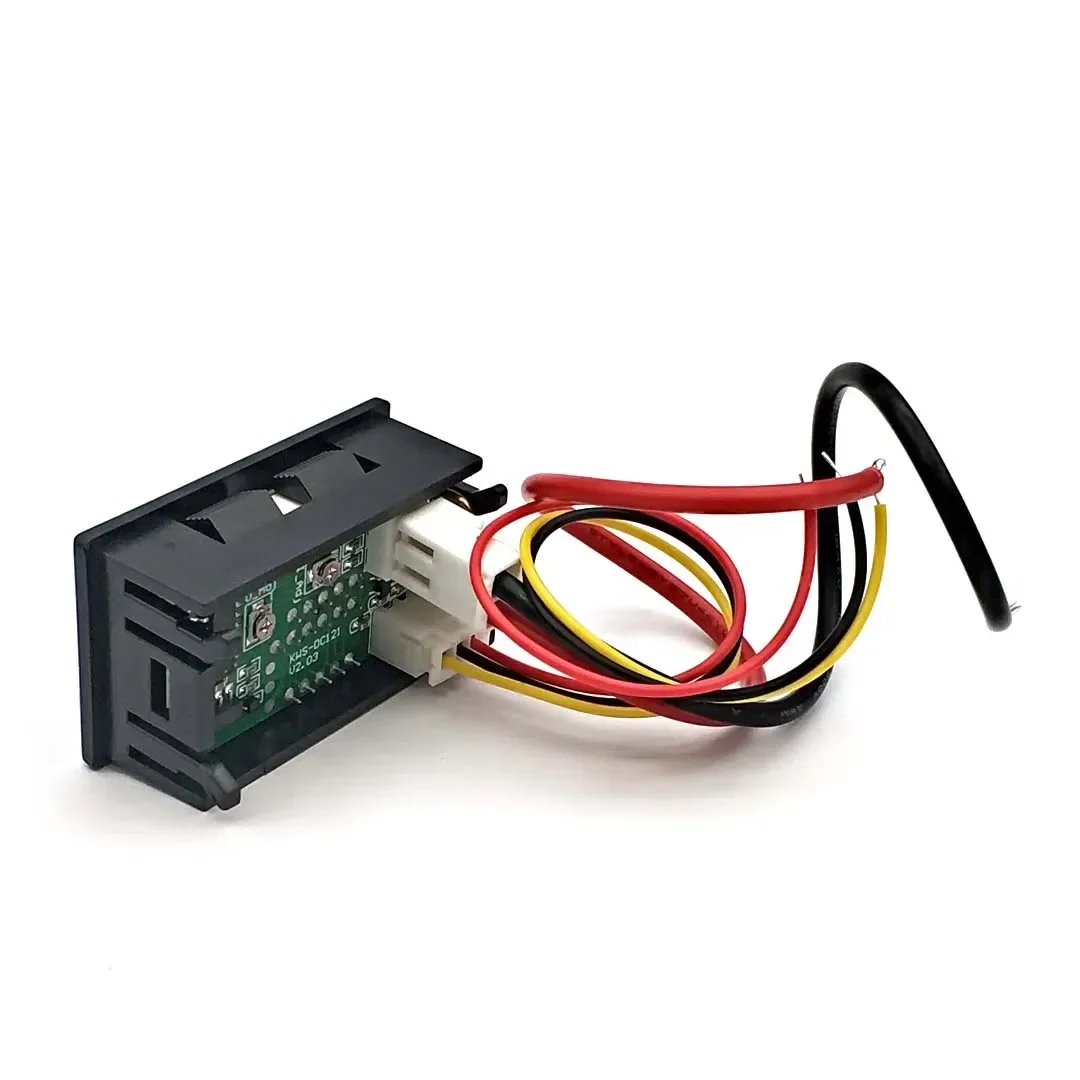

Voltage can be fine tuned, current can be fine tuned

Description

100% Brand New.

Size: 48mm x 29mm x 22mm.

Display color: Red & Blue LED (dual display).

Display: Double three digit 0.28 "LED digital tube

Operating voltage: DC 4.5 ~ 30V.

Measure voltage: DC 0 ~ 100V.

Minimum resolution (V): 0.1V.

Refresh rate: 500ms / times.

Measure accuracy: 1% (± 1 digit).

Minimum resolution (A): 0.01A.

Operating Current: <20mA.

Measure current: 10A,50A,100A

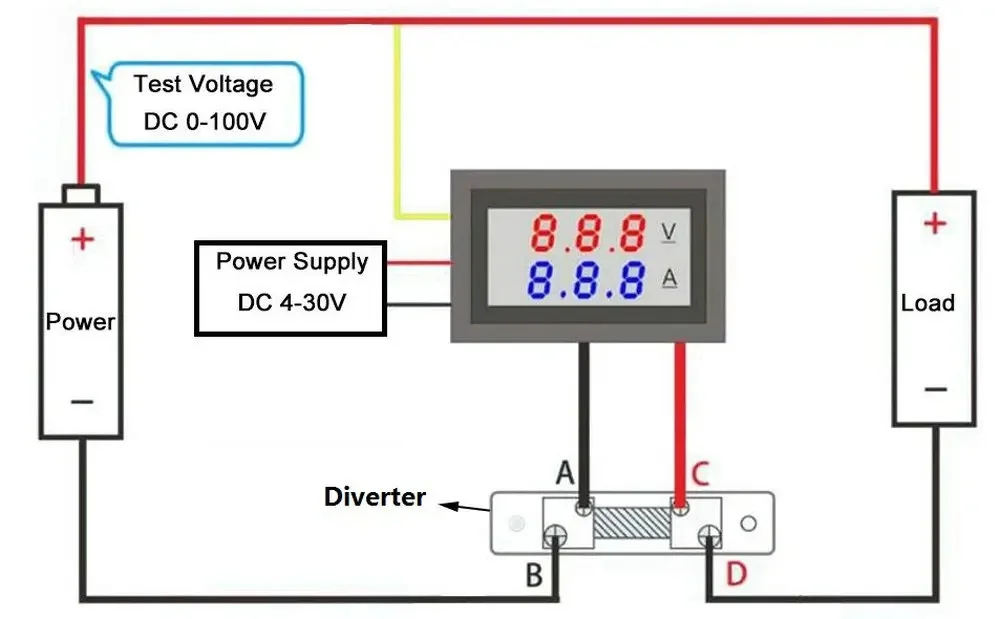

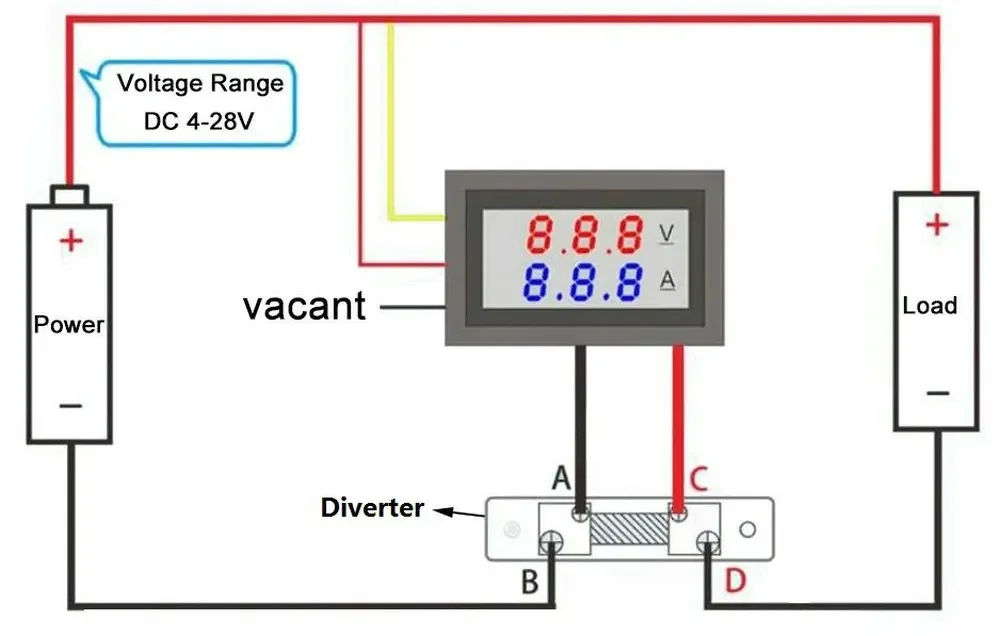

Note: 50A and 100A are not equipped with Diverter,

The Diverter must be connected before it can be powered on, otherwise the product will burn out. Please connect the corresponding Diverter when using

Operating temperature: -10 to 65°c.

Operating Humidity: 10 to 80% (non-condensing).

Mounting cutout: 45.5mm x 26.5mm.

Package Included

1 Pcs Mini Digital Voltmeter Ammeter
