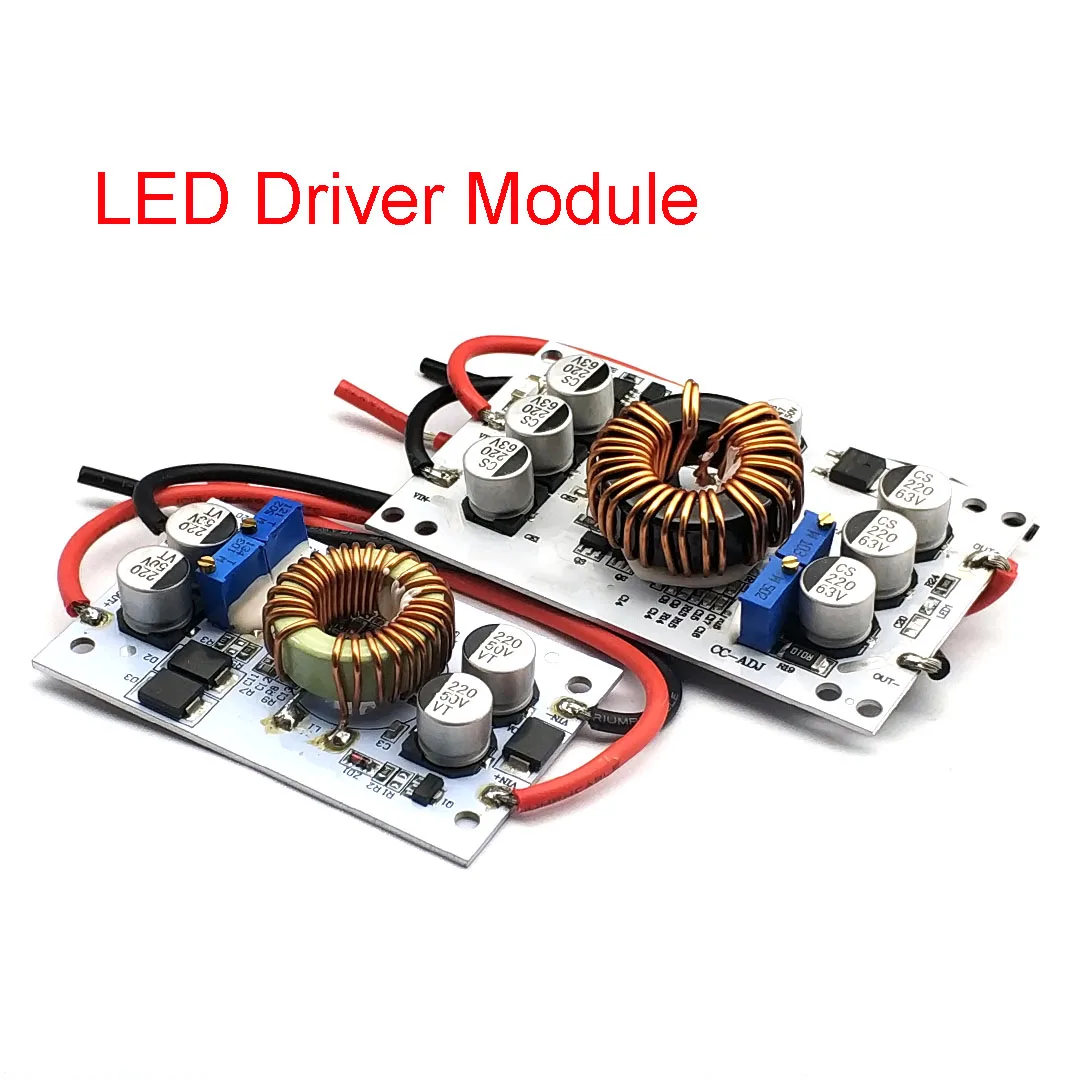

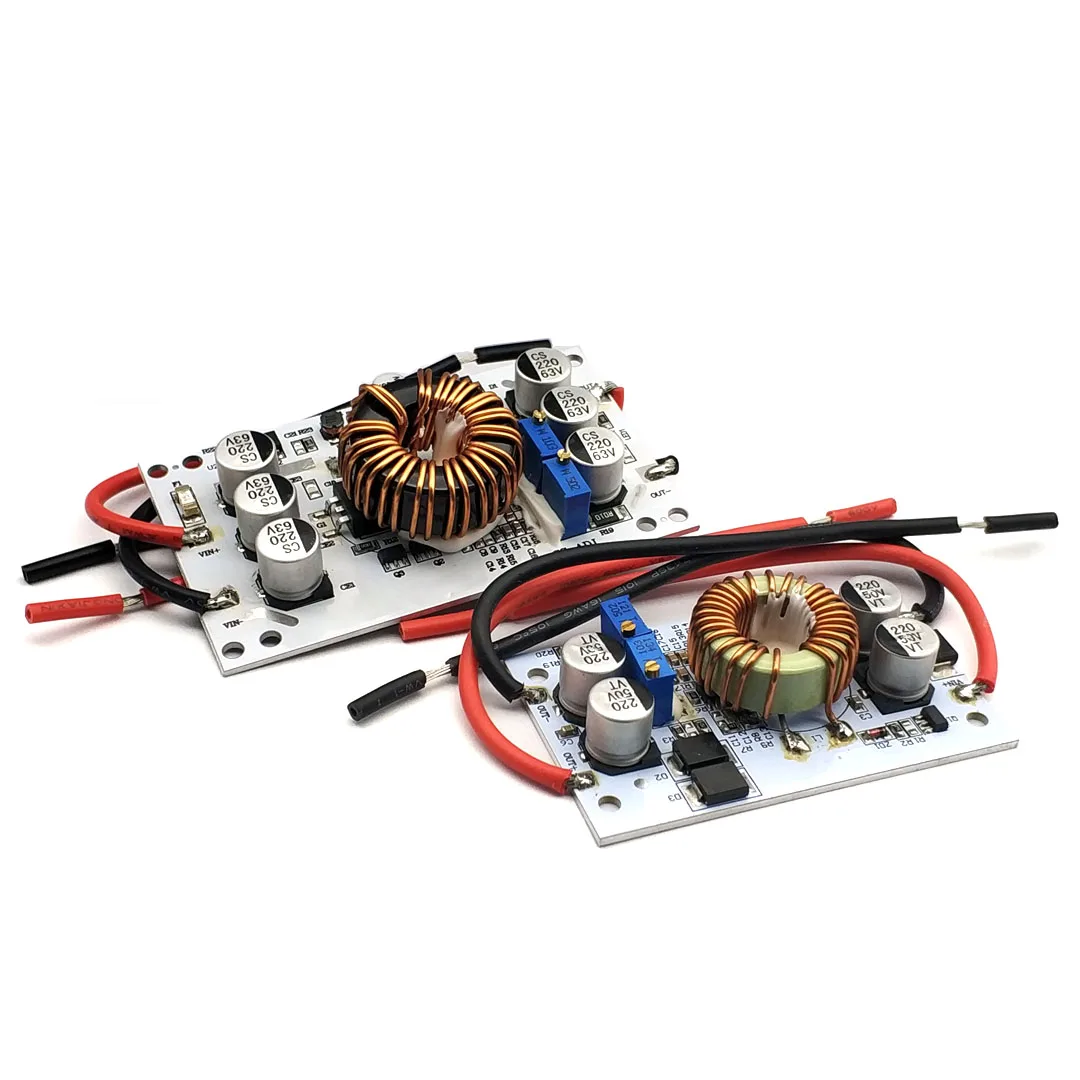

DC-DC Boost Converter Constant Current Mobile Power Supply 10A 250W/600W LED Driver Step Up Module

DC-DC Boost Converter Constant Current Mobile Power Supply 10A 250W 600W LED Driver

Description

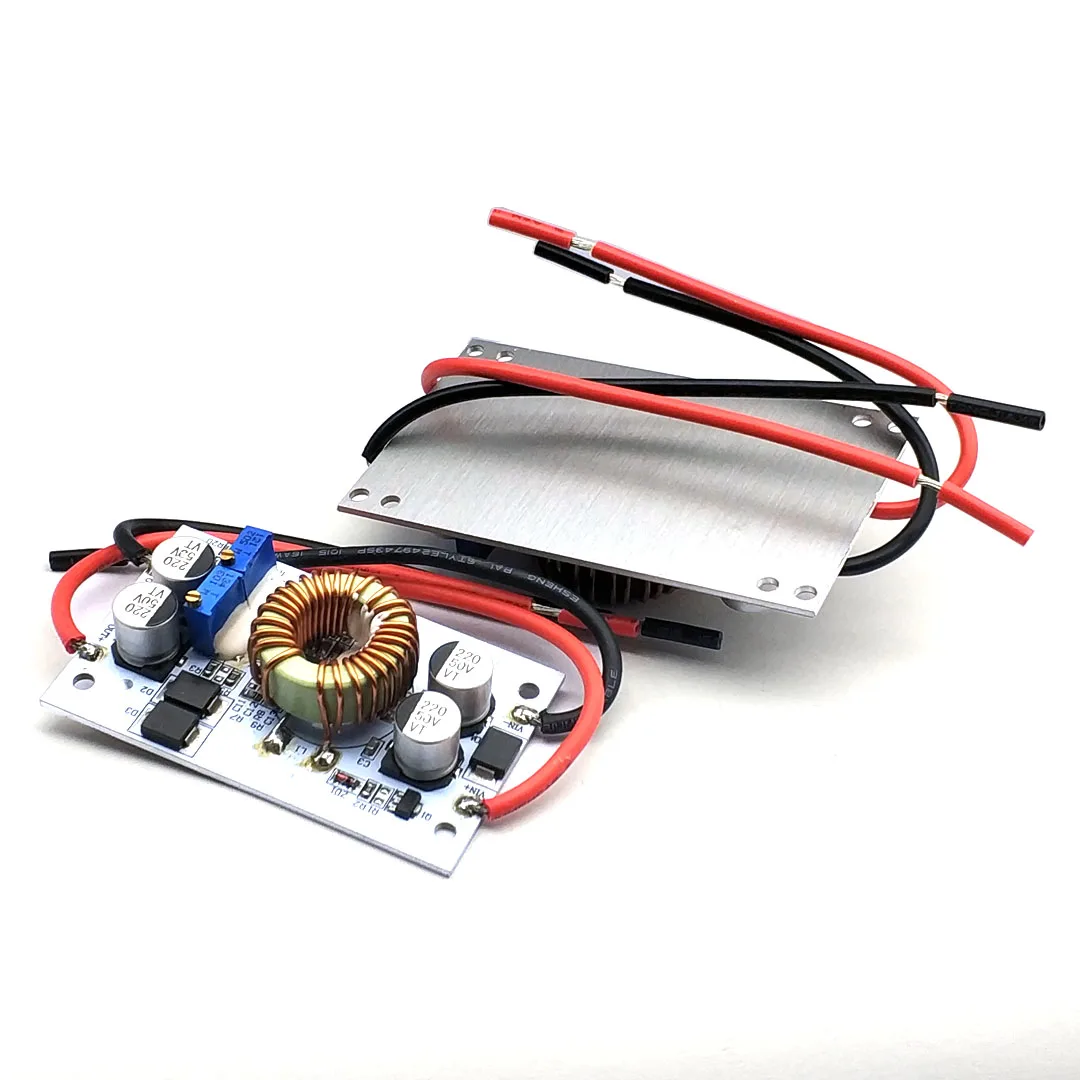

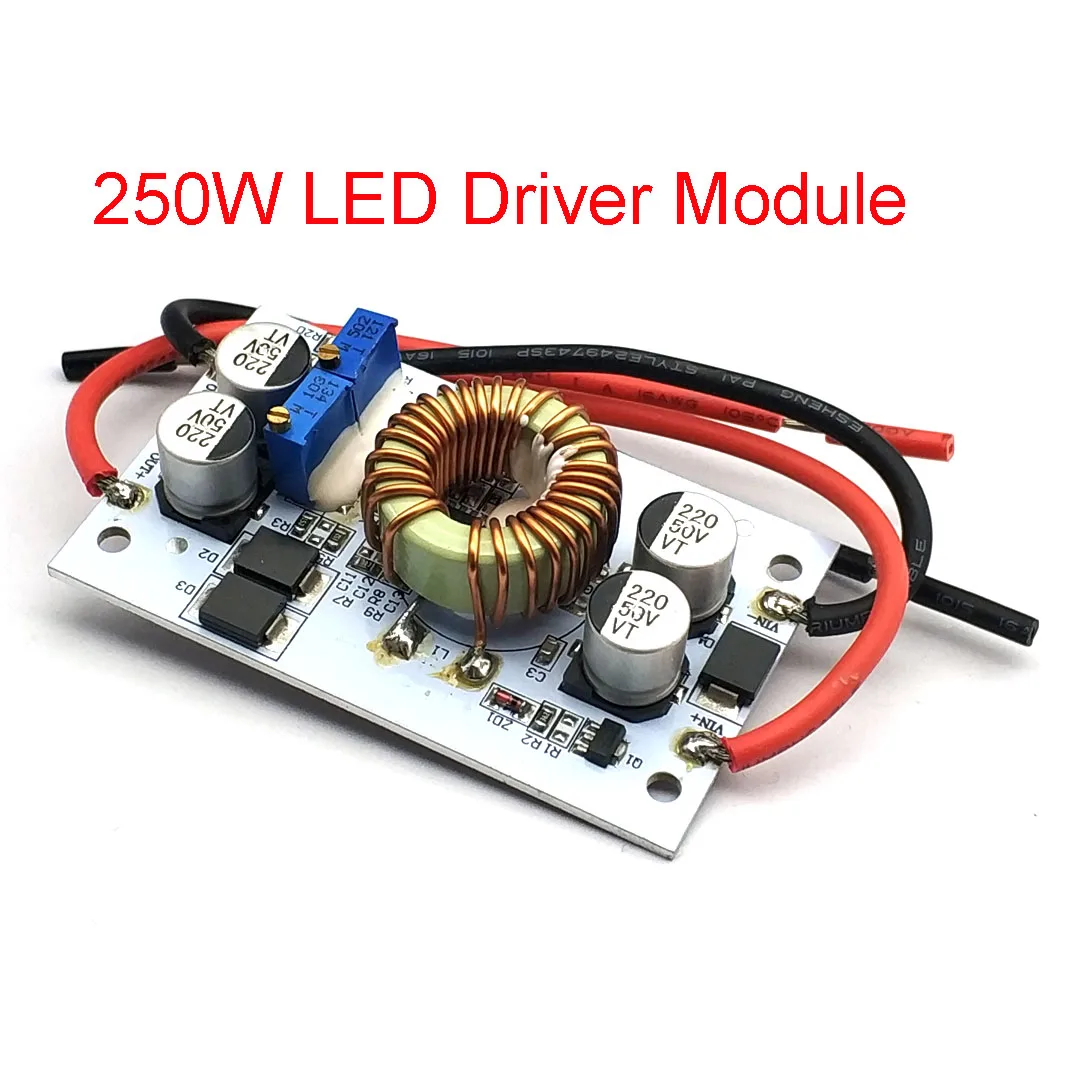

250W:
1. Module Properties: non-isolated step-up module (BOOST)
2. Input voltage :8.5-48V
3. Output voltage: 12-50V (adjustable)
4. Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
5. Output constant Current: 0.2 – 8A (please don’t short the output to adjust the current)
6. Easy to drive 65W 90W dual-core notebook.
7. Conversion efficiency: 96%
8. working frequency: 150KHZ
9. Output Ripple: 2% (MAX) 20M-bandwidth
10. Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C,
lower power use, or to enhance heat dissipation)
11. Dynamic response speed: 5% 200uS
12. Over circuit protection: yes
13. Input Reverse Polarity Protection: yes
14. Size: 70*42*13mm

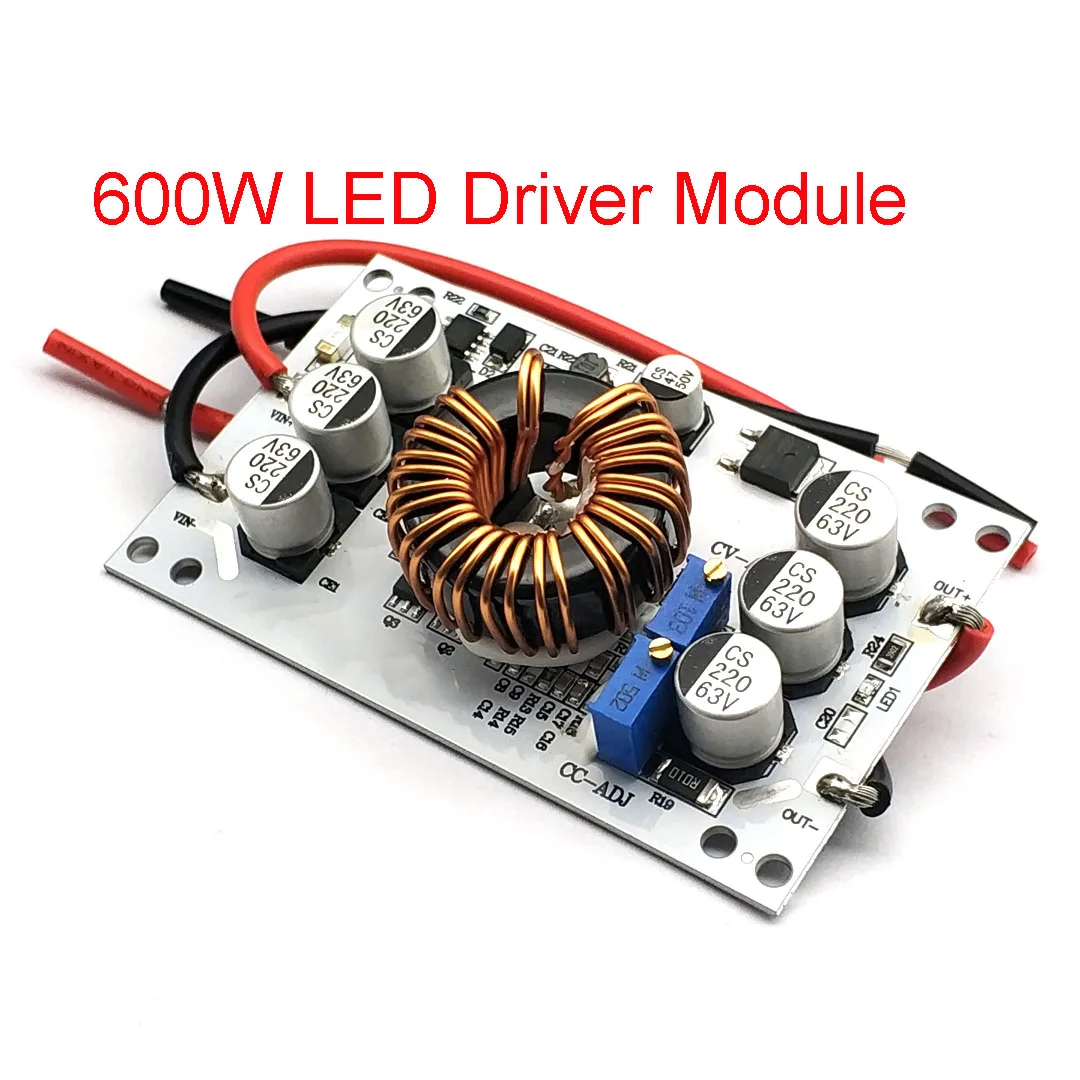

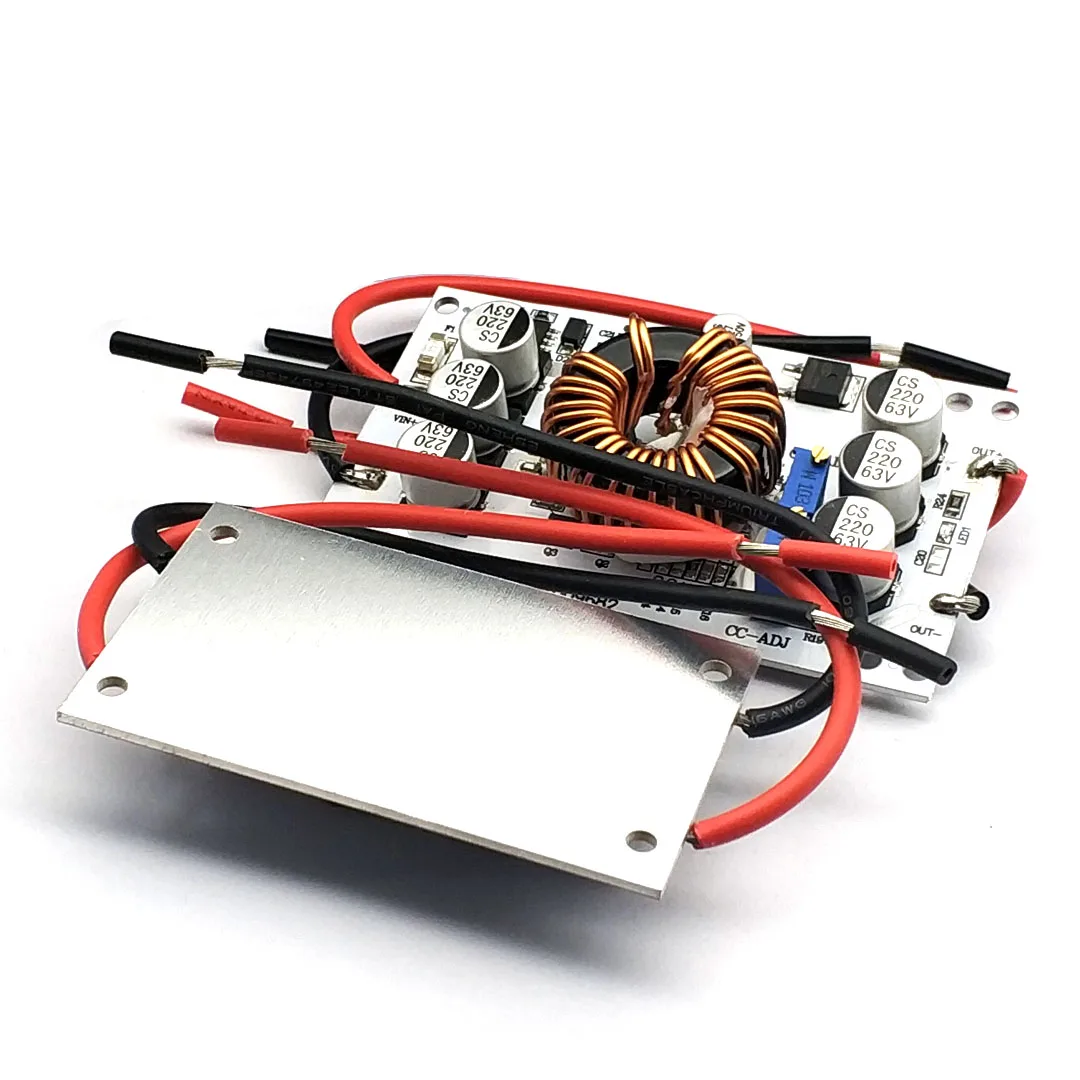

600W:
Module name] 600W boost and constant current module
Module properties]: non isolated boost module (BOOST)
Input voltage]: DC10V-60V
Input current]: 10 (MAX)
Static working current]: 10mA (12V liters 20V, the output voltage, the more Gao Jing and too current will increase)
Output voltage]: 12-60V continuously adjustable (Default output 19V shipmentIf any other voltage is required, please explain to the cabinet. )
Output current]: 10A MAX more than 6A please strengthen the heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current).
Constant current range]: 0.2-10A
Output]: = input voltage *10A, such as: input 12V*10A=120W, input 24V*10A=240W,
Enter 36V*10A=1360W, enter 60V*10A=600W,
Working temperature: -40~+85 degree (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency]: 150KHz
Conversion efficiency: 92%-96% (efficiency and input, output voltage, current, pressure difference)
Input back protection]: no (pay attention to negative and negative)
Installation way]: 43mm screw hole
Connection mode]: connection output
Module size]: long 8*52*21mm
Module single weight]: 80g

Package Included

1 Pcs DC-DC Boost Module
