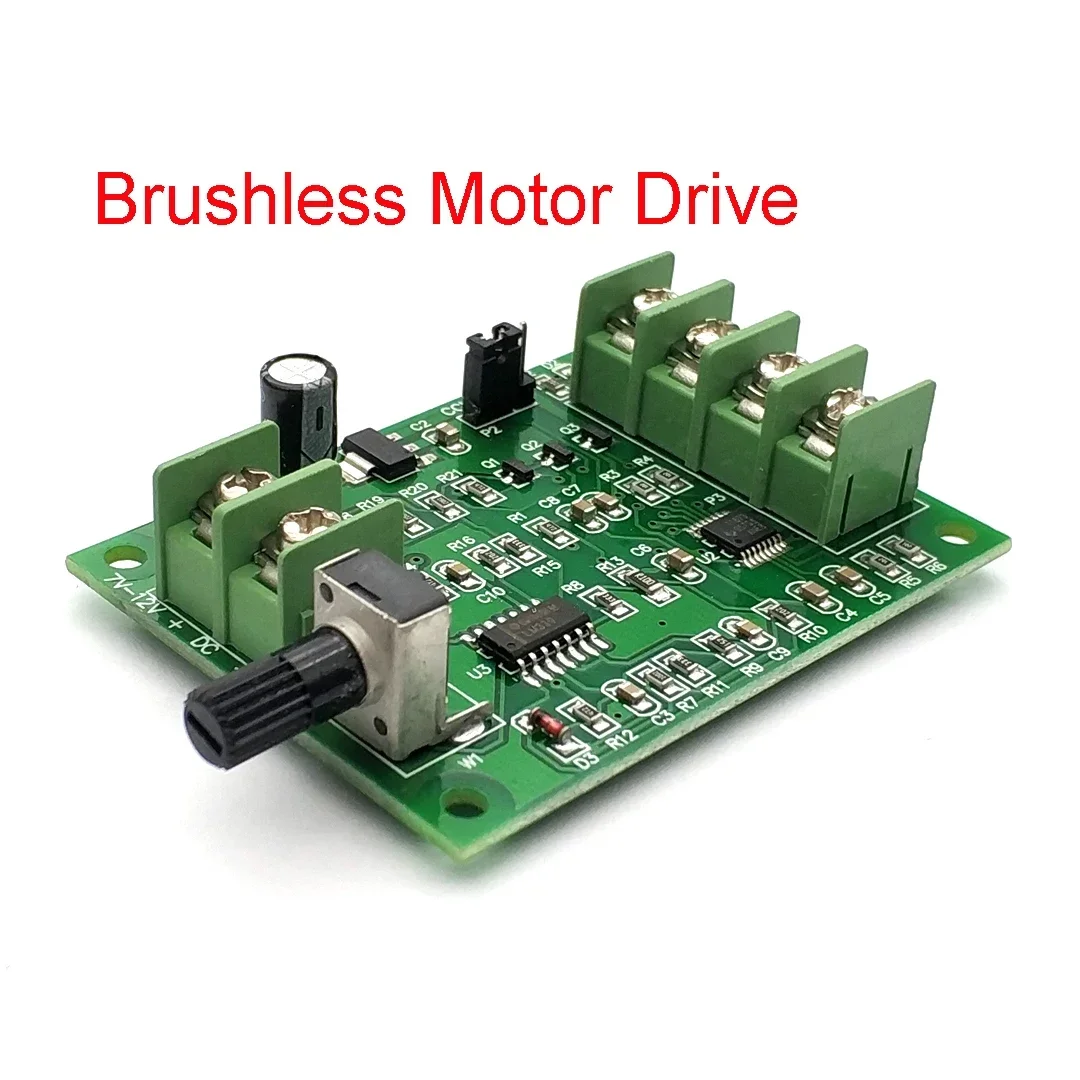

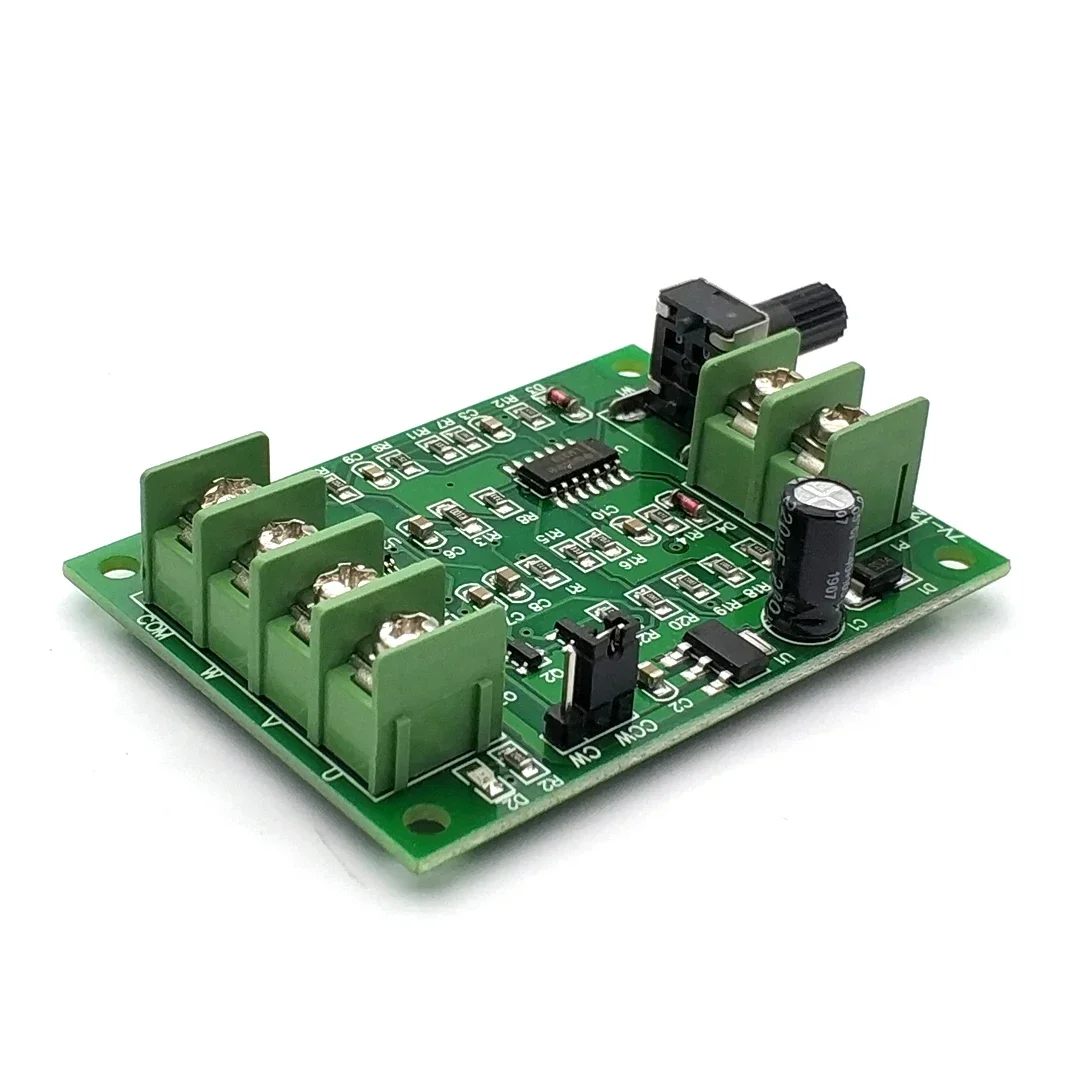

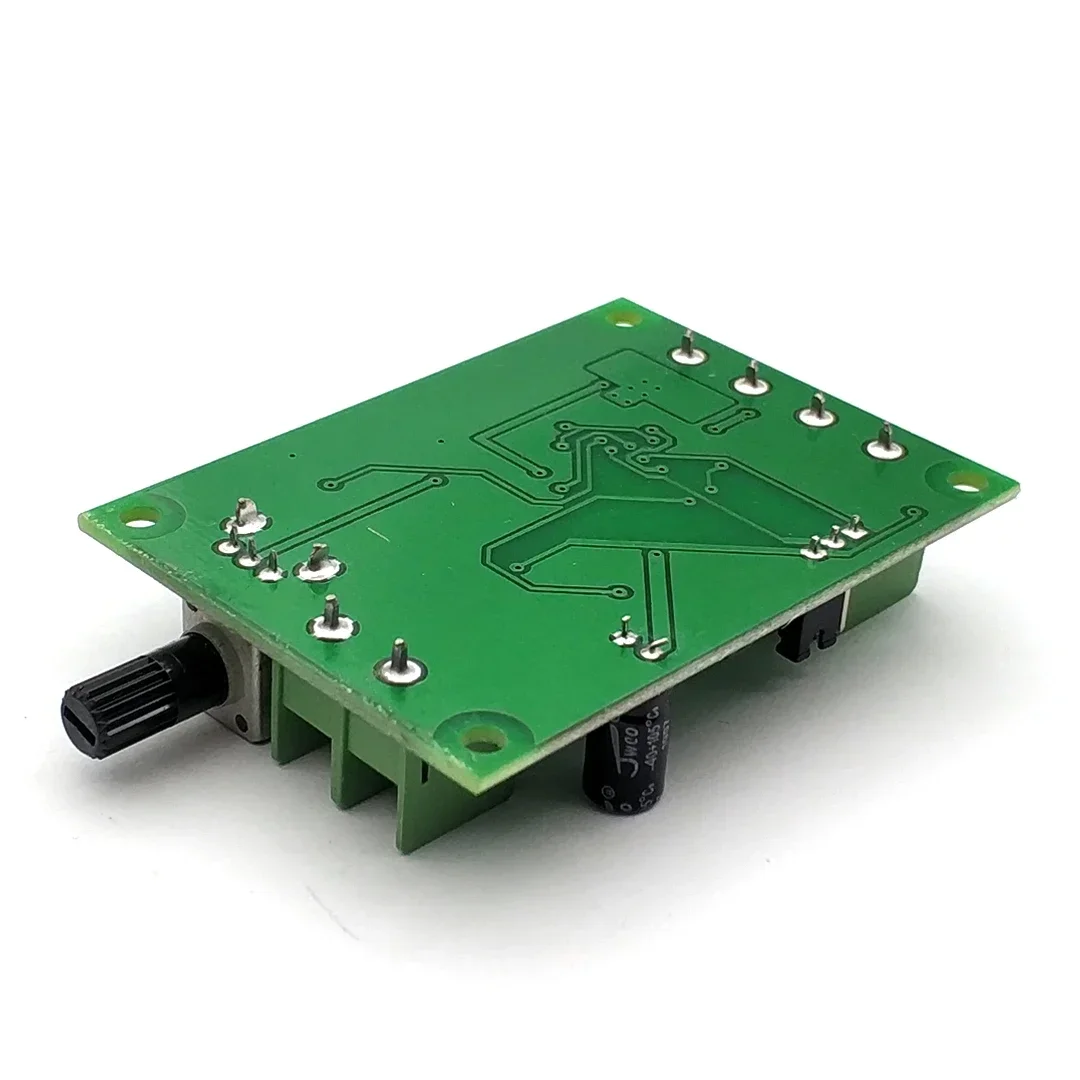

DC 7V-12V Brushless Driver Board Controller for Hard Drive Motor 3/4 Wire

DC 7V-12V Brushless Driver Board Controller for Hard Drive Motor 3/4 Wire



Description

100% brand new and high quality
Material: Plastic and Electrical components
Color: Green and Black
The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on , the micro 3-wire or 4-wire
without hall brushless motor ,
It’s have reverse voltage protection , Over current protection , Phase inversion control
Driver voltage : DC7-12v
Working voltage : ≤1.2A
Speed adjust :0%-100%

Note : Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase

operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal,One of the
terminals and the other three terminal resistance value of the minimum and equal
So it’s COM terminal
Size:6*4.5cm/2.36″*1.77″

Package Included

1 Pcs 7V-12V DC Brushless Motor Driver Board Controller
