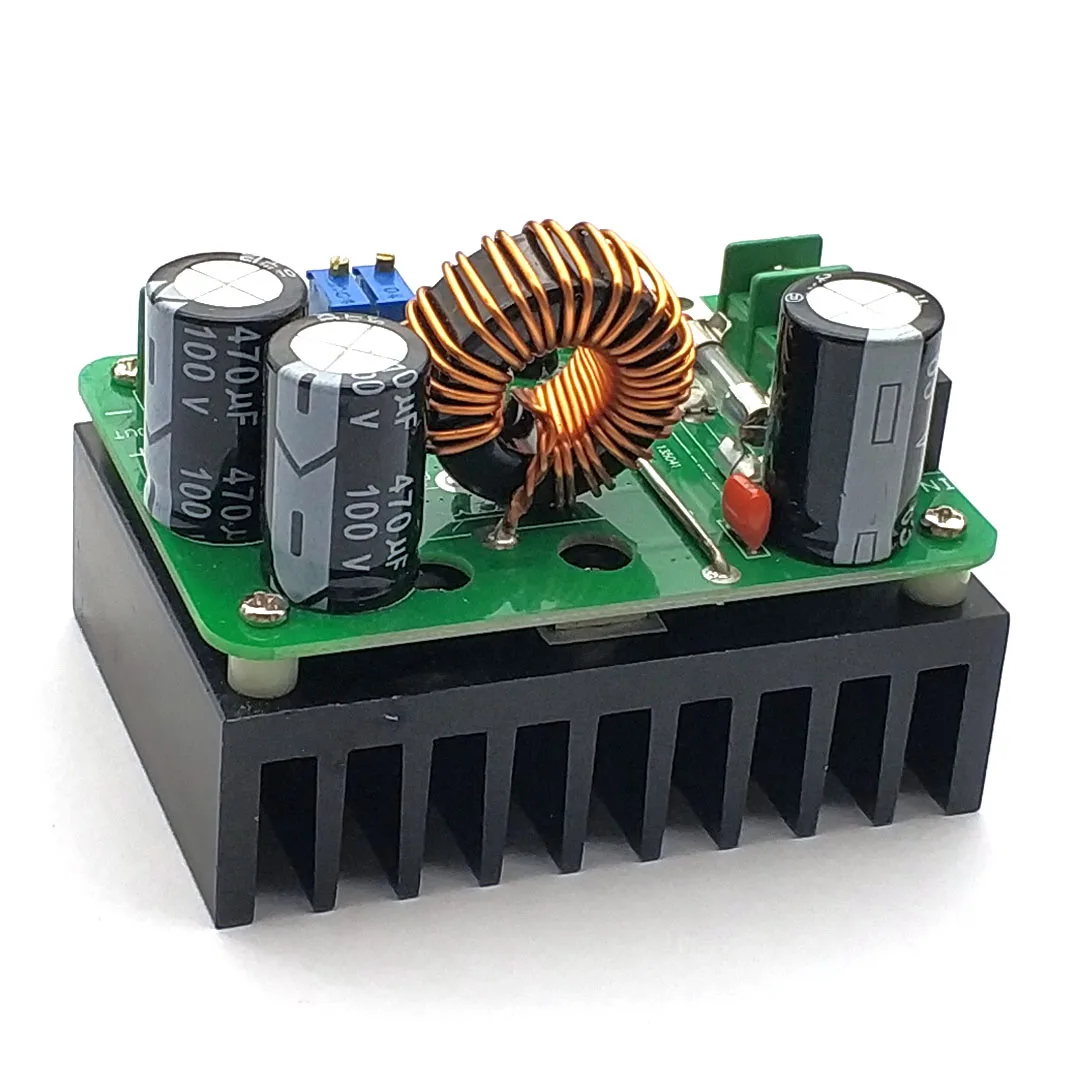

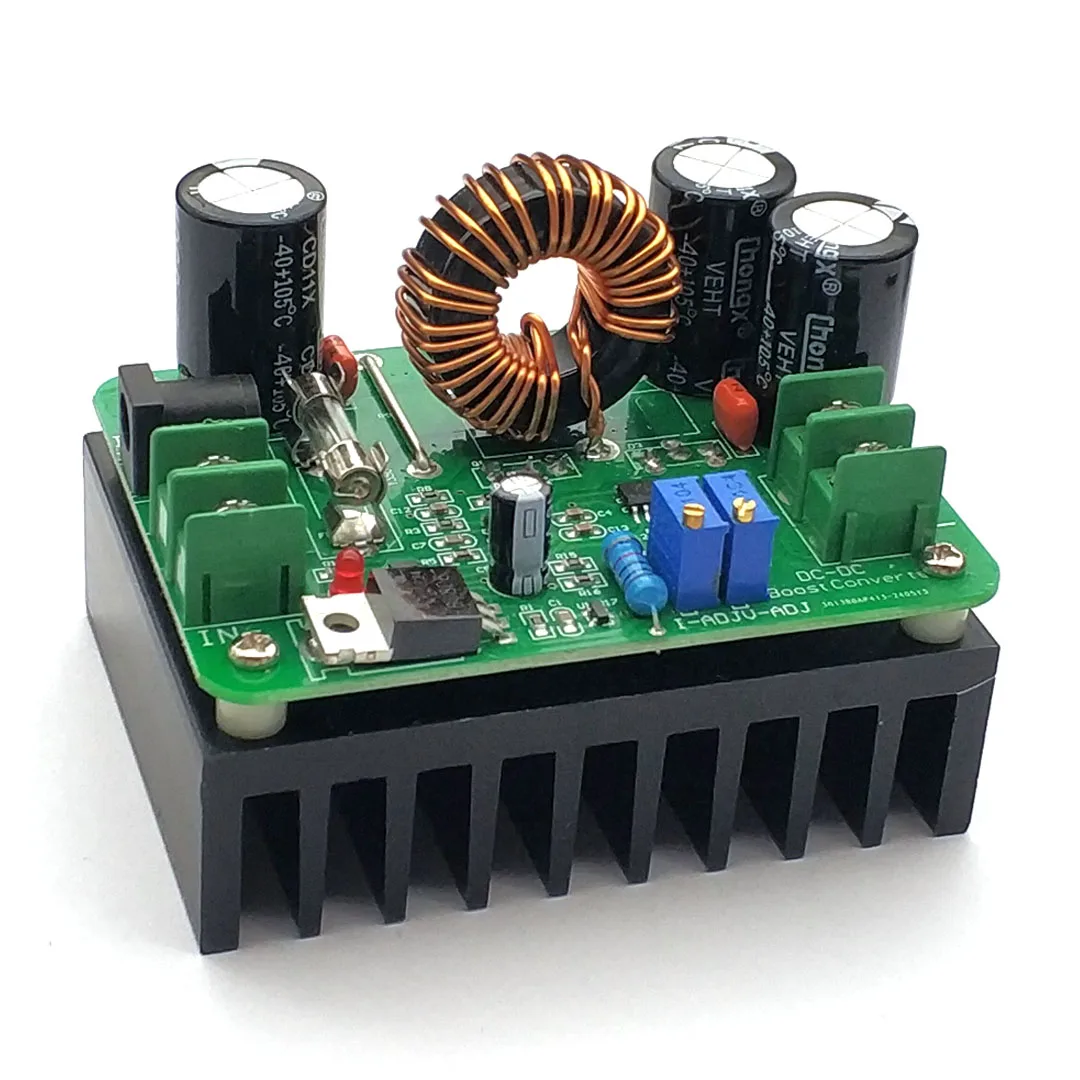

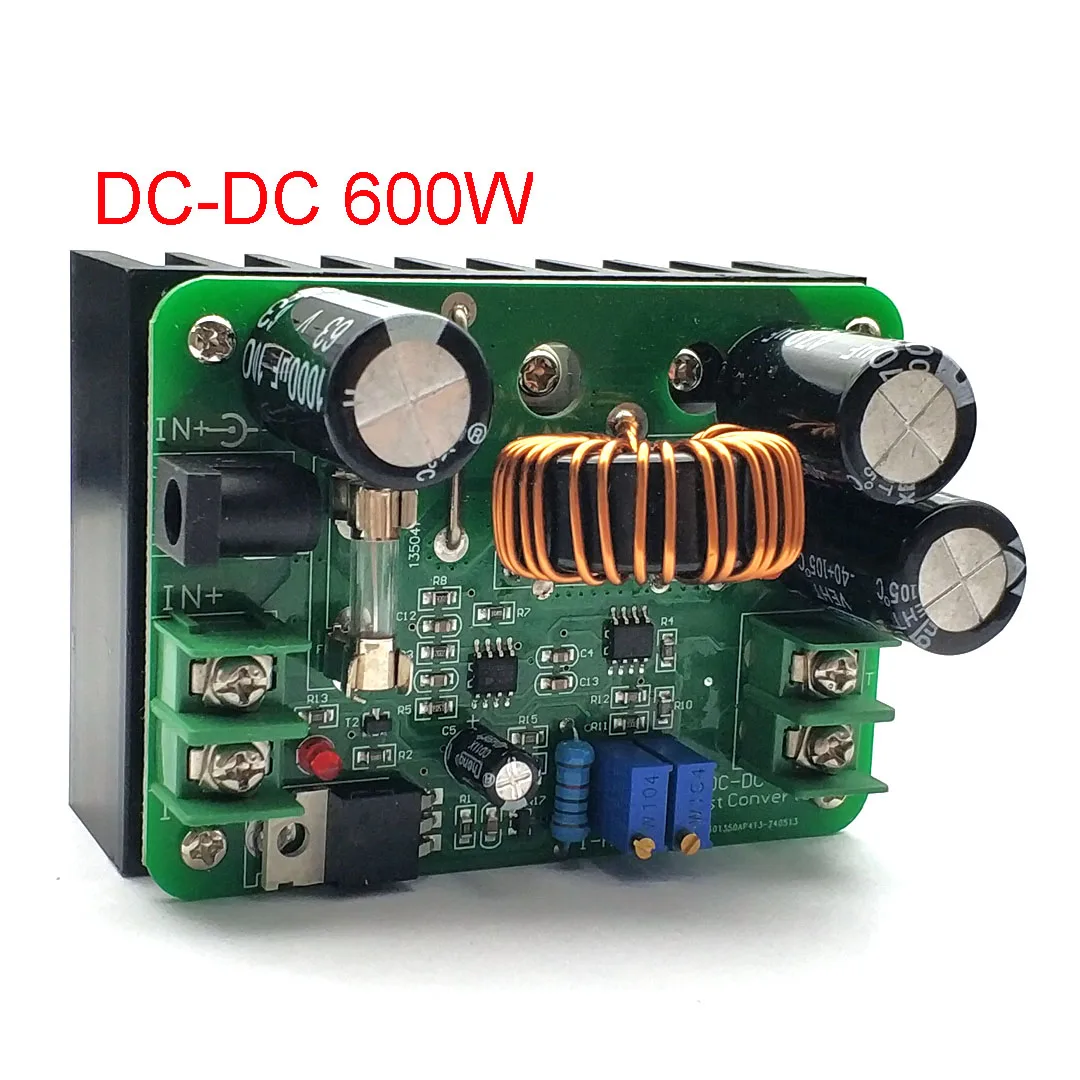

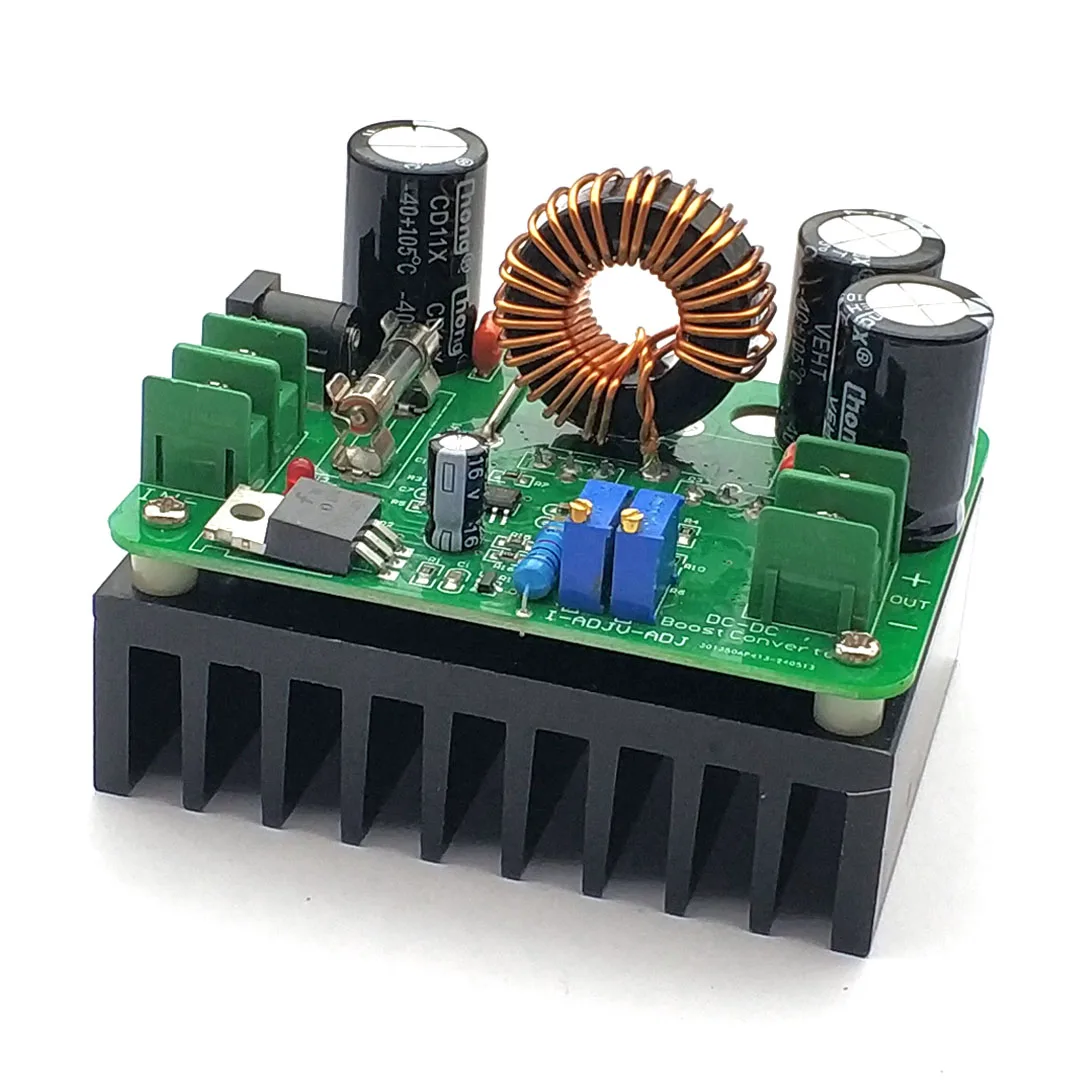

600W DC-DC Boost Module Power Supply Step Up Constant Current Voltage 12v-60V To 12v-80V Max 10A Output Curren Booster Converter

600W DC-DC Boost Module Power Supply Step Up Constant Current Voltage 12v-60V To 12v-80V Max 10A Output Curren Booster Converter

Description

Name : 600W Boost module
Input voltage : 12V- 60V
The output voltage : 12V- 80V, adjustable
Input Current: MAX–15A
Output Current: MAX–10A
Working temperature: -forty Five~ +85
Size :85mm * 62mm * 70mm(Long*Width*Hight)

Application:
1.DIY an adjustable output car onboard power supply. Simply connect a 12V power supply to the input terminal, and the output voltage can be continuously adjusted between 14-80V. But the output voltage cannot be lower than the input voltage.
2. Universal car laptop power supply. The input is connected to a 12V power supply, and the output can adjust the voltage required for the constant laptop to work.
3. Booster charger. A 12V power supply can be used to charge batteries above 12V, such as a 20V battery. And the charging current is adjustable.

Package Included

1 Pcs DC-DC 600W Boost Module
