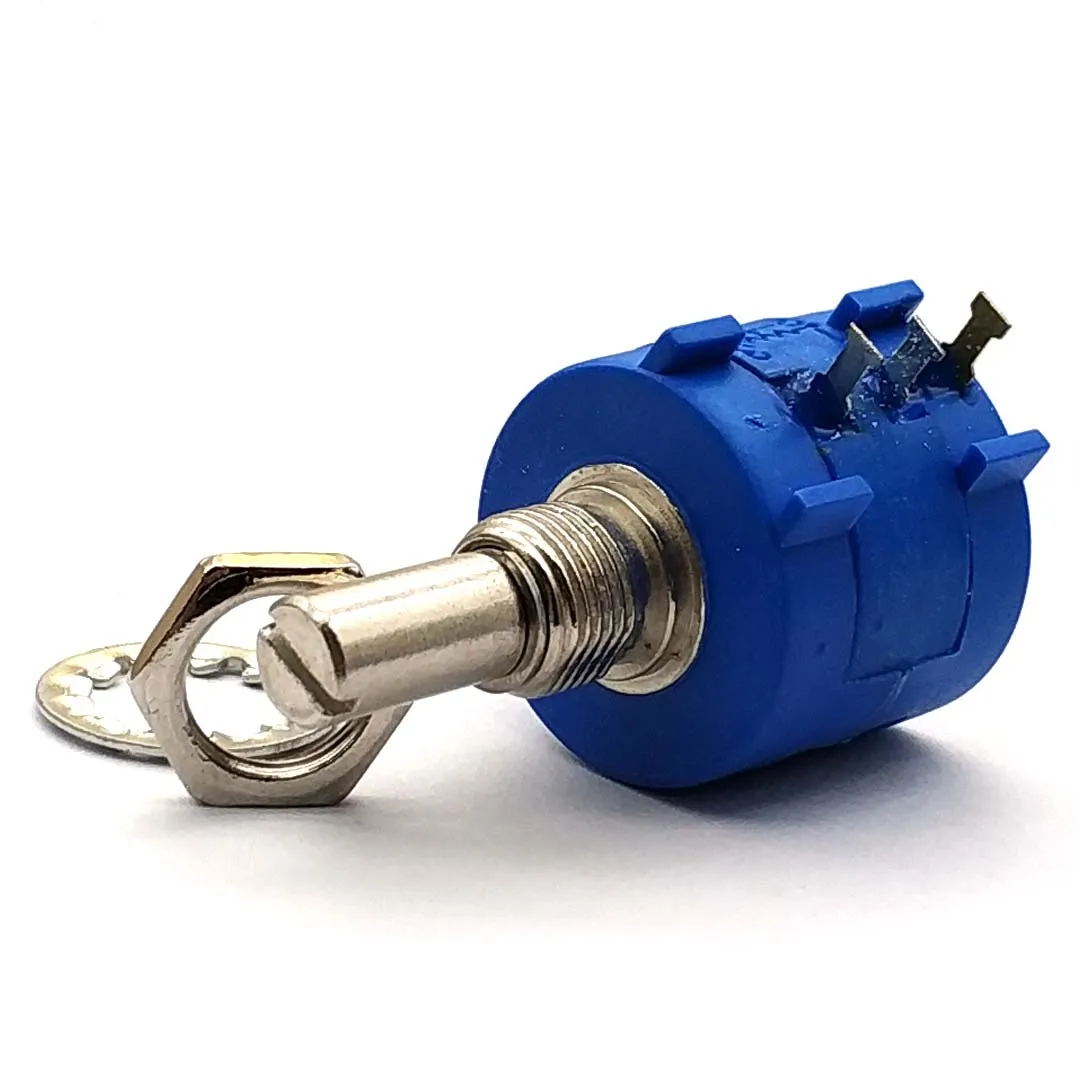

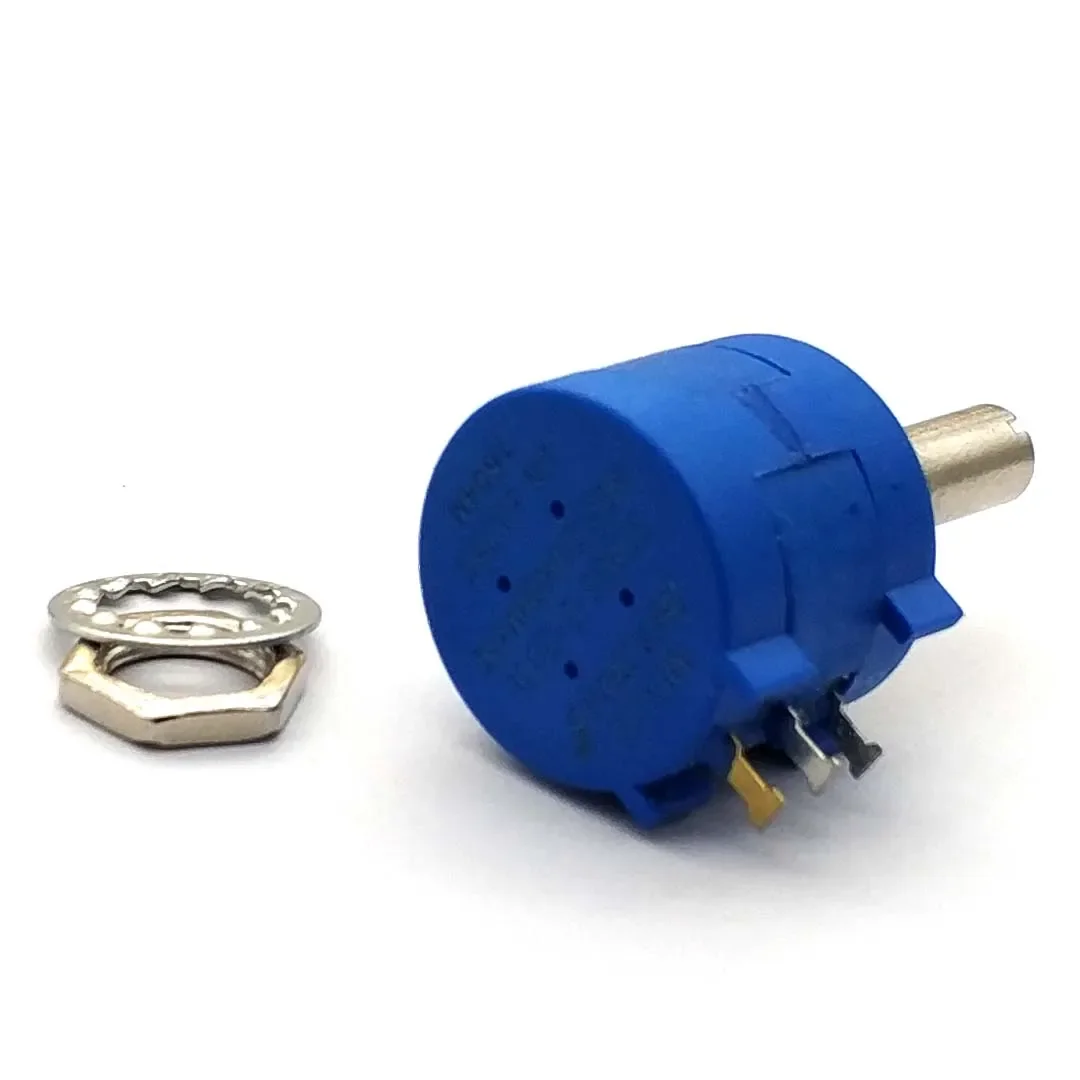

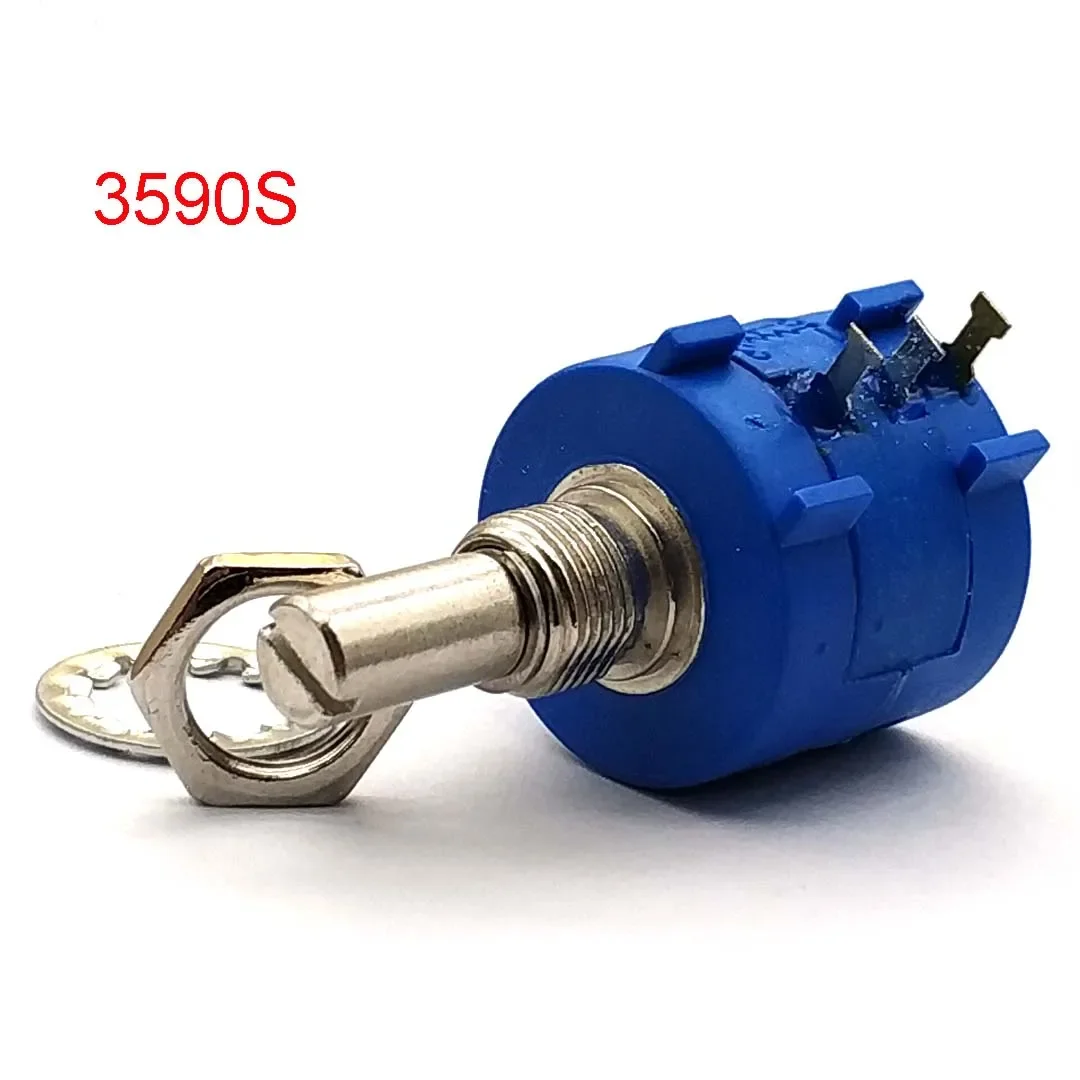

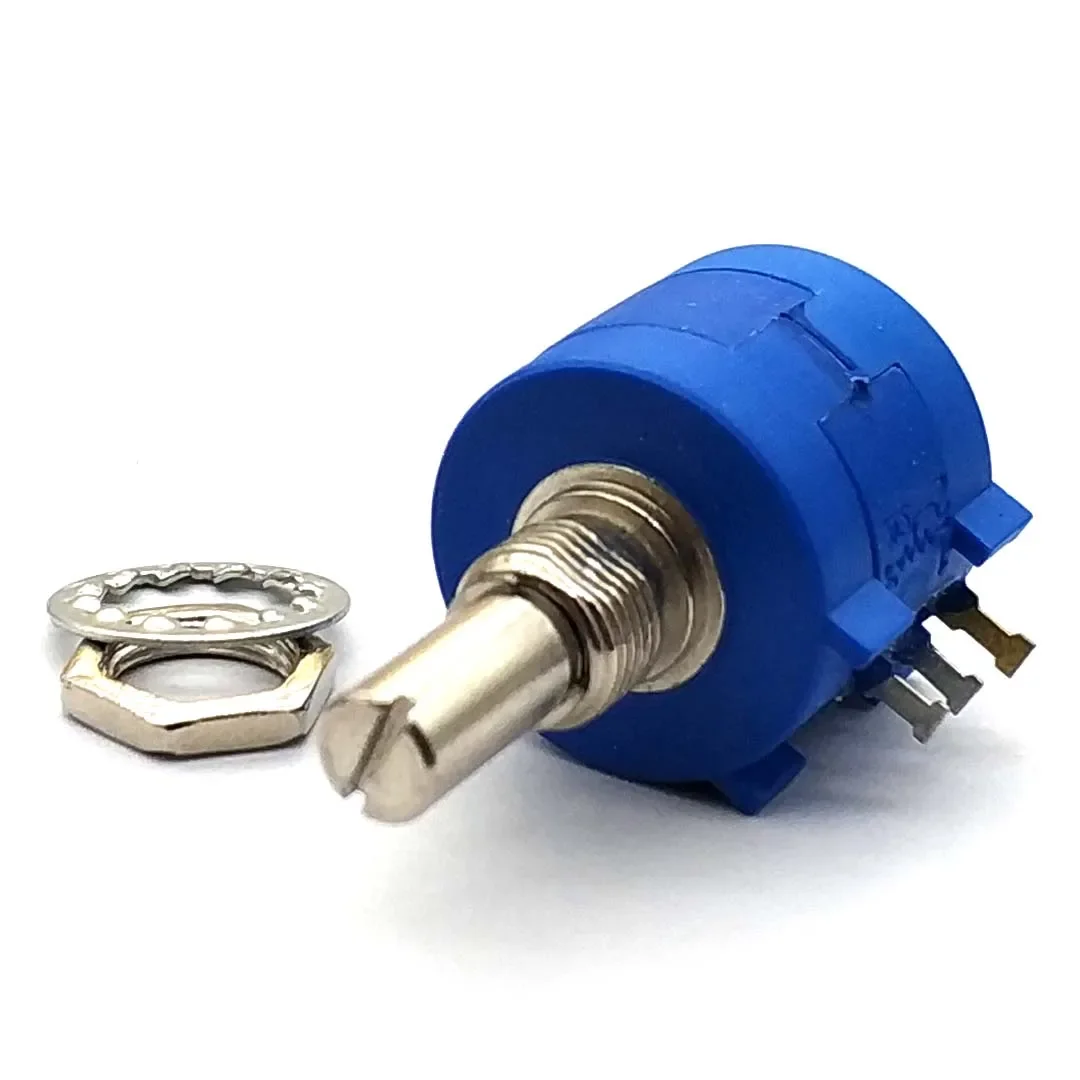

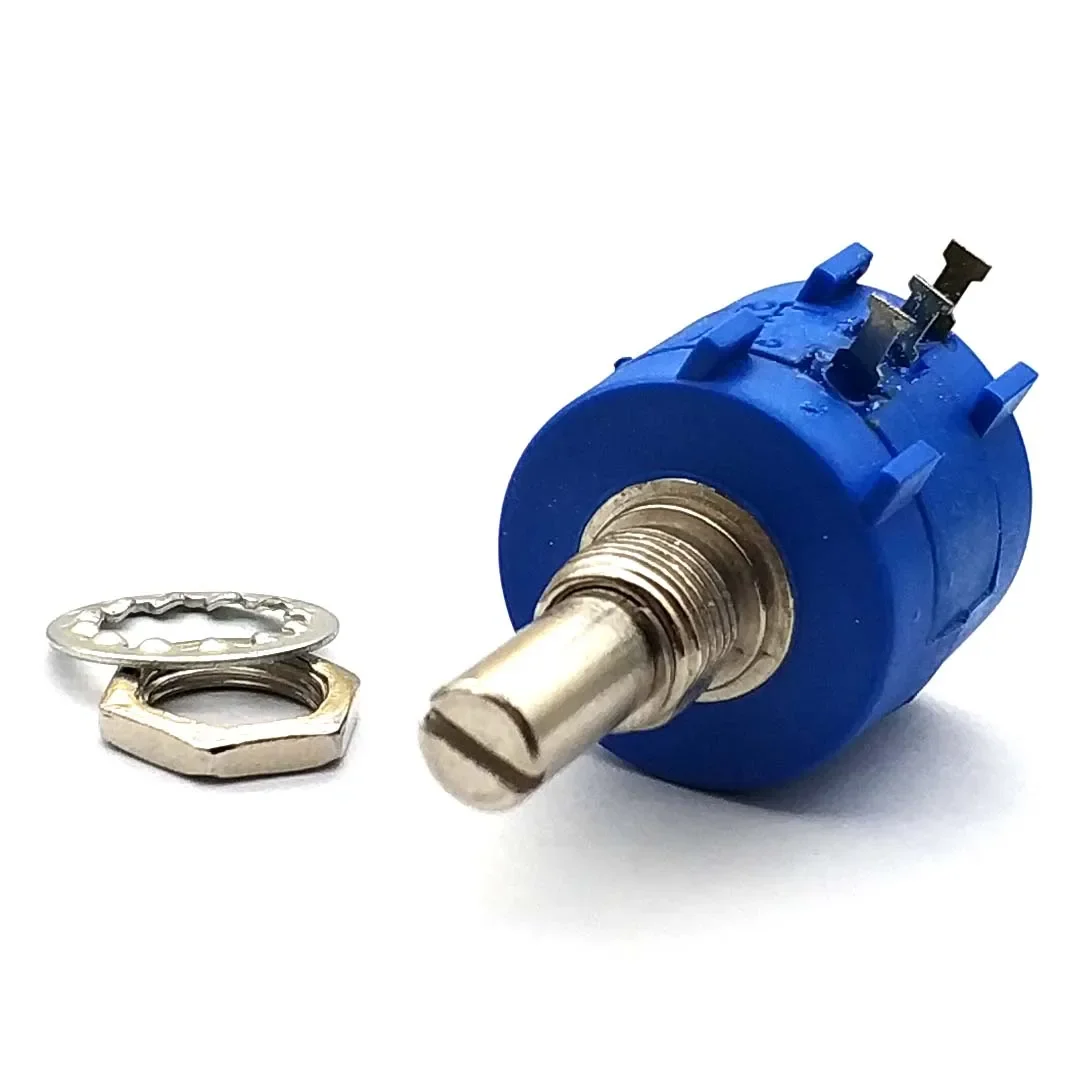

3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K Ohm Potentiometer Adjustable Resistor 3590 102 202 502 103
DescriptionMaterial: Plastic
Color: Blue Model: 3590S-2-501L, 3590S-2-102L, 3590S-2-202L, 3590S-2-502L, 3590S-2-103L, 3590S-2-203L, 3590S-2-503L, 3590S-2-104L Type: Rotary Shaft Technology: Wirewound Turns: 10 Spinning life: 1,000,000 revolutions Power: 2W Resistance Value: 500R Ohm, 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm (Option) Resistance Tolerance: ±5% Linearity: ±0.25% Shaft Diameter: 6mm/0.24″ Threaded Diameter: 9mm/0.35″ Total Length: 40mm/1.6″ Load life: 1000 hours Mechanical angle: 3600° ±10° Operating temperature range: -55℃ – 125℃ Size(No Include Shaft): 22x19mm/0.9″x0.7″(DxH)
Package Included1 Pcs 3590S Multiturn Potentiometer
|
Uncategorized
3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K Ohm Potentiometer Adjustable Resistor 3590 102 202 502 103
| Weight | 0.03 kg |
|---|---|
| Dimensions | 13 × 8 × 5 cm |
| Model | 3590S-2-202L 2K, 3590S-2-102L 1K, 3590S-2-103L 10K, 3590S-2-503L 50K, 3590S-2-104L 100K, 3590S-2-101L 100R, 3590S-2-501L 500R, 3590S-2-502L 5K, 3590S-2-203L 20K |
