2000W 4000W AC 110V-220V SCR Adjustable Motor Speed Controller Control Dimming Dimmers Voltage Regulator Thermostat High-power

2000W 4000W AC 110V-220V SCR Adjustable Motor Speed Controller Control Dimming Dimmers Voltage Regulator Thermostat High-power

Description

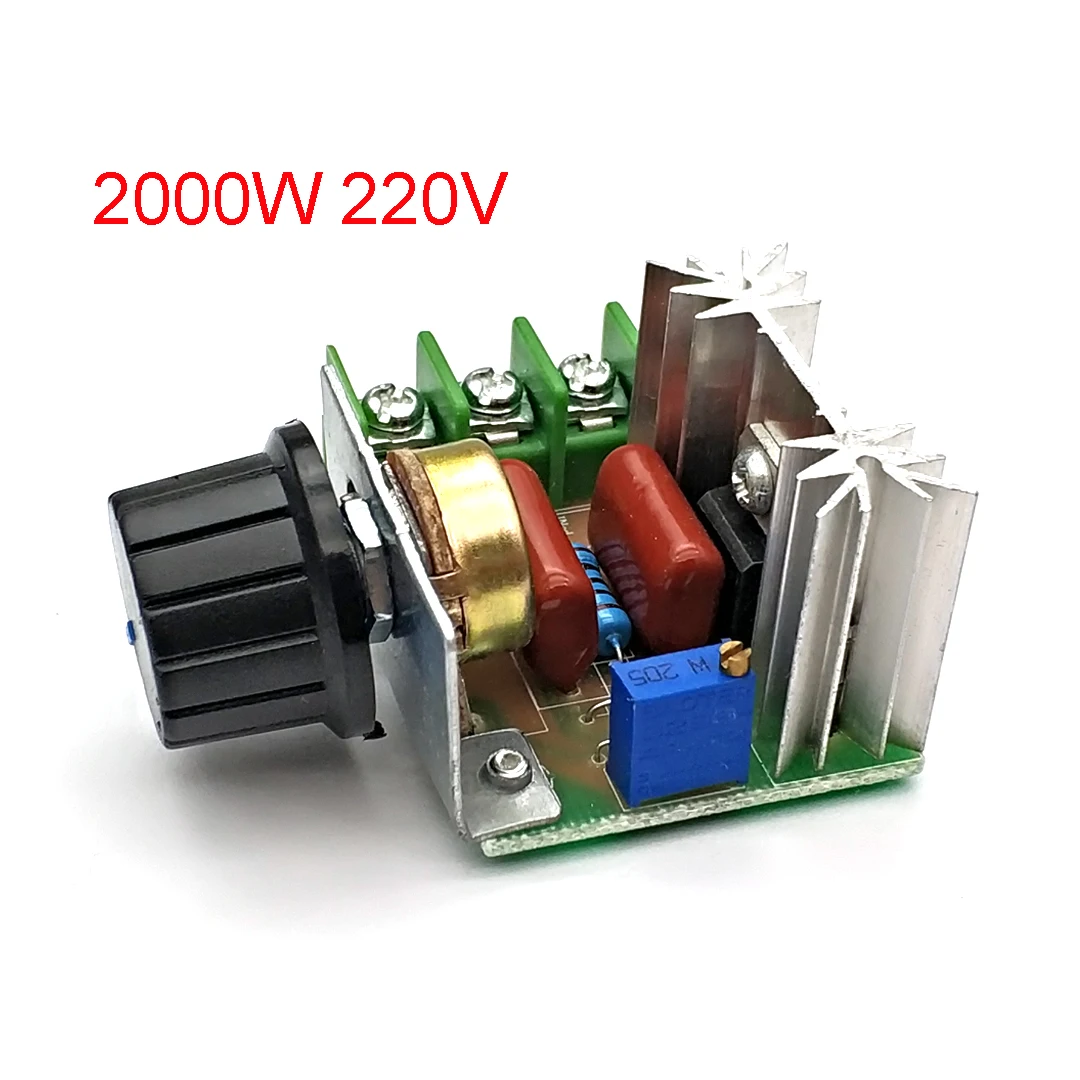

2000W:
Connect this device with lamp or home appliance in a series connection, then rotate the knob for dimming, speed, voltage, temperature control.
Applicable Appliance: Electric furnace, water heater, lamps, small motor, electric iron. etc
Input Voltage: 220V
Maximum Power: 2000W
Adjustable Voltage: 50-220V AC
Size (L x W x H): 48 x 54 x 27mm
Material: Plastic, metal

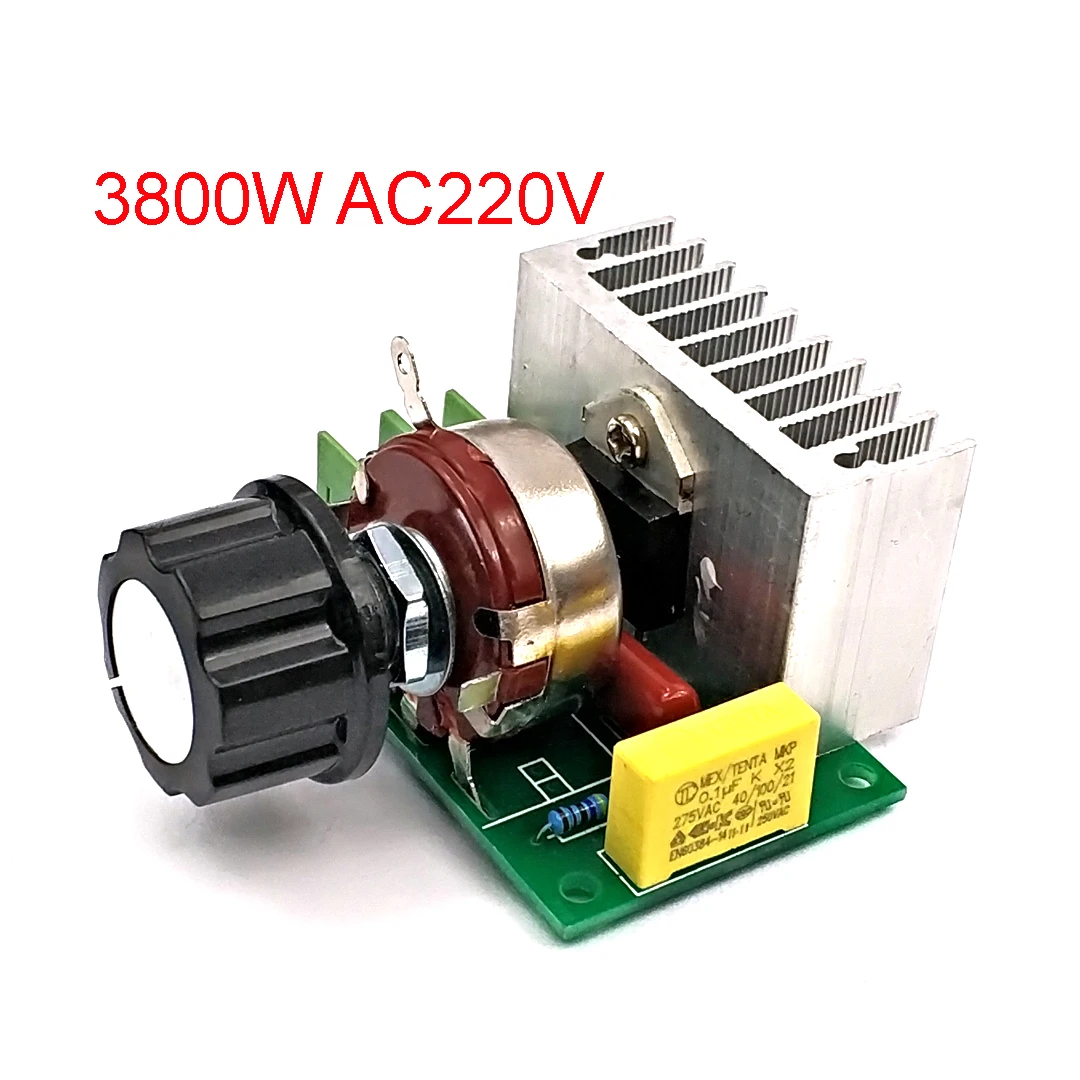

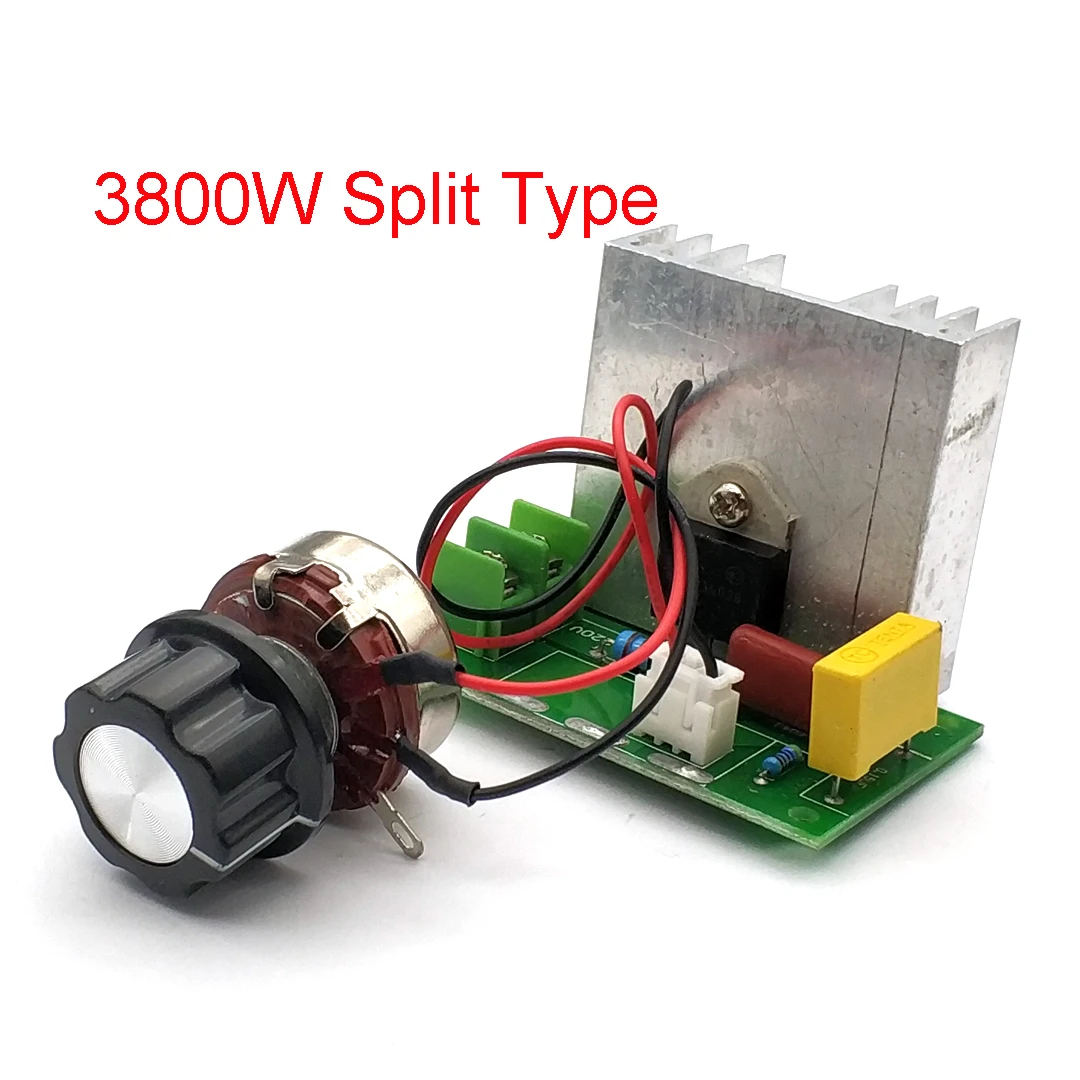

3800W:
1.Input Voltage: 220V.
2.Maximum Power: 3800W.
3.Adjustable Voltage: 0-220V.
4.Size L x W x H 60 x 37 x 45mm.
5.Resistance to high temperature fire FR4 board.

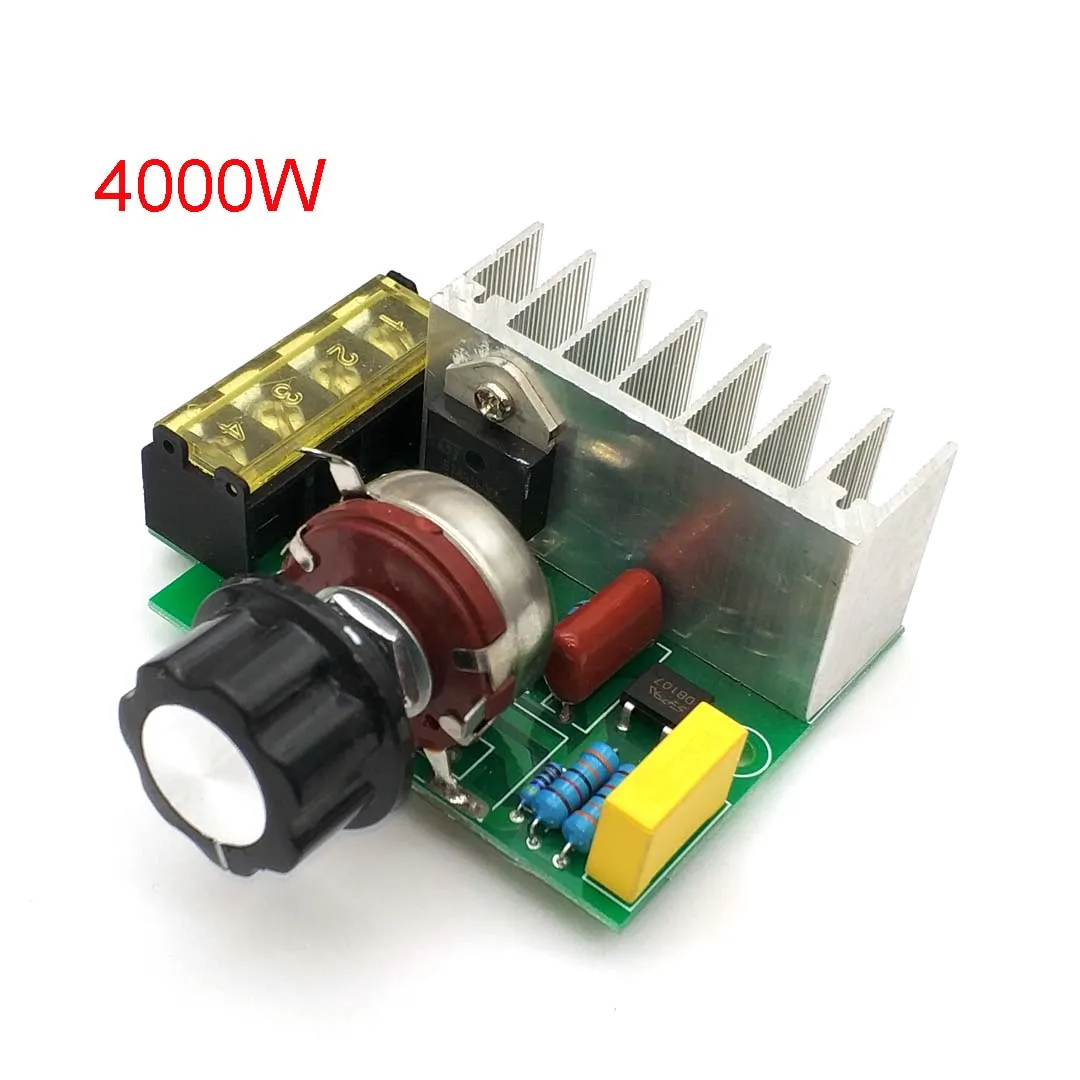

4000W:
Material: Semiconductor silicon controlled
Size: 85 * 55 * 38 mm
Working Voltage: AC 220V
Highest power: 4000 watt (connected resistive load, longtime use show lower the power)
Under 10amps current, does not need extra cooling.
Over 10amps current, need add cooling fan.
Voltage regulation: AC 10-input
Specification:
Control the speed of a AC motor with this controller
High temperature resistant FR – 4 circuit board
Fine workmanship and stable performance.
Durable in use.
Used in electric furnace, water heater, lamps, small motor, electric iron etc.
Suitable for AC brush motor.
How to Use:
Adjustable Power Supply Board, connect this device with lamp or home appliance or electric circuit.
Then rotate the knob for dimming, speed, voltage, temperature control.

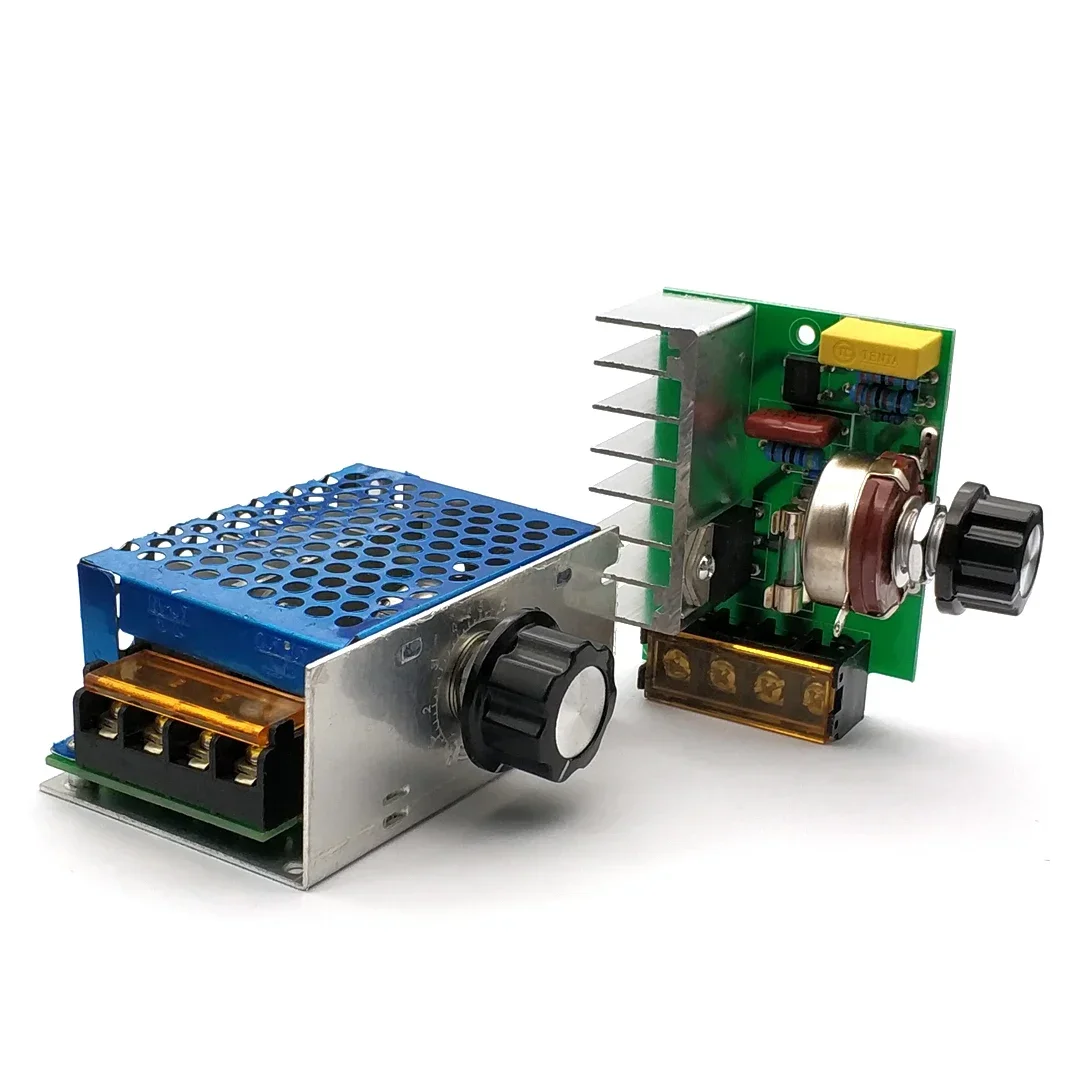

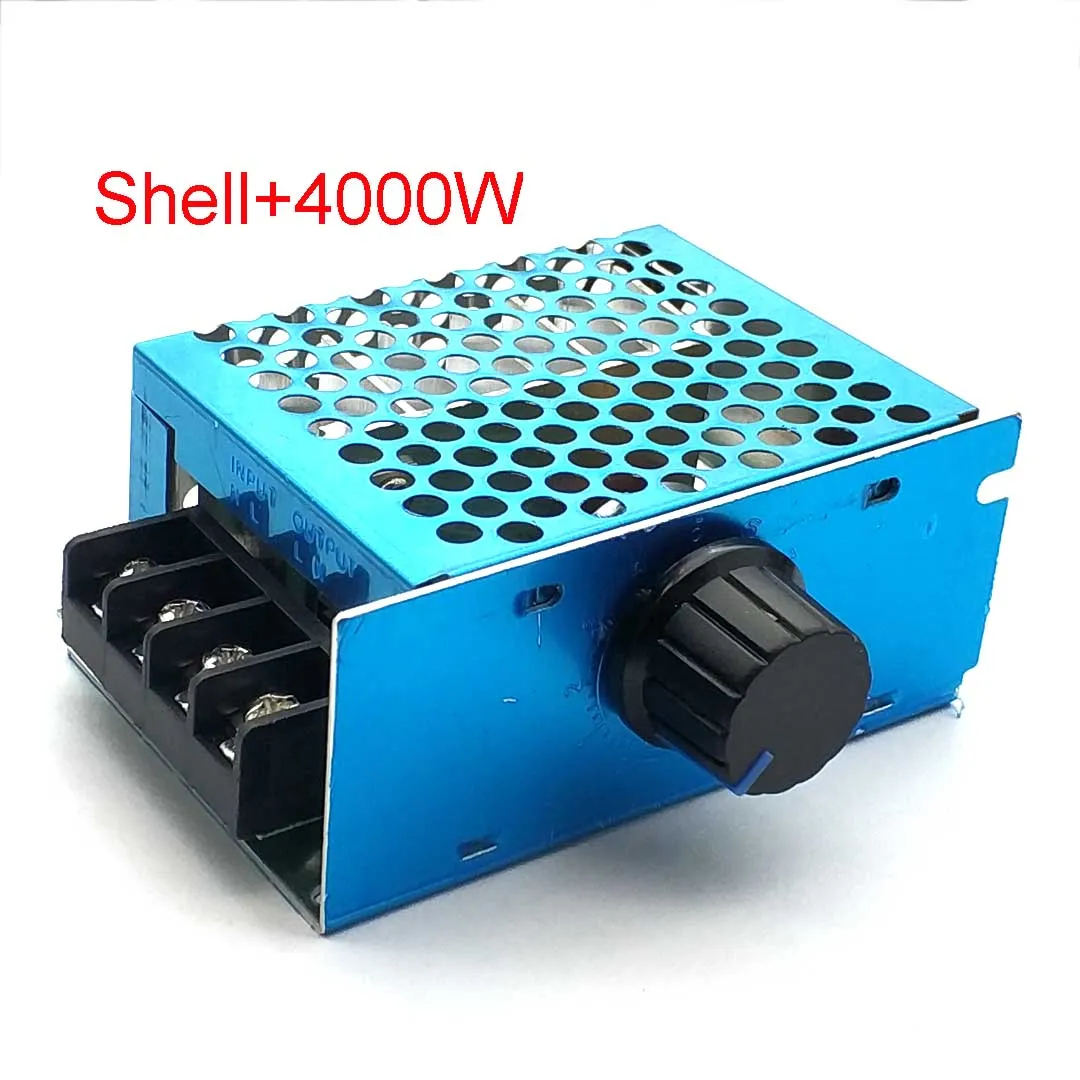

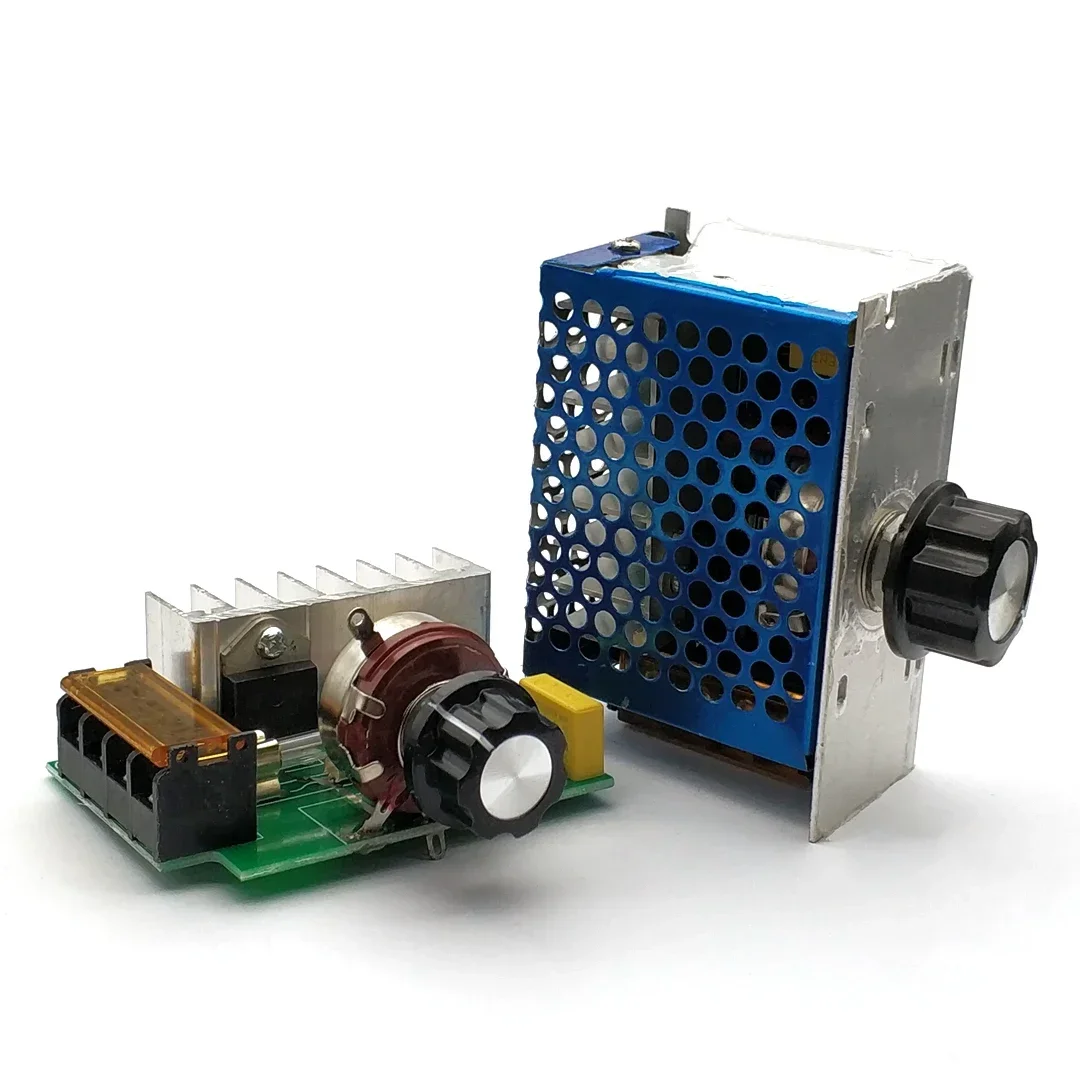

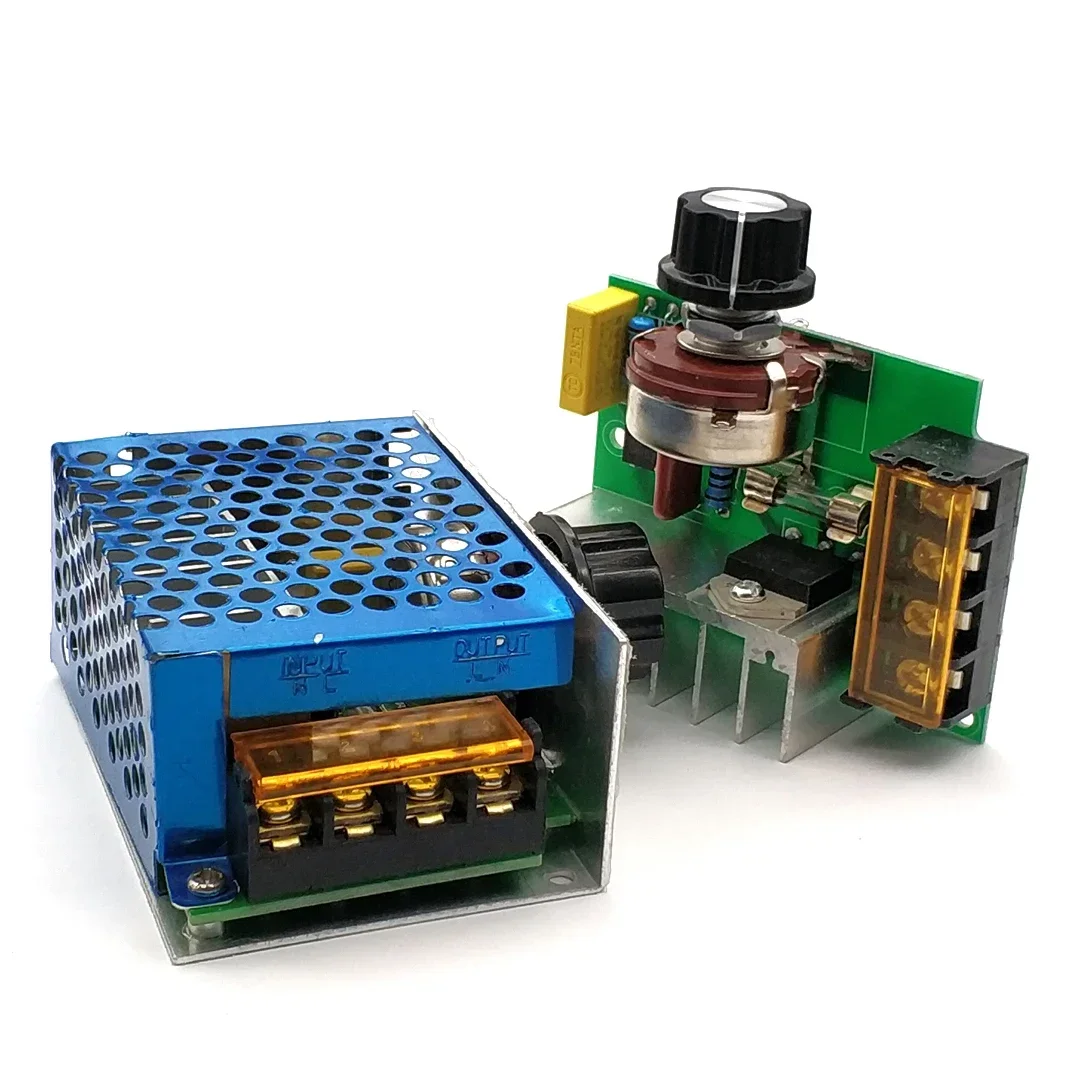

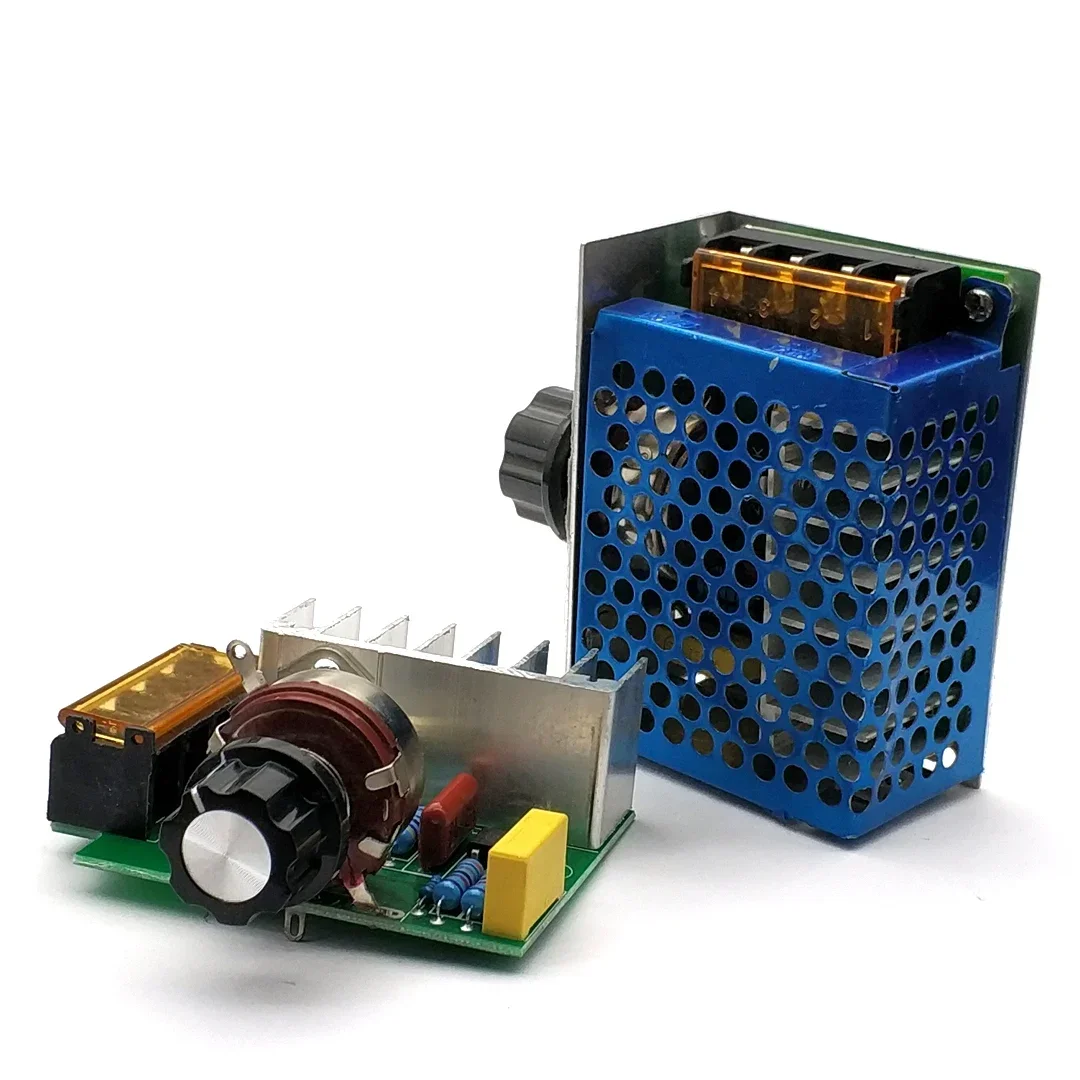

Shell 4000W:
Working Voltage: AC 220V
Maximum Power: 4000W (connected resistive load)
Voltage Regulation:AC 0-220V,Start from AC 10V
Dimensions: 91 x 59(do not include knob) x 34MM
Protection: Anti-spike, Surge, RC absorption (EOC)
How to use:
The input is connected with AC 220V, output is connected to the electric stove wire or motor appliances, then rotate the knob for speed, voltage, temperature control.
Application:
Electric furnace, water heater, lamps, small motor, electric iron etc.
Attention:
Load does not exceed the maximum power, otherwise it will burn module and electrical appliances; use the resistive load as far as possible; reduce inductive and capacitive load power greatly.( it is best to leave more than half of them)

Package Included

1 Pcs AC Voltage Regulator
