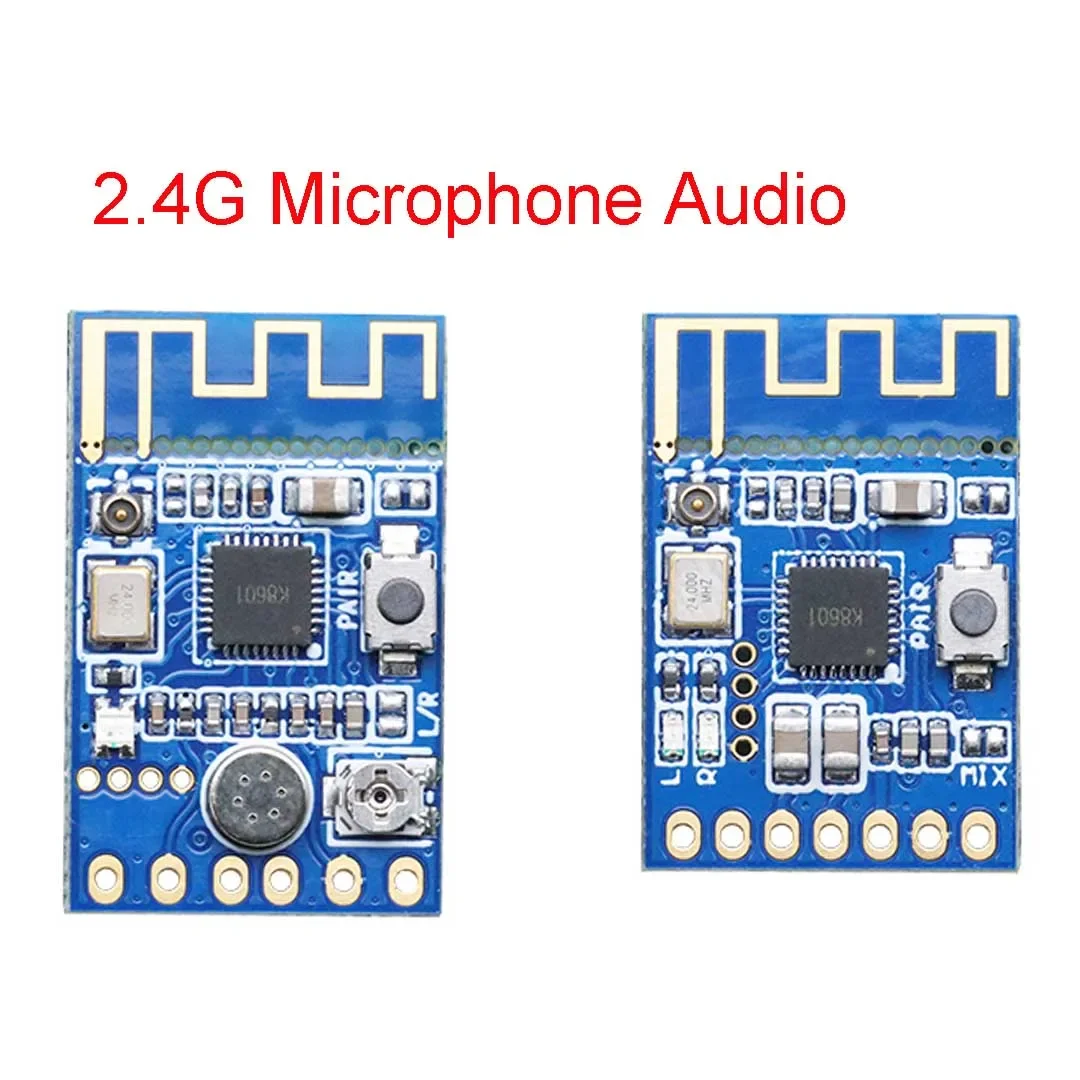

2.4G Wireless Microphone Audio Signal Transmitter Receiver Module 20Hz-20KHz RF Transceiver Board Module PCB Onboard Antenna

2.4G Wireless Microphone Audio Signal Transmitter Receiver Module 20Hz-20KHz RF Transceiver Board Module PCB Onboard Antenna



Description

1. Exclusive 2.4G codec encryption and decryption algorithm, strong transmission confidentiality
2. The wireless transmission distance is 20-30 meters (test in an open environment without blocking)
3. Adopt adaptive frequency hopping communication algorithm, strong anti-interference
4. Support reverberation and noise reduction functions
5. Simple pairing and connection
6. Low latency (15-20ms)

Product parameters:
Working voltage: 3.3-5.0V
Working current: 14mA
Working frequency: 2.400-2.485GHZ
RF output power: +6dbm
Antenna Type: PCB Onboard Antenna
Audio ADC sampling rate: 16Bit/48Khz/64Kbps
Audio ADC frequency response range: 20Hz-20KHz
Microphone Sensitivity: -36db
Transmission delay: 15-20ms (the delay from the input audio signal at the transmitter to the output audio signal at the receiver)
Communication distance: 20-30 meters (open and unobstructed environment)
Transmission method: one send and one receive

Package Included

1 Pcs 2.4G Wireless Microphone Audio Module
