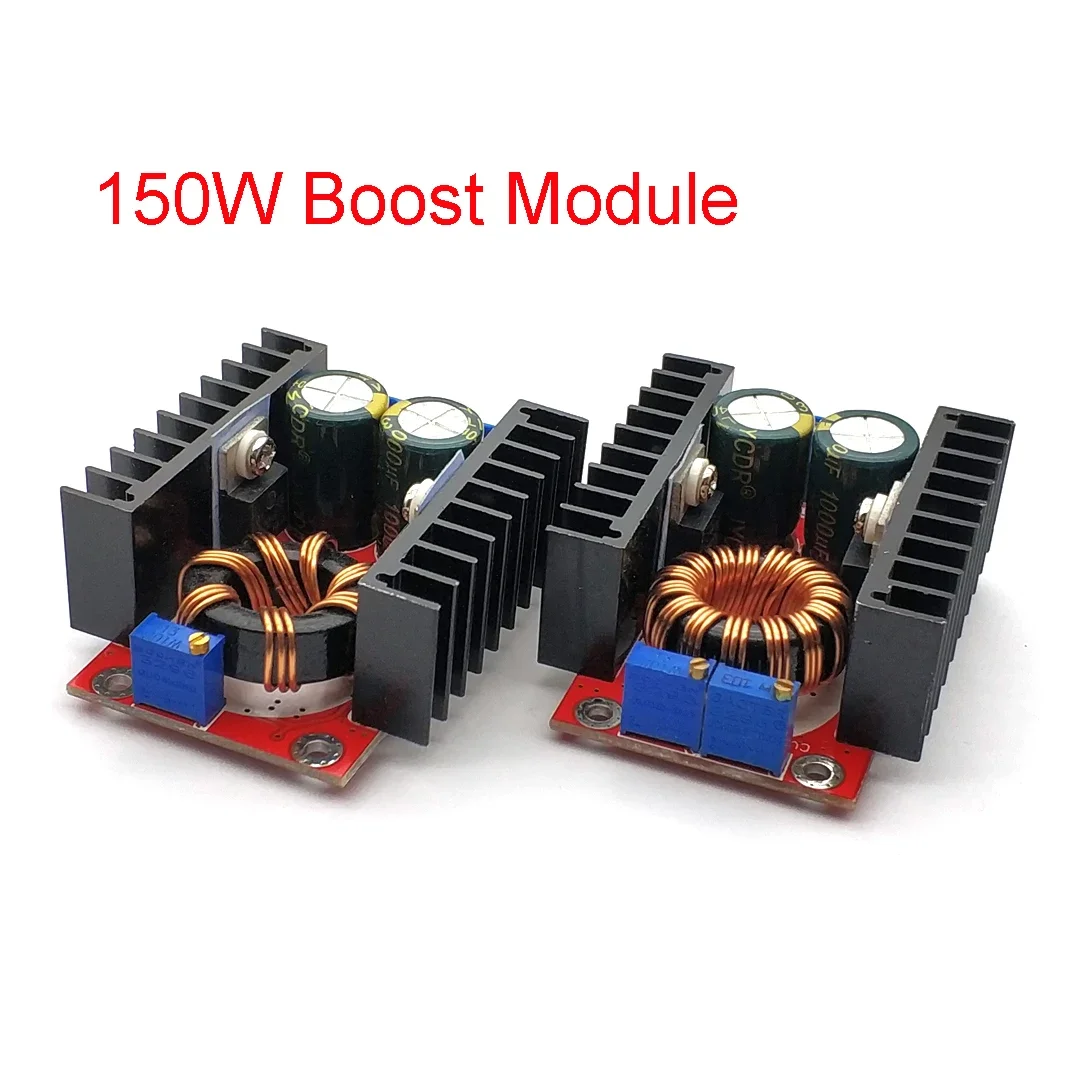

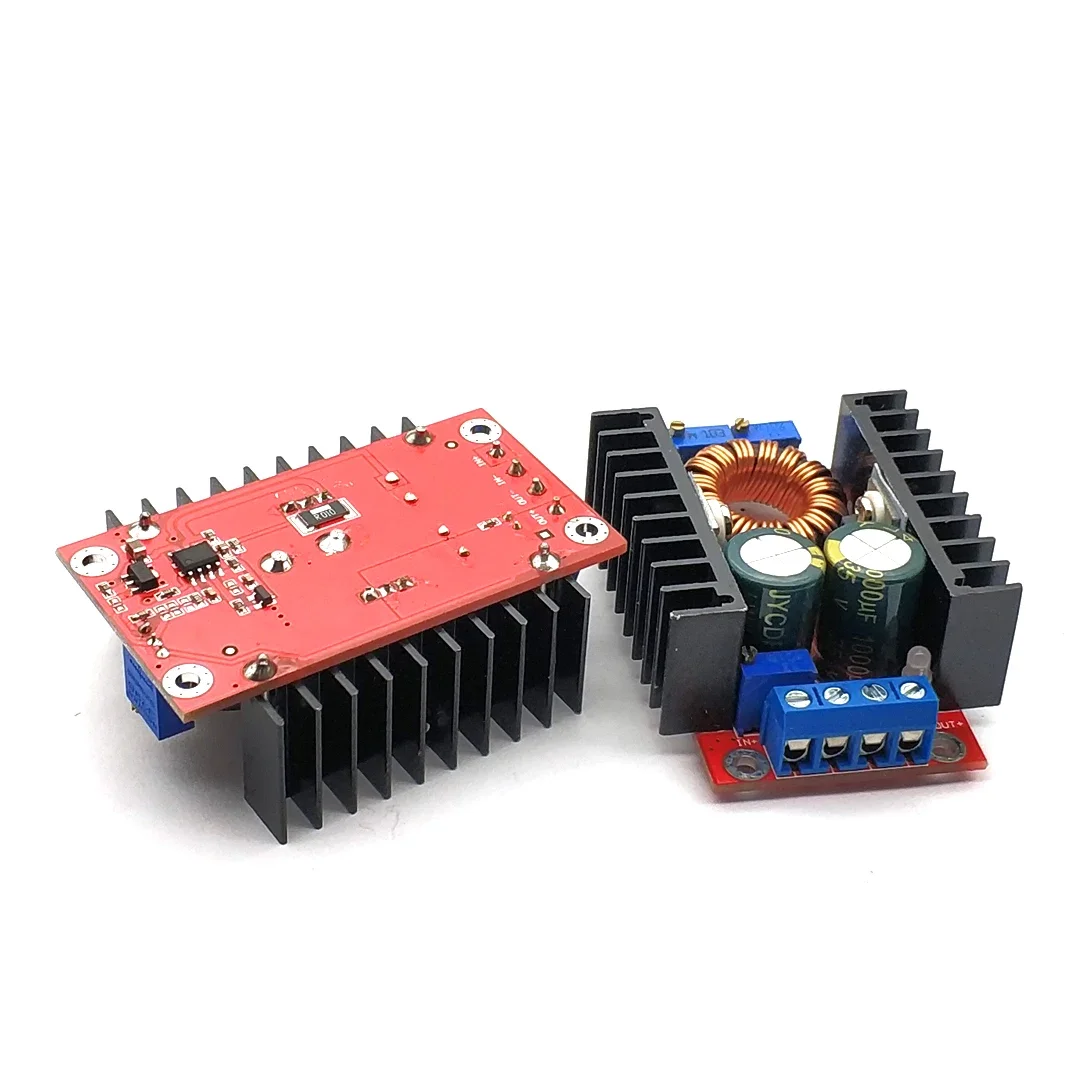

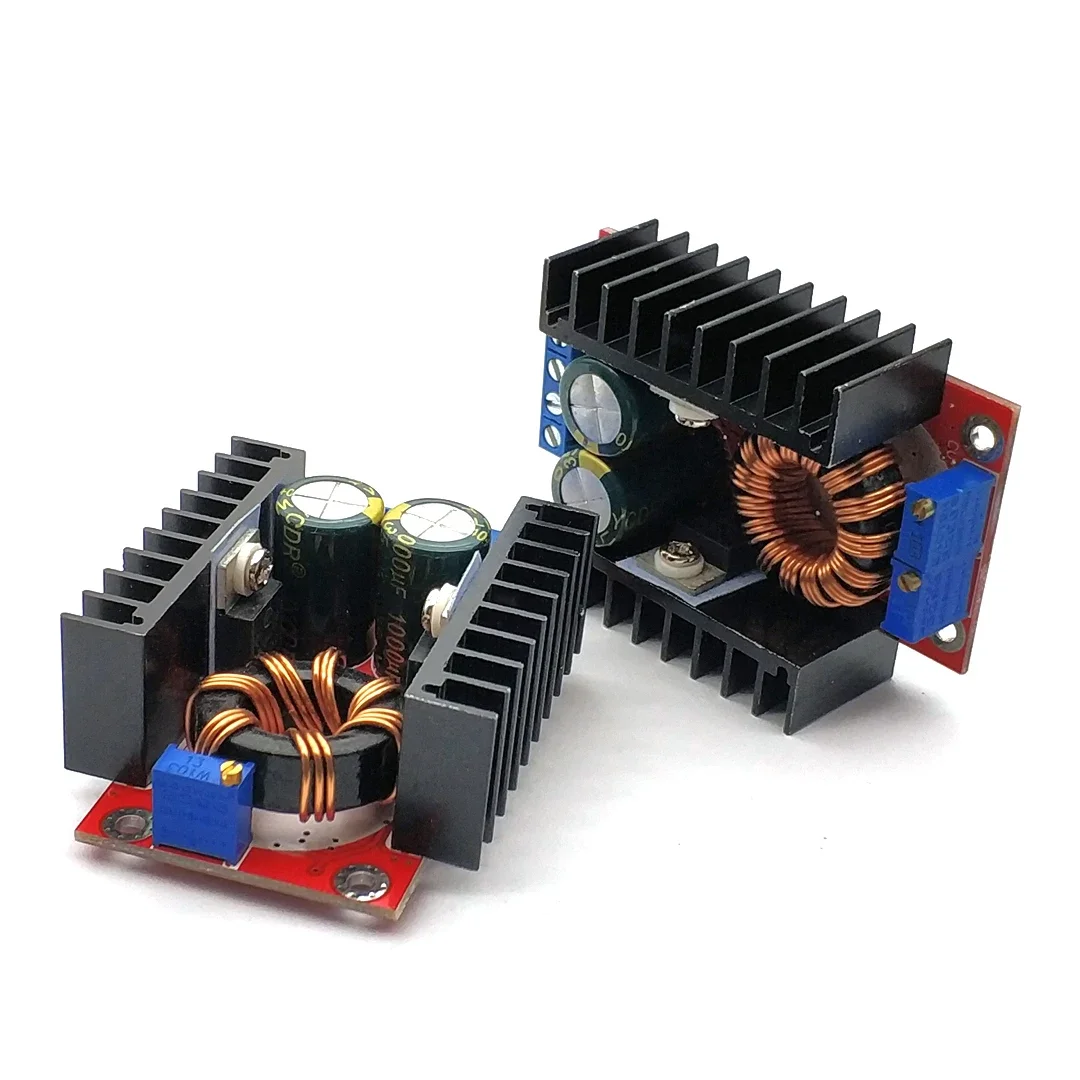

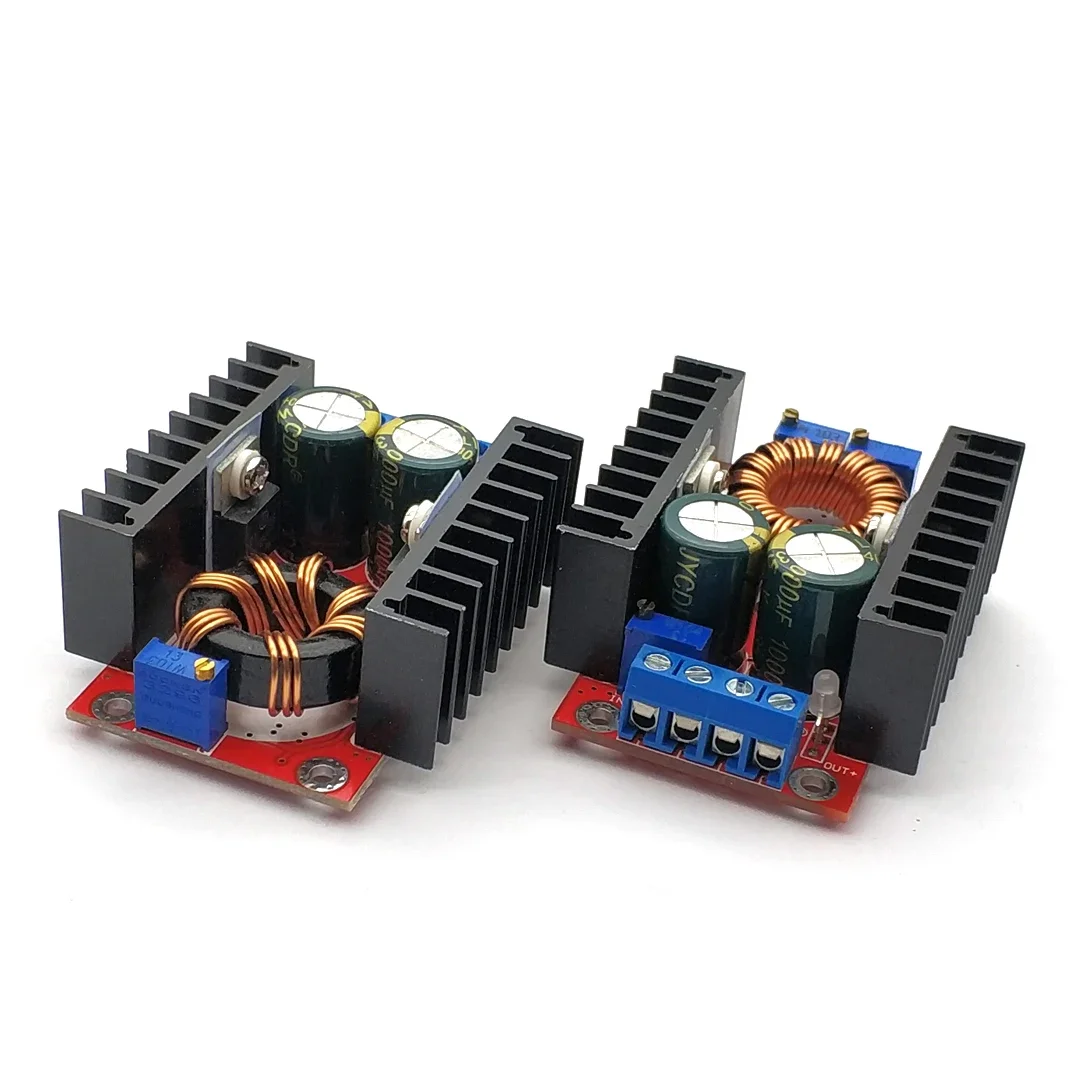

10-30V To 12-35V Step Up CV CC 150W 10A DC DC Boost Converter Car Power Supply LED Driver Charger Adjustable Voltage Regulator

Description150W CV:
Module Properties: non-isolated step-up module (BOOST) 65 * 56.5 * 23 (length * width * high) (mm) Input voltage :10-32V Output voltage: 12-35V (adjustable) Output Current: 6A (MAX) Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A) Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX) Easy to drive 65W 90W dual-core notebook. Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A) Output Ripple: 2% (MAX) 20M-bandwidth Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation) Full load temperature rise: 45c No-load current: 25mA typical Voltage regulation: 0.5% Dynamic response speed: 5% 200uS Short circuit protection: None (Please Install fuses and protection circuits at Input port.) Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some Applications: 1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage. 2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. 150W CV CC: SpecificationDIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
Boost charger Car , laptop power supply Solar battery charger for your electronic equipment Pre-supply system When adjust the blue potentiometer ,please use a multimeter to monitor the voltage Rotating Clockwise can rise the voltage while rotating counterclockwise could lower the voltage When the module output voltage can not be adjusted ( For example, the output voltage is always equal to the input voltage ) Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more untill it works.
Package Included1 Pcs 150W Boost Module
|
| Weight | 0.08 kg |
|---|---|
| Dimensions | 13 × 8 × 5 cm |
| Model | 150W CV, 150W CV CC |
