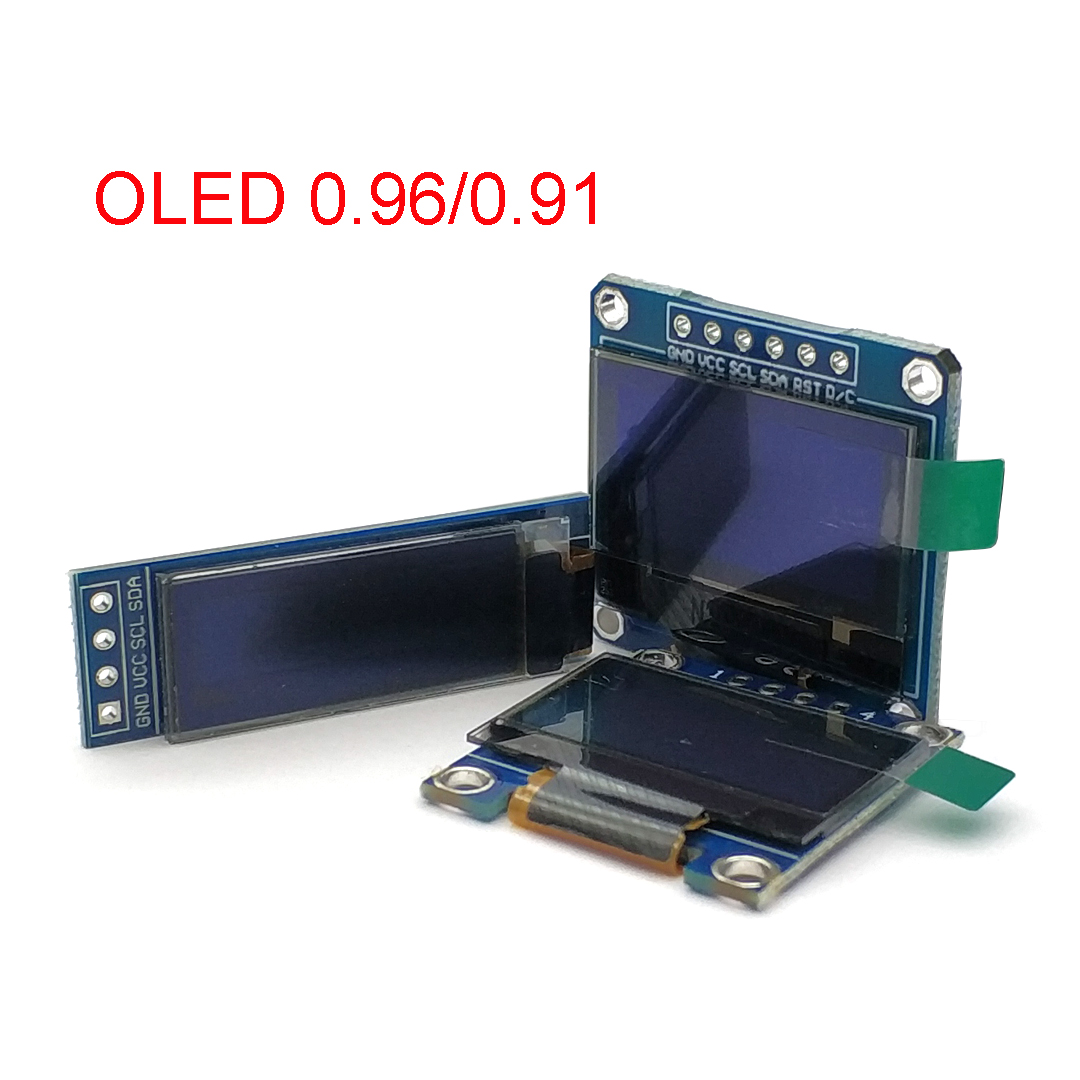

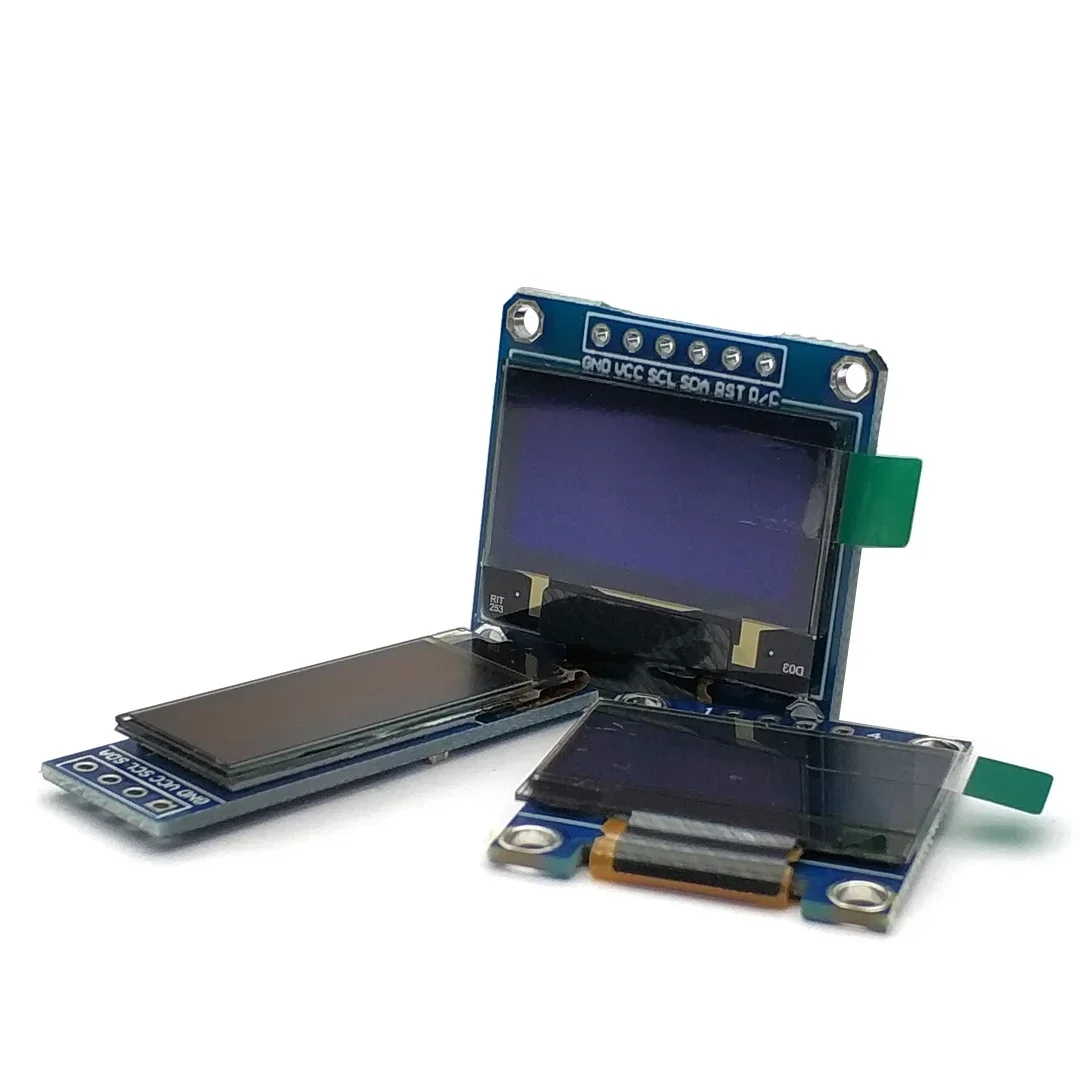

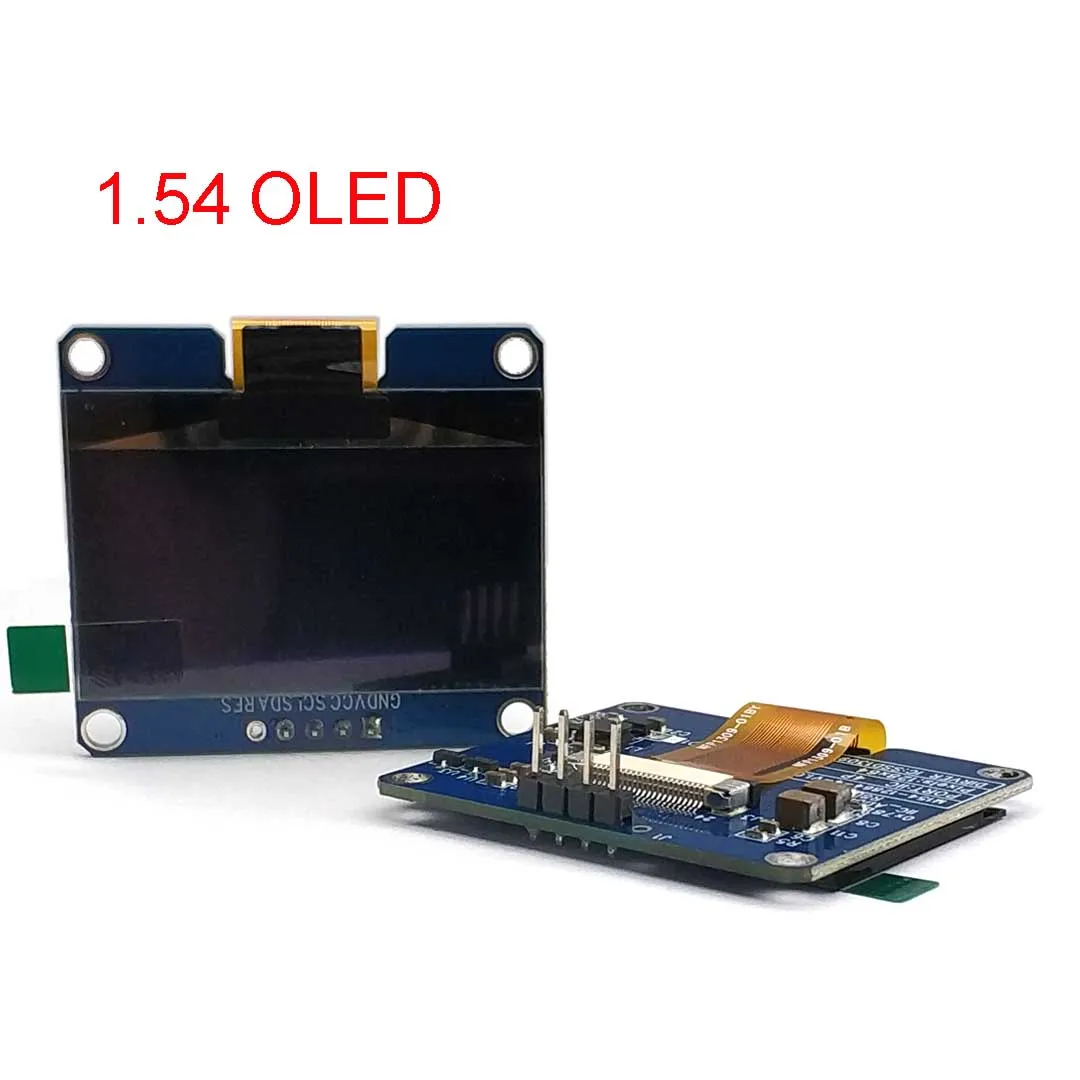

0.91 0.96 1.54 Inch Oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino

0.91 0.96 Inch Oled IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board for Arduino

Description

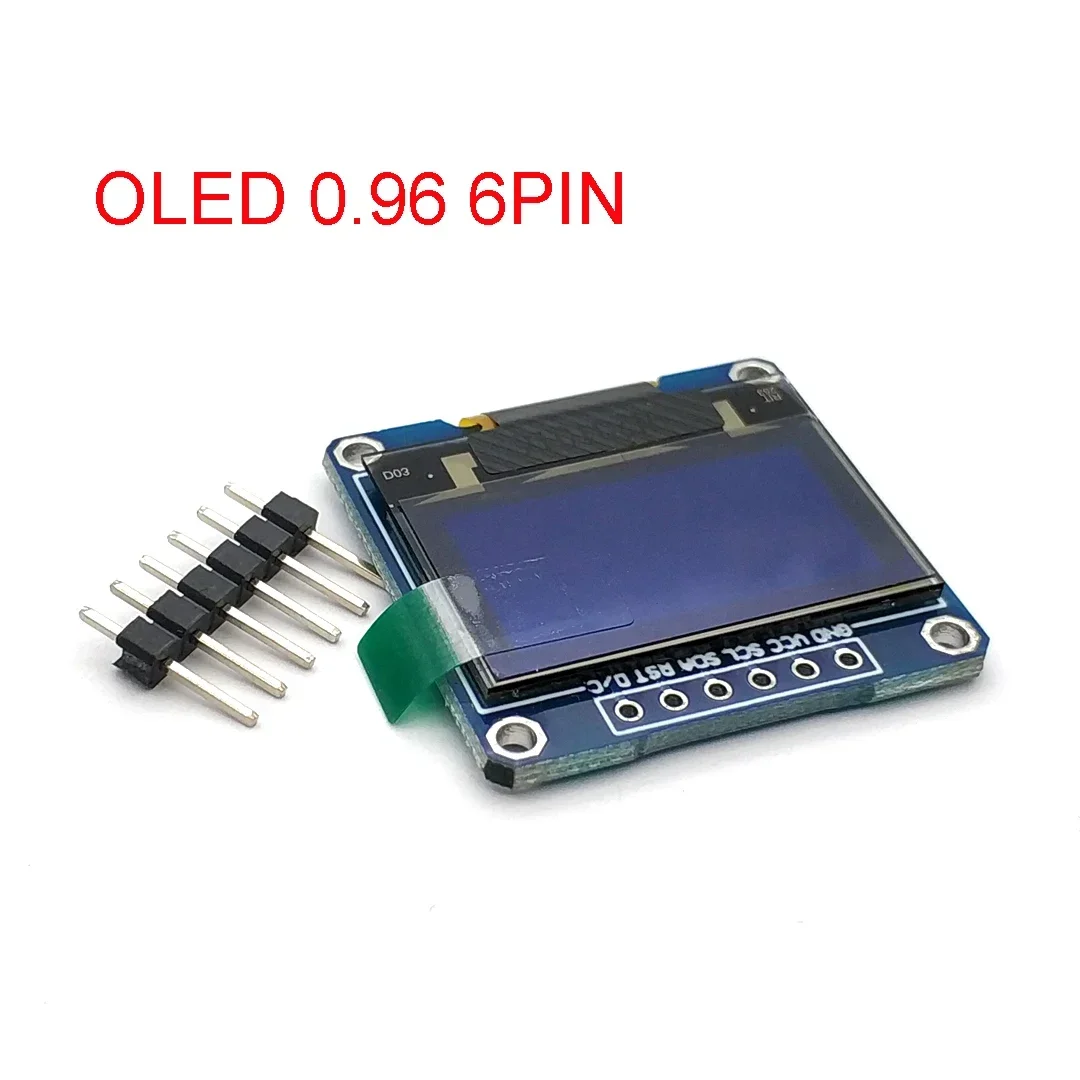

0.96 6Pin OLED

1.Color:Blue / yellow and blue / white

2.Driving Chip:SSD1306

3.Pin Definition:

  1)GND:power ground

  2)VCC:power positive (2.8-5.5V)

  3)D0:clock wire

  4)D1:data wire

  5)RES:reset wire

  6)DC:data/command

4.Interface Type:SPI,IIC

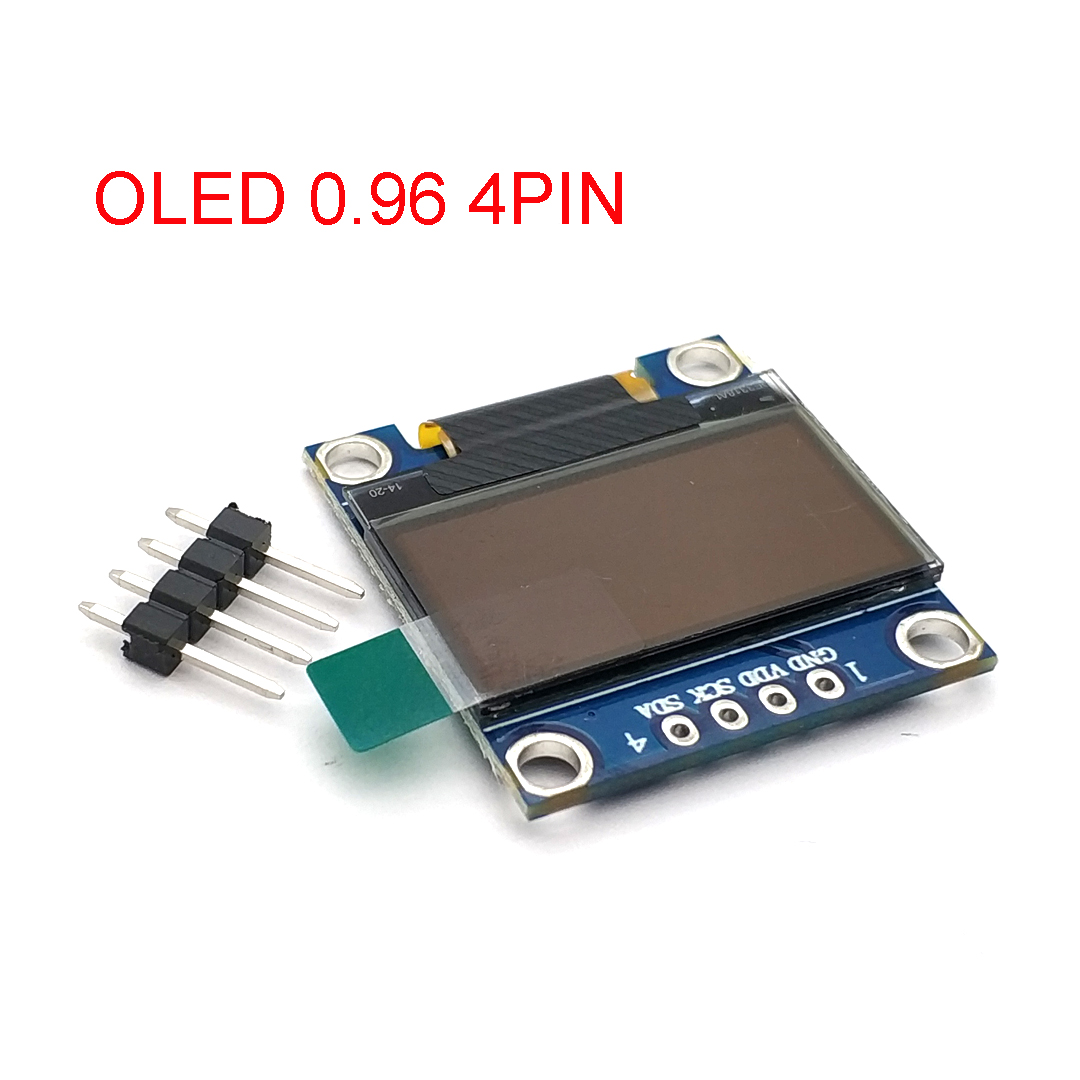

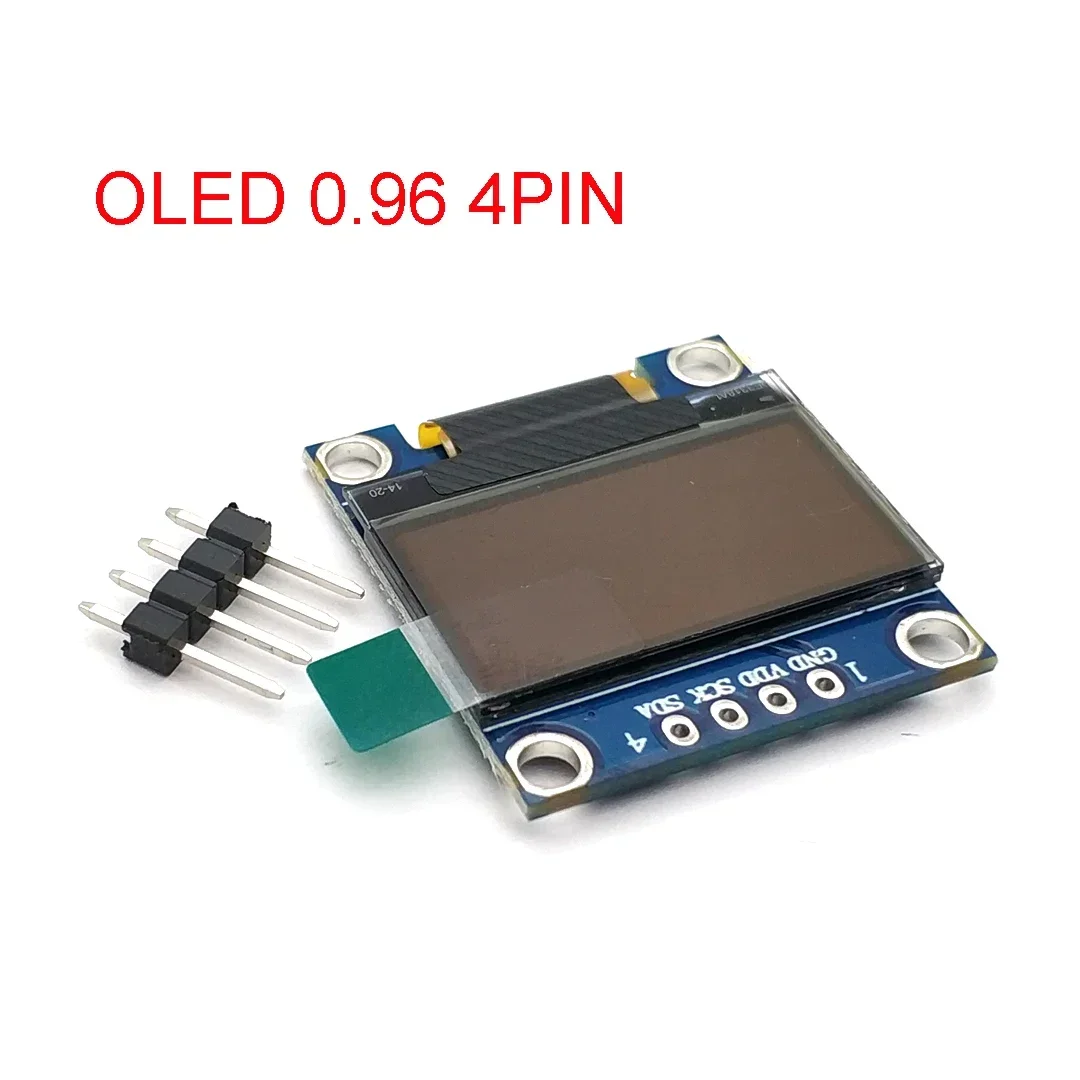

0.96 4Pin OLED

128*64 LED display module for Arduino, supports many control chip.

Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Super high brightness and contrast are adjustable

With embedded driver/controller

Interface type is IIC

Pin Definition: GND, VCC ,SCL, SDA

Pins: 4 pins

Voltage: 3V ~ 5V DC

Working Temperature: -30 ° ~ 70 °

Drive Duty: 1/64 Duty

High resolution: 128 * 64

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)

Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

Driver IC: SSD1306

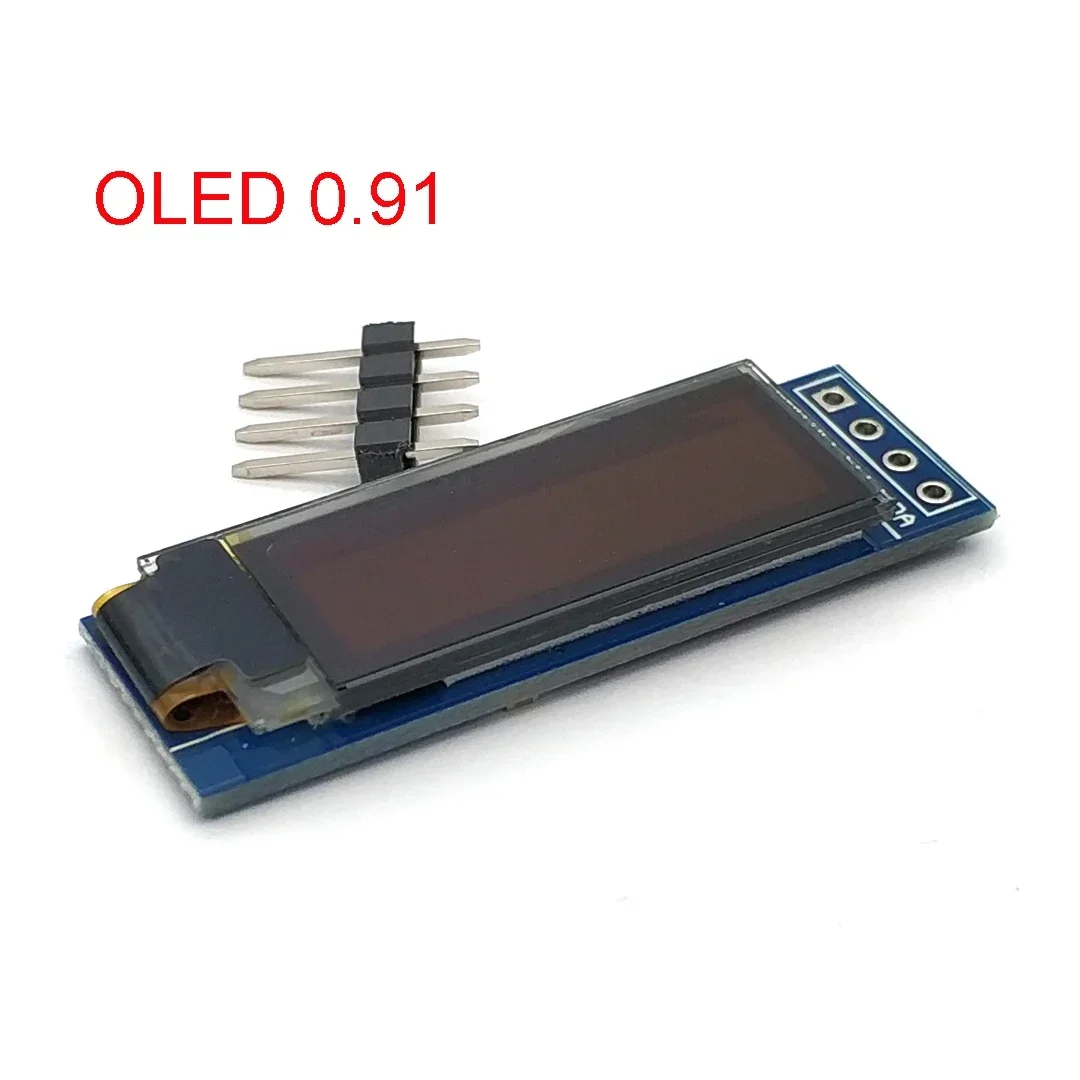

0.91 4Pin OLED

OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.

Driver IC: SSD1306

Size: 0.91 inch OLED

Resolution: 128 x 32

IIC interface

Display Color: White / Blue

Pin Description:

GND: Power Ground

VCC: Power + (DC 3.3 ~5v)

SCL: Clock Line

SDA: Data Line

Package Included

1 Pcs OLED Display Module
